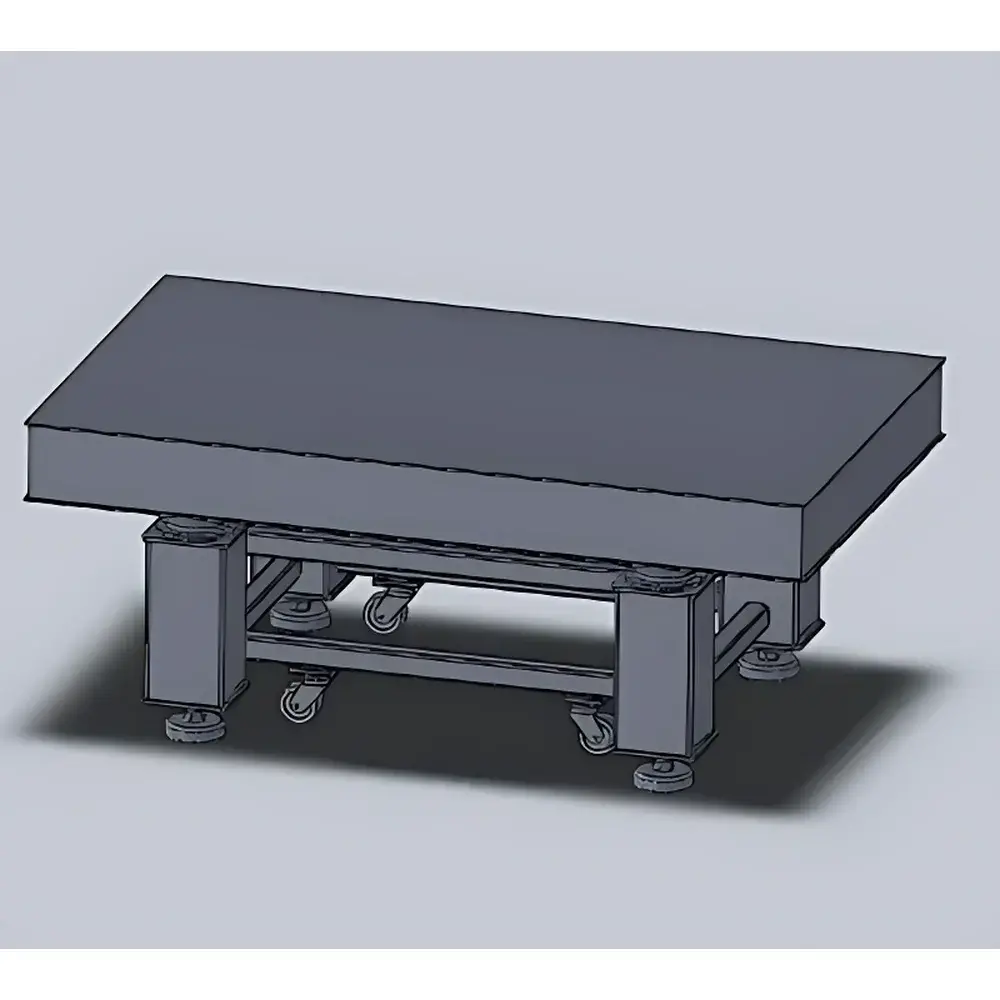

ZOLIX THR Series True Honeycomb Pneumatic Isolation Optical Table

Overview

The ZOLIX THR Series True Honeycomb Pneumatic Isolation Optical Table is an engineered solution for ultra-stable optical and precision metrology environments where sub-micron positional stability and low-frequency vibration attenuation are critical. Unlike conventional honeycomb-core or solid steel platforms, the THR series implements a rigorously validated true honeycomb internal support architecture—comprising precisely formed, bonded aluminum or steel hexagonal cells—distributed uniformly across the entire platform volume. This geometry maximizes stiffness-to-mass ratio while minimizing internal resonance modes. Combined with a dual-chamber pneumatic isolation system featuring imported high-linearity air springs and real-time pressure feedback sensors, the platform achieves an inherent resonant frequency below 2–3.5 Hz—well below typical floor-borne disturbances (e.g., HVAC, footfall, building sway). The top surface is precision ground ferromagnetic stainless steel (4–6 mm thick), optimized for magnetic component mounting and long-term dimensional stability. All structural interfaces—including side panel lamination (carbon steel core + black aluminum-plastic cladding) and stainless steel corner reinforcement—are designed to suppress panel-mode vibrations and ensure mechanical integrity under sustained static and dynamic loading.

Key Features

• True honeycomb core structure—fully continuous, load-bearing cellular lattice—not simulated or partial honeycomb—ensuring uniform modal damping and elevated first bending mode frequency.
• Precision-ground top plate with flatness of 0.02–0.05 mm over 600 mm × 600 mm measurement area, exceeding ISO 10360-2 geometric tolerance benchmarks for metrology-grade surfaces.
• M6 threaded mounting holes on a strict 25 mm × 25 mm orthogonal grid, enabling repeatable, traceable positioning of translation stages, kinematic mounts, and interferometric optics.
• Dual-stage pneumatic isolation: primary air spring chamber coupled with secondary passive damping pads at each leg base, delivering broadband attenuation from 0.5 Hz to >100 Hz.
• Three independently adjustable, high-sensitivity imported leveling valves with sub-second response time—enabling rapid, stable re-leveling after equipment reconfiguration or environmental thermal drift.
• Modular height adjustment mechanism (±20 mm range) integrated into each support column—designed and patented by ZOLIX—eliminates need for shims or external spacers during installation or maintenance.

Sample Compatibility & Compliance

The THR series is compatible with standard optical components including motorized translation stages (e.g., Thorlabs K10CR1, Newport IMS series), multi-axis goniometers, laser cavities, interferometers (e.g., Zygo Verifire), and quantum optics setups requiring long coherence times. Its structural rigidity and low modal density support payloads up to 300 kg (depending on thickness variant) without measurable deflection-induced wavefront error. From a regulatory standpoint, the platform’s vibration transmission loss profile conforms to ASTM E1776 (Standard Guide for Vibration Specifications for Equipment), ISO 10816-5 (Evaluation of machine vibration by measurements on non-rotating parts—Part 5: Machine sets in power stations and pump installations), and SEMI S2–0215 (Safety Guideline for Semiconductor Manufacturing Equipment), particularly relevant for cleanroom-integrated photolithography alignment systems and wafer inspection tools. Surface finish and material selection comply with RoHS 2011/65/EU and REACH Annex XVII requirements.

Software & Data Management

While the THR series is a passive mechanical system, its pneumatic subsystem includes analog pressure output interfaces (0–10 V DC or 4–20 mA) compatible with third-party data acquisition systems (e.g., National Instruments CompactDAQ, Keysight DAQ970A). Optional OEM integration kits allow real-time monitoring of chamber pressure differentials, enabling predictive maintenance logging and correlation with environmental vibration spectra. For GLP/GMP-aligned laboratories, ZOLIX provides full traceability documentation—including material certifications (EN 10088-1 for stainless steel, ASTM A1011 for carbon steel), calibration records for leveling valve hysteresis, and finite element analysis (FEA) reports verifying modal performance under ISO 2041-2 boundary conditions. All documentation adheres to FDA 21 CFR Part 11-compliant electronic record retention protocols when delivered via secure client portal.

Applications

• High-resolution laser interferometry and gravitational wave detector prototype testing, where sub-nanoradian angular jitter must be suppressed.
• Atomic force microscopy (AFM) and scanning tunneling microscopy (STM) installations requiring isolation from 1–10 Hz microseismic noise.
• Quantum computing testbeds involving trapped-ion or superconducting qubit arrays, sensitive to platform acceleration noise below 5 Hz.
• Photonic integrated circuit (PIC) packaging and active alignment stations demanding thermal and vibrational stability over multi-hour bonding cycles.
• NIST-traceable optical encoder calibration benches, where platform deformation must remain below λ/20 PV over operational temperature ranges (18–23 °C).

FAQ

What distinguishes “true honeycomb” from conventional honeycomb-core optical tables?
True honeycomb refers to a monolithic, fully interconnected cellular lattice fabricated as a single structural unit—unlike segmented or adhesive-bonded cores—which eliminates inter-cell slippage and preserves shear rigidity across the full frequency spectrum.
Can the THR platform be integrated into an existing cleanroom floor with limited clearance?
Yes—the 800 mm total height includes 150 mm leg clearance; optional low-profile legs (720 mm total height) are available upon request, maintaining full isolation performance through recalibrated air spring tuning.
Is surface flatness guaranteed after installation on uneven laboratory floors?
Flatness specifications apply to the machined top surface prior to installation; post-installation planarity is maintained via the three-point leveling system and rigid baseplate design—verified by laser tracker measurement per ISO 10360-8 Annex B.
Does ZOLIX provide seismic anchoring solutions for earthquake-prone regions?
Yes—optional seismic restraint kits compliant with IBC 2021 Section 1621 and ASCE 7-22 are available, including moment-resisting floor anchors and lateral bracing compatible with 100/200/300 mm platform variants.
Are M6 thread inserts replaceable if damaged during long-term use?
All threaded inserts are press-fit stainless steel helicoils with Loctite 271 retention; replacement kits—including torque-spec driver tools and insertion jigs—are supplied with extended warranty packages.
