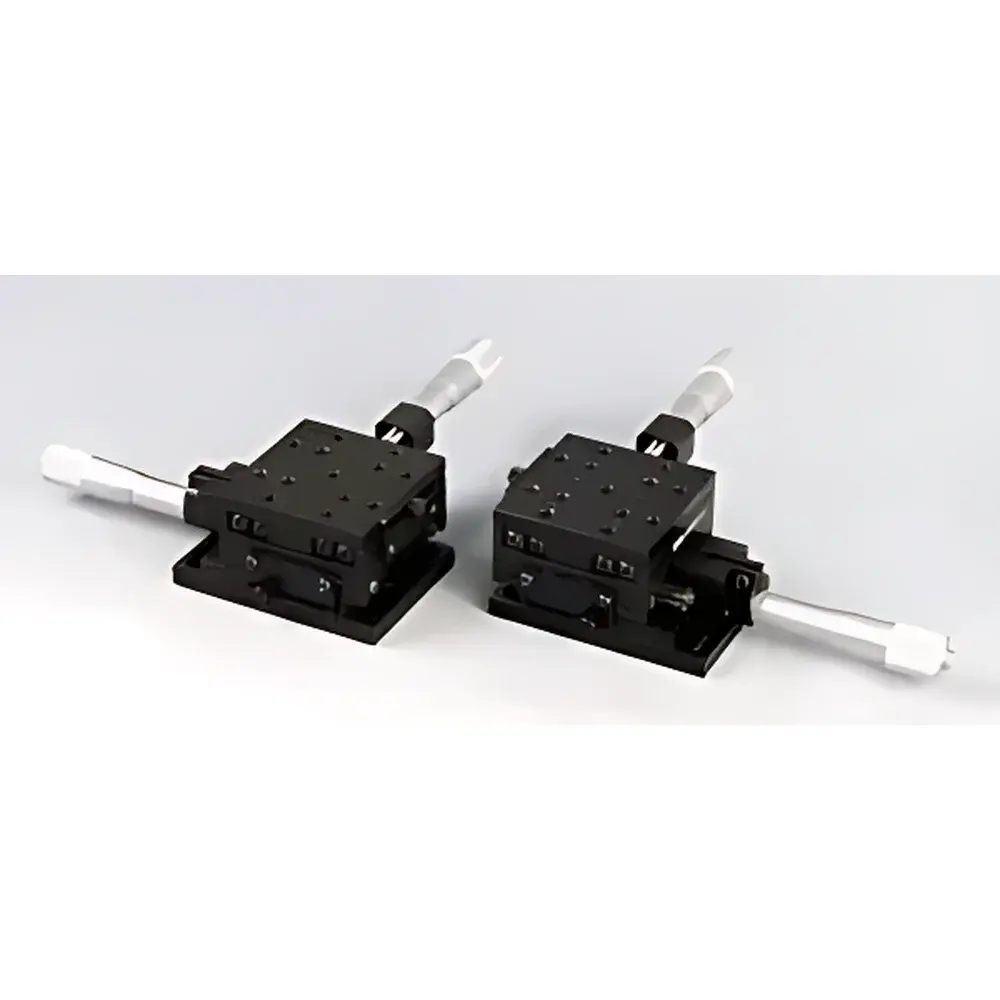

ZOLIX TSMW25R-XY-1A(L) Integrated Multi-Axis Translation Stage
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TSMW25R-XY-1A(L) |
| Axes | XY (2-axis) |
| Travel per Axis | 25 mm |
| Angular Deviation (Pitch/Yaw) | <30 arcseconds |
| Drive Mechanism | Micrometer Screw |
| Minimum Scale Division | 0.01 mm |
| Repeatability Sensitivity | 0.001 mm |
| Load Capacity | 10 kg |
| Mass | 0.7 kg |
| Hand Configuration | Left-Handed (L-suffix denotes left-hand micrometer orientation) |
Overview
The ZOLIX TSMW25R-XY-1A(L) Integrated Multi-Axis Translation Stage is a precision mechanical positioning platform engineered for high-stability optical alignment in laboratory and production environments. Built on a monolithic base architecture, it integrates X- and Y-axis translation mechanisms within a single rigid aluminum body—minimizing thermal drift, mechanical coupling, and cumulative error across axes. Motion is realized via dual micrometer-driven lead screws operating on crossed-roller linear bearings, ensuring low-friction, high-reproducibility translation with sub-micron positional stability under static load. Unlike stacked or modular multi-axis stages, the integrated design eliminates inter-stage interfaces that introduce hysteresis, tilt, or orthogonality error—critical for beam path alignment, fiber coupling, and interferometric setup where angular deviation must remain below 30 arcseconds over full travel.
Key Features
- Monolithic aluminum construction with CNC-machined base and carriage—enhances dimensional stability and damping characteristics.
- Crossed-roller linear guides on both X and Y axes provide straightness accuracy better than ±1 µm over 25 mm travel and support bidirectional repeatability of ±1 µm (typical).
- Left-hand micrometer configuration (denoted by “L” suffix) places both micrometer knobs on the operator’s left side for ergonomic access in right-handed bench layouts; right-hand variants available upon request.
- Spring-return mechanism eliminates backlash and ensures consistent preloading of the drive train—critical for fine adjustment without manual zeroing.
- Z-axis lifting capability (via optional micrometer adapter) supports vertical payload elevation up to 10 kg, exceeding typical spring-lift stage limits while maintaining axial stiffness >25 N/µm.
- Micrometer drives feature engraved 0.01 mm graduations and vernier-assisted reading for manual resolution down to 0.001 mm—compatible with ISO 9001-certified calibration workflows.
Sample Compatibility & Compliance
The TSMW25R-XY-1A(L) is designed for integration with standard optical components including lens mounts, mirror holders, fiber positioners (e.g., ZOLIX APFP-series fiber aligners), and photonic packaging fixtures. Its 25 mm travel range and ≤10 kg load rating accommodate most collimators, isolators, and micro-optic assemblies used in telecom, quantum optics, and laser manufacturing lines. The stage complies with RoHS Directive 2011/65/EU for hazardous substance restrictions and meets mechanical safety requirements per ISO 12100 for manually operated positioning equipment. While not certified for cleanroom Class 100 use out-of-box, its anodized aluminum surfaces and absence of lubricant migration make it suitable for ISO Class 5 (Class 100,000) environments when paired with dry-lubricated accessories.
Software & Data Management
As a manually operated mechanical stage, the TSMW25R-XY-1A(L) does not incorporate embedded electronics, motors, or digital interfaces. It is fully compatible with third-party motion control ecosystems—including Thorlabs Kinesis, Newport APT, and LabVIEW-based DAQ systems—when used in conjunction with external encoders or vision-based metrology tools (e.g., Mitutoyo Quick Vision or Keyence IM Series). For traceable calibration records, users may log micrometer readings alongside interferometric or autocollimator verification data in accordance with ISO/IEC 17025 requirements. Audit trails for positional adjustments can be maintained using electronic lab notebooks (ELNs) compliant with FDA 21 CFR Part 11 when linked to timestamped imaging or power-monitoring logs during fiber coupling procedures.
Applications
- Fiber-to-lens and fiber-to-waveguide active alignment in photonic device packaging lines.
- Coarse/fine positioning of objective lenses in confocal microscopy and optical coherence tomography (OCT) test benches.
- Alignment of pump/signal combiners and WDM couplers in high-power fiber laser assembly.
- Stabilized sample mounting for Raman spectroscopy and photoluminescence mapping where thermal expansion-induced drift must be minimized.
- Integration into automated optical inspection (AOI) stations as a manual backup or coarse-adjustment module during system commissioning and maintenance.
FAQ
Is the TSMW25R-XY-1A(L) compatible with vacuum environments?
No—standard anodized aluminum construction and grease-lubricated micrometer threads are not vacuum-rated. Custom dry-film lubrication and vacuum-compatible surface treatments are available under OEM agreement.
Can this stage be retrofitted with motorized actuators?
Yes—ZOLIX offers optional motorization kits (stepper or piezo-driven) for X/Y axes; retrofit requires mechanical modification and firmware integration through ZOLIX Application Support.
What is the maximum angular deviation over full travel in pitch and yaw?
<30 arcseconds (0.0083°) per axis, measured per ISO 230-2 Annex B using autocollimation.
Does the “L” in the model number affect performance or only ergonomics?
Only ergonomics—the L designation indicates left-hand micrometer orientation; all mechanical specifications, load capacity, and accuracy remain identical to the right-hand variant.
Is calibration documentation provided with shipment?
A factory-assembled mechanical verification report (including travel linearity and orthogonality check) is included. NIST-traceable calibration certificates are available as a value-added service upon request.
