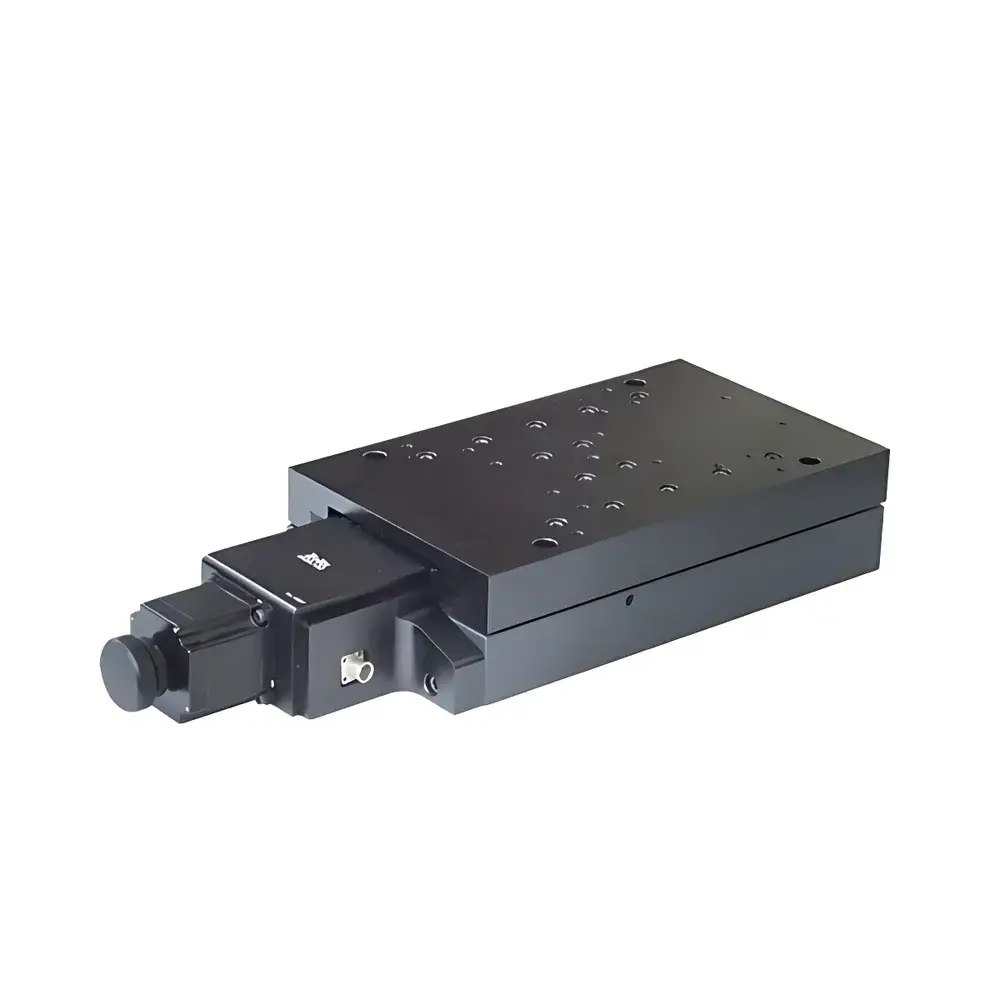

ZOLIX uKSA100 Ultra-High-Precision Motorized Linear Translation Stage

Overview

The ZOLIX uKSA100 is an ultra-high-precision motorized linear translation stage engineered for applications demanding sub-micron positional repeatability and long-term mechanical stability in optical and metrological environments. Based on a robust kinematic architecture combining C3-grade preloaded ball screw actuation with high-rigidity crossed-roller bearing guidance, the uKSA100 delivers deterministic motion control under both static and dynamic loading conditions. Its closed-loop positioning system integrates a high-stability optical grating scale with direct readout electronics, enabling real-time position feedback at 0.1 µm resolution — a specification aligned with ISO 230-2 Annex B requirements for volumetric error compensation in precision motion systems. The stage’s monolithic aluminum base undergoes multi-stage precision grinding and anodizing to minimize thermal drift and maintain geometric integrity across ambient temperature fluctuations typical in cleanroom and laser laboratory settings.

Key Features

• 0.1 µm closed-loop resolution via integrated high-line-density optical grating encoder, eliminating reliance on open-loop step interpolation
• C3-precision ground ball screw (DIN 69051) with preloaded nut assembly, ensuring axial backlash < 1 µm and bi-directional repeatability ≤ ±0.2 µm
• Crossed-roller linear guide rails with V-groove raceways and hardened steel rollers, providing > 50 N radial load capacity and angular deviation < 2 arcsec over full travel
• Structurally optimized 6061-T6 aluminum base with stress-relieved casting and five-axis CNC surface finishing to achieve flatness ≤ 3 µm over 100 mm length
• Three-phase stepper motor with microstepping driver interface (compatible with MC6003P and TMC-USB controllers), reducing torque ripple and mechanical resonance during low-velocity scanning
• Standard M4 and M6 mounting patterns on top and base surfaces, supporting modular integration into multi-axis goniometric or XYZ stacking configurations

Sample Compatibility & Compliance

The uKSA100 is designed for integration into optical alignment benches, interferometric measurement setups, confocal microscopy stages, and ultrafast laser beam steering systems where positional fidelity directly impacts measurement uncertainty. It complies with mechanical interface standards defined in ISO 10110-7 (optical component mounting) and supports vacuum-compatible variants (upon request) meeting outgassing specifications per ASTM E595. While not certified to IEC 61000-6-2/6-4 for EMC, its low-noise motor drive architecture minimizes electromagnetic interference in sensitive photodetector environments. The manufacturing process adheres to ISO 9001:2015 quality management protocols, with traceable calibration records available for encoder linearity verification against NIST-traceable interferometric standards.

Software & Data Management

The uKSA100 operates natively with ZOLIX’s MC6003P multi-axis motion controller and TMC-USB series, offering ASCII-based serial command sets (e.g., “MOV X=50.123”) compatible with LabVIEW™, MATLAB® Instrument Control Toolbox, and Python (pySerial). Controller firmware supports programmable acceleration profiles, position-triggered TTL outputs for synchronized data acquisition, and non-volatile memory storage of up to 32 user-defined waypoints. All motion logs—including timestamped position, velocity, current draw, and encoder error residuals—are exportable in CSV format for GLP-compliant audit trails. Optional SDKs provide API-level access to real-time encoder quadrature decoding and PID loop parameter tuning, facilitating custom trajectory generation for fly-scan imaging or adaptive focus correction routines.

Applications

• Sub-wavelength alignment of fiber-coupled lasers and free-space optical components in quantum optics experiments
• High-resolution surface profilometry using white-light interferometry or confocal chromatic sensors
• Precision stage for maskless lithography systems requiring nanometer-level overlay accuracy between exposure fields
• Automated calibration of coordinate measuring machines (CMMs) and laser trackers using artifact-based reference standards
• Stabilized sample positioning in time-resolved pump-probe spectroscopy, where mechanical jitter must remain below 50 fs RMS equivalent displacement
• Integration into automated wafer inspection platforms compliant with SEMI E10 and E83 standards for semiconductor metrology

FAQ

What is the maximum bidirectional repeatability specification for the uKSA100 under standard lab conditions?

Bidirectional repeatability is ≤ ±0.2 µm (3σ) when operated within 20–25 °C ambient temperature and mounted on a granite optical table with vibration isolation.
Can the uKSA100 be operated in vertical orientation with full rated load?

Yes — the crossed-roller guide system and preloaded ball screw are rated for continuous vertical operation up to 5 kg axial load; however, active brake engagement is recommended during power-off states.
Is the grating scale calibrated independently prior to shipment?

Each unit undergoes interferometric calibration using a Renishaw XL-80 laser system; calibration certificate includes linearity error map across full travel and thermal expansion coefficient derivation.
Does the stage support analog voltage input for external position control?

No — position control is exclusively digital (RS-232/USB) via ZOLIX controllers; analog input capability requires optional OEM firmware upgrade and external DAC module.
What maintenance intervals are recommended for long-term performance retention?

Lubrication of ball screw and guide rails is required every 2,000 km of cumulative travel or biannually, whichever occurs first; use only Klüber Isoflex LDS 18 special grease (ISO 6743-9 classification).
