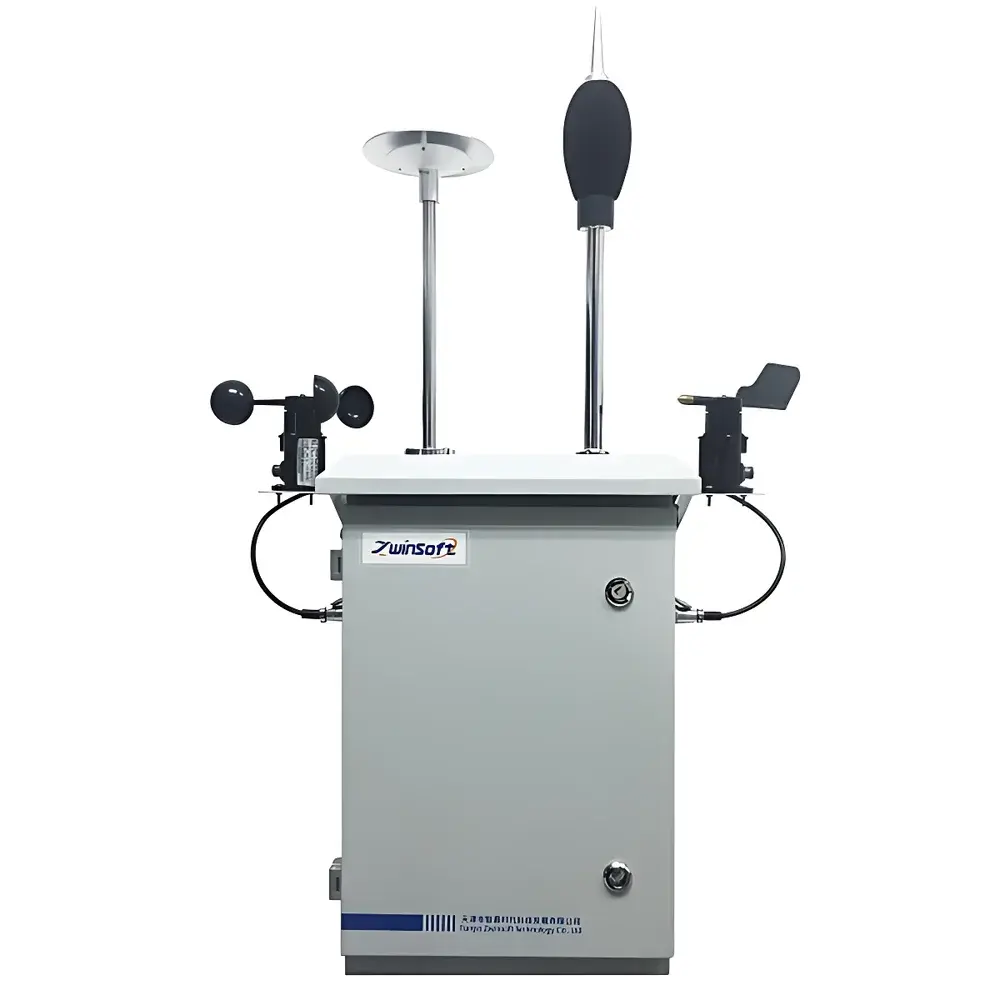

ZWIN-YC06-PLAT Integrated Construction Site Dust & Air Quality Monitoring Platform

Overview

The ZWIN-YC06-PLAT Integrated Construction Site Dust & Air Quality Monitoring Platform is an industrial-grade, all-in-one environmental surveillance system engineered for continuous, unattended monitoring of fugitive particulate emissions and gaseous pollutants at construction sites, bulk material handling facilities, urban roadways, and open storage yards. Designed in strict accordance with China’s national ambient air quality standard GB 3095–2012 and technical specifications for particulate matter monitoring (HJ 653–2013, HJ 93–2013), the platform employs multi-sensor fusion architecture to deliver synchronized, time-aligned measurements of PM₂.₅, PM₁₀, CO, CO₂, NO₂, wind speed/direction, temperature, relative humidity, atmospheric pressure, and broadband noise (30–130 dB). Its core particulate measurement module utilizes calibrated optical scattering technology—traceable to ISO 12103-1 A2 test dust—with integrated particle size discrimination (via proprietary optical cutoff design) to ensure metrological consistency across variable aerosol morphologies. Unlike single-parameter monitors, the ZWIN-YC06-PLAT embeds real-time meteorological context into every data point, enabling wind-directional plume attribution, diurnal trend normalization, and regulatory-grade source apportionment support.

Key Features

• Multi-parameter co-location: Simultaneous acquisition of PM₂.₅, PM₁₀, CO, CO₂, NO₂, noise, wind vector, T/RH, and barometric pressure within a single ruggedized outdoor enclosure.
• Optical scattering PM sensor with 0.1 µg/m³ resolution, 0–1000 µg/m³ dynamic range, and ±10% measurement uncertainty (calibrated against gravimetric reference).
• Modular gas detection: Electrochemical sensors for CO/NO₂ and NDIR for CO₂—each certified to EN 45544-2 and calibrated per ISO 17025-accredited procedures.
• Integrated HD video surveillance (1280×720 baseline, up to 1920×1080 optional) with on-screen overlay of live environmental metrics and automated超标 image capture upon threshold breach.
• 7-inch industrial touchscreen HMI with local data visualization, firmware OTA updates, and configurable alarm thresholds.
• Dual-power architecture: Standard AC220V operation with optional solar panel + deep-cycle LiFePO₄ battery backup for off-grid deployment.
• Robust mechanical design: IP65-rated weatherproof cabinet; IP67-rated sensor probes; stainless-steel mounting mast; lightning protection and thermal management integrated.

Sample Compatibility & Compliance

The ZWIN-YC06-PLAT is validated for long-term deployment in uncontrolled outdoor environments—including high-humidity coastal zones, arid inland construction zones, and high-traffic urban corridors—where particulate loading may exceed 500 µg/m³ and wind gusts reach 45 m/s. Its optical PM sensor incorporates a laminar-flow sheath air system and self-cleaning optical path to mitigate lens fouling from hygroscopic or oily aerosols. All gas sensors undergo cross-sensitivity testing per ISO 17025 protocols against common interferents (e.g., VOCs, H₂S, SO₂) and are factory-calibrated using NIST-traceable standard gases. The platform meets electromagnetic compatibility requirements per GB/T 17626 series (IEC 61000-4) and environmental stress screening per MIL-STD-810G for thermal shock, vibration, and salt fog exposure. It supports audit-ready data integrity through internal Flash memory logging (≥96 hours buffered), time-stamped event flags, and hardware-level watchdog timers.

Software & Data Management

The ZWIN Cloud Platform is a secure, role-based web application built on a microservices architecture (AWS EC2/ECS backend, PostgreSQL relational database, Redis caching layer). It provides full lifecycle data governance compliant with GLP principles: immutable timestamped records, user action logging, electronic signature support, and 21 CFR Part 11–ready audit trails (optional configuration). Key capabilities include GIS-integrated mapping with Bing/Google/OpenStreetMap tile support; customizable dashboards with multi-series time-series charts (line, bar, heatmap); comparative analysis across geographically distributed nodes; automated PDF/Excel report generation; SMS/email alerting with configurable escalation rules; remote device diagnostics and firmware push deployment; and RESTful API access for integration into municipal environmental information systems (EIS) or enterprise IoT platforms. All data transmissions employ TLS 1.2+ encryption; platform authentication uses OAuth 2.0 with MFA enforcement.

Applications

The ZWIN-YC06-PLAT serves as a foundational component in regulatory compliance frameworks for municipal environmental bureaus, construction supervision agencies, and third-party EHS auditors. Typical use cases include: real-time enforcement of local dust suppression ordinances (e.g., mandatory water spraying when PM₁₀ > 150 µg/m³); performance verification of anti-dust measures (e.g., netting, mist cannons, paved access roads); forensic analysis of citizen complaint incidents via synchronized video + sensor playback; longitudinal assessment of site-specific emission factors for life-cycle LCA modeling; and integration into smart city ambient air quality networks where construction emissions contribute >25% of total PM₂.₅ load (per Beijing Municipal EPB and Nanjing EPB source apportionment studies). It is also deployed at coal/bulk material stockyards, ready-mix concrete plants, demolition zones, and highway maintenance corridors requiring continuous opacity and fugitive dust monitoring.

FAQ

What calibration standards does the PM sensor follow?
The optical scattering PM module is factory-calibrated against gravimetric reference filters per HJ 653–2013 and verified using ISO 12103-1 A2 Arizona Road Dust. Field recalibration kits (including zero air generator and certified test aerosols) are available as optional accessories.
Can the system operate without cellular connectivity?
Yes. Local data logging persists in onboard Flash memory for ≥96 hours. When network connectivity resumes, buffered data is automatically transmitted with original timestamps and sequence integrity preserved.
Is the platform compatible with existing municipal environmental data centers?
Yes. It supports standardized data exchange via MQTT, HTTP POST (JSON/XML), and Modbus TCP protocols. Pre-built adapters exist for integration with China’s National Urban Air Quality Monitoring Network (CNEMC) and provincial EIS platforms.
How is sensor drift managed over extended deployments?
The system implements automatic zero-tracking during low-pollution periods (<5 µg/m³ for ≥30 min), scheduled self-diagnostic routines, and optional remote verification using reference-grade portable calibrators. All drift correction events are logged and reportable.
Does the platform meet international data sovereignty requirements?
Data residency is configurable: cloud hosting can be deployed on customer-owned infrastructure or regional cloud providers (e.g., AWS China Ningxia, Alibaba Cloud Hangzhou). All encryption keys remain under client control; no telemetry or metadata is transmitted to ZWINSoft without explicit opt-in consent.
