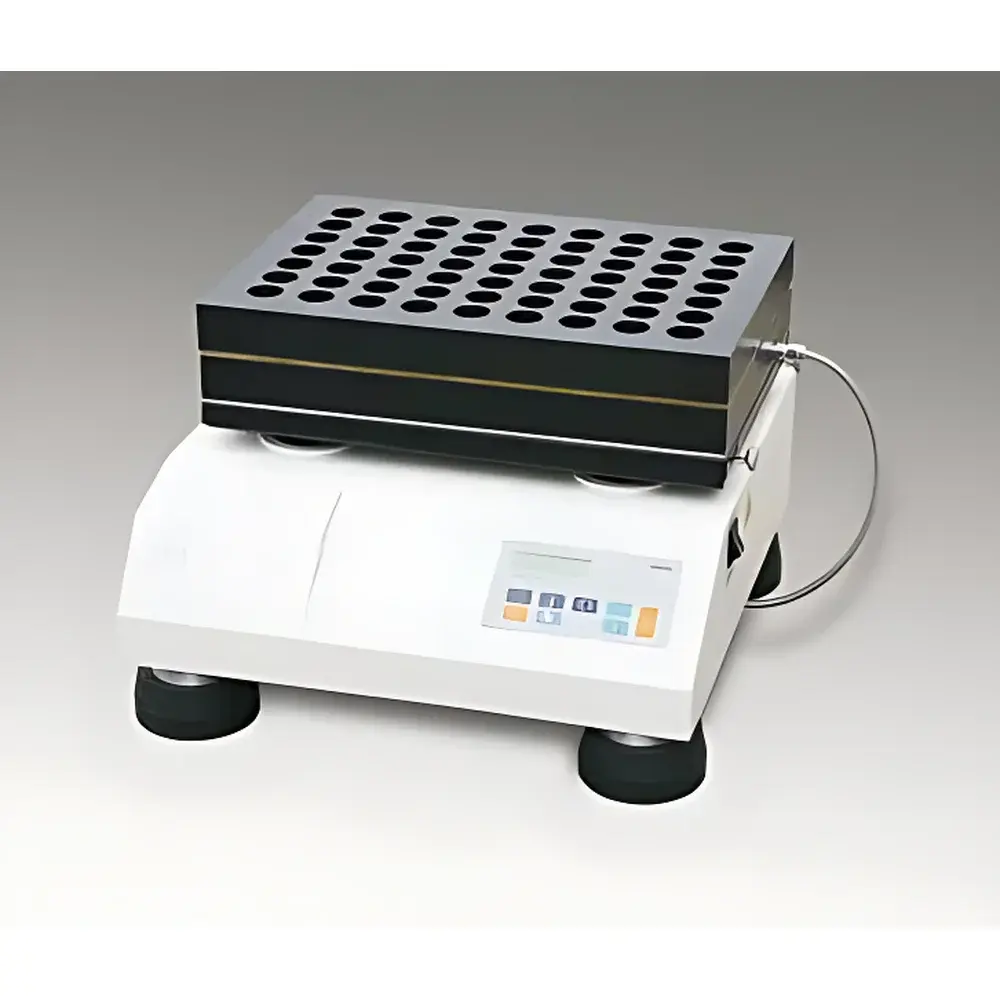

ZWY-113H08 High-Throughput Parallel Synthesis Shaker

Overview

The ZWY-113H08 High-Throughput Parallel Synthesis Shaker is an engineered platform for controlled, reproducible multi-reaction experimentation under precise thermal and mechanical conditions. Designed for combinatorial chemistry, catalyst screening, and reaction optimization workflows, it integrates orbital shaking with high-fidelity temperature regulation across a single uniform heating zone. Its operational principle combines forced-air or liquid-circulated thermal management (via dual independent water channels) with consistent orbital agitation (50–300 rpm), enabling rapid heat transfer and homogeneous mixing in parallel reaction vessels—critical for kinetic studies, stability assessments, and solvent screening where inter-vessel consistency directly impacts data comparability. The system operates within a calibrated temperature range from ambient to 200 °C with ±0.1 °C accuracy, meeting the thermal stability requirements of accelerated reaction profiling per ASTM E2993 and ISO 11357-3 for thermal analysis of polymers and small-molecule synthesis intermediates.

Key Features

• Single-zone temperature control architecture with dual independent water circulation channels for enhanced thermal uniformity and faster equilibration
• Precision digital PID temperature controller with real-time thermocouple feedback (Type K) embedded in the reaction plate
• Orbital shaking mechanism delivering stable, low-vibration motion at adjustable speeds from 50 to 300 rpm
• Modular reaction plate design accommodating up to 120 × Φ17 mm tubes on a standardized 420 × 288 mm footprint
• Integrated process timer supporting unattended operation for durations up to 500 hours
• RS232 interface for external monitoring, parameter logging, and remote control via PC-based software
• Optional accessories include external chiller integration (down to 80 °C), programmable 9-segment/18-step temperature ramping, and embedded thermal printer for time-stamped temperature trace output

Sample Compatibility & Compliance

The ZWY-113H08 supports standard borosilicate glass and stainless-steel reaction vessels ranging from 5 mL to 50 mL capacity, with optimal performance validated for Φ17 mm × 120-position configurations. Its open-platform design allows compatibility with commercially available deep-well plates, screw-cap vials, and reflux-ready tube holders. The instrument complies with IEC 61010-1:2010 safety standards for laboratory electrical equipment and meets electromagnetic compatibility (EMC) requirements per EN 61326-1. While not intrinsically rated for hazardous environments, its construction adheres to GLP-aligned documentation practices—including audit-trail-capable parameter logging when interfaced with compliant LIMS or ELN systems—supporting regulatory submissions under FDA 21 CFR Part 11 when paired with validated software protocols.

Software & Data Management

The shaker operates as a standalone unit but is fully compatible with third-party laboratory automation frameworks via its RS232 serial interface. Raw temperature and speed parameters can be streamed in ASCII format at user-defined intervals (e.g., every 30 seconds) for ingestion into Python-, LabVIEW-, or MATLAB-based analysis pipelines. Optional OEM software provides graphical real-time monitoring, alarm-triggered email notifications, and CSV export of time-series thermal profiles. All logged data retain timestamping, operator ID fields, and version-controlled configuration metadata—enabling full traceability required for ISO/IEC 17025-accredited testing laboratories conducting method validation per ICH Q2(R2).

Applications

• Rapid screening of homogeneous and heterogeneous catalysts under varied thermal and mixing conditions
• Optimization of reaction parameters including temperature gradients, residence time, and stoichiometric ratios in parallel
• Forced degradation studies for pharmaceutical stability assessment (ICH Q1A–Q1E)
• Solubility mapping and co-solvent selection for API formulation development
• Library synthesis in medicinal chemistry where >100 parallel reactions require identical environmental control
• Preparative-scale reaction scouting prior to flow chemistry or kilo-lab scale-up

FAQ

Can the ZWY-113H08 accommodate custom reaction blocks beyond the standard Φ17 mm × 120 configuration?
Yes—the modular plate interface accepts user-designed aluminum or stainless-steel inserts with machined wells conforming to ANSI/SLAS microplate footprint standards, provided thermal mass and load distribution remain within mechanical specifications.
Is external cooling below ambient temperature supported?
The unit supports integration with external chillers capable of delivering coolant at ≤80 °C; sub-ambient operation requires auxiliary refrigeration units not included in base configuration.
Does the device support GLP-compliant electronic records?
When used with validated third-party data acquisition software featuring electronic signatures, audit trails, and role-based access control, the ZWY-113H08 satisfies core elements of FDA 21 CFR Part 11 for electronic records in regulated environments.
What maintenance intervals are recommended for long-term reliability?
Annual calibration of the integrated thermocouple and verification of motor torque consistency are advised; consumables are limited to standard O-rings and fan filters—no proprietary wear parts are employed in the drive or thermal subsystems.
