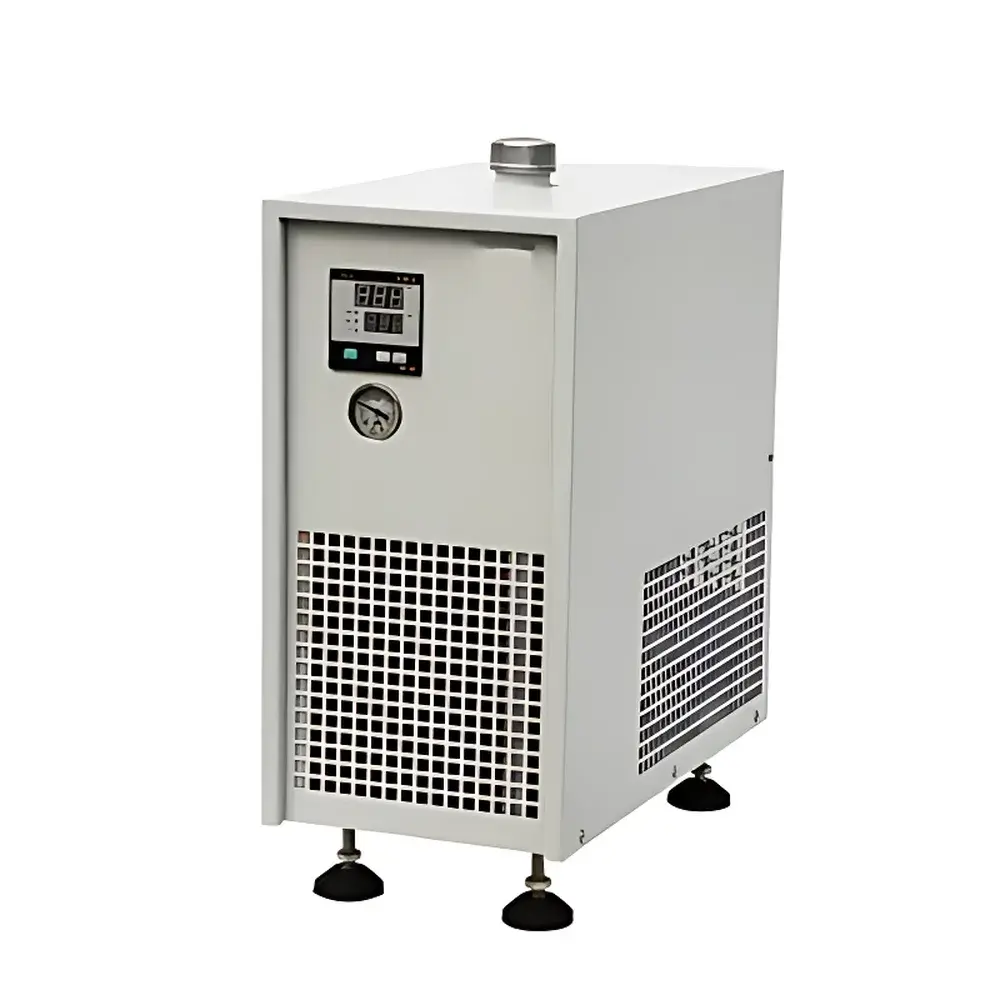

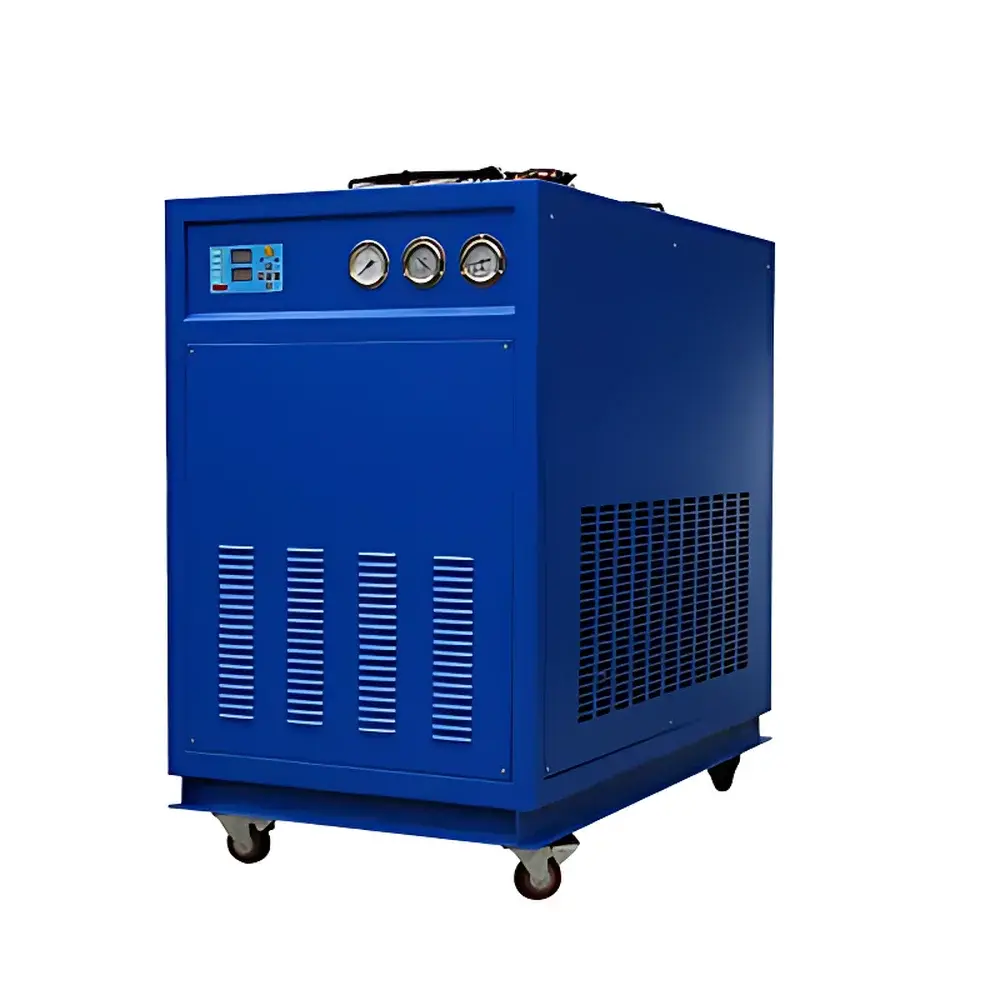

Tianfeng LS-1000W Integrated Circulating Chiller

Overview

The Tianfeng LS-1000W Integrated Circulating Chiller is a precision-engineered, compact refrigeration system designed for stable thermal management of laboratory and industrial instrumentation requiring continuous, low-temperature coolant circulation. It operates on the vapor-compression refrigeration cycle, utilizing a high-efficiency scroll compressor, copper-aluminum finned condenser, and thermostatically regulated expansion valve to deliver consistent cooling performance across demanding applications. Unlike split-system chillers, its all-in-one architecture integrates refrigeration circuitry, stainless steel reservoir, variable-speed circulation pump, digital PID controller, and safety interlocks into a single footprint—eliminating external piping complexity and minimizing installation time. The unit maintains setpoint temperature within ±0.1 °C over extended operation, making it suitable for instruments sensitive to thermal drift, including analytical spectrometers, electron microscopes, laser systems, and semiconductor process tools.

Key Features

• Stainless steel reservoir (15 L capacity) and wetted pump components ensure corrosion resistance and long-term compatibility with deionized water and aqueous coolant mixtures.
• Digital PID temperature controller with real-time display provides intuitive setpoint adjustment (0–10 °C range), hysteresis tuning, and programmable ramp/soak profiles.
• Scroll-type compressor delivers quiet operation (<65 dB(A)), high volumetric efficiency, and reduced mechanical wear versus reciprocating alternatives.
• Integrated safety suite includes dual-pressure switches, compressor discharge thermistor, overcurrent protection, and automatic shutdown upon temperature deviation exceeding user-defined thresholds.
• Continuous-duty design supports uninterrupted 24/7 operation under nominal load; flow rate (2 L/min) and pressure (2.0 bar) are optimized for low-head laboratory loops with minimal backpressure.
• Compact dimensions (650 × 500 × 765 mm) and castor-mounted base enable flexible placement in fume hoods, equipment racks, or benchtop configurations without dedicated utility rooms.

Sample Compatibility & Compliance

The LS-1000W is compatible with a broad spectrum of laboratory instrumentation requiring closed-loop coolant circulation at sub-ambient temperatures. It interfaces seamlessly with graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), ICP-mass spectrometers (ICP-MS), X-ray fluorescence (XRF) and X-ray diffraction (XRD) systems, scanning and transmission electron microscopes (SEM/TEM), and high-power laser sources (e.g., CO₂, fiber, and ultrafast lasers). Its stainless steel fluid path meets general requirements for cleanroom-compatible coolant handling per ISO 14644-1 Class 7 environments. While not certified to specific regulatory standards out-of-the-box, the chiller’s architecture supports integration into GLP- and GMP-compliant workflows when paired with validated temperature logging (via optional analog/digital output modules) and audit-trail-capable data acquisition systems aligned with FDA 21 CFR Part 11 principles.

Software & Data Management

The LS-1000W operates via embedded firmware with no proprietary software dependency. All operational parameters—including setpoint, actual temperature, pump status, and fault codes—are accessible through the front-panel LCD interface. For integration into centralized lab infrastructure, optional 0–10 V analog outputs (temperature and flow) and RS-485 Modbus RTU communication enable connection to SCADA platforms, LIMS, or building management systems (BMS). When deployed in regulated environments, users may configure external data loggers to record timestamped temperature traces compliant with ISO/IEC 17025 calibration traceability requirements. Firmware updates are performed locally via USB port; version history and change logs are maintained per internal quality documentation protocols.

Applications

• Analytical Instrument Cooling: Stabilizes detector housings, RF generators, and plasma torches in ICP and AAS systems to minimize spectral noise and signal drift.
• Electron Microscopy: Maintains constant cold stage and column temperature in SEM/TEM systems, reducing thermal lensing and improving imaging resolution.
• Laser Systems: Removes waste heat from diode-pumped solid-state (DPSS) and fiber lasers, preserving beam quality and extending diode lifetime.
• Materials Characterization: Provides precise thermal control for XRD goniometers and XRF excitation sources to ensure repeatability in crystallographic and elemental analysis.
• Process Instrumentation: Supports vacuum deposition tools, plasma etchers, and semiconductor metrology equipment requiring stable coolant supply below ambient.

FAQ

What is the maximum allowable return water temperature?
The unit is engineered for continuous operation with inlet coolant temperature ≤40 °C. Exceeding this threshold increases condensing pressure and accelerates compressor oil degradation—reducing service life and voiding warranty coverage.
Can the chiller be integrated into an existing building chilled water loop?
No—the LS-1000W is a self-contained, water-cooled system requiring connection to a facility-supplied cooling water source (e.g., municipal water or central plant loop) at ≤32 °C inlet temperature and ≥1.5 bar static pressure.
Is remote monitoring supported natively?
Remote monitoring requires optional hardware: RS-485 Modbus interface or 4–20 mA analog output module. No cloud-based or Wi-Fi functionality is built-in.
Does the stainless steel reservoir resist glycol-based coolants?
Yes—304 stainless steel construction is compatible with up to 30% ethylene or propylene glycol/water mixtures for freeze protection down to –15 °C.
What maintenance intervals are recommended?
Compressor oil and refrigerant charge require inspection every 24 months under continuous operation; condenser coil cleaning is advised quarterly in dusty environments. Filter-drier replacement is recommended every 18 months.
