| Brand | AS ONE |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

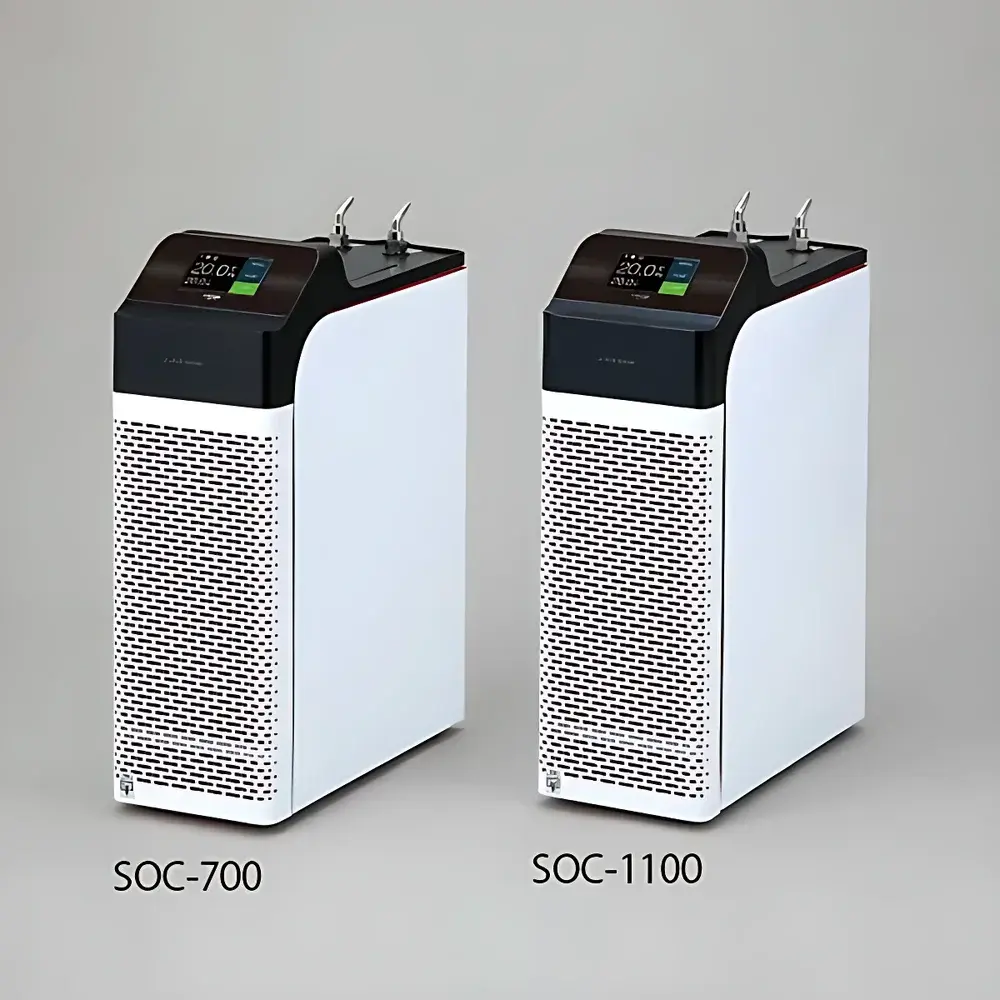

| Model | C4-2732-01 (SOC-700) / C4-2732-02 (SOC-1100) |
| Instrument Type | Integrated Circulating Chiller |
| Cooling Method | Air-Cooled |
| Temperature Control Range | −15 °C to +30 °C (SOC-700) |
| Refrigeration Capacity | 460 W at ΔT = 10 °C (SOC-700) |
| Temperature Stability | ±1.0 °C |
| Circulation Flow Rate | 12 L/min (SOC-700) |
| Max Head | 8 m (SOC-700) |
| Reservoir Volume | 5.0 L (liquid volume ~4.2 L) |
| Working Mode | Air-Cooled, Closed-Loop Circulation |
| Refrigerant | R-134a |
| Heat Exchanger Material | Brazed Plate Type, SUS316L/SUS304 |
| Reservoir Material | SUS304 |
| External Nozzle | Metal, OD 10 mm (compatible with tubing ID φ8–9 mm) |
| Dimensions (W×D×H) | 212 × 482 × 637 mm |
| Net Weight | 30 kg (SOC-700) |
| Ambient Operating Temperature | 5–30 °C |
| Power Supply | AC 220 V, 50/60 Hz |
| Safety Protections | Leakage Current Protection, Overcurrent Circuit Breaker, Compressor Delay Timer, Low-Water-Level Sensor, Compressor Overload Relay, Upper/Lower Temperature Limit Alarms |
