| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | API ARM |
| Price Range | USD 42,000 – 70,000 (FOB) |
| Configuration | Articulated Arm CMM |
| Operation Mode | Manual |
| Form Factor | Portable |
| Measurement Volume | 2.0 m – 4.5 m (configurable arm length) |
| Volumetric Accuracy | ±0.032 mm |
| Operating Temperature Range | 10 °C – 45 °C |
| Brand | API |
|---|---|
| Origin | Sichuan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Saturn |
| Operation Mode | Manual |
| Instrument Type | Horizontal Configuration |
| Measurement Range | Custom-Engineered per On-Site Installation Requirements |
| Measurement Accuracy | Available upon Technical Consultation |
| Structural Frame | High-Strength Anodized Aluminum Alloy (Natural & Artificial Aging) |
| X-Axis Guidance | Low-Friction Precision Linear Bearing System with 90° Directional Flexibility |
| Y-Axis Support | Central Steel Reinforcement with Micrometer-Level Fine Adjustment |
| Sensor System | IP65-Rated Absolute Position Encoders Compatible with Magnetic Scale Technology |
| Display | Real-Time XYZ Coordinate Readout (Metric Units) |
| Standard Tooling | Interchangeable Scribing Probe Assembly for Marking and Contact Metrology |
| Brand | API |
|---|---|
| Origin | USA |
| Model | Axxis |
| Series Options | Series 100 (High-Accuracy), Series 200 (Standard-Accuracy) |
| Measurement Diameter | 2600 mm / 3200 mm / 4200 mm |
| Volumetric Accuracy | 0.060 mm to 0.350 mm (depending on model and configuration) |
| Arm Weight | ~4 kg |
| Degrees of Freedom | 6-axis articulating arm |
| Interface | USB 2.0 (hot-pluggable) |
| Environmental Compensation | Integrated temperature & humidity sensors with real-time thermal drift correction |
| Compatible Probe Types | Renishaw-triggered tactile probes, broadband laser line scanners, dedicated non-contact tube measurement probes |
| Brand | API |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CoreGAGE |
| Configuration | Articulated Arm CMM |
| Operation Mode | Manual |
| Form Factor | Portable |
| Measurement Method | Hybrid Contact & Non-Contact (Tactile Probe + Laser Line Scanner) |
| Measurement Volume Range | 2.0 m to 5.5 m (configurable by arm length) |
| Volumetric Accuracy | ±0.027 mm (ISO 10360-2 compliant) |
| Maximum Data Acquisition Rate | 1,200,000 points/sec |
| Standard Operating Temperature | 5 °C to 45 °C |
| Laser Line Probe (HDSD) | Accuracy ±15 µm (2σ, near-field), ±28 µm (2σ, far-field) |
| Laser Line Probe Baseline Distance | 115 mm |
| Effective Scan Width | 80 mm (near-field) / 150 mm (far-field) |
| Points per Scan Line | Up to 4,000 |
| Laser Class | Class 2 |
| HDSD Probe Weight | 536 g |
| Arm Material | Aerospace-Grade Carbon Fiber |
| Integrated Balancing System | Yes |
| Battery Life | >10 hours (dual high-capacity Li-ion) |
| Wireless Data Transmission | IEEE 802.11ac Wi-Fi |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IP-360 Wireless |
| Price Range | USD 70,000–100,000 (FOB) |
| Configuration Type | Hybrid CMM Probe |
| Operation Mode | Manual Handheld |
| Instrument Form Factor | Portable |
| Measurement Range | Not Applicable (Probe-Specific, Requires Host CMM) |
| Measurement Uncertainty | Compliant with ISO 10360-2 & ASME B89.4.10 |
| Standard Ambient Temperature | 20 °C ± 1 °C |
| Key | Brand: API |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Pricing | Upon Request |
| Resolution | 0.25 µm |
| Accuracy | 0.5 µm |
| Max Measuring Radius | 1500 mm |
| Sensor Type | High-Precision Inductive Transducer |
| Calibration | NIST-Traceable Laser Interferometer Calibration |
| Brand | API |
|---|---|
| Origin | USA |
| Model | Axxis |
| Probe Weight | < 400 g |
| Sampling Rate | Up to 26,000 points/sec |
| Depth of Field | 100–200 mm |
| Measurement Accuracy | ±0.05 mm (2σ) |
| Repeatability | ±0.02 mm (3σ) |
| Operating Temperature | 0–45 °C |
| Relative Humidity | < 70 % RH |
| Compliance | ISO 10360-8 (for articulated arm-based laser scanning systems), ASTM E2924-22 (Standard Guide for 3D Scanning Systems in Industrial Metrology) |
| Brand | API |
|---|---|
| Origin | Sichuan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | Nebula |
| Configuration | Horizontal Arm CMM |
| Operation Mode | Motorized Automatic |
| Application Class | Shop-Floor CMM |
| Measurement Range (X×Y×Z) | 0–10,000 mm |
| Volumetric Accuracy | ±(0.02 + 0.02L) mm, where L is measured length in meters |
| Brand | API |
|---|---|
| Origin | Sichuan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Galaxy V |
| Operation Mode | Fully Automatic |
| Measurement Range | X: 1000–20000 mm, Y: 800–1600 mm, Z: 800–3100 mm |
| Linear Positioning Accuracy | ≤0.1 mm (full travel) |
| Repeatability | ≤0.03 mm |
| Maximum Traverse Speed | 12,000 mm/min |
| Brand | API |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |

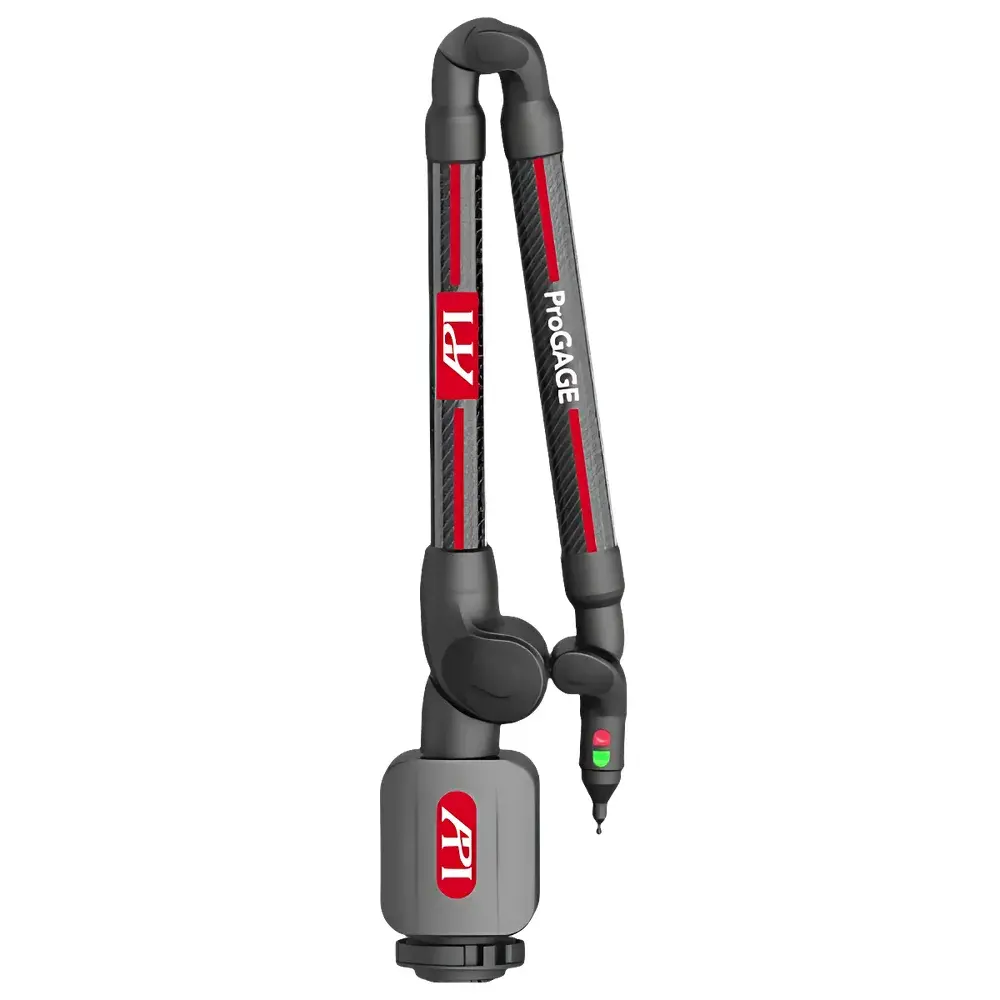

| Model | ProGAGE |
| Configuration | Articulated Arm CMM |
| Operation Mode | Manual |
| Form Factor | Portable |
| Measurement Method | Hybrid Contact & Non-Contact (Laser Line Probe Compatible) |
| Measurement Volume | 2.0 m to 5.5 m (configurable) |
| Volumetric Accuracy | ±0.007 mm (ISO 10360-2 compliant) |
| Maximum Data Capture Rate | 1,200,000 points/sec |
| Operating Temperature Range | 5 °C to 45 °C |
| Laser Line Probe (HDSD) | Accuracy ±15 µm (2σ, near-field), ±28 µm (2σ, far-field) |
| Laser Line Probe Working Distance | 115 mm (nominal) |
| Laser Line Probe Scan Width | 80 mm (near-field) to 150 mm (far-field) |
| Laser Line Probe Points per Line | Up to 4,000 |
| Laser Class | Class 2 |
| Laser Probe Weight | 536 g |
| Arm Material | Aerospace-Grade Carbon Fiber |
| Wireless Data Transmission | IEEE 802.11ac Wi-Fi |
| Brand | API |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | PlusGAGE |
| Configuration | Articulated Arm CMM |
| Operation Mode | Manual |
| Form Factor | Portable |
| Measurement Method | Hybrid Contact & Non-Contact (Laser Line Probe Compatible) |
| Measurement Volume | 2 m to 5.5 m (configurable) |
| Volumetric Accuracy | ±0.009 mm |
| Maximum Data Acquisition Rate | 1,200,000 points/sec |
| Operating Temperature Range | 5 °C to 45 °C |
| Laser Line Probe (HDSD) | Accuracy ±15 µm (2σ), ±28 µm (2σ) |
