| Brand | Zhonghang Shidai |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Torque Rheometer |

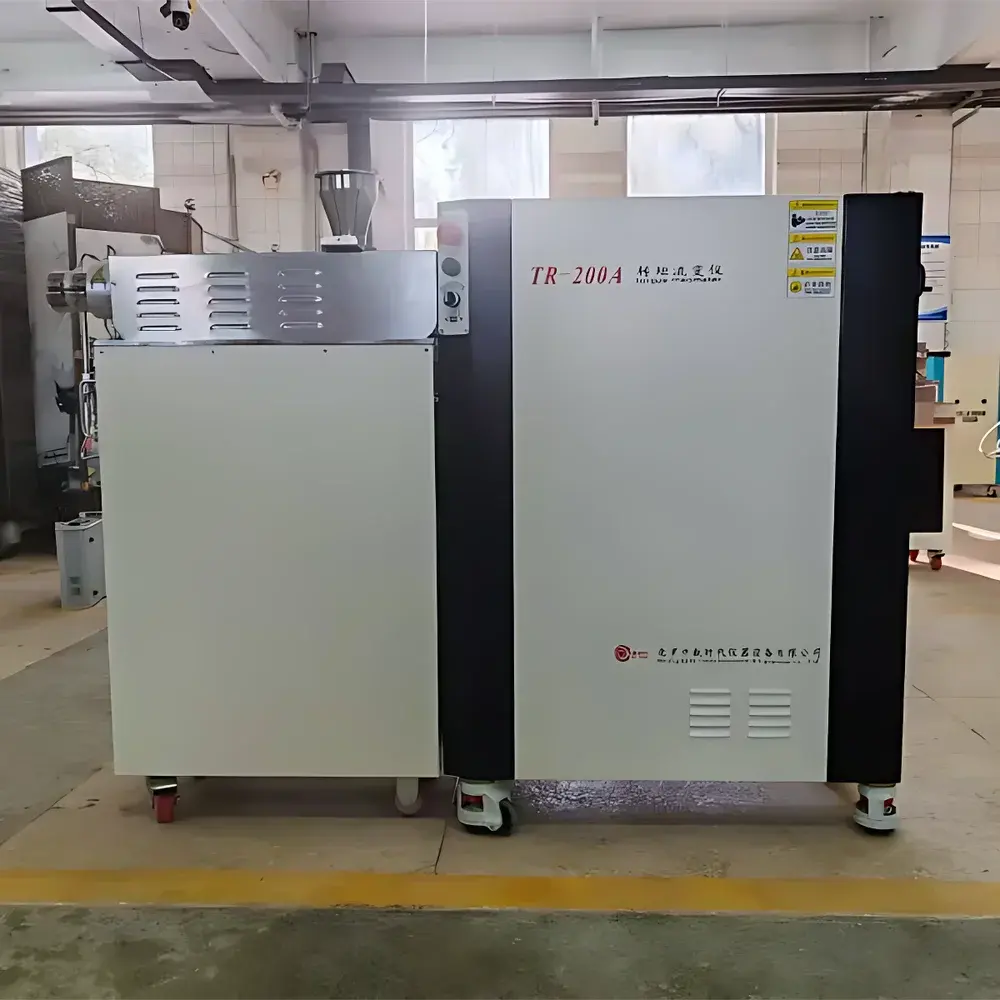

| Model | TR-200A |
| Motor Power | 3.0 kW (Panasonic servo motor & drive) |
| Speed Range | 0.1–120 rpm (max mechanical speed: 2000 rpm) |
| Torque Range | 0–200 N·m (rated: 300 N·m) |
| Torque Resolution | < 100 nN·m |
| Torque Accuracy | ±0.3% F.S. |
| Temperature Control Range | Ambient to 350 °C (5-zone heating) |
| Temp. Control Accuracy | ±0.5 °C |
| Pressure Measurement Range | 0.1–100 MPa (optional, configurable) |
| Pressure Accuracy | ±0.3% F.S. |
| Data Acquisition Rate | 50 Hz |
| Heating Method | Electric (cartridge heaters) |
| Rotor Types | Roller (standard), Banbury/Cam/Delta (optional) |
| Mixer Volume | 60 mL (standard), 200 mL (optional) |
| Extruder | Single-screw, L/D = 25:1, Ø20 mm, 5-zone heating, max temp 350 °C |
| Compliance | Designed for ASTM D3835, ISO 6721-10, and USP <911> rheological simulation workflows |
| Software | Integrated Mixer, Plastic, and WinNian modules with GLP-compliant audit trail, curve overlay, real-time derivative analysis, and capillary rheometry correction algorithms |
