| Key | Brand: Photonic Lattice |
|---|---|
| Origin | Japan |
| Model | PA-300 |
| Measurement Range | 0–130 nm (retardation) |
| Wavelength | 520 nm |
| Minimum Resolution | 0.001 nm |
| Repeatability | < 0.1 nm (σ) |
| Field of View (Standard) | 27 × 36 mm to 99 × 132 mm |
| Optional FOV (with beam-expanding lens) | 7 × 8.4 mm |
| Camera Resolution | 2056 × 2464 pixels |
| Output Parameters | Retardation (nm), Fast Axis Orientation (°), Stress Conversion (MPa, optional) |
| Compliance | ISO 11146, ASTM F2649, JIS R3203 |
| Brand | Photonic Lattice |
|---|---|
| Origin | Japan |

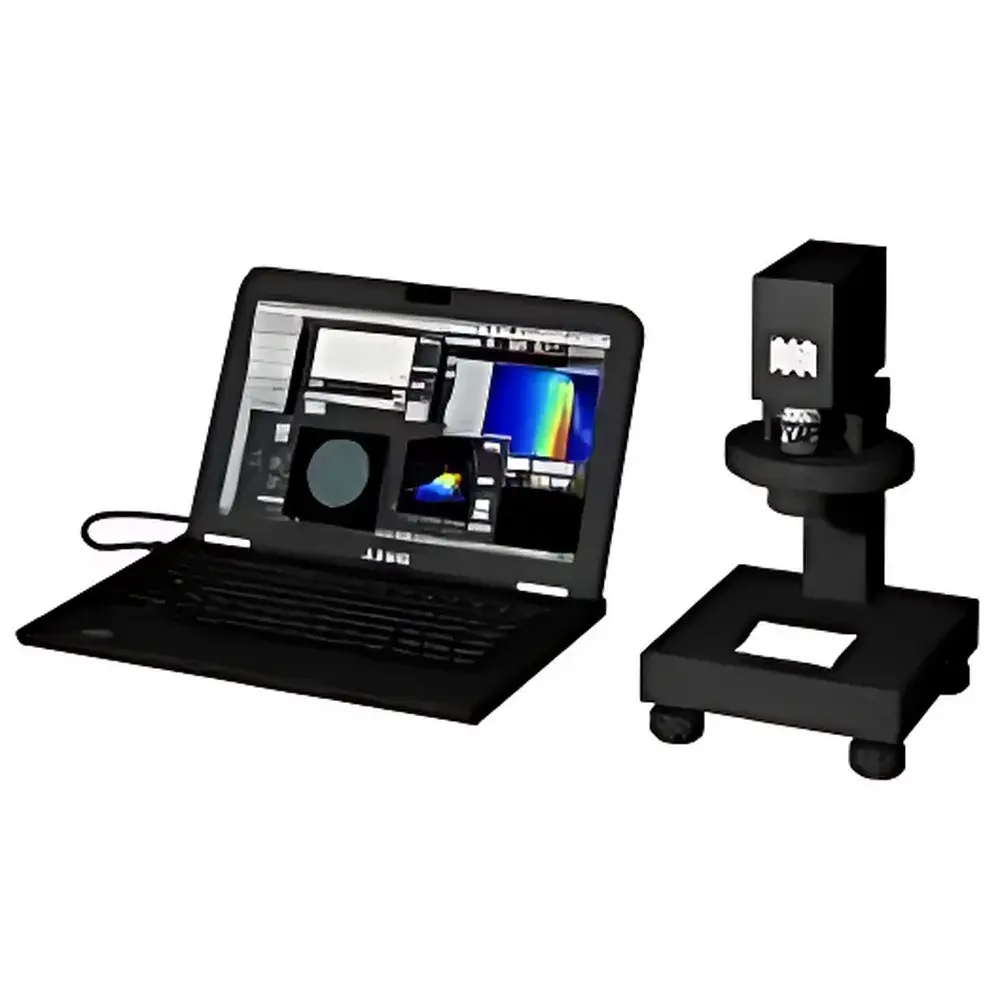

| Model | WPA-100-S |
| Measurement Range | 0–4000 nm |
| Repeatability | <1.0 nm |
| Pixel Resolution | 384 × 288 (≈110,000 pixels) |
| Measurement Wavelengths | 523 nm, 543 nm, 575 nm |
| Field of View | 11.6 × 15.8 mm |
| Dimensions | 200 × 275 × 309.5 mm |
| Weight | 9 kg (unit), 4 kg (power supply) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Software | WPA-View (dedicated for WPA-100-S) |
| Brand | Photonic Lattice |
|---|---|
| Origin | Japan |

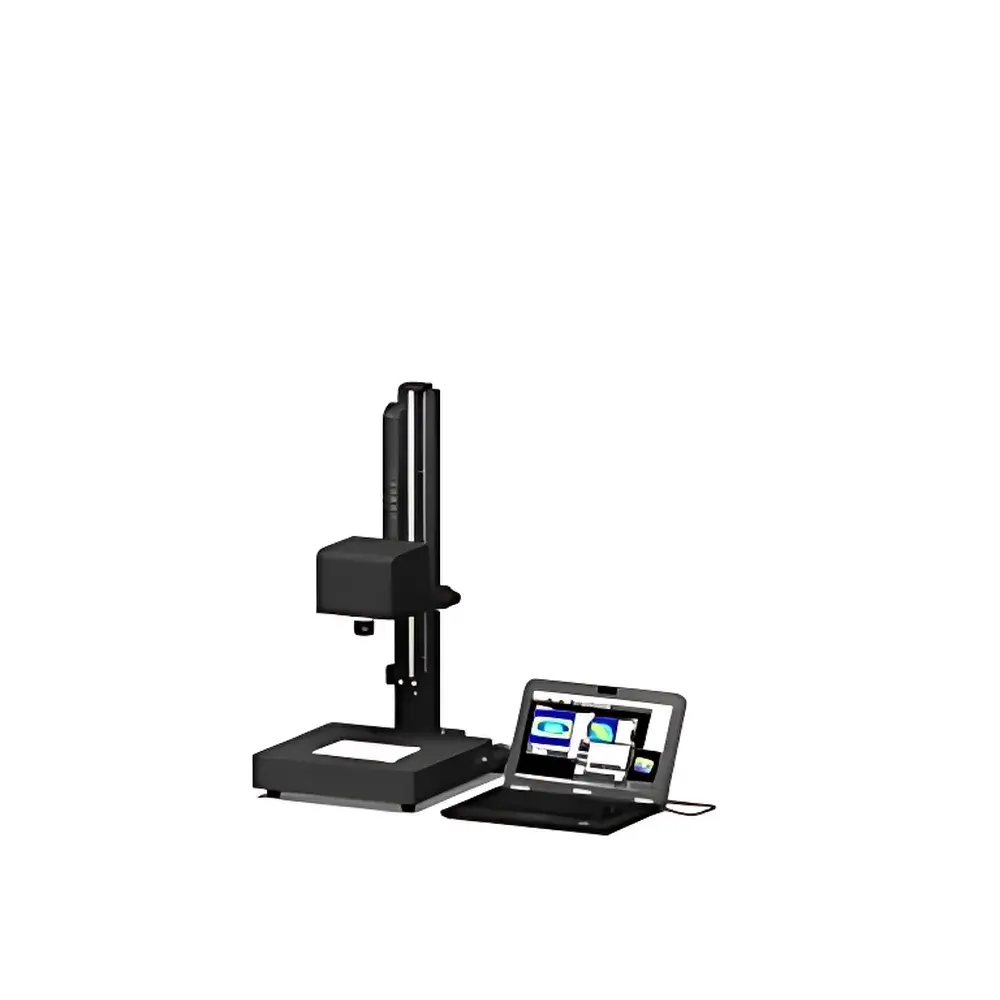

| Model | WPA-200, WPA-200-L |
| Measurement Range | 0–3500 nm |
| Repeatability | <0.1 nm |
| Pixel Resolution | 384 × 288 |
| Measurement Wavelengths | 523 nm, 543 nm, 575 nm |
| Field of View | 100 × 136 mm (WPA-200), 250 × 340 mm (WPA-200-L) |
| Dimensions | 310 × 466 × 605.5 mm (WPA-200), 450 × 593 × 915.5 mm (WPA-200-L) |
| Weight | 20 kg (WPA-200), 26 kg (WPA-200-L) |
| Data Interface | GigE (camera), RS232C (motor control) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Software | WPA-View |
