| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

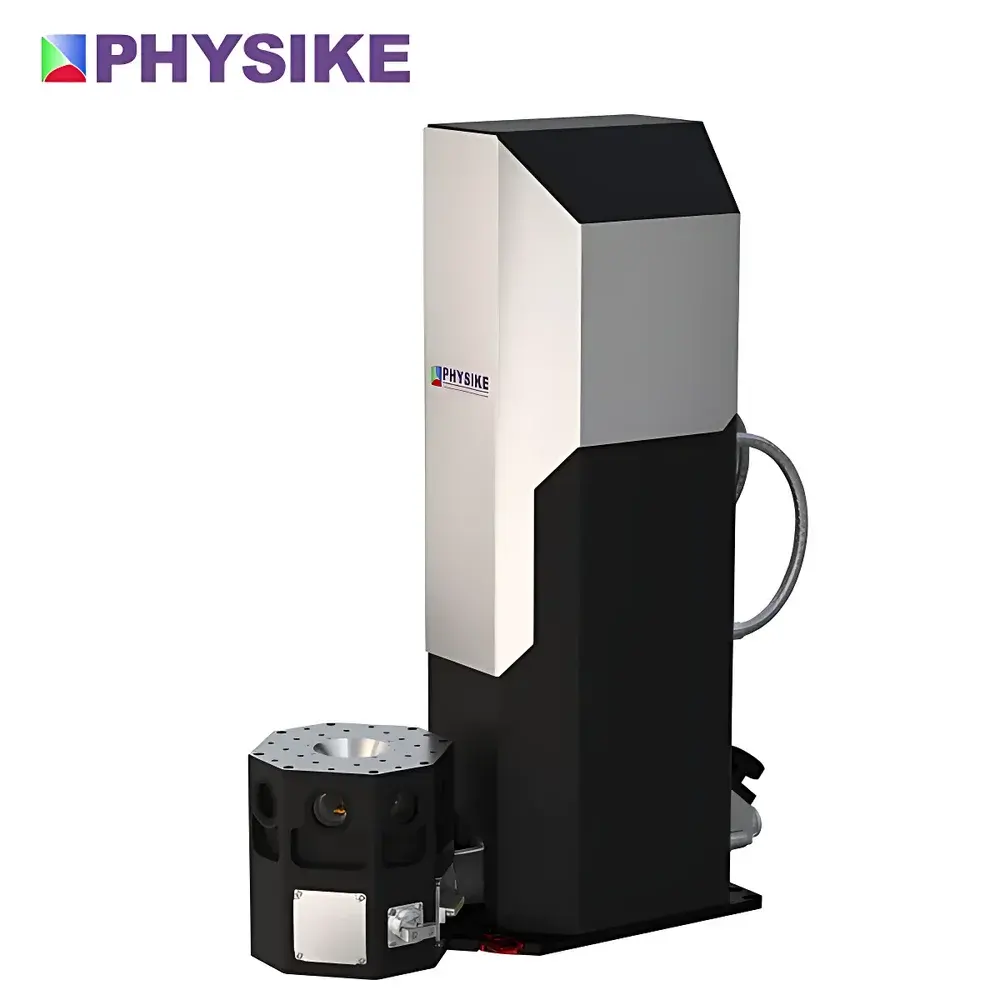

| Model | CryoAce-100 |
| Cooling Medium | Helium Gas |
| Base Plate Diameters | 5 cm, 10 cm, 15 cm, 20 cm |
| Nominal Vibration Amplitude | 6–12 nm (RMS, dependent on base plate size and operating temperature) |
| Base Temperature Range | 2.4 K – 3.2 K |
| Standard Configuration | Top and/or Side Optical Windows, Vacuum Gauge, Calibrated Platinum Resistance Thermometer (PRT) |
| Integrated Cryo-Pumping | Multi-stage低温 adsorption pumps |
| Compressor Type | Air-Cooled Helium Compressor |
| Power Supply | Single-Phase AC, Low Power Consumption |
| Footprint | Compact Desktop Form Factor |
| Vacuum Maintenance | Self-Sustaining High Vacuum Without Continuous External Pumping |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |

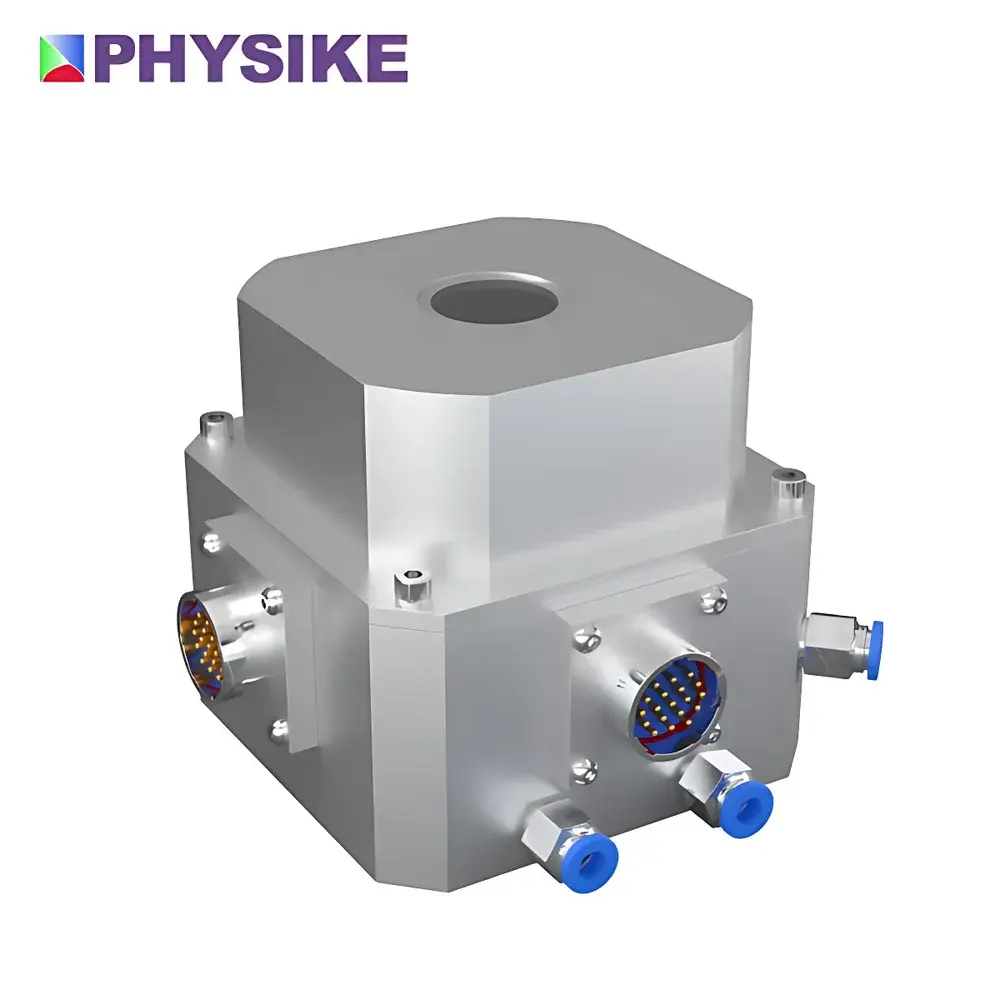

| Model | Labcryo |
| Temperature Range | -50 °C to +200 °C |
| Temperature Stability | Better than ±25 mK |
| Cooling Method | Multi-stage Peltier (Thermoelectric) |
| Vacuum Feedthrough Options | Multi-pin, SMA / 2.92 mm / 1.85 mm Microwave, BNC, Triax, Fiber Optic |
| Sample Holders | Electrical pucks (DIP, LCC), Transmission holders, Solar cell mounts, Probe-based holders |
| Optical Windows | Gamma-ray, X-ray, UV, Vis, IR, THz-transparent options |
| Low-Temp Cabling | Twisted-pair, Flexible coaxial, Semi-rigid microwave, Triaxial cables |
| Mounting | Omnidirectional (no orientation dependency) |
| Power Supply | Standard AC input (no cryogens required) |
| Brand | Physik |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |

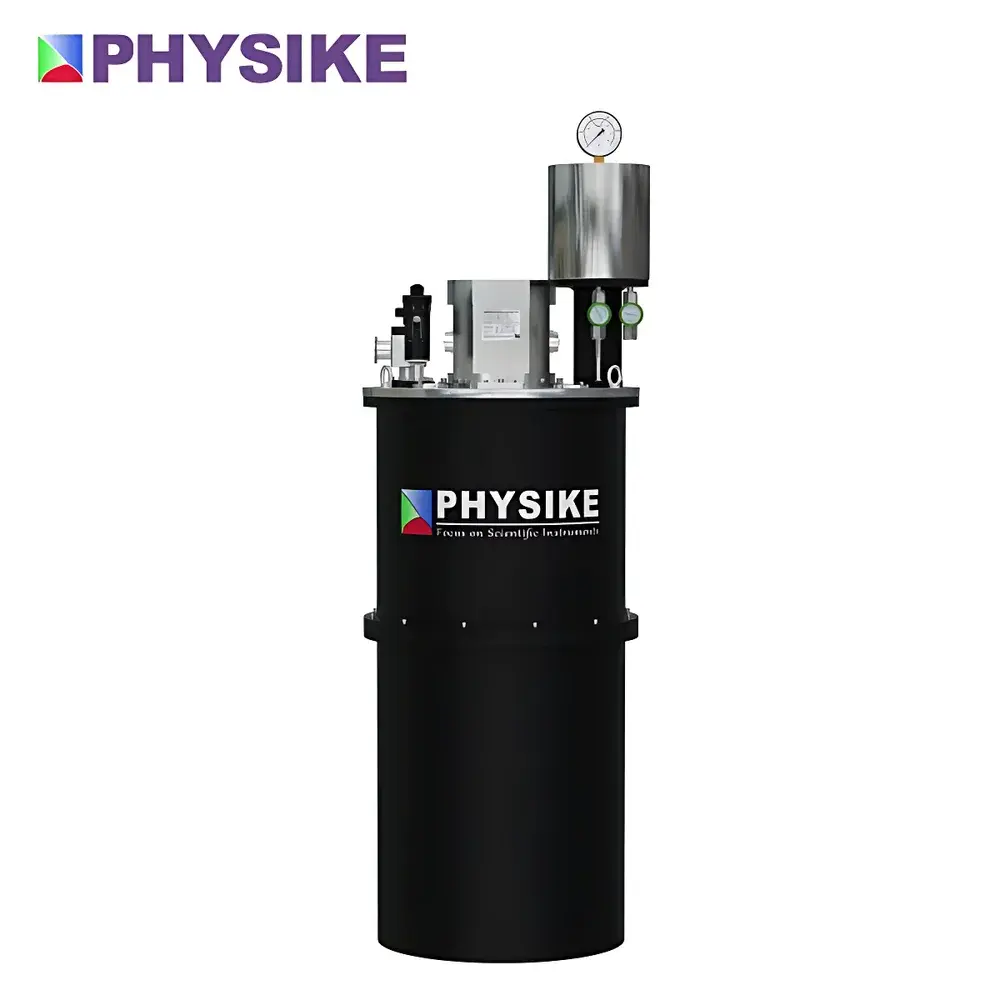

| Model | Ucryo-300 |
| Pricing | Available Upon Request |
| Brand | Physike |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Ucryo-200 |
| Pricing | Available Upon Request |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

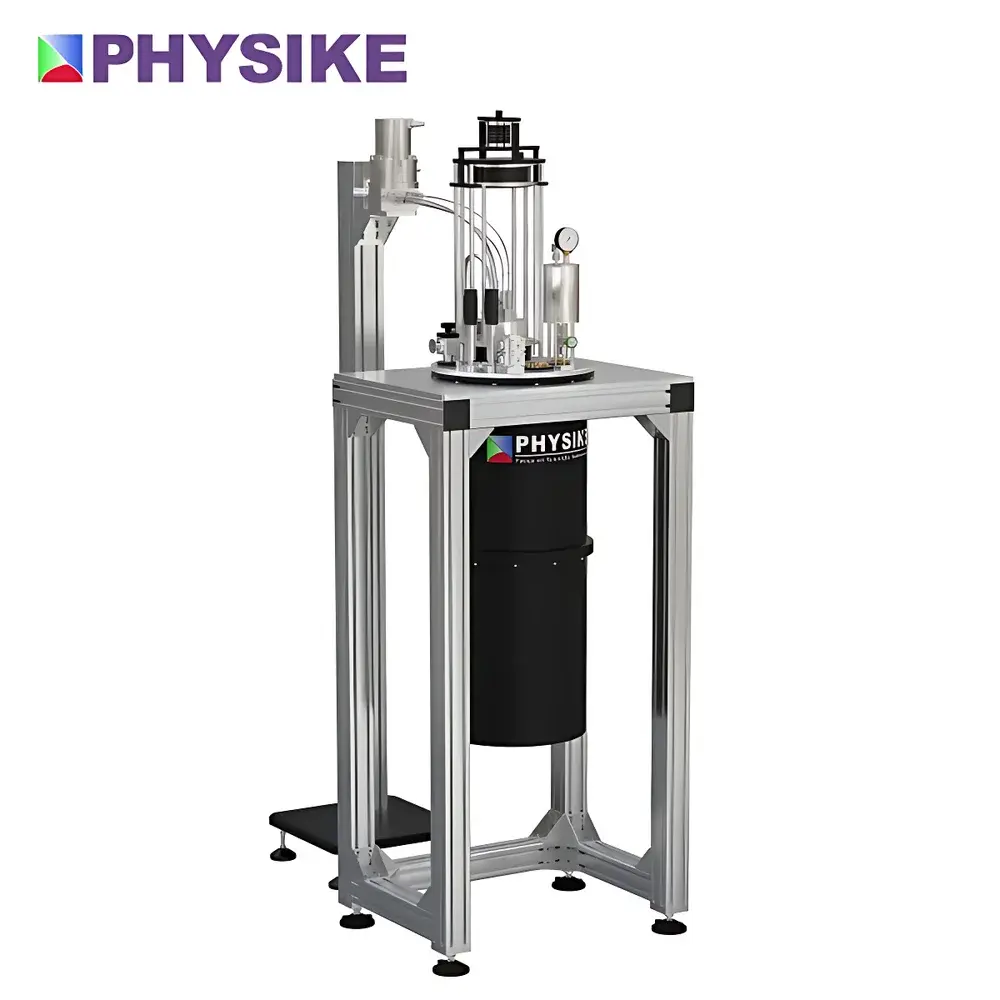

| Model | Cryocloud-300 |
| Pricing | Upon Request |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Scryo-SDV |
| Pricing | Available Upon Request |
| Cooling Medium | Dual Liquid Helium & Liquid Nitrogen Reservoirs |
| Temperature Range | 1.5 K to 300 K |
| Static Liquid Helium Consumption Rate | < 0.1 L/h |
| Tail Length | > 1 m |
| Tail Outer Diameter | 47.8 mm |
| Sample Tube Inner Diameter | 31.5 mm |
| Design | Top-Loading, Plug-in Sample Rod Configuration |
| Thermal Architecture | Ultra-Low Heat Leak with LN₂ Radiation Shield & Superinsulated Sample Tube |
| Optional Configurations | Linear Actuator Sample Rod, Single/Double-Axis Rotating Sample Rod, Puck Holder, In-situ Pressure-Tuning Sample Rod, AC Susceptibility Measurement Kit, Static Helium Gas Environment |
| Vacuum Feedthrough Options | Multi-pin, BNC, SMA, Fiber Optic, Twisted Pair, Coaxial/Triaxial, Semi-Rigid RF Cable, Optical Fiber |
| Optical Window Compatibility | Gamma, X-ray, UV–Vis–IR–THz Transmission |
| Magnet Integration | Compatible with Electromagnets, Superconducting Magnets, Hybrid High-Field Magnets (e.g., 35 T Water-Cooled) |
| Application-Specific Adaptations | NMR Magnet Coupling, DAC (Diamond Anvil Cell), Hydrostatic Pressure Cells, AFM/STM Vibration-Sensitive Mounting |
| Brand | Physik |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

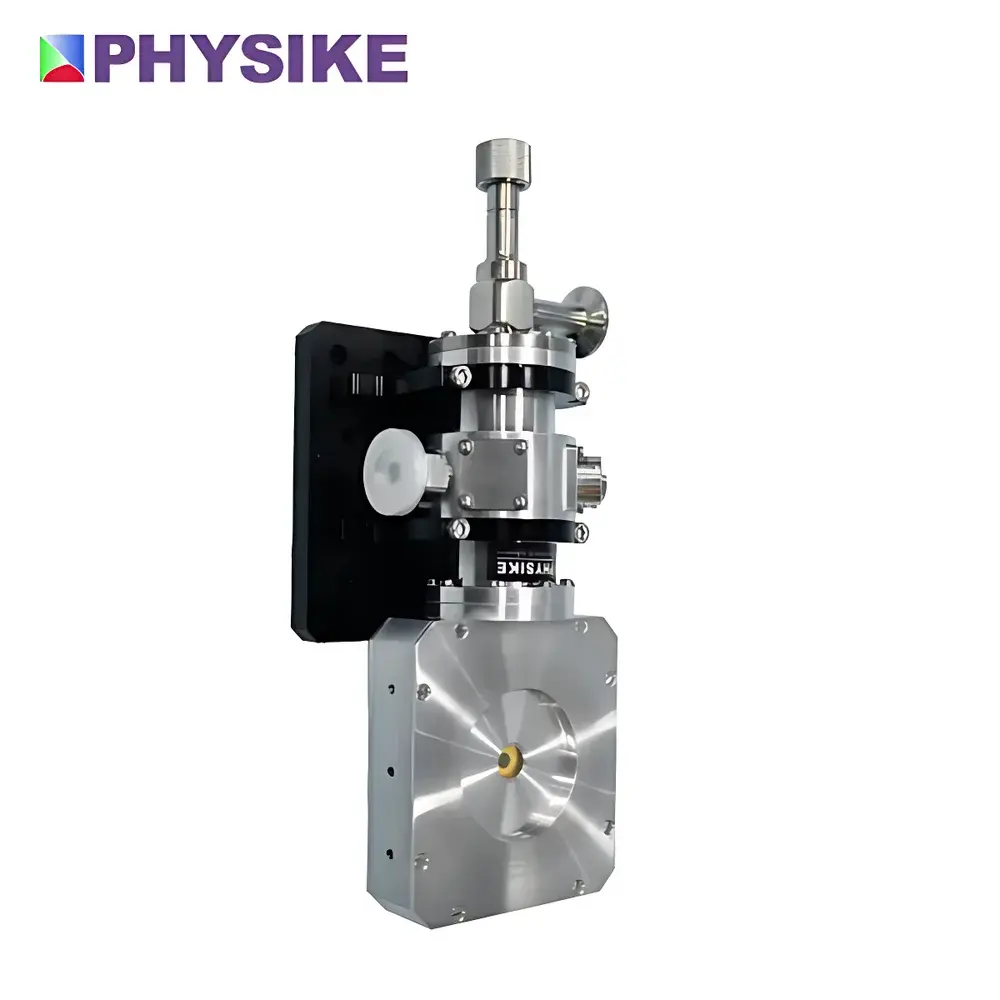

| Model | Vcryo-V-200 |
| Temperature Setpoint Range | 78.5 K – 500 K |
| Working Distance | 2 mm |
| Vibration Stability | ±5 nm |
| Unit Weight | 1.5 kg |
| Cooling Medium | Liquid Nitrogen |
| Initial Cool-down Time | <10 min |
| LN₂ Consumption Rate | 0.2 L/h |
| Compact Dimensions | 3 cm (thickness) × 29 cm (length) |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |

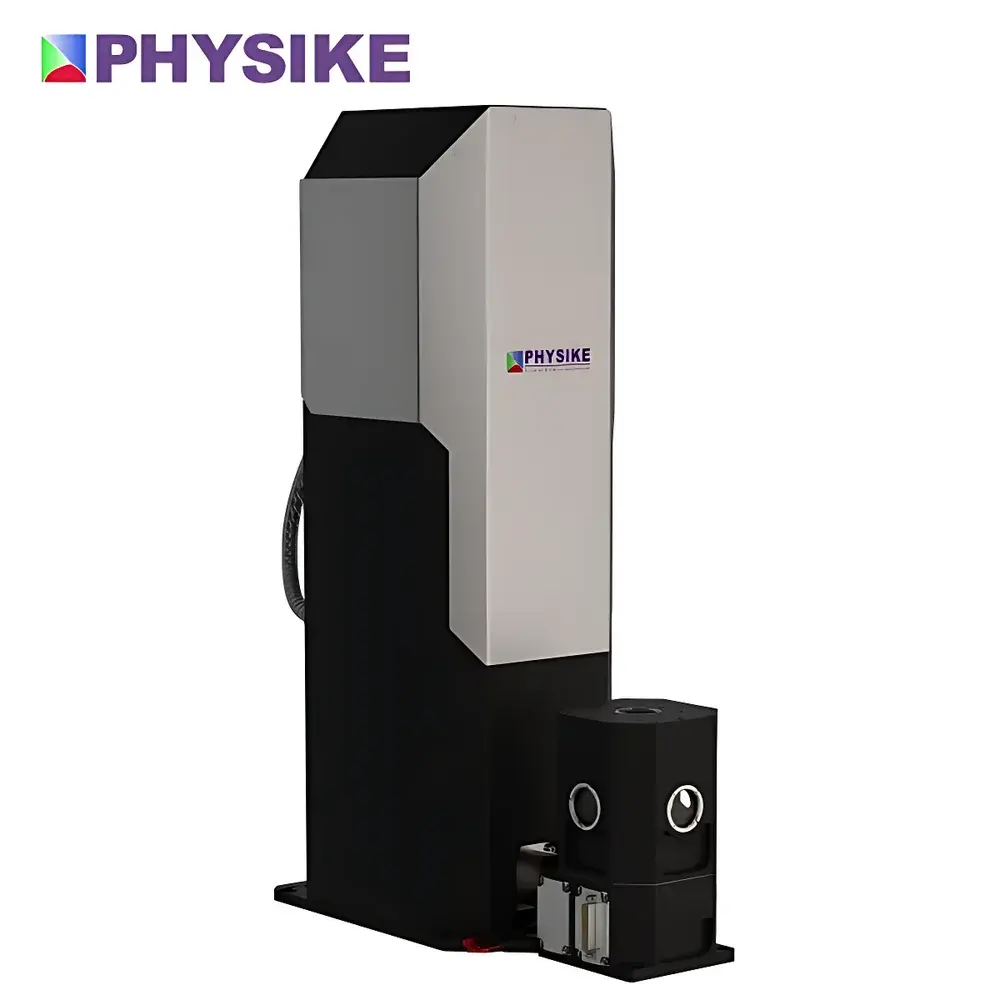

| Model | CryoAce-50 |
| Quotation | Upon Request |
| Vibration Stability | 10 nm |
| Circulating Medium | Helium Gas |
| Brand | Physiké |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

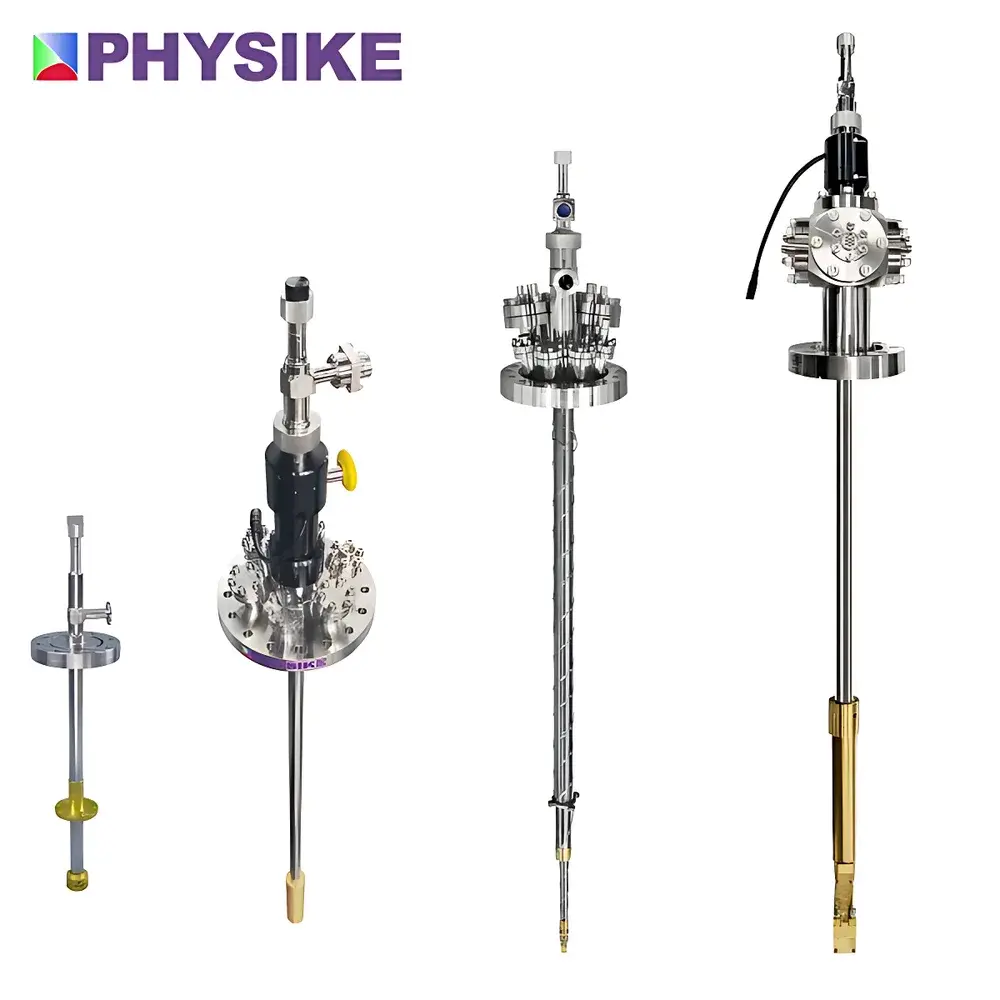

| Model | Scryo-S-400 |
| Pricing | Upon Request |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |

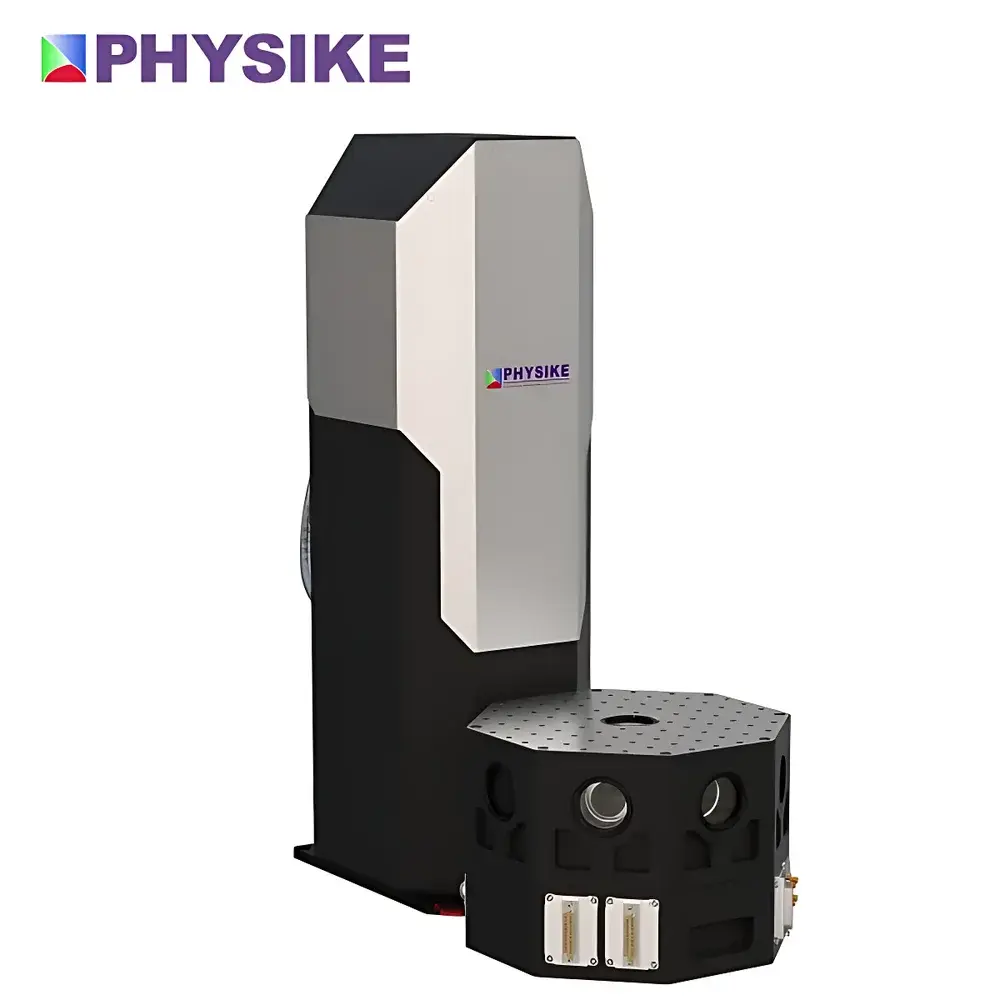

| Model | CryoAce-200 |
| Vibration Stability | 12 nm (RMS) |
| Cooling Medium | Helium Gas |
| Baseplate Diameters Available | 5 cm, 10 cm, 15 cm, 20 cm |
| Base Temperature Range | 2.4 K – 3.2 K (dependent on configuration) |
| Standard Viewports | Top and/or Side |
| Power Supply | Single-Phase, Low Power Consumption |
| Footprint | Compact Desktop Form Factor |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |

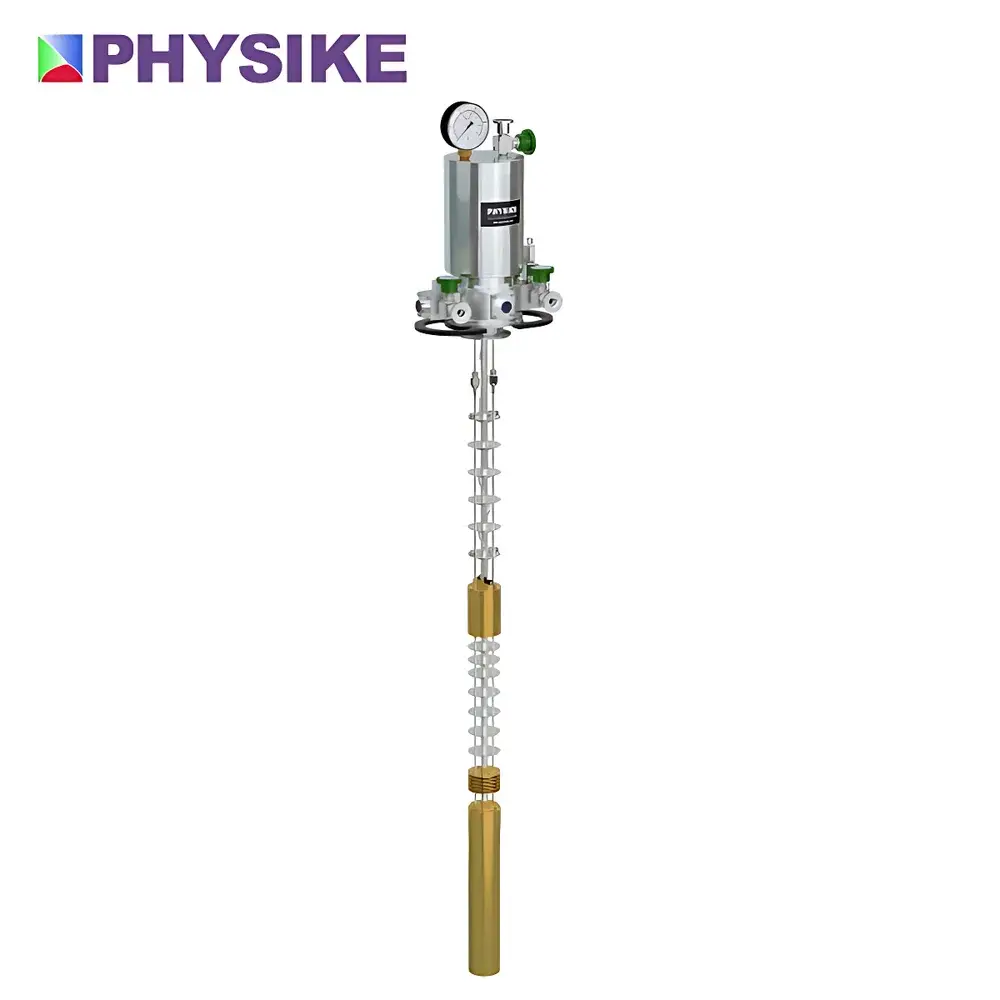

| Model | Cryocloud-500 |
| Pricing | Upon Request |
| Compatible Cryostat Platforms | Acryo-1.5K (top-loading 1.5 K cryostat), CryoM (dry, variable-temperature superconducting magnet system) |
| Base Temperature (no-load) | < 270 mK |
| Hold Time | > 60 hours |
| Cooling Power at 350 mK | > 100 µW |
| Internal Cryopumping | Integrated low-temperature adsorption pump |
| Helium-3 Circuit | Sealed, single-shot operation |
| Sample Environment | High-vacuum standard |
| Brand | Physike |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Scryo-S-200 |
| Pricing | Available Upon Request |
| Vacuum Compatibility | UHV (≤1×10⁻¹⁰ mbar) |
| Bakeable Temperature | ≥150 °C |
| Cold Plate Diameter | 15 cm (standard), up to 25 cm (custom) |
| Base Temperature | <2.4 K (with Qcryo® helium recirculator) |
| Temperature Stability | ±2.5 mK over 10 min |
| Vibration Amplitude (FFT, 2.5 kHz) | X < 2 nm, Y < 2.5 nm, Z < 3 nm |
| Cooling Power | >650 mW at 4.2 K |
| Customization Options | Multi-layer radiation shields, side/roof viewports (up to 8 side + 3 top), UHV-compatible electrical feedthroughs (DC: up to 200 leads |
| RF | 4 coaxial lines), custom vacuum chamber integration |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Cryocloud-400 |
| Pricing | Upon Request |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |

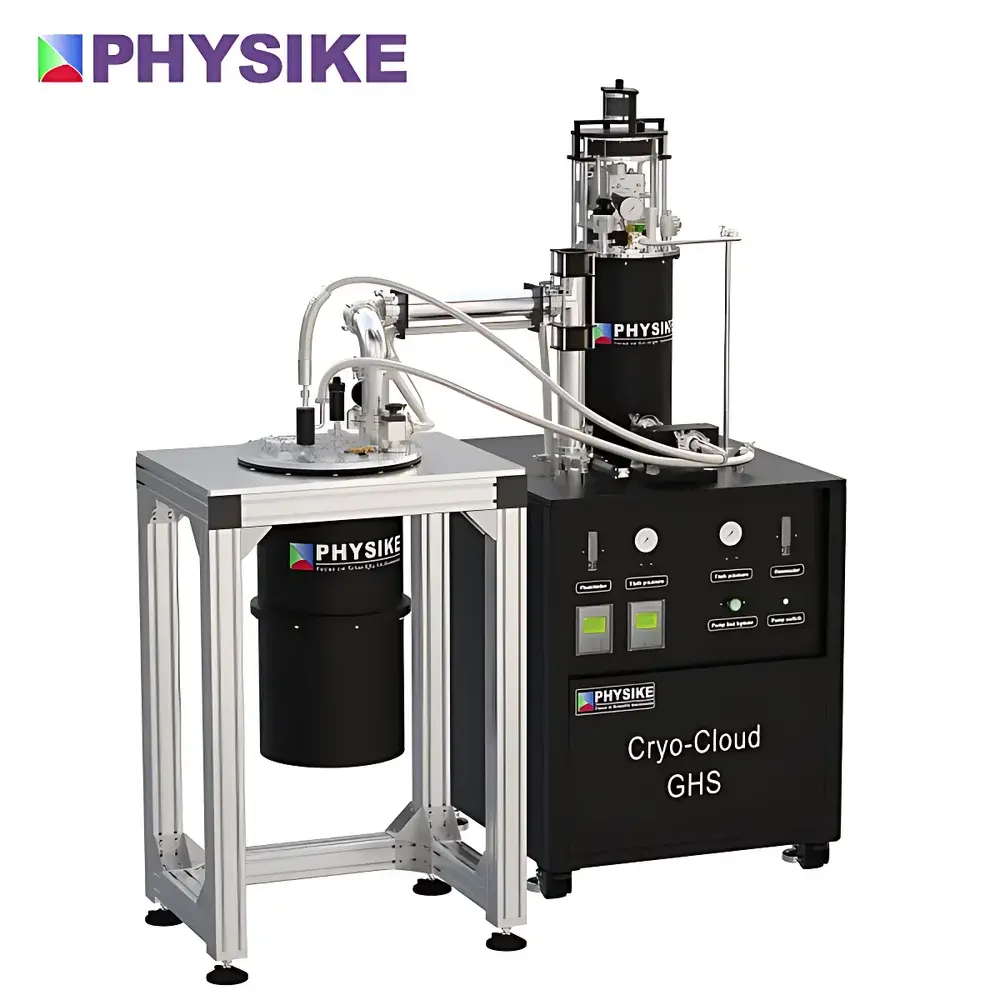

| Model | Cryocloud-200 |
| Base Temperature | < 350 mK |
| Cooling Architecture | Split-system (external Qcryo® helium-recycling cryocooler) |
| Vibration Isolation | Active mechanical decoupling between compressor/coldhead and He-3 insert |
| Vacuum Compatibility | UHV-compatible (bakeable to 150 °C) |
| Optional Integration | Superconducting magnet (up to 9 T, persistent mode) |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

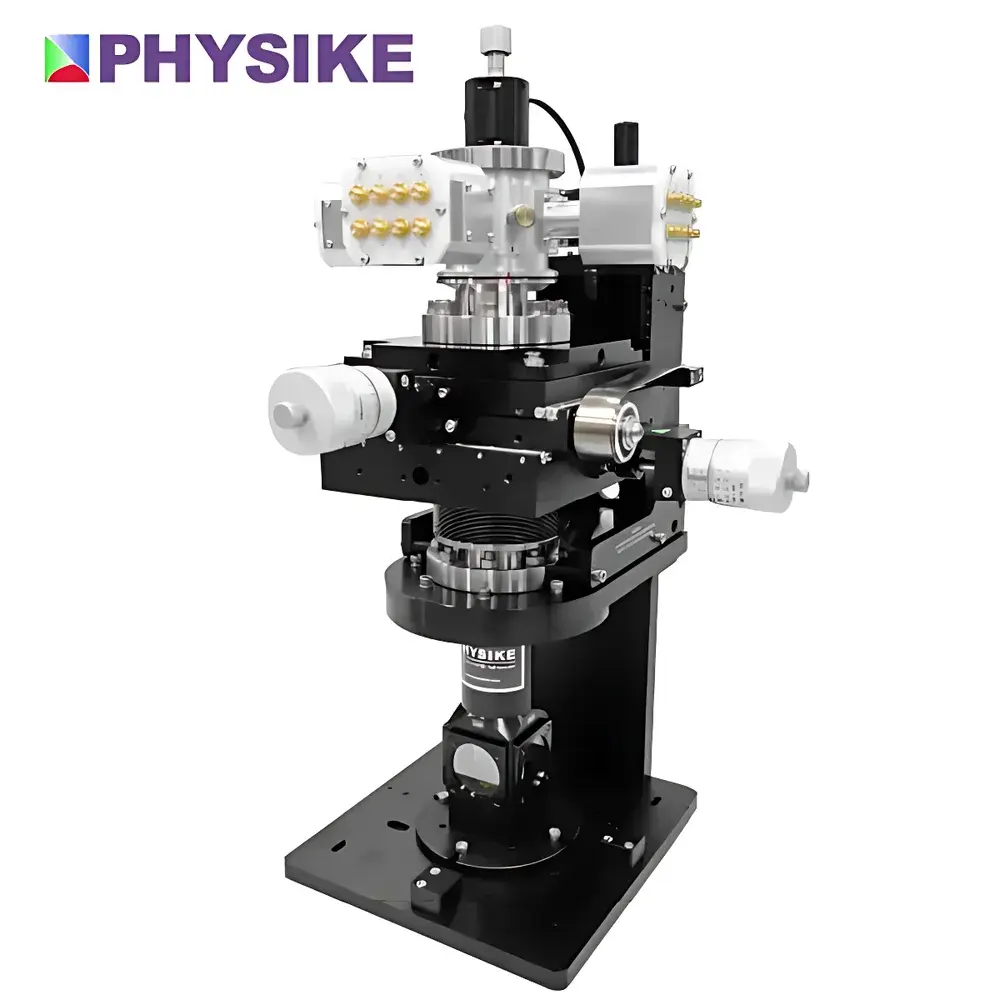

| Model | Scryo-S-100 |
| Minimum Temperature | 2 K |
| Cryogen Medium | Helium Gas (Gaseous or Liquid Helium Compatible) |
| Temperature Range | 2 K to 420 K (standard), up to 800 K with high-temperature option |
| Cooling Method | Continuous-flow cryogenic system with integrated high-efficiency vaporizer and ultra-low-loss flexible transfer line |
| Standard Sensor | Calibrated ZrON resistance thermometer |
| Control Precision | High-stability closed-loop temperature control via external precision temperature controller |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Scryo-S-300 |
| Vibration Stability | ±5 nm |
| Circulating Medium | Helium Gas |
| Cooling Architecture | Continuous-Flow Open-Cycle |
| Optional Dry-Cycle Integration | Compatible with Qcryo® Helium Recirculation System |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |

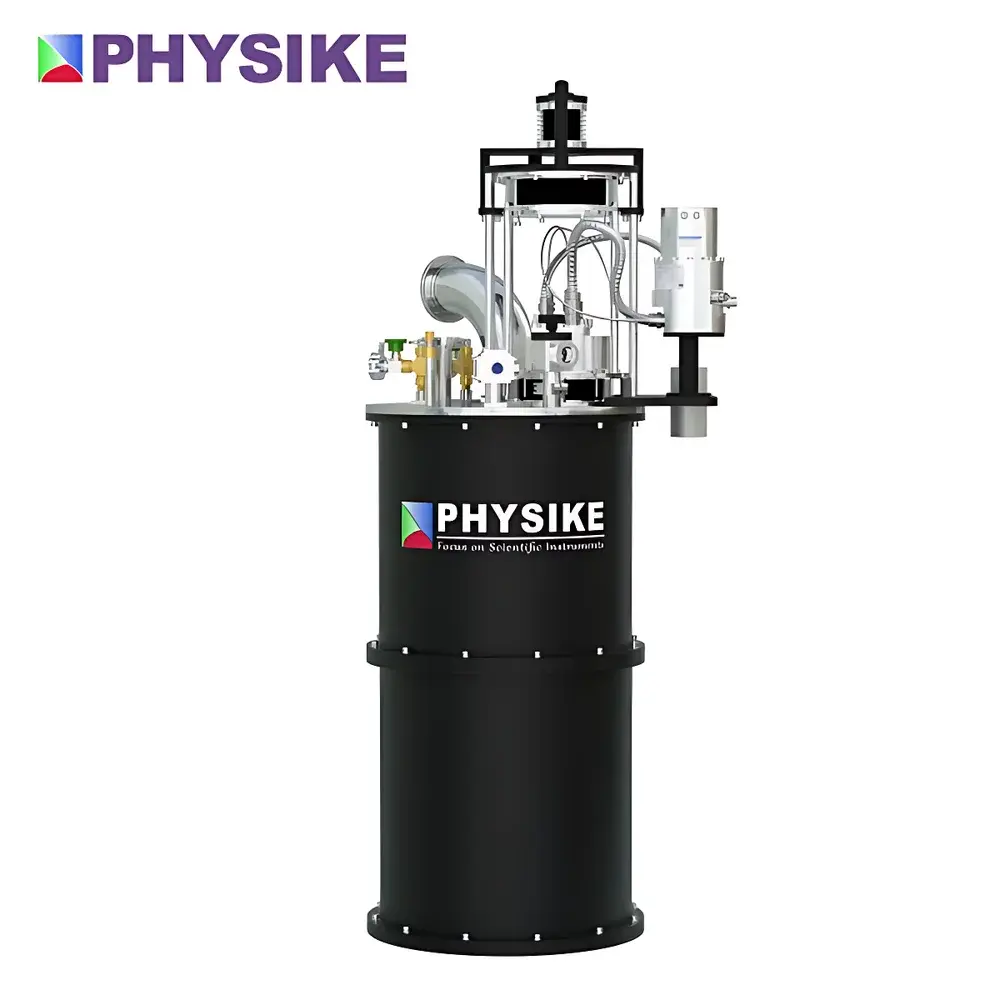

| Model | Cryocloud-100 |
| Ultimate Temperature | < 350 mK |
| Cooling Source | 4 K Pulse Tube or Gifford-McMahon Refrigerator |
| Integrated 4 K Cold Head | Yes |
| Gas Recirculation System | External High-Speed Vacuum Pump Array + Purification & Condensation Loop |
| Liquid Nitrogen Cold Trap | Included |
| Thermal Switch | High-Performance Active Type |
| Optional Configurations | Top-Loading with Load-Lock Insert, Integrated Superconducting Magnet |
| Brand | Physike |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Vcryo-V-100 |
| Price | Upon Request |
| Temperature Stability | ±25 mK |
| Operating Temperature Range | 65 K to 500 K (optional upgrade to 800 K) |
| Dewar Volume | 0.4 L |
| Cooling Medium | Liquid Nitrogen |
| Brand | Physike |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

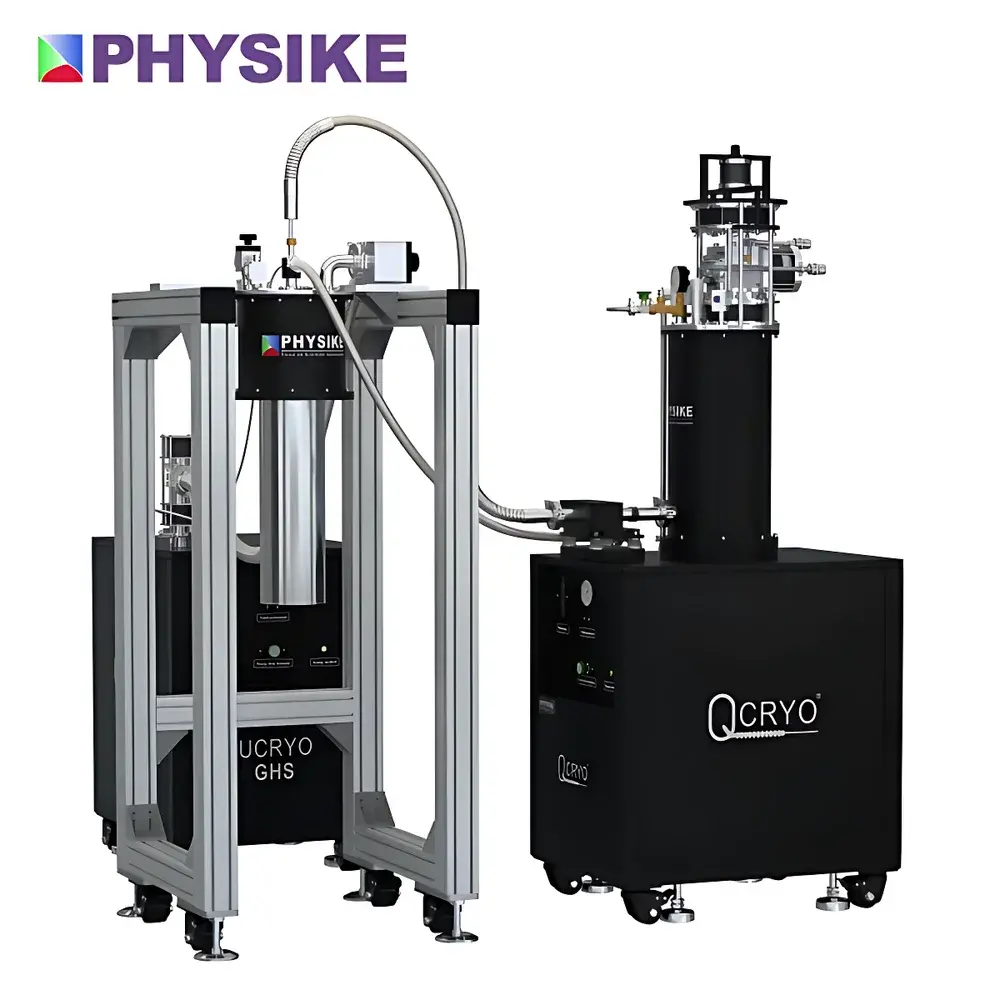

| Model | Ucryo-100 |
| Pricing | Available Upon Request |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | Scryo-S-500 |
| Temperature Stability | < ±25 mK |
| Base Temperature | < 2.2 K |
| Vibration Level | < 5 nm (peak-to-peak) |
| Cooling Medium | Helium gas (closed-cycle option with Qcryo® system) |
| Operating Range | < 1.8 K – 420 K (pumped below 4.5 K) |
| Drift Rate | < 2 nm/min |
| Helium Consumption | < 0.55 L/hr @ 5 K (open-cycle) |
| Optical Windows | Standard fused silica |
| Vacuum Feedthroughs | SMA/2.92 mm/2.4 mm/1.85 mm microwave, BNC, Triax, fiber optic, multi-pin |
| Sample Holders | Puck, DIP, LCC, transmission, solar cell, thermal transport configurations |
| Optional Integration | Nanopositioning stages, DACs, superconducting magnets, vertical extension, stainless-steel vacuum chamber with indium-sealed flanges |
| Brand | PHYSIKE |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Scryo-SV |
| Pricing | Upon Request |
