| Brand | Asphericon |
|---|---|
| Origin | Germany |
| Model | TSM25-10-LD-B-632 |
| Thread | M28×0.75 mm |
| Outer Diameter Mount | 30 mm |
| Length | 92.3 mm |
| Input Beam Diameter (1/e²) | 10 mm (±10%) |
| Output Beam FWHM | 15.4 mm |
| Output Aperture | 15.4 mm |
| Stable Beam Profile Range | up to 1500 mm |
| Design Wavelength | 632 nm |
| Spectral Range | 530–800 nm |
| Laser Damage Threshold | 12 J/cm², 100 Hz, 6 ns @ 532 nm |
| Brand | asphericon |
|---|---|
| Origin | Germany |
| Model | UAM25-28-C-MII |
| Thread Type | Female/Female M28×0.75 |
| Length | 10.3 mm |
| Outer Diameter | 30 mm |
| Clear Aperture | 24.5 mm |
| Component Category | Optical Mounting Adapter |
| Brand | asphericon |
|---|---|
| Origin | Germany |
| Model | ALL50-100-U-U |
| Material | N-BK7 |
| Diameter | 50 mm |
| Effective Focal Length (EFL) | 100 mm |
| f/d Ratio | 2.0 |
| Numerical Aperture (NA) | 0.24 |
| Working Distance (WD) | 93.4 mm |
| Design Wavelength | 780 nm |
| Surface Irregularity (RMSi) | < 100 nm |
| Wavefront RMS | < 51 nm |
| Scratch-Dig | 60–40 |
| Coating | Broadband AR (A/B/C series, optimized for 780 nm) |
| Brand | asphericon |
|---|---|
| Origin | Germany |
| Model | BAM25-200-B-632 |
| Design Wavelength | 632 nm |
| Expansion Ratio | 2.0× |
| Input Aperture | 10.6 mm |
| Output Aperture | 22.5 mm |
| Thread | M28×0.75 |
| Length | 34.8 mm |
| Coating Type | Broadband AR (600–1050 nm, R<1.0% max, R<0.4% avg at 0° AOI) |
| Laser Damage Threshold | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |
| Surface Irregularity (RMSi) | <0.5 µm |
| Compliance | RoHS |
| Brand | Asphericon |
|---|---|
| Origin | Germany |
| Model | SQM25-10-A-532 |
| Thread | M28×0.75 mm |
| Outer Diameter Mount | 30 mm |
| Length | 17.3 mm |
| Input Beam Diameter @1/e² | 10 mm |
| Output Beam Diameter (FWHM) | 10 mm |
| Design Wavelength | 532 nm |
| Operating Wavelength Range | 500–620 nm |
| Laser Damage Threshold | 12 J/cm², 100 Hz, 6 ns @ 532 nm |
| Brand | Asphericon |
|---|---|
| Origin | Germany |
| Model | TSM25-10-LD-B-780 |
| Mount Thread | M28×0.75 mm |
| Outer Diameter | 30 mm |
| Length | 92.8 mm |
| Input Beam Diameter (1/e²) | 10 mm (±10%) |
| Output Beam FWHM | 15.4 mm |
| Output Aperture | 15.4 mm |
| Stable Beam Profile Range | up to 1500 mm |
| Design Wavelength | 780 nm |
| Spectral Range | 620–1040 nm |
| Laser Damage Threshold | 12 J/cm² (100 Hz, 6 ns, 532 nm) |
| Brand | Asphericon |
|---|---|
| Origin | Germany |

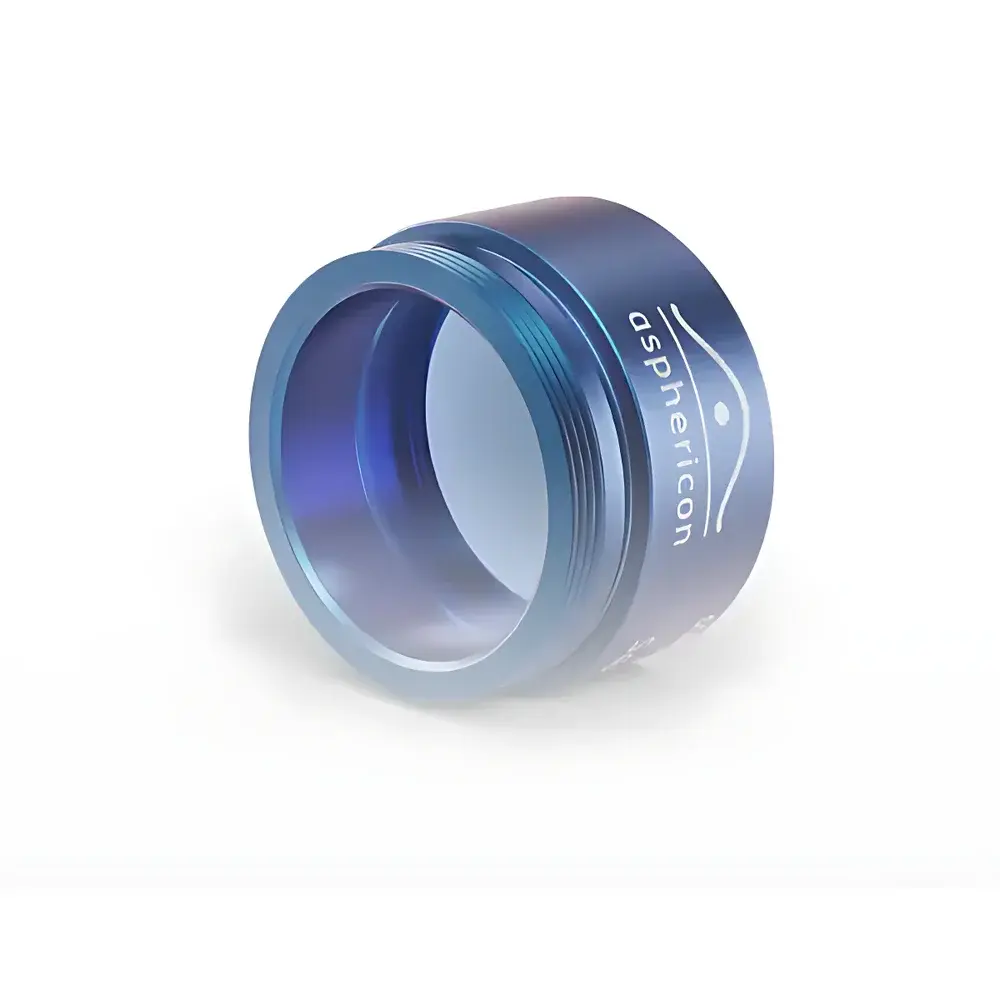

| Model | ASM25-10-C-1064 |
| Thread | M28×0.75 mm |
| Outer Diameter Mount | 30 mm |
| Length | 17.3 mm |
| Input Beam Diameter @1/e² | 10 mm |
| Output Beam Diameter (dAiry) | 10 mm |
| Design Wavelength | 1064 nm |
| Wavelength Range | 1000–1500 nm |
| Laser Damage Threshold | 12 J/cm², 100 Hz, 6 ns @ 532 nm |
| Brand | Asphericon |
|---|---|
| Origin | Germany |

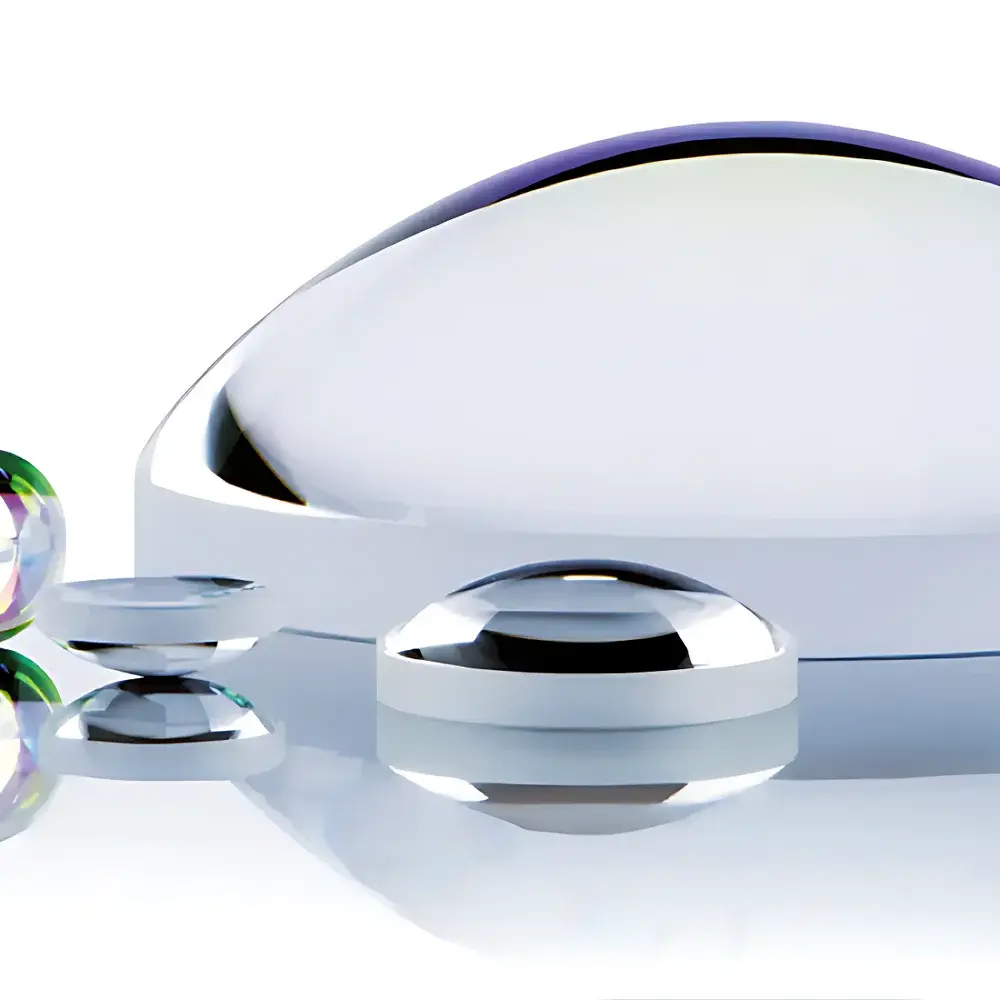

| Model | AFL50-80-P-U |
| Material | Fused Silica |
| Surface Irregularity (RMSi) | < 500 nm |
| Wavefront RMS | < 235 nm |
| Diameter | 50 mm |
| Effective Focal Length (EFL) | 80 mm |
| Numerical Aperture (NA) | 0.29 |
| f/d ratio | 1.6 |
| Working Distance (WD) | 70.6 mm |
| Design Wavelength | 285 nm |
| Scratch-Dig | 20-20 |
| Coating Option | Standard AR (e.g., Coating B: 600–1050 nm, Rₐᵥg ≤ 0.4%) |
| Brand | Asphericon |
|---|---|
| Origin | Germany |

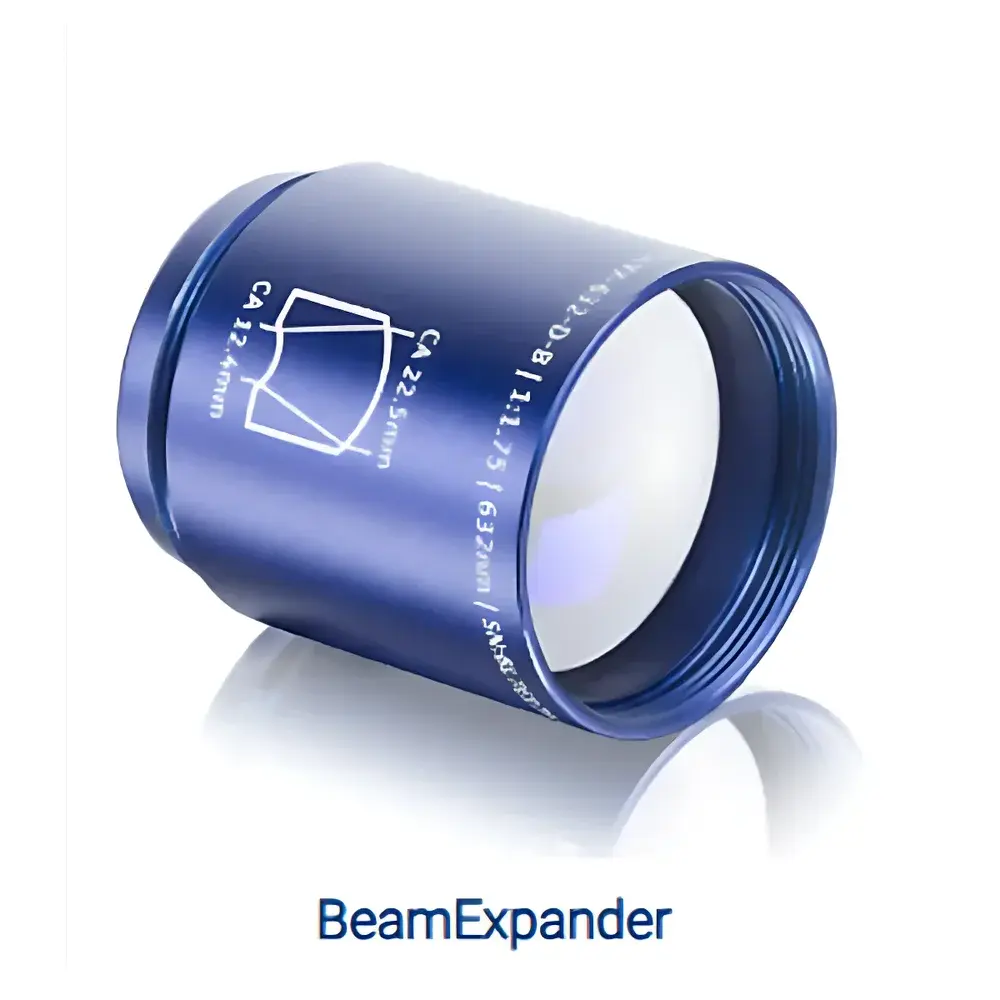

| Model | BAM25-175-B-632 |
| Design Wavelength | 632 nm |
| Expansion Ratio | 1.75× |
| Input Aperture | 12.4 mm |
| Output Aperture | 22.5 mm |
| Thread | M28×0.75 |
| Length | 34.8 mm |
| Diameter | 30 mm |
| Surface Irregularity (RMSi) | < 0.5 µm |
| Laser Damage Threshold (Coated) | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |
| Coating Type | Broadband AR (600–1050 nm, Rₐᵥg ≤ 0.4%, Rₘₐₓ < 1.0%, AOI = 0°) |
| Compliance | RoHS |
| Brand | Asphericon (Germany) |
|---|---|
| Origin | Germany |
| Model | CHL15-12-P-U |
| Component Category | Optical Element |
| Surface Figure Error (RMSi) | ≤500 nm |
| Clear Aperture | 15 × 15 mm |
| Effective Focal Length (EFL) | 12 mm |
| Numerical Aperture (NA) | 0.54 |
| f/d Ratio | 0.8 |
| Working Distance (WD) | 9.2 mm |
| Design Wavelength | 780 nm |
| Substrate Material | S-LAH64 |
| Coating Options | AR Coating A (400–600 nm), B (600–1050 nm), or C (1000–1500 nm) |
| Brand | Asphericon (Germany) |
|---|---|
| Origin | Germany |
| Model | CHL30-26-P-U |
| Component Category | Optical Element |
| RMSi Surface Form Error | ≤500 nm |
| Size | 30 × 30 mm |
| Effective Focal Length (EFL) | 26 mm |
| Numerical Aperture (NA) | 0.52 |
| f/d Ratio | 0.87 |
| Working Distance (WD) | 21.5 mm |
| Design Wavelength | 780 nm |
| Substrate Material | S-LAH64 |
| Coating Options | AR Coating A (400–600 nm), B (600–1050 nm), or C (1000–1500 nm) |
| Brand | Pacific Lasertec |
|---|---|
| Origin | USA |
| Model | 25-STP-912 |
| Wavelength | 633 nm |
| Output Power | 1 mW |
| Polarization | Linear |
| Frequency Stability | < ±2 MHz (short-term), < ±5 MHz (long-term, 8 hrs) |
| Beam Diameter | ~0.65 mm (1/e²) |
| Beam Divergence | < 1.5 mrad |
| Warm-up Time | < 15 min to full stability |
| Operating Temperature | 15–35 °C |
| Power Supply | Integrated or external LPL-series regulated DC source (e.g., LPL-901-045) |
