| Brand | Xianghu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

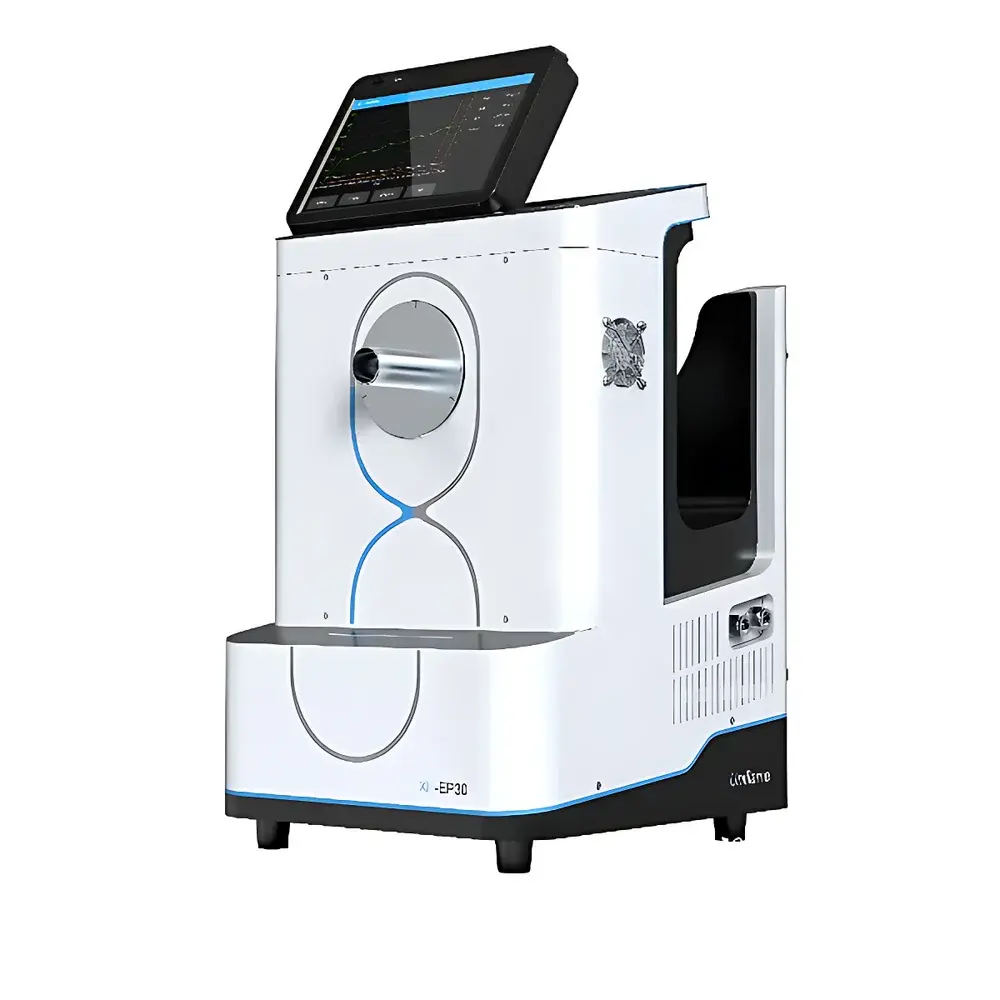

| Model | XH-EP30 |
| Price Range | USD 14,000–28,000 (FOB) |
| Max Temperature | 1550 °C (tube furnace mode: 1100 °C) |
| Temperature Control Accuracy | ±0.5% of setpoint or ±2 °C (whichever is greater) |
| Max Power Output | 900 W |
| Ramp Time to Max Temperature | ≤5 min |
| Heating Method | 2.45 GHz Monomode Microwave Energy Coupling |
| Control Modes | Independent Microwave Power Regulation + Programmable Temperature Profile Control |
| Tube Inner Diameter | 22 mm |
| Cooling Method | Forced-air convection with thermal cutoff protection |
| Brand | Xianghu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

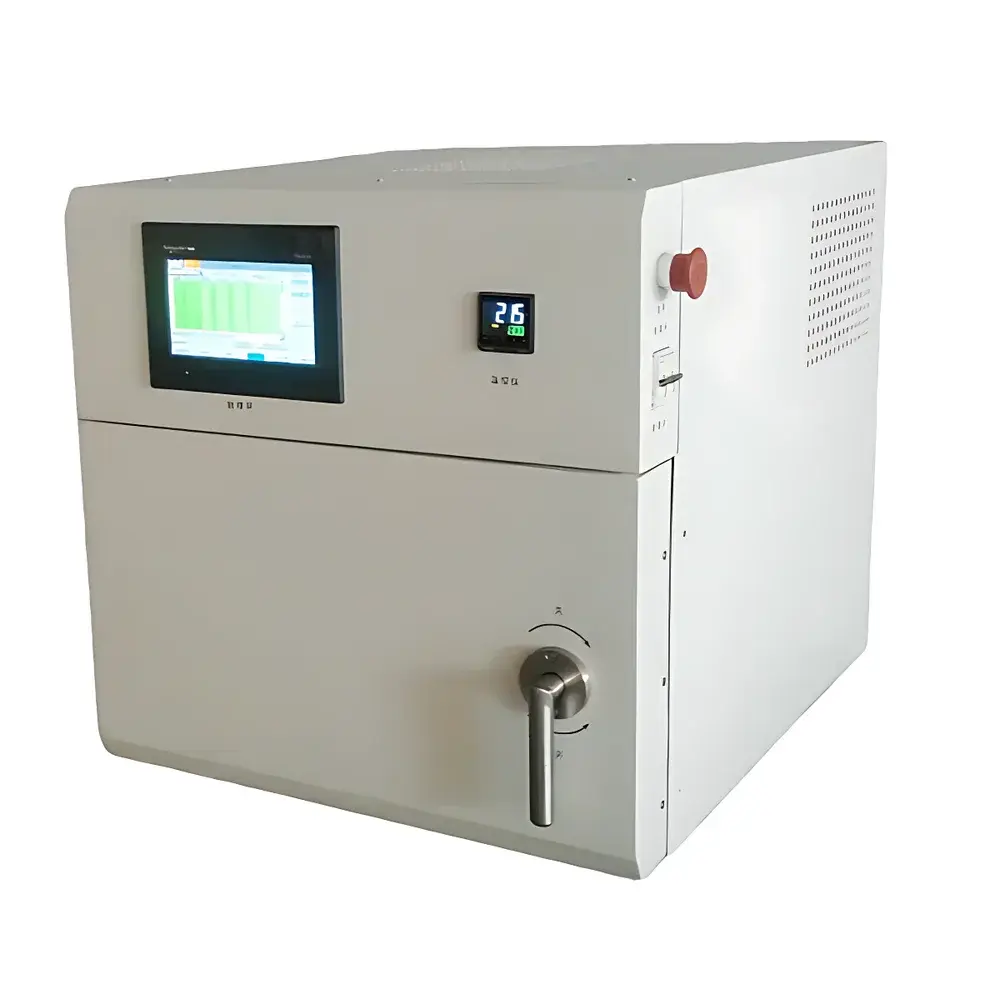

| Model | UP-600 |
| Price Range | USD 7,000–14,000 (FOB) |
| Instrument Type | Box-Type Furnace |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±0.1% of reading |
| Rated Power | 3 kW (small variant) / 5 kW (large variant) |
| Average Heating Rate to Max Temp | ≥30 °C/min |
| Heating Method | Microwave (2450 MHz) |
| Internal Cavity Dimensions | 150×110×70 mm or 200×200×100 mm (L×W×H) |
| Microwave Output Power Range | 0.01–1.40 kW (3 kW model) / 0.01–2.80 kW (5 kW model) |
| Continuous Operating Temperature | 1150 °C |
| Temperature Measurement | Type K thermocouple, 0–1300 °C |
| Control System | 40-segment programmable profile, real-time curve display, data logging & export, dynamic screen saver |
| Safety Compliance | Microwave leakage <0.5 mW/cm², over-temperature & over-current protection, interlocked door switch |
| External Dimensions (small) | ~750×550×650 mm |
| (large) | ~850×650×750 mm |
| Loading Volume (small) | 130×80×70 mm |
| (large) | 140×140×100 mm |
| Brand | Xianghu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

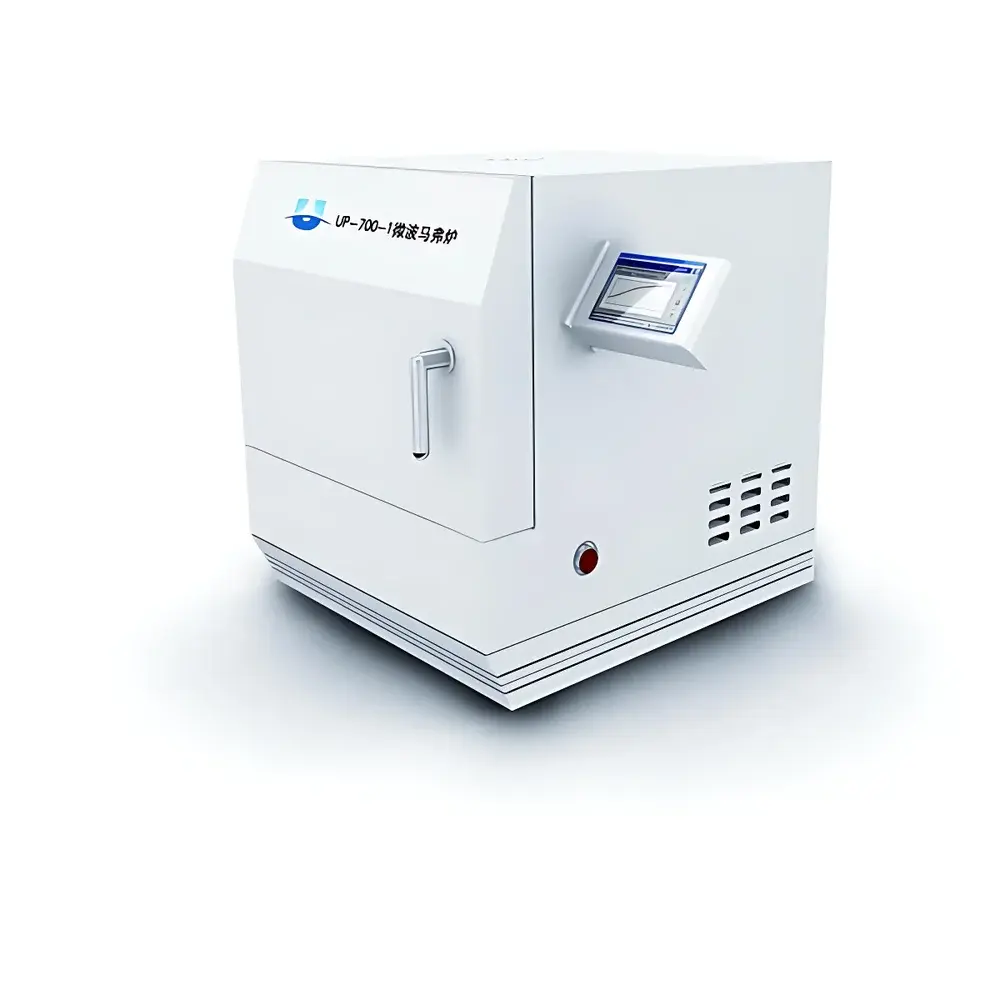

| Model | UP-700 |
| Instrument Type | Box-Type Furnace |
| Max Temperature | 1600 °C |
| Temperature Control Accuracy | ±0.1% of reading |
| Power Range | 0.01–1.40 kW (small) / 0.01–2.80 kW (large) |
| Avg. Heating Rate to Max Temp | ≥20 °C/min |
| Heating Method | Microwave (2450 MHz) |
| Internal Chamber Dimensions | 130×80×70 mm or 140×140×100 mm (L×W×H) |
