| Brand | Zhongruixiang |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

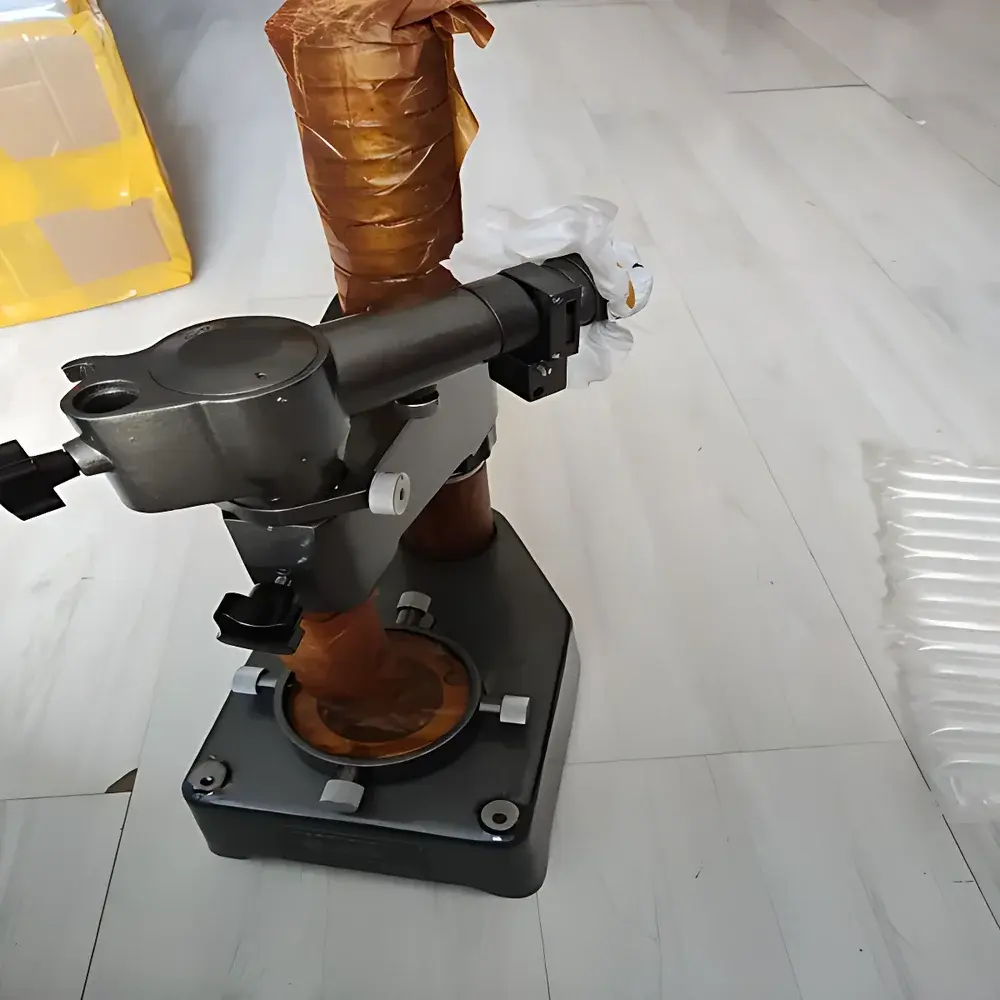

| Model | ZRX-17991 |
| Price | Upon Request |
| Eyepiece Magnification | 12× |
| Optical Lever Magnification | 80× |
| Total Optical Magnification | ≈1000× |
| Scale Division Value | 0.001 mm |
| Apparent Scale Interval in Field of View | ≈1 mm |
| Scale Range | ±0.1 mm |
| Plunger Free Travel | ≈0.4 mm |
| Measuring Force | 200 g ±20 g |
| Optical Tube Mounting Diameter | 28d mm |
| Zero Adjustment Range | ±0.01 mm |
| Measurement Length (without projector) | 180 mm |
| Measurement Length (with projector) | 120 mm |
| Distance from Column Edge to Platform Center | 115 mm |
| Instrument Uncertainty | ±0.00025 mm |
| Indication Stability | 0.0001 mm |
| Measurement Uncertainty | ±(0.5 + L/100) µm |
| Adjustable Circular Stage Diameter | 88 mm |
| Fixed Square Stage Dimensions | 142 × 130 mm |
| Fixed Small Round Stage Radius | R20 mm |
| Fixed Small Flat Stage Diameter | 8 mm |
| Reflector Diameter | 50 mm |
