| Brand | Advacam |
|---|---|
| Origin | Czech Republic |
| Model | WidePIX 2(1)x10-MPX3 |
| Sensor Material | Si or CdTe |
| Sensor Thickness | 300 µm (Si), 1 mm (CdTe) |
| Active Area | 28 (14) × 140.8 mm |
| Pixel Count | 512 (256) × 2560 |
| Pixel Size | 55 µm |
| Spatial Resolution | 9 lp/mm |
| Frame Rate | 170 fps (1×10 configuration), 80 fps (2×10 configuration) |
| Readout Chip | Medipix3 RX |
| Energy Thresholds | 1 or 2 programmable thresholds per pixel |
| Minimum Detectable Energy | 4 keV (Si), 5 keV (CdTe) |
| ADC Resolution | 12-bit or 24-bit (configurable) |
| TDI Support | Hardware-based, enabled in 1×10 mode at 1.5 m/s scan speed |
| Interface | Dual Ethernet RJ-45 |
| Dimensions | 210 × 190 × 42 mm (L × W × H) |
| Edgeless Tiling | Yes |
| Brand | Advacam |
|---|---|
| Origin | Czech Republic |
| Model | MiniPIX EDU |
| Sensor Chip | Timepix |
| Pixel Size | 55 × 55 µm |
| Sensor Resolution | 256 × 256 pixels |
| Dynamic Range per Frame | 11082 counts |
| Dark Current | Negligible |
| Interface | USB 2.0 |
| Max Frame Rate | 55 fps |
| Dimensions | 88.9 × 21 × 10 mm |
| Weight | 30 g |
| Operating Modes | Event (count), ToT (energy deposition), ToA (time-of-arrival) |
| OS Compatibility | Windows, macOS, Linux |
| Software | RadView (educational radiation visualization suite) |
| Brand | Advacam |
|---|---|
| Origin | Czech Republic |
| Model | ADVAPIX TPX3F, MINIPIX TPX3F |
| Sensor Material | Si (100/300/500 µm), CdTe (1 mm) |
| Pixel Size | 55 × 55 µm |
| Array | 256 × 256 pixels |
| Dark Noise | None |
| Time Resolution | 1.6 ns |
| Event Rate (MAX) | 40 × 10⁶ hits/s (ADVAPIX TPX3F), 2.35 × 10⁶ hits/s (MINIPIX TPX3F) |
| Frame Rate | 30 fps (ADVAPIX), 16 fps (MINIPIX) |
| Readout Interface | USB 3.0 (ADVAPIX), USB 2.0 (MINIPIX) |
| Operating Modes | Frame-based (Event+iToT, iToT, ToA), Pixel/Event-driven (ToT+ToA, ToA-only, ToT-only) |
| Brand | Advacam |
|---|---|
| Origin | Czech Republic |

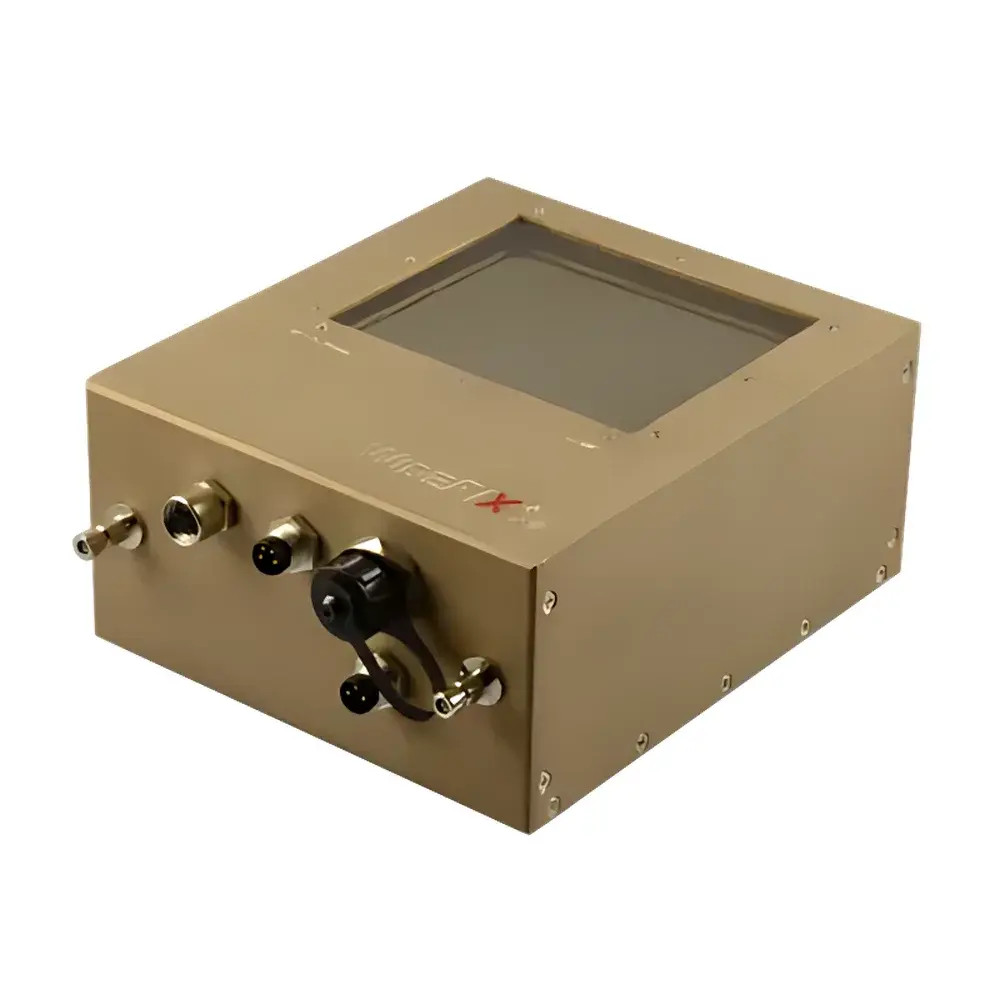

| Model | WidePIX 5×5 |
| Detector Architecture | Tiled 5×5 array of Timepix3 hybrid pixel detectors |
| Sensor Material | Edgeless Si or CdTe |
| Total Active Area | ~14.1 × 14.1 cm² |
| Pixel Count | 1280 × 1280 (1.63 MP) |
| Pixel Pitch | 55 µm |
| Energy Threshold Range | Adjustable from ~3 keV (Si) or ~10 keV (CdTe) |
| Counting Mode | Per-pixel digital photon counting with time-over-threshold (ToT) energy estimation |
| Frame Rate | Up to 100 fps (full frame, depending on readout configuration) |
| Readout Interface | USB 3.0 or PCIe (optional) |
| Compliance | CE, RoHS, compatible with ISO 17025-accredited lab environments |
| Brand | Advacam |
|---|---|
| Origin | Czech Republic |
| Model | AdvaPIX TPX3 |
| Sensor Material | CdTe (1 mm) or Si + 6LiF neutron converter layer |
| Pixel Pitch | 55 µm |
| Spatial Resolution | 15 µm (CdTe, sub-pixel), 2.5 µm (Si + 6LiF, σ PSF) |
| Frame Rate | Up to 40 M hits/s per module |
| Readout Chip | Timepix3 (CERN-developed) |
| Interface | USB 3.0 |
| Field of View | 14 × 14 mm |
| Max Effective Resolution | 6.5 MPix |
| Applications | Energy-resolved radiography, neutron imaging, particle tracking, time-of-flight imaging, Compton camera reconstruction |
| Brand | Advacam |
|---|---|
| Origin | Czech Republic |

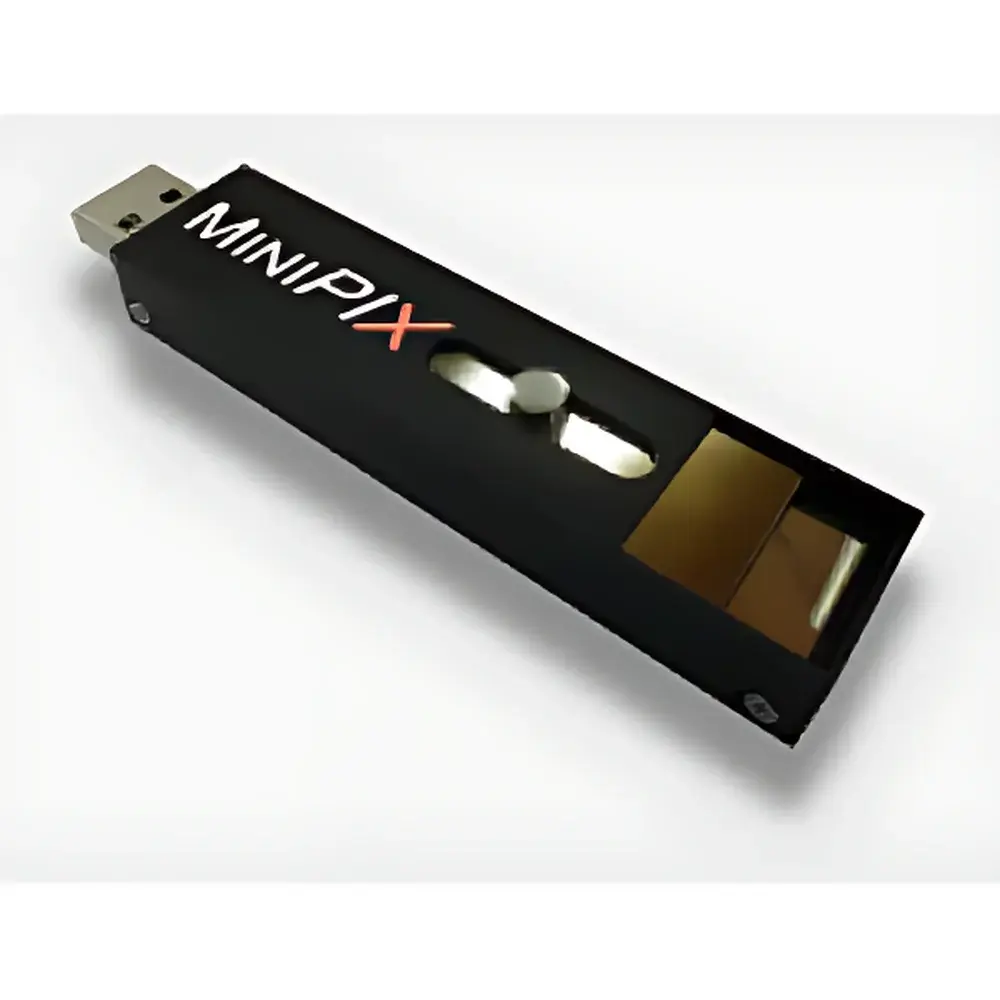

| Model | MiniPIX TPX |
| Detector Chip | Timepix (256 × 256 pixels) |
| Pixel Size | 55 µm |
| Sensor Material | Silicon |
| Sensor Thickness | 300 µm |
| Readout Interface | USB 2.0 |
| Frame Rate | up to 30 fps (1 ms exposure) |
| Operating Systems | Windows, macOS, Linux |
| Software | PIXET Lite (included), optional PIXET Pro or Pixelman |
| Radiation Types Detected | X-rays, neutrons, alpha particles, electrons, ions |
| Energy-resolved Imaging | Yes |
| Spatial Resolution | 55 µm |
| Dynamic Range | Effectively unlimited (zero dark current, photon-counting operation) |
| Brand | Advacam |
|---|---|
| Origin | Czech Republic |
| Model | MiniPIX TPX3 |
| Sensor Material | Si or CdTe |
| Sensor Thickness | 100 µm, 300 µm, 500 µm (Si) |
| Sensitive Area | 14 mm × 14 mm |
| Time Resolution | 1.6 ns |
| Readout Speed | 2.35 million hits/s |
| Frame Rate | 16 fps |
| Pixel Array | 256 × 256 |
| Pixel Pitch | 55 µm |
| Energy Resolution | 0.5–1 keV (Si), 1.1–3.6 keV (CdTe) |
| Minimum Detectable Energy | 3 keV (Si), 5 keV (CdTe) |
| Readout Chip | Timepix3 |
| Operating Modes | Time-over-Threshold (ToT), Time-of-Arrival (ToA) |
| Connectivity | µUSB 2.0 |
| Weight | 30 g |
| Dimensions | 80 mm × 21 mm × 14 mm |
| Software | Pixet Pro |
