| Brand | Bio-Rad |
|---|---|
| Origin | USA |

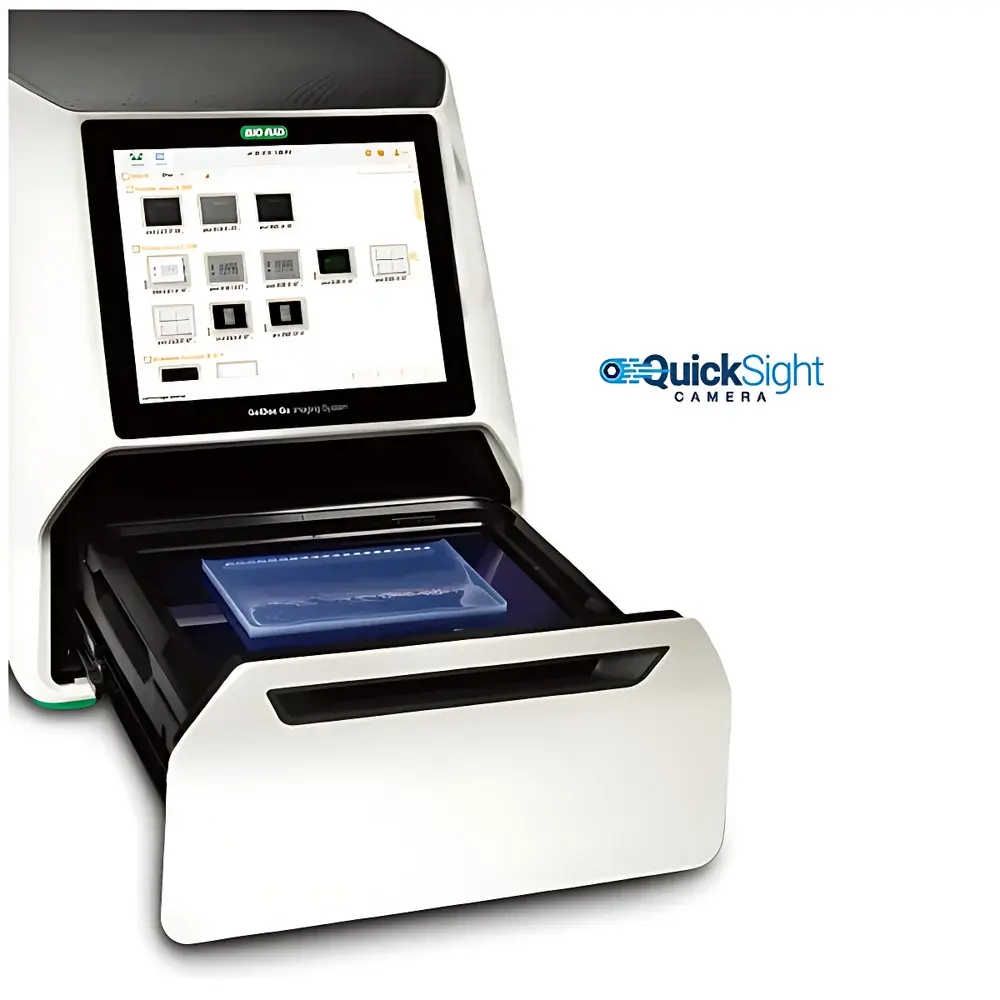

| Model | GelDoc Go |
| Instrument Type | Standalone Gel Documentation System |
| CCD Resolution | 6.3 MP |
| Bit Depth | 16-bit |
| Dynamic Range | >3.5 OD |
| CCD Sensor Size | 1-inch |
| Lens | Fixed-focus QuickSight™ Optical Lens |
| Display | 9.7-inch Capacitive Touchscreen |
| Connectivity | Integrated standalone operation (no PC required) |
| Brand | Bio-Rad |
|---|---|
| Origin | USA |
| Model | GelDoc XR+ |
| Instrument Type | Standard Gel Documentation System |
| CCD Resolution | 4.0 Megapixels |
| Bit Depth | 12-bit |
| Dynamic Range | 0–3.6 OD |
| CCD Sensor Size | 2/3-inch |
| Detection Sensitivity | 0.1 ng DNA stained with ethidium bromide (EB) |
| Signal-to-Noise Ratio | >56 dB |
| Lens | Motorized Optical Zoom Lens (8.5–51 mm focal length) |
| Brand | Bio-Rad |
|---|---|
| Origin | Singapore |

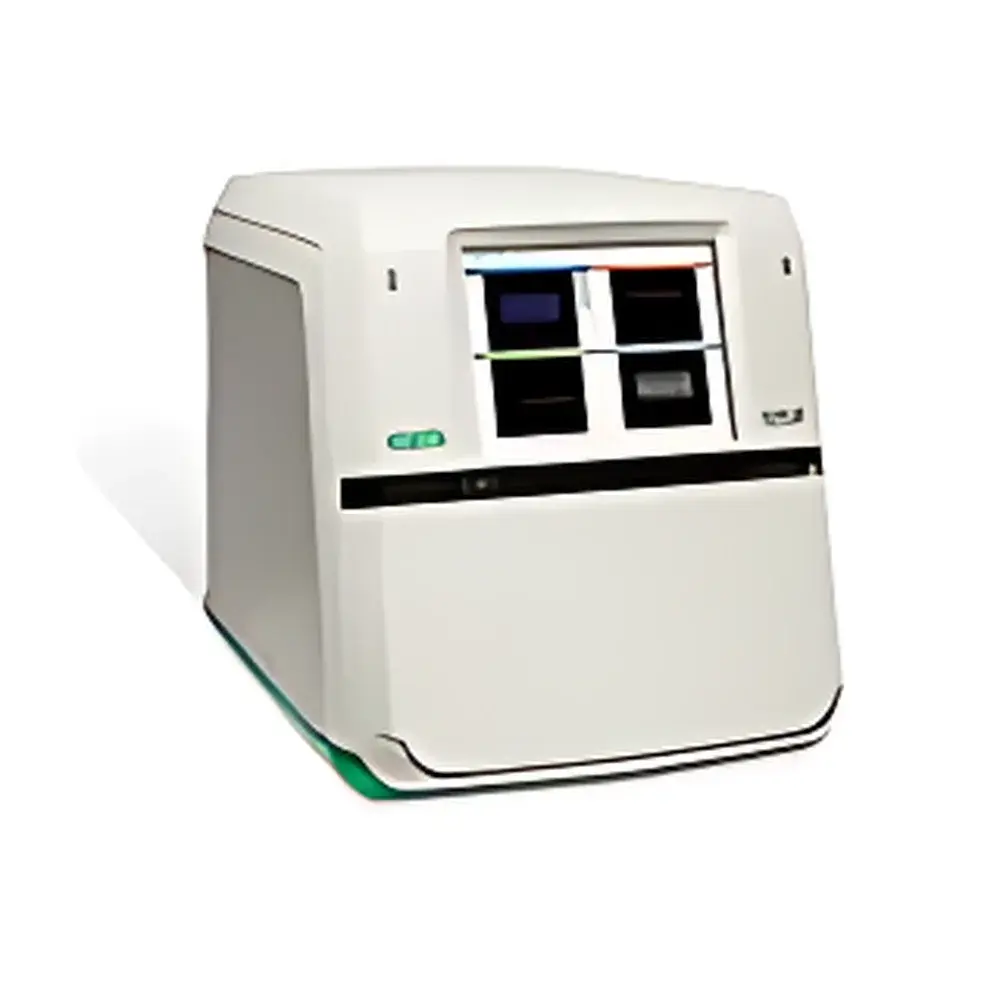

| Model | ChemiDoc MP |
| Instrument Type | Multicolor Fluorescent Gel Imaging System |
| CCD Resolution | 6.1 Megapixels |
| Bit Depth | 16-bit |
| Dynamic Range | 0–4.8 OD |
| CCD Sensor Size | 1-inch |
| Detection Sensitivity | Sub-femtogram (fg) for Proteins |
| Signal-to-Noise Ratio | >56 dB |
| Lens | Fixed-Focus Optical Lens |
| Imaging Modalities | Chemiluminescence, Multiplex Fluorescence (RGB + Dual NIR), UV Transillumination, White Light Reflection |
| Brand | Bio-Rad |
|---|---|
| Origin | Singapore |
| Model | ChemiDoc |
| Instrument Type | Chemiluminescence Gel Imaging System |
| CCD Resolution | 6.1 MP |
| Bit Depth | 16-bit |
| Dynamic Range | 0–4.8 OD |
| CCD Sensor Size | 1-inch |
| Detection Sensitivity | fg-level protein |
| Signal-to-Noise Ratio | >56 dB |
| Lens | Fixed-focus |
| Brand | Bio-Rad |
|---|---|
| Origin | USA |
| Model | ChemiDoc XRS+ |
| Instrument Type | Chemiluminescence Gel Imaging System |
| CCD Resolution | 4 MP |
| Bit Depth | 16-bit |
| Dynamic Range | 0–4.8 OD |
| CCD Sensor Size | 1-inch |
| Detection Sensitivity | pg–fg level for proteins |
| Signal-to-Noise Ratio | >56 dB |
| Lens | Motorized Zoom Lens |
| Imaging Modes | Chemiluminescence, Fluorescence (single/dual-color), Colorimetric, Densitometry |
| Brand | Bio-Rad |
|---|---|
| Origin | Singapore |
| Model | GelDoc Go |
| Imaging Sensor | 6.3 MP monochrome CCD |
| Light Sources | Dual-mode transilluminator (UV 302 nm + blue light 470 nm) |
| Safety Features | Integrated blue-light–optimized optics, included amber safety goggles |
| Imaging Modes | UV transillumination, blue-light transillumination, white-light reflection |
| Fluorescence Compatibility | SYBR Safe, SYBR Gold, Ethidium Bromide (EtBr), GelRed, GelGreen, and other nucleic acid dyes |
| Software | Image Lab Touch™ (touchscreen interface, one-touch capture, auto-exposure, ROI analysis, molecular weight estimation, lane/band quantification) |
| Regulatory Compliance | CE, FCC, RoHS compliant |
| Intended Use | Benchtop gel documentation, nucleic acid and protein gel imaging, blue-light–mediated excision, academic and QC laboratory applications |
| Brand | Bio-Rad |
|---|---|
| Origin | USA |

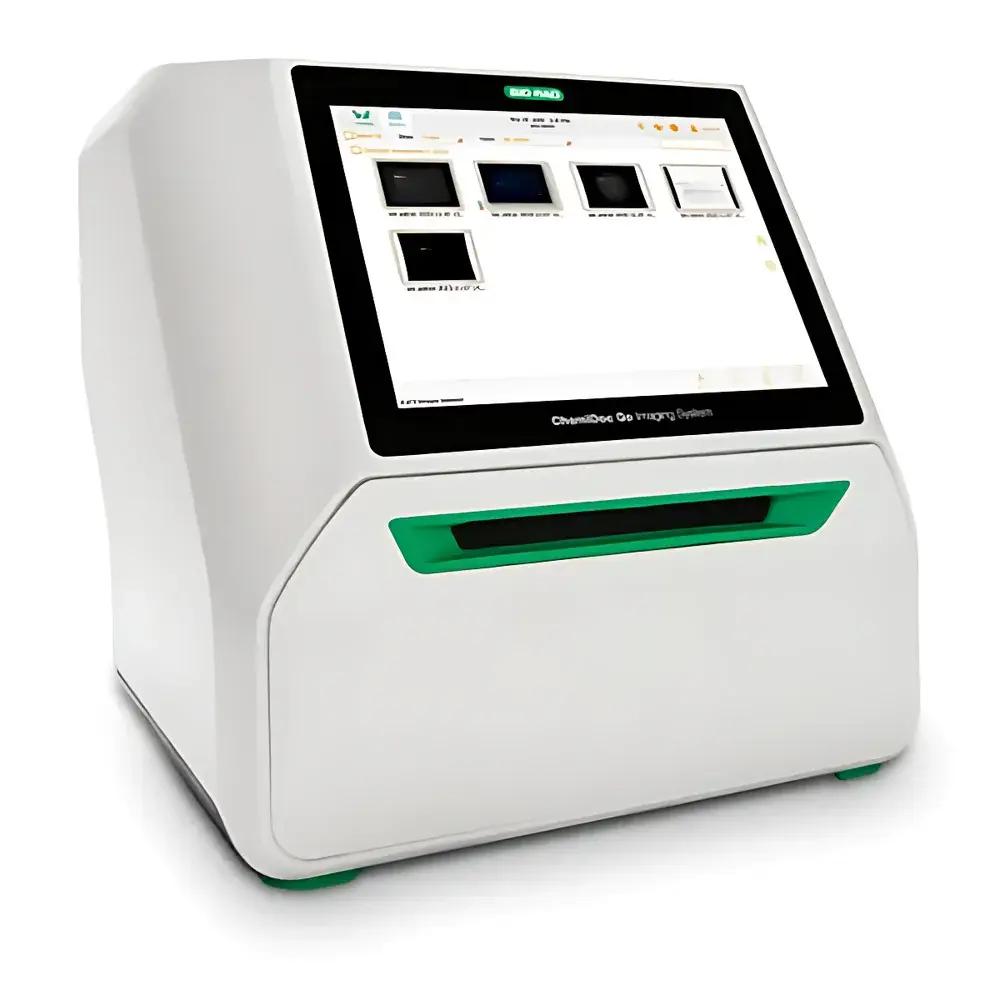

| Model | ChemiDoc Go |
| Instrument Type | Chemiluminescence Gel Imaging System |
| CCD Resolution | 20 MP (physical pixels) |
| Bit Depth | 16-bit |
| Dynamic Range | 0–4.8 OD |
| Signal-to-Noise Ratio | ≥56 dB |
| Lens | Fixed-focus f/0.95 lens |
| Excitation Sources | Transmitted UV (302 nm), Transmitted Blue Light (470 nm, optional), Transmitted White Light (optional), Reflected UV (365 nm), Reflected Green Light (530 nm) |
| Emission Filters | 520/26 nm BP, 590/110 nm BP, 695 nm LP |
| Dual-Channel Fluorescence | StarBright 520 nm & 700 nm channels |
| Regulatory Status | For research use only (RUO), not for clinical diagnostic use |
| Brand | Bio-Rad |
|---|---|
| Origin | USA |

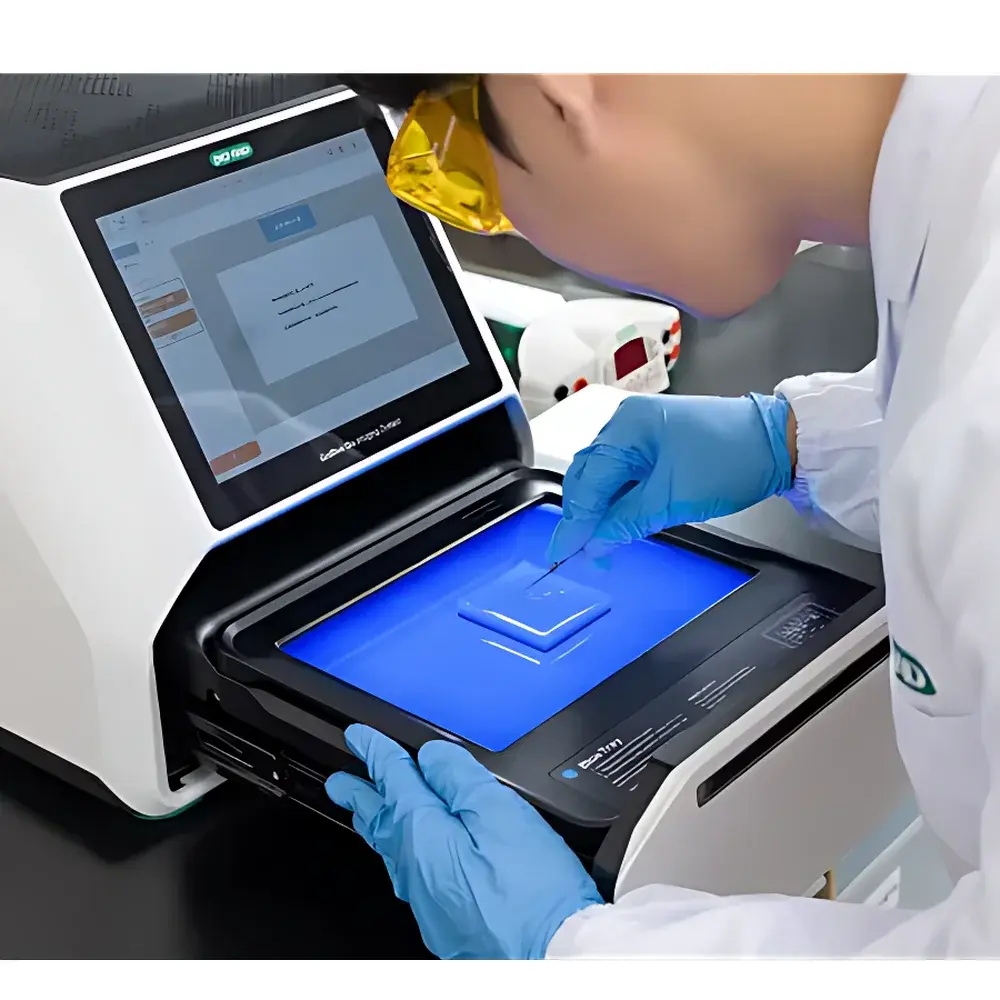

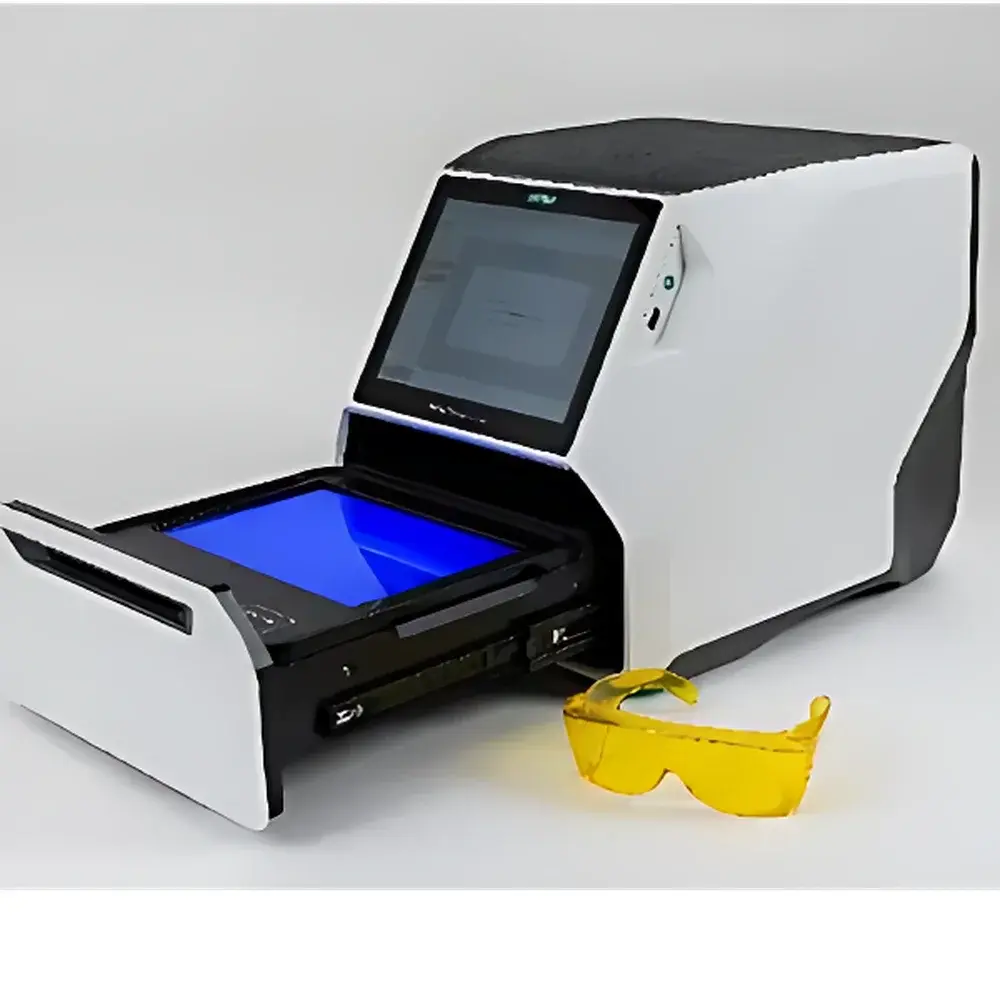

| Model | GelDoc Go Blue-Light Safe Gel Imaging System |
| CCD Resolution | 6.3 MP |
| Bit Depth | 16-bit |
| Dynamic Range | 0–4.8 OD |
| Light Sources | Dual-mode transilluminator (UV 302 nm + Blue Light 470 nm) |
| Safety Configuration | Integrated blue-light excitation with amber safety goggles |
| Instrument Type | Benchtop gel documentation system |
| Compliance | Designed for ISO/IEC 17025-aligned lab environments |
| Brand | Bio-Rad |
|---|---|
| Origin | USA |

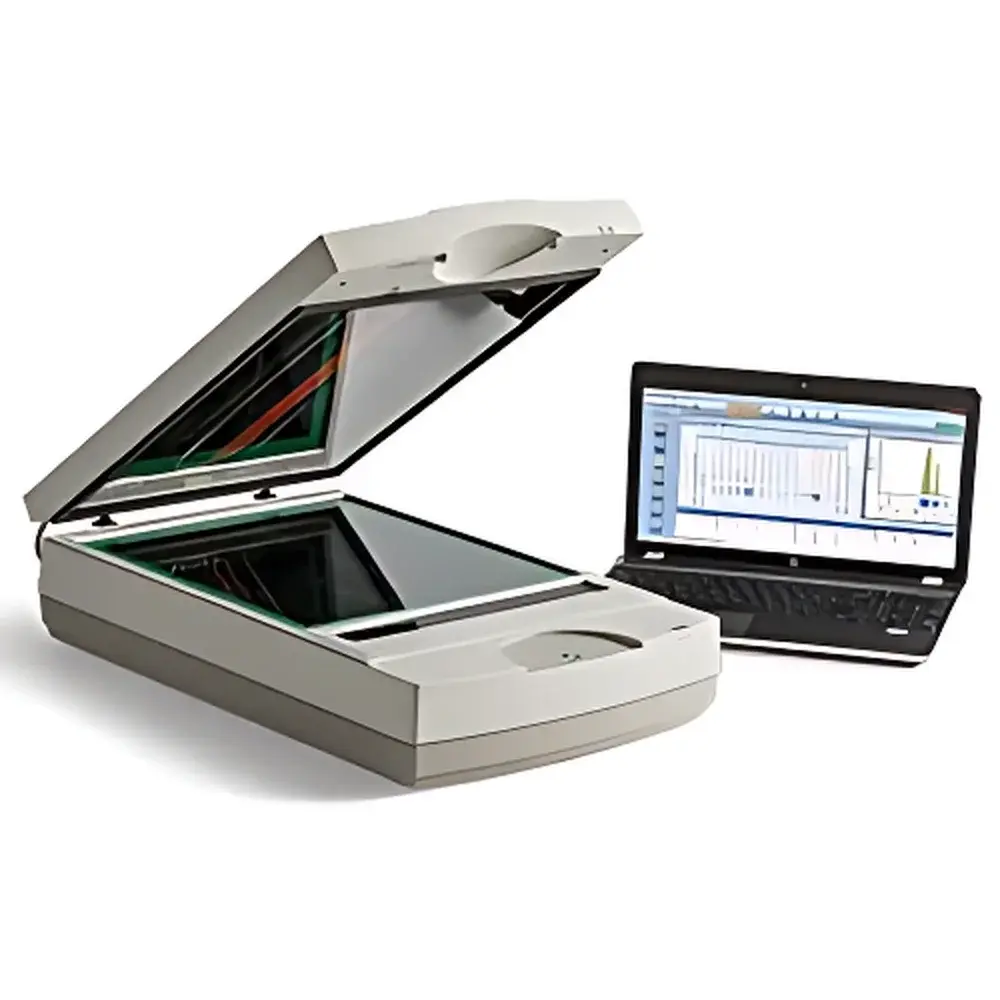

| Model | GS-900 |
| Instrument Type | Standard Gel Imaging System |
| Bit Depth | 16-bit |
| Optical Density Range | 0.0 to 3.4 OD |
| Illumination Source | LED-based scanning (400–750 nm) |
| Imaging Modes | Transmission and Reflectance |
| Scan Area | 29 × 33 cm |
| Effective Resolution | Adjustable, down to 36.3 µm |
| Image Acquisition Platform | Sealed, humidity-tolerant chamber with adjustable transparent lid |
| Software | Image Lab™ v6.x or later (FDA 21 CFR Part 11 compliant configuration available) |
