| Brand | Kegel |
|---|---|
| Origin | Germany |

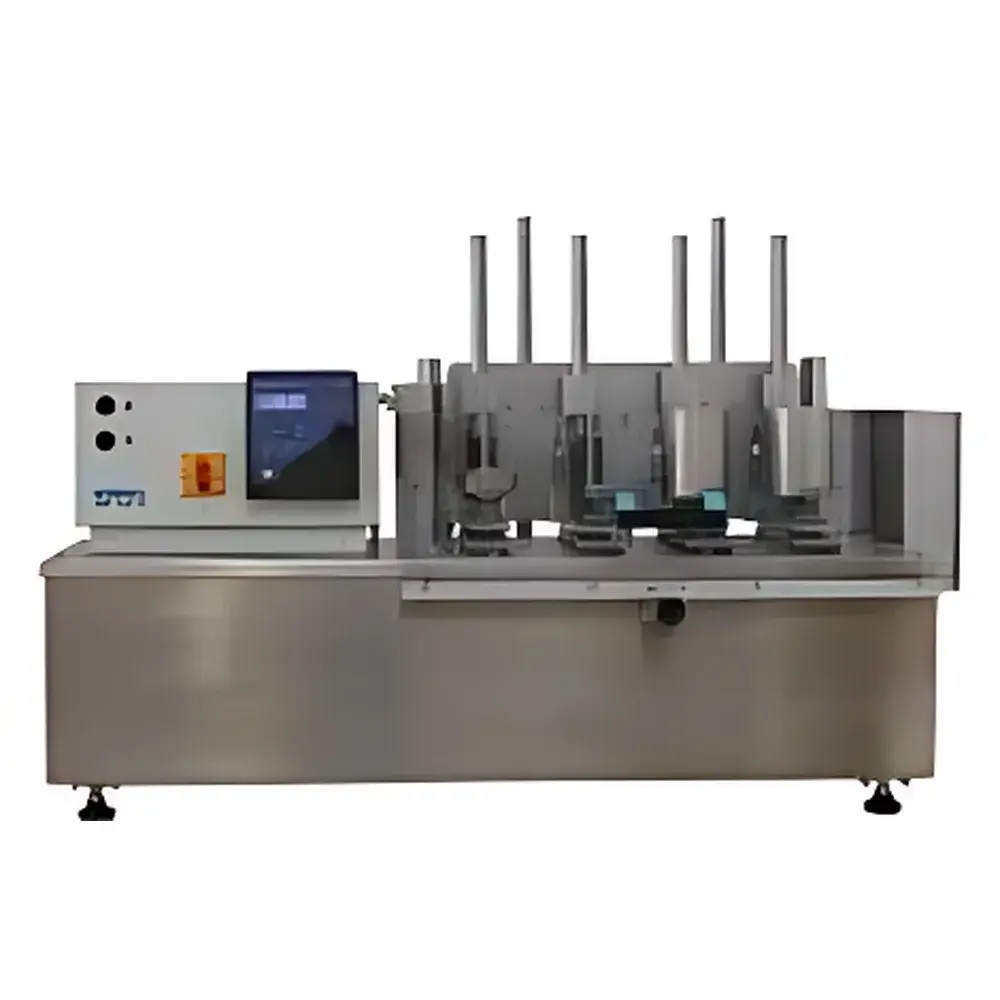

| Model | HDT Vicat 4U |
| Temperature Range | 5°C above ambient to 285°C |
| Temperature Stability | ±0.2°C to ±0.3°C (100–250°C) |
| Heating Rates | 50°C/h ±5°C/h and 120°C/h ±10°C/h |
| Temperature Sensor | Calibrated Pt100 per test station |
| Displacement Resolution | 0.01 mm (LVDT) |
| Test Stations | Up to 4 |
| Cooling Method | Water-cooled |
| Power Supply | 230 V, 50 Hz, ~3 kW |
| Dimensions (W×H×D) | 1020 × 690 × 520 mm |
| Weight | ~75 kg |
| Software | k-BASE for Windows |
| Compliance | ISO 75-1/2, ISO 306, ASTM D648, D1525, E77, E608, E644, E1137, DIN 43760, 53460, 53461/87, UNI 5641, 5462, BSI 2782, AFNOR NT T51-005/T51.021, UNE 53075/53118 |
| Brand | Kegel |
|---|---|
| Origin | Germany |
| Model | micro-gloss 45 |
| Measurement Geometry | 45° |
| Compliant Standards | ASTM C346, ASTM D2457, ASTM D3679, JIS Z 8741, TAPPI T480 |
| Calibration | Automatic single-button calibration with integrated reference standard |
| Data Storage | 999 measurement records |
| Interface | RS-232 serial port |
| Software | easy-link PC software for data logging and Excel-compatible export |
| Power | Rechargeable battery (>3000 measurements per charge) |
| Dimensions | Compact handheld form factor (approx. 120 × 65 × 35 mm) |
| Weight | <200 g |
| Display | Backlit LCD with intuitive menu navigation via rotary encoder |
