Showing all 3 results
| Brand | Optoprecise |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | PRC |

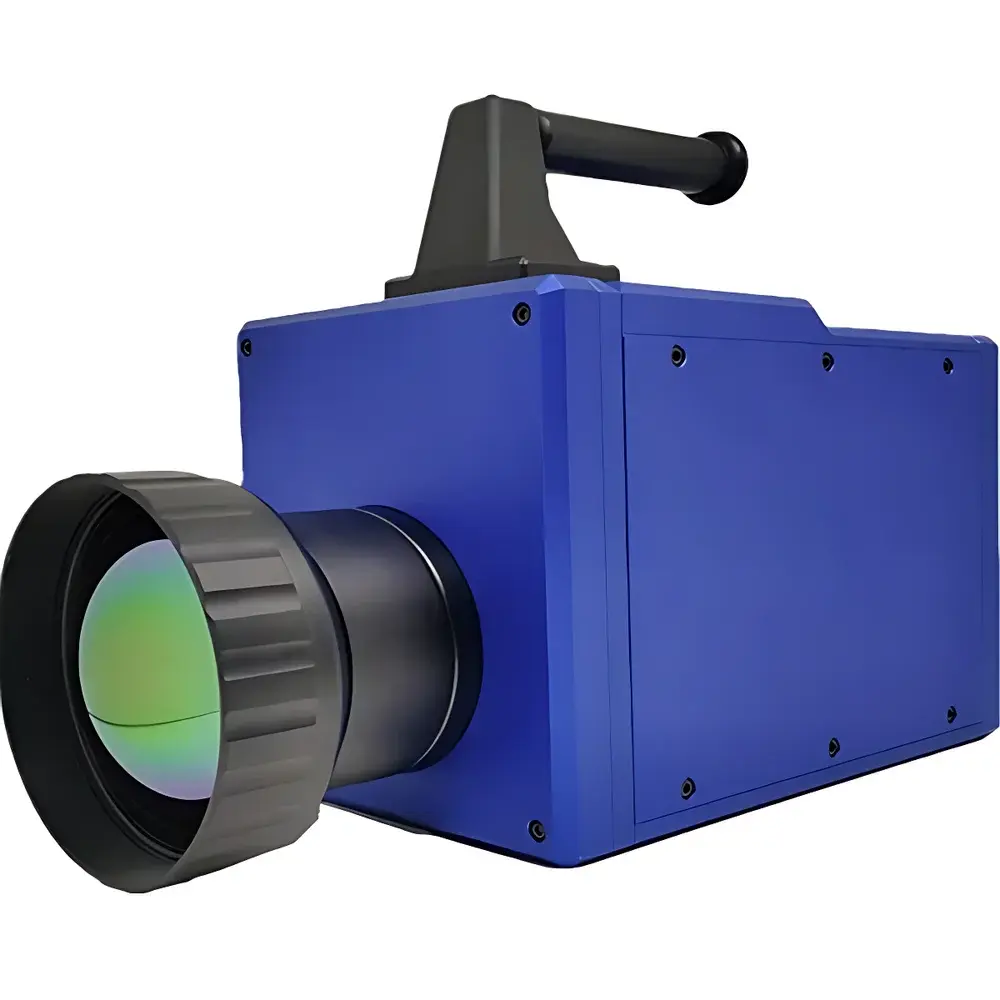

| Model | GW-STL Series |
| Pricing | Upon Request |
| Detector Type | Stirling-cooled MCT or InSb focal plane array |
| Spectral Bands | MWIR (3.7–4.8 µm), Extended MWIR (1.5–5.2 µm), LWIR (7.7–9.5 µm) |
| Resolution | 640 × 512 pixels |
| Pixel Pitch | 15 µm or 25 µm |
| Thermal Sensitivity (NETD) | <20 mK to <18 mK |
| Frame Rate | ≥100 Hz full-frame, up to 200 Hz @ 640×512 |
| Cooling Time | <7 min to operating temperature |
| Temperature Range | −10 °C to +1000 °C (extendable to +2500 °C with high-temp calibration) |
| Accuracy | ±2 °C or ±2% of reading |
| Dynamic Range | 14-bit |
| Spectral Filter Wheel | 5-position, 1″ format, user-replaceable filters |
| Lens Options | Standard (25 mm), Wide-angle (12 mm), Telephoto (50/100/200 mm), Macro (0.5×/1.0×), Microscope (1.0×/3.0×/5.0×/8.0×) |
| Spatial Resolution | 0.08–1.2 mrad (lens-dependent) |
| Minimum Focus Distance | 0.1–4.0 m |
| Interface | Camera Link, GigE Vision, analog BNC video output, TTL trigger I/O, RS232/RS422 serial control |
| Onboard Storage | Up to 512 GB SSD (optional) |
| Power | 24 ±2 VDC, <25 W (cooling phase), <15 W (steady state) |
| Environmental Rating | Operating −40 °C to +60 °C |
| Dimensions & Weight | ≤310 × 135 × 180 mm, ≤4.5 kg (with standard lens) |
| Brand | Optoprecise |
|---|---|
| Origin | Beijing, China |
| Model | GW-STL-HD Series |
| Detector Type | Stirling-cooled focal plane array (FPA) |
| Spectral Ranges | 3.7–4.8 µm (MWIR) / 7.7–9.5 µm (LWIR) |
| Detector Resolution | 1280 × 1024 px |
| Pixel Pitch | 10 µm / 12 µm / 15 µm |
| NETD | <20 mK (MWIR), <25 mK (LWIR) |
| Full-frame Frame Rate | 100 Hz @ 1280×1024 |
| Sub-window Mode | 900 Hz @ 320×256 |
| Temperature Range | −10°C to 1000°C (extendable to 2500°C with high-temp calibration) |
| Accuracy | ±2°C or ±2% of reading |
| Dynamic Range | 14-bit |
| Spectral Filter Wheel | 5-position (standard), optional 11-position, 1″ format filters |
| Cooling Time | <7 min |
| F-number | F2 / F4 |
| Digital Interfaces | CameraLink, GigE Vision |
| Trigger I/O | TTL external trigger input & sync output |
| Power Input | 24 ± 2 VDC |
| Power Consumption | ≤20 W @ 25°C |
| Operating Temperature | −40°C to +60°C |
| Dimensions | ≤310 × 135 × 180 mm |
| Weight | ≤5 kg (with standard lens) |
| Storage Format | 14-bit radiometric JPG + RAW (non-encrypted) |
| Software | IR-SVision M2.0 (monitoring) & R2.0 (professional analysis), SDK included |
| Brand | Optoprecise |
|---|---|
| Model | GW-T100 |
| Detector Type | Uncooled VOx Microbolometer (LWIR) |
| Resolution (IR) | 640 × 512 |
| Pixel Pitch | 17 µm |
| Spectral Range | 7.5–13.5 µm |
| NETD | < 50 mK @ f/1.0 |
| IR Lens | 20–100 mm Continuous Zoom (FOV: 30.4°×24.5° to 6.2°×5.0°) |
| Visible Camera | 2.1 MP Progressive Scan 1/2.8" CMOS |
| Resolution (Vis) | 1920×1280 @ 25 fps |
| Low-Light Sensitivity | 0.001 Lux (Color), 0.0001 Lux (B/W) |
| Optical Zoom | 6–210 mm (35×) |
| Pan/Tilt Range | Continuous 360° Pan, ±90° Tilt |
| Max Slew Speed | 100°/s (Pan), 60°/s (Tilt) |
| Stabilization | Dual-Axis Gyroscopic |
| Stabilization Accuracy | ≤ 0.1° |
| Environmental Rating | IP66 |
| Operating Temp | −30°C to +60°C |
| Power | 24 VDC, ≤ 100 W |
| Video Output | 1× SDI, Dual Network Streams |
| Control Interface | RS-422 or RJ45 Ethernet |
| Optional Features | Eye-Safe 1.54 µm Er:Glass Laser Rangefinder (≥4 km, ±2 m), Target Tracking (5-pixel accuracy, manual/auto lock) |
