Showing all 3 results
| Brand | Radiant Vision Systems |
|---|---|
| Origin | USA |

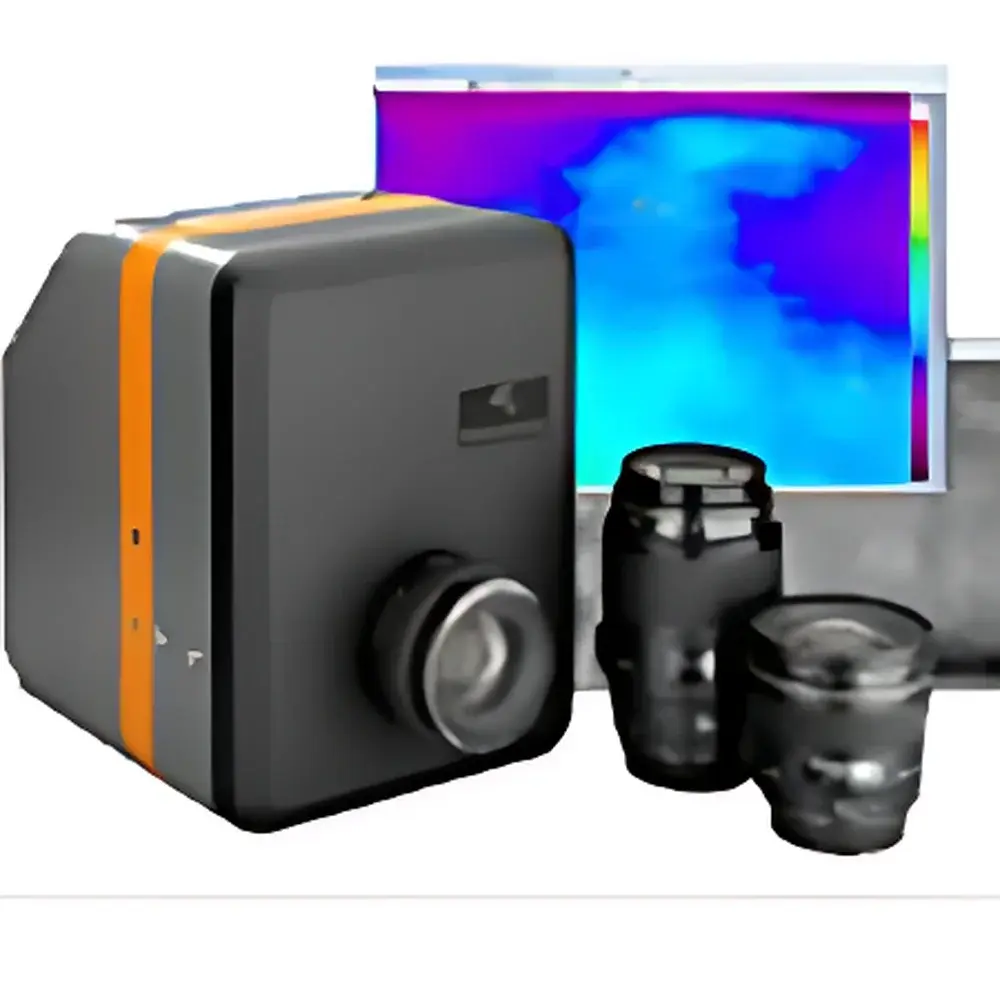

| Model | PM-G |
| Sensor Resolution | 1536 × 1024 px (standard), 3072 × 2048 px (high-res option) |
| Dynamic Range | 14-bit (16,384 gray levels) |
| Luminance Range | 0.001 to 10¹⁰ nit (with ND filters) |
| Photometric Accuracy | Luminance (Y) ±3%, Illuminance ±3%, Chromaticity (x,y) ±0.003 |
| Short-Term Repeatability | Luminance <±0.5%, Chromaticity ±0.0006 |
| Lens Options | Motorized 35 mm, 50 mm, and 100 mm macro lenses with auto-focus and auto-iris |
| Measurement Speed (100 cd/m²) | Luminance-only: 2.3 s (G2/G3 mode) |
| Luminance + Chromaticity | 8 s (G2/G3 mode) |
| FOV | 40°×27° (35 mm), 30°×20° (50 mm), 15°×10° (100 mm macro) |
| Display | 125 mm diagonal LCD touchscreen (800×600) |
| Interface | USB 2.0/3.0, Gigabit Ethernet |
| Dimensions | 181 × 238 × 230 mm (H×W×D) |
| Weight | 4.9 kg |
| Operating Temperature | 0–30 °C |
| Operating Humidity | 20–70% RH (non-condensing) |
| Compliance | NIST-traceable calibration, ISO 11664, CIE S 014, ASTM E308, USP <1058> for analytical instrument qualification |
| Brand | Radiant Vision Systems |
|---|---|
| Origin | USA |
| Model | SIG-400 |
| Application | Near-field radiometric and photometric characterization of small light sources |
| Compatible Detector | ProMetric® imaging colorimeters and photometers |
| Output Format | Radiant Source Model™ (RSM), IES, EULUMDAT, ASAP, LightTools, TracePro, Zemax-compatible ray sets |
| Software Platform | ProSource® v5.0+ |
| Brand | Radiant Vision Systems |
|---|---|
| Model | TrueTest™ |
| Origin | USA |
| Type | Imaging Photometer-Based AOI System |
| Compliance | CIE 1931 Standard Observer, ISO 9241-307, ASTM E308, USP <1058> (for instrument qualification), FDA 21 CFR Part 11 (software audit trail enabled) |
| Detection Capabilities | Pixel defects, line defects, Mura (JND-mapped), luminance uniformity, chromaticity uniformity, contrast ratio, gamma, and spatial nonuniformity analysis |
| Software Platform | TrueTest™ Suite v6.0+ with JND-based defect quantification engine, GLP/GMP-compliant reporting, and automated pass/fail classification |
