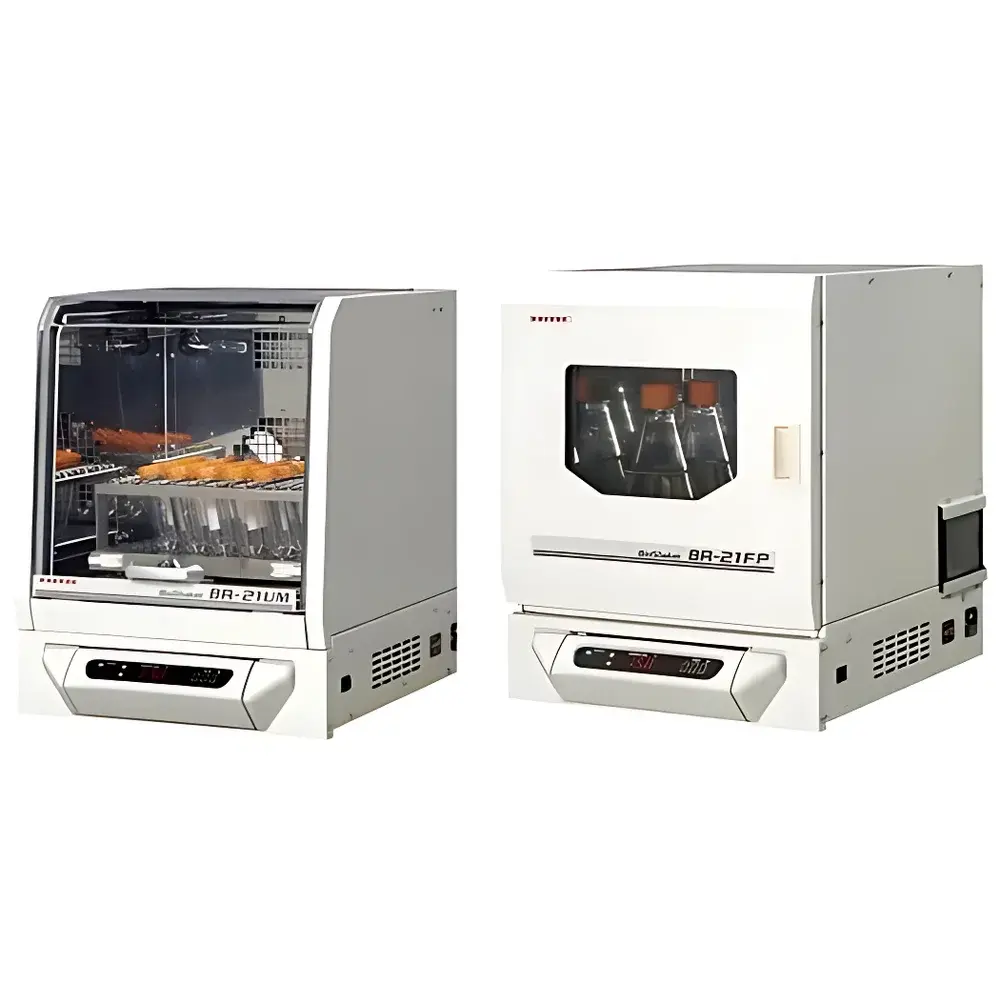

| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | BR-22FP·MR |
| Instrument Type | Air-Jacketed Temperature-Controlled Orbital Shaker |
| Timer Range | 0–99 h 59 min |
| Oscillation Speed | 20–300 rpm |
| Amplitude | 25 mm |
| Temperature Range | +15°C to +60°C |
| Capacity | 6 × 500 mL Erlenmeyer flasks |
| Cooling Method | Peltier (4 × 70 W) |
| Heating Method | Peltier |
| Temperature Control Accuracy | ±0.2°C |
| Oscillation Mode | Orbital |
| Chamber Dimensions (W×D×H) | 290 × 250 × 270 mm (internal height) |
| Max Load | ~3.5 kg (including platform and fixtures) |
| Power Supply | AC 100 V, 5 A |
| Net Weight | ~49 kg |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | CS-LR |
| Timer Range | 0–99 h |
| Oscillation Frequency | 15–200 rpm |
| Amplitude | 25 mm (factory-set, optional 20 mm) |
| Temperature Range | 0–50 °C |
| Platform Size | 300 × 200 mm |
| Load Capacity | ~3 kg |
| Humidity Tolerance | ≤95% RH ±5% |
| Construction | SUS304 Stainless Steel Body & KENIFINE™-Coated Platform |
| Safety | Fuse, Motor Overload Protection, Overvoltage Protection |
| Dimensions (Shaker) | 302 × 240 × 129 mm |
| Weight (Shaker) | ~7 kg |
| Power Supply | AC 100 V, 1 A |
| Control Box Dimensions/Weight | 125 × 30 × 70 mm / ~0.5 kg |
| Standard Accessories | AC adapter, reciprocal/rotary mode bar, 2-m power cable |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | DC-280 |
| Instrument Type | Vacuum Oven |
| Temperature Range | +30 °C (heating plate surface under vacuum) |
| Chamber Dimensions | 258 × 250 mm (W × D), 3 shelves (aluminum) |
| External Dimensions | 430 × 400 × 615 mm (W × D × H) |
| Weight | ~21 kg |
| Power Supply | AC 100 V, 3 A (main unit) |
| Heating Power | 100 W per shelf, independently switchable |
| Vacuum Gauge | Bourdon tube type |
| Exhaust/Inlet Nozzles | Two Ø14 mm ports (separate vacuum evacuation and gas inlet/exchange) |
| Vacuum Release | Manual needle valve (Ø9 mm, dual-purpose for venting and gas exchange) |
| Internal Socket | AC 100 V, 3 A rated, for in-chamber devices (e.g., magnetic stirrers) |
| Recommended Vacuum Pump | 50–100 L/min displacement |
| Compliance | Designed for laboratory use in accordance with JIS Z 8101-1 (general principles of drying equipment) and compatible with ISO 17025-accredited workflows requiring traceable thermal conditioning |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | DELTA MIXER Se-08 |
| Speed Range | 0–3000 rpm (adjustable) |
| Operating Mode | Touch-activated or continuous |
| Oscillation Type | Horizontal eccentric oscillation |
| Amplitude | 4.5 mm |
| Display | Analog speed indicator |
| Housing Material | Die-cast aluminum alloy |
| Dimensions (W×D×H) | 140 × 160 × 135 mm |
| Weight | ~3 kg (including rubber head) |
| Power Supply | AC 220 V, 0.5 A |
| Ambient Operating Temperature | +5 °C to +35 °C |
| Sample Compatibility | Microcentrifuge tubes (0.5 / 1.5 / 2.0 mL), standard centrifuge tubes up to 50 mL, microplates (with optional MD02 kit) |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | DTU-1BN / DTU-2BN |
| Heating Method | Dry-block heating |
| Temperature Range | Ambient +5°C to 110°C (DTU-1BN) |
| Temperature Stability | ±0.1°C or better |
| Block Compatibility | Aluminum heating blocks for tubes Ø12–35 mm, microcentrifuge tubes (0.5/1.5/2.0 mL), conical tubes (15/50 mL), flat-bottom microplates, and microscope slides |
| Heating Power | 100 W |
| Compliance | Designed for GLP-compliant laboratories |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | DTU-1BN / DTU-2BN / DTU-1CN / DTU-2CN |
| Temperature Range | Ambient +5°C to +110°C (B-series) or +200°C (C-series) |
| Temperature Accuracy | ±0.1°C |
| Heating Time to 100°C | ≤15 min |
| Dimensions (W×D×H) | 210×318×130 mm (DTU-1BN/1CN), 318×318×130 mm (DTU-2BN/2CN) |
| Net Weight | 4 kg (DTU-1BN/1CN), 6 kg (DTU-2BN/2CN) |
| Power Supply | AC 100 V, 1.3–2.8 A |
| Heating Power | 100 W (DTU-1BN), 150 W (DTU-2BN), 180 W (DTU-1CN), 250 W (DTU-2CN) |
| Timer Range | 1 min – 99 h 59 min |
| Safety Features | Auto-reset high-temp cutoff, overcurrent protection, overheat protection, sensor fault detection (open/short circuit) |
| Display | Dual-digit LED (setpoint & real-time temperature) |
| Optional Accessories | Interchangeable deep-well aluminum blocks (AL-xxx series), nitrogen blow-down heads (E1/E2 series, 5–72 nozzles) |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | eB-ShakerUnit |
| Oscillation Mode | Reciprocating |
| Speed Range | 30–150 rpm |
| Amplitude | 10 mm |
| Operating Ambient Temperature | +5°C to +35°C |
| Unit Dimensions | 150 × 120 × 190 mm (W × D × H) |
| Platform Dimensions | 85 × 115 × 20 mm (W × D × H) |
| Power Supply | AC 100 V, 0.25 A |
| Compatible Units | EIB, ECB, ETB (EFB excluded) |
| Optional Accessory | PCA-01 Mounting Kit for Thermo Minder C-Type Plastic Bath (Min. Internal Dimensions: 180 × 320 × 155 mm |
| Max. Temp. Resistance | +70°C) |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | GM-01 |
| Instrument Type | Bead Mill Cell Disruptor |
| Temperature Range | 0 °C to 40 °C |
| Sample Volume | 2.0 mL per tube |
| Throughput | Up to 12 samples (6 with metal beads) |
| Maximum Centrifugal Force | 1300 × g |
| Speed Range | 500–4500 rpm |
| Vortex Mixing Intensity | 10 levels (Level 10 ≈ 2600 rpm equivalent shear) |
| Timer Range | 0–50 sec, or 1 min–99 h 50 min |
| Dimensions | 210 × 268 × 176 mm (W × D × H) |
| Weight | ~3.5 kg |
| Power Supply | AC 100–125 V, 0.5 A |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | M-130 |
| Temperature Range | 3–50°C (Standard), 10–45°C (Illuminated Version) |
| Temperature Uniformity | ±0.1–0.5°C (Precision Mode), ±1.0–2.0°C (Eco Mode) |
| Control Resolution | 0.1°C (Precision), 1.0°C (Eco) |
| Internal Volume | ~85 L |
| Interior Dimensions | 563 × 378 × 412 mm (W×D×H) |
| External Dimensions | 633 × 435 × 1078 mm (W×D×H) |
| Net Weight | ~60 kg (Standard), ~85 kg (Illuminated) |
| Power Supply | AC 100 V, 6 A / 8 A |
| Heating Capacity | 350 W |
| Cooling Capacity | 75 W |
| Internal Socket | 1 × 3 A outlet |
| Air Circulation | Forced-air convection with internal fan |
| Defrost Control | Manual override button for auto-defrost disable |
| Interior Material | SUS304 stainless steel |
| Door Lock | Sliding mechanical lock with key |
| Accessories | Drip tray ×1, water collection pan ×1, waterproof plug ×1, sliding door lock ×1 |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | M-16N |
| Instrument Type | General-Purpose Forced-Convection Oven |
| Temperature Range | Ambient +5°C to 80°C |
| Temperature Uniformity | ±0.25°C to ±0.95°C |
| Chamber Dimensions (W×D×H) | 460 × 400 × 1200 mm |
| External Dimensions (W×D×H) | 610 × 535 × 1630 mm |
| Heating Power | 400 W × 5 elements |
| Air Circulation | Forced convection via internal blower |
| Sterilization Lamp | 6 W UV-C lamp with 60-min mechanical timer |
| Control System | Pt-based proportional-integral time-ratio controller |
| Interior Material | Stainless steel (SUS304) |
| Door | Full-view tempered glass |
| Shelving | 3 adjustable stainless steel shelves |
| Drain Pan | Integrated removable drip tray |
| Filtration | Built-in particulate air filter |
| Power Supply | AC 100 V, 21 A |
| Weight | Approx. 98 kg |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | M-210FN |
| Temperature Range | 0°C to +45°C (Standard) |
| Temperature Uniformity | ±1.0–2.0°C |
| Internal Volume | ~392 L |
| Internal Dimensions | 494 × 646 × 1200 mm (W × D × H) |
| External Dimensions | 600 × 800 × 1905 mm (W × D × H) |
| Net Weight | ~103 kg (Standard), ~112 kg (Illuminated) |
| Power Supply | AC 100 V, 6.5 A (Standard), 9 A (Illuminated) |
| Heating Capacity | 200 W |
| Refrigeration | Sealed Air-Cooled System, 200 W |
| Air Circulation | Forced Convection |
| Interior Material | SUS304 Stainless Steel |
| Exterior Material | SUS304 Stainless Steel |
| Max Load Capacity | ~50 kg |
| Built-in Outlets | 2 × Airtight 5 A Sockets |
| Defrost Control | Toggleable Auto-Defrost (6-hr cycle, 15-min intervals) |
| Illumination | 4 × 40 W Fluorescent Lamps, ~8000 lux (M-210FN Illuminated Variant Only) |
| Accessories | Drip Tray ×1, Shelf Plates ×3, Water Collection Pan ×1, Shelf Supports ×1 |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | M·BR-420FL |
| Temperature Range | +4°C to +70°C |
| Temperature Accuracy | ±0.3°C to ±1.0°C |
| Oscillation Speed | 200–1500 rpm (reversible mode ≤1000 rpm) |
| Timer Range | 00h00m to 99h59m |
| Oscillation Mode | Horizontal eccentric motion with reversible function |
| Heating Power | 800 W |
| Cooling System | Compressor-based refrigeration (140 W) |
| Display | Digital LED for temperature and speed |
| Programmable Profiles | 4 programs × 9 steps (temperature, speed, time, hold function) |
| Dimensions (W×D×H) | 600 × 732 × 643 mm |
| Weight | ~100 kg |
| Electrical Supply | AC 100 V, 12 A |
| Platform Capacity | Up to 24 microplates (4 layers × 6 positions) or 12 deep-well plates (2 layers × 6 positions) |
| Operating Ambient Temperature | +5°C to +35°C |
| Compliance | Designed for GLP-compliant labs |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | Mix-VR / Mix-EVR |
| Oscillation Mode | Orbital (Mix-VR) / Horizontal Eccentric (Mix-EVR) |
| Speed Range | 50–500 rpm (Mix-VR), 250–2500 rpm (Mix-EVR) |
| Amplitude | 10 mm (Mix-VR), 2 mm (Mix-EVR) |
| Operating Temperature Range | 0 °C to 50 °C |
| Platform Dimensions | 300 × 200 mm (standard) |
| Max Load Capacity | ~2 kg (excl. platform & fixtures) |
| Power Supply | AC 100 V, 0.5 A |
| Weight | 12.2 kg (Mix-VR), 6.5 kg (Mix-EVR) |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | MM-10, ML-10F |
| Temperature Range | Ambient +5°C to 80°C (MM-10), 0°C to 50°C (ML-10F) |
| Temperature Accuracy | ±0.02–0.1°C (MM-10), ±0.05–0.2°C (ML-10F) |
| Oscillation Mode | Reciprocating |
| Adjustable Amplitude | 10–40 mm (stepless) |
| Speed Range | 20–160 rpm |
| Platform Dimensions | 400 × 300 mm (MM-10), 530 × 365 mm (ML-10F) |
| Water Bath Capacity | ~25 L (60% fill, MM-10), ~35 L (80% fill, ML-10F) |
| Heating Power | 1.3 kW (MM-10), 800 W (ML-10F) |
| Cooling System | Integrated refrigeration unit (125 W, ML-10F only) |
| Safety Features | Dual-loop thermal cutoff, dry-run protection, overtemperature sample safeguard, sensor fault self-diagnosis, ΔT display, remote temperature setting |
| Compliance | Designed for GLP-compliant microbiological and mutagenicity assay workflows including OECD 471 and ISO 10993-3 |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | Monosin II-A |
| Oscillation Mode | Dual-configuration (Orbital Balance Mode & Linear Reciprocating Mode) |
| Speed Range | 20–160 rpm |
| Amplitude Adjustment | 0°–24° (orbital, continuous) |
| Chamber Internal Dimensions (Orbital) | 355 × 460 × 165 mm (H) |
| Chamber Internal Dimensions (Reciprocating) | 290 × 460 × 165 mm (H) |
| Platform Type | Spring-grid platform (reciprocating) / L-shaped tube fixture array (orbital) |
| Compatible Vessels | ∅18 mm L-tubes (17 × 2 rows), ∅16 mm vertical tubes (144 pcs), 100 mL conical flasks (15 pcs), 200 mL (8 pcs), 300 mL (6 pcs), 500 mL (3 pcs) |
| Max Clamp Thickness | ≤70 mm |
| Power Supply | AC 100 V, 1 A |
| Net Weight | ~15 kg (orbital), ~16 kg (reciprocating) |
| Compliance | Designed for ISO/IEC 17025-aligned laboratory environments |
| Key | Brand: TAITEC |
|---|---|
| Origin | Japan |
| Model | NR-150 (Single-Tier), NR-150 Dual-Tier |
| Timing Range | 0 min – 99 h 59 min |
| Oscillation Speed | 25–250 rpm (NR-150), 25–160 rpm (Dual-Tier) |
| Amplitude | 10–50 mm (infinitely adjustable) |
| Platform Dimensions | 600 × 400 mm |
| Max Load Capacity | 26 kg (including platform and fixtures) |
| Power Supply | AC 100 V, 2 A |
| Safety Features | Motor overload protection circuit, fuse |
| Weight | 73 kg (NR-150), 83 kg (Dual-Tier) |
| Dimensions (W×D×H) | 760 × 585 × 350 mm (NR-150), 760 × 585 × 789 mm (Dual-Tier) |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | NR-5100 (single-layer) / Dual-Layer NR-5100 |
| Oscillation Mode | Reciprocating |
| Speed Range | 25–250 rpm (NR-5100), 25–180 rpm (dual-layer) |
| Amplitude Options | 25 / 50 / 70 mm (factory-set to 70 mm) |
| Platform Dimensions | 1200 × 860 mm |
| Load Capacity | ~36 kg per layer |
| Operating Temperature Range | +5 °C to +40 °C |
| Power Supply | AC 100 V, ≤2 A |
| Weight | ~460 kg (single), ~480 kg (dual) |
| Safety Features | Leakage circuit breaker, motor overload protection, fuse |
| Compliance | Designed for GLP-compliant bioprocess environments |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | OD-Monitor A&S |
| Measurement Range | 0.00–2.55 OD / 0.00–9.99 OD |
| Resolution | 0.1 NTU (OD-equivalent) |
| Operating Temperature | +15°C to +50°C |
| Accuracy | ±0.5% to ±1.5% (at specified OD range) |
| Configuration | Benchtop Laboratory System |
| Detection Principle | Near-Infrared Transmittance (950 nm) |
| Output Interface | USB 2.0, RS-232C |
| Channel Capacity | 8-channel simultaneous measurement |
| Calibration | User-adjustable correction factor (0.01–2.55) referenced to E. coli OD₆₀₀ |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | Personal-11 |
| Temperature Range | Room Temp +5°C to +85°C |
| Oscillation Frequency | 20–160 rpm |
| Oscillation Amplitude | 10–40 mm (infinitely adjustable) |
| Timer Range | 0.1–999.9 h |
| Chamber Capacity | ~11 L (at 80% fill level) |
| Platform Dimensions | 220 × 310 mm |
| Construction | Stainless steel wetted parts |
| Power Supply | AC 100 V, 7 A |
| Weight | ~19 kg |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | Personal-11•SDN Combination |
| Instrument Type | Water Bath Incubator Shaker |
| Oscillation Mode | Reciprocating |
| Temperature Range | +5 °C to +70 °C |
| Temperature Uniformity | ±0.1 °C to ±0.3 °C |
| Oscillation Frequency | 20–160 rpm |
| Amplitude Adjustment | 10–40 mm (continuously variable) |
| Platform Configuration | Modular dual-platform system (shaking platform + water bath trough) |
| Timing Options | Programmable digital timer (multiple preset intervals) |
| Platform Compatibility | Interchangeable trays for flasks, tubes, microplates, and custom vessels |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | PR-12 |
| Timer Range | 60 min |
| Oscillation Speed | 20–120 rpm |
| Oscillation Angle | 5°–8° (continuously adjustable) |
| Platform Dimensions | 150 × 150 mm |
| Max Load Capacity | 800 g (including fixture) |
| Power Supply | AC 100 V, 0.5 A |
| Net Weight | ~2.5 kg |
| Footprint | 170 × 180 × 166 mm (W × D × H) |
| Key | Brand: TAITEC |
|---|---|
| Origin | Japan |
| Model(s) | SM-05N, SJ-07N, SP-12N |
| Temperature Range | RT+5°C to +85°C (SM-05N), RT+5°C to +95°C (SJ-07N), RT+5°C to +100°C (SP-12N) |
| Temperature Stability | ±0.1°C |
| Control Method | PID with Thermistor Sensor |
| Circulation Type | Internal Recirculation Only |
| Heating Power | 500 W (SM-05N), 700 W (SJ-07N), 1200 W (SP-12N) |
| Bath Volume Capacity | Not Specified (Compatible with Optional Polyethylene C-type Bath: 6 L nominal) |
| Stirring Mechanism | Adjustable Jet Flow |
| Timer Functions | Set-Time Alert Timer (1 min–99 h 59 min), Auto-Off Timer (1 min–99 h 59 min) |
| Safety Features | Dry-run Prevention Float Switch, Over-Temperature & Low-Water Alarms, Sensor Fault Detection, Non-Volatile Memory Error Logging, Heater Guard Enclosure, Circuit Protection (8 A / 10 A / 15 A), Fuse (2 A) |
| Power Supply | AC 100 V, 50/60 Hz |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | TAITEC |
|---|---|
| Origin | China (Beijing) |
| Manufacturer Status | Authorized Distributor |
| Product Type | Separatory Funnel Shaker |
| Model | SR-2EW / SR-2ES / SR-2DW / SR-2DS |
| Timing Range | 1 min – 99 h 59 min |
| Oscillation Frequency | 50–300 rpm |
| Oscillation Amplitude | 40 mm |
| Number of Funnel Positions | 10 (dual-side configuration) |
| Noise Level | ≤45 dB(A) |
| Load Capacity per Side | 7.5 kg (including platform) |
| Dimensions (SR-2ES) | 410 × 585 × 500 mm |
| Dimensions (SR-2EW) | 410 × 760 × 500 mm |
| Weight (SR-2ES) | 49 kg |
| Weight (SR-2EW) | 57 kg |
| Power Supply | AC 220 V, 0.5 A |
| Brand | Taitec |
|---|---|
| Origin | Japan |
| Model | SX-10N, SH-10N |
| Temperature Range | RT+5°C to +105°C (SX-10N), RT+5°C to +180°C (SH-10N) |
| Temperature Stability | ±0.05°C (SX-10N), ±0.1°C (SH-10N) |
| Control Type | Heating-Only, Platinum Pt100 PID Controller |
| Circulation | Internal Jet-Type Flow |
| Stirring Adjustment | Continuously Variable Flow Knob |
| Timer Functions | Set-Time Alert Timer (1 min–99 h 59 min), OFF Timer (1 min–99 h 59 min), Temperature-Transition Timer |
| Temperature Memory | 1 Preset Slot |
| Safety Features | Dry-run Prevention (Float-Type for SX-10N, Flow-Sensing for SH-10N), Over-Temp/Under-Temp Alarm, Low-Level Detection, Sensor Fault Detection, Non-Volatile Memory Error Monitoring, Heater Guard, Circuit Protection (10A/15A), Dual Fuses (2A) |
| Power Supply | AC100V, 50/60Hz, 5.5A (SX-10N), 11A (SH-10N) |
| Weight | 3.4 kg (SX-10N), 5.0 kg (SH-10N) |
| Compliance | RoHS Directive |
| Brand | Taitec |
|---|---|
| Origin | Japan |
| Model | TC-8F / TC-8G |
| Instrument Type | Automated Quantitative Vacuum Concentrator |
| Temperature Range | Ambient to +60 °C |
| Temperature Control Accuracy | ±0.2–0.3 °C |
| Sample Capacity | 8 × 50 mL tubes (TC-8F requires full 8-tube loading |
| Heating Power | 150 W |
| Vacuum Requirement | Compatible with Q-1 water aspirator pump (6–7 L/min, ultimate vacuum 3.2–38.7 kPa depending on solvent and coolant temperature) |
| Dimensions (TC-8F) | 190 × 285 × 355 mm (W×D×H) |
| (TC-8G) | 230 × 285 × 355 mm |
| Weight | ~10.5 kg |
| Power Supply | AC 220 V, 1 A |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | TS-10 |
| Oscillation Mode | Reciprocating |
| Speed Range | 50–250 rpm |
| Amplitude | 45 mm (fixed) |
| Max Load Capacity | 10 kg (excluding platform) |
| Timer Function | Dual-stage timer (start time + runtime |
| Platform Compatibility | Interchangeable platforms for PE bottles, test tubes, flasks, vials, and mesh supports |
| Power Consumption | 70 W |
| Dimensions | 740 × 439 × 459 mm (H) |
| Weight | ~70 kg |
| Voltage | AC 100 V |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | TS-20 |
| Oscillation Mode | Reciprocating |
| Speed Range | 25–200 rpm |
| Amplitude | 10–50 mm (continuously adjustable) |
| Max Load Capacity | ~20 kg (excluding platform and clamping rods) |
| Timer Function | Dual independent timers (start time + runtime), up to 300 h total |
| Platform Configuration | Multi-plate compatible |
| Power Supply | AC 100 V, 1 A |
| Power Consumption | 70 W/h |
| Dimensions | 820 × 601 × 591 mm (H) |
| Weight | ~100 kg |
| Standard Accessories | Long clamping rods (×4), short clamping rods (×4), timer adjustment wrench |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | VA-140S |
| Instrument Type | Benchtop Cryo-Cold Trap |
| Application | Laboratory-Scale Condensation & Solvent Capture |
| Cooling Temperature | –65 °C (at no load, 20 °C ambient, 500 mL methanol) |
| Operating Temperature Range | –10 °C to –55 °C (temperature control accuracy ±2.0 °C) |
| Condensate Capacity | ~300 mL per cycle (with GC-025 glass condenser) |
| Cooling Bath Volume | ~960 mL (Φ120 × 80 mm) |
| Stirring Function | Integrated magnetic stirrer |
| Refrigeration System | 40 W Stirling-cycle helium cooler (zero ODP, zero GWP) |
| Power Supply | AC 100 V, 1 A (up to 7 A with auxiliary socket) |
| Dimensions | 233 × 330 × 392 mm (W × D × H) |
| Weight | ~10 kg |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | VC-15S |
| Instrument Type | Vacuum Centrifugal Concentrator |
| Temperature Range | +55 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Sample Capacity | 100 mL |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | VC-36R / VC-96R |
| Instrument Type | Vacuum Centrifugal Concentrator |
| Temperature Range | +4°C to +70°C |
| Temperature Control Accuracy | ±0.1°C |
| Sample Capacity | 2.0 mL × 96 (VC-96R) |
| Rotational Speed | 300–2000 rpm (max 440 × g with 36A rotor) |
| Vacuum Range | 0 to –0.1 MPa |
| Timer | 1 min to 99 h 59 min (digital) |
| Chamber Material | SUS304 stainless steel with PTFE coating |
| Lid Material | PVC |
| Vacuum & Vent Nozzle Diameters | Exhaust Φ14 mm, Vent Φ6 mm, Cooling Water Φ12 mm |
| Safety Features | Overcurrent protection, automatic shutdown upon lid opening (heater/rotor/vacuum pump), real-time thermal and motor diagnostics with non-volatile memory logging |
