Watlow
Filter
Showing all 2 results
| Brand | Watlow |
|---|---|
| Model | F4 |
| Controller Type | PID Temperature Controller with TRU-TUNE®+ Adaptive Control |
| Display | 4-Line High-Contrast LCD (1.75" / 44 mm character height) |
| Input Compatibility | Thermocouple (J, K, T, E, R, S, B, N), RTD (Pt100, Pt1000), Voltage, Current |
| Output Options | Relay (2 A max), SSR, DC Pulse, Analog (0–10 V, 4–20 mA) |
| Control Loops | Up to 2 independent control loops (single- or dual-channel versions) |
| Programming | Ramp/Soak profile capability (up to 99 segments) |
| Environmental Rating | NEMA 4X / IP65 front panel |
| Safety Certifications | UL®/C-UL®, CE, RoHS |
| Operating Ambient | 0–55°C (32–130°F) |
| Warranty | 3-Year Limited Warranty |
| Mounting | 1/4 DIN panel cutout (96 × 96 mm) |

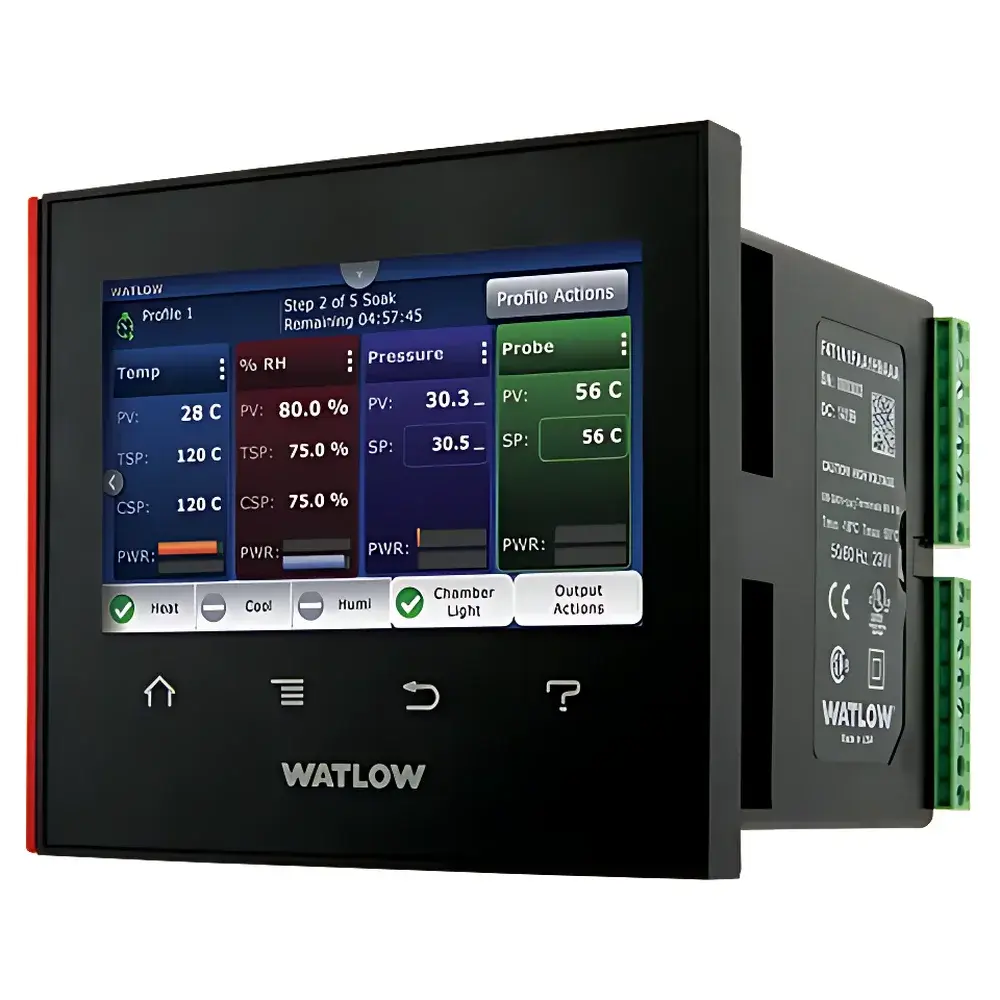

| Brand | Watlow |
|---|---|
| Model | F4T |
| Origin | USA |
| Temperature Range | Ambient to 700 °C |
| Temperature Stability | ±0.5 °C |
| Display | 4.3″ PCAP Color Graphic Touchscreen |
| I/O Architecture | Modular, Field-Removable Input/Output Modules |
| Control Loops | Up to 4 Independent PID Loops with Profile Programming & Data Logging |
| Alarm Capacity | Up to 14 Configurable Alarms |
| Max Output Current | 10 A (Solid-State Relay) |
| Operating Ambient | −18 °C to 50 °C |
| Certifications | UL/EN 61010, UL 508, CSA, FM (Hazardous Locations), CE, RoHS, China RoHS Level II, WEEE |
| Mounting | Front-Panel or Panel-Embedded |
| TRU-TUNE®+ Adaptive Auto-Tuning | Yes |
| Remote Limit Reset | Yes |
| Supported Software | Watlow Composer™ PC Configuration Tool |
| Max Monitor Channels | 24 |
| Profiling Capability | Yes |
| Phase Configuration | Single-Phase |
