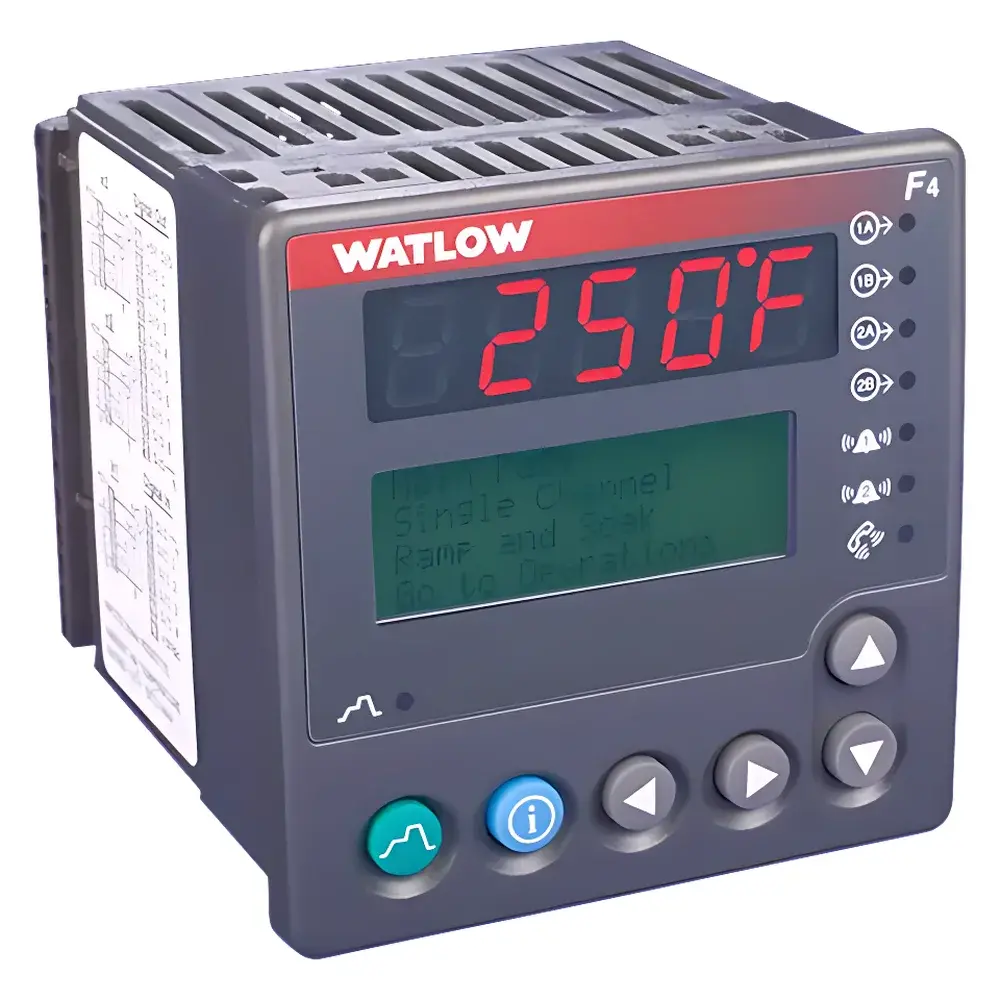

Watlow F4 Series 1/4 DIN Industrial Temperature Controller

Overview

The Watlow F4 Series is a precision-engineered 1/4 DIN industrial temperature controller designed for demanding thermal process applications in laboratory ovens, environmental chambers, furnaces, and drying systems. Built upon Watlow’s legacy of thermal control reliability, the F4 implements advanced digital PID control architecture enhanced by TRU-TUNE®+ adaptive tuning — an algorithm that continuously analyzes process dynamics and automatically adjusts proportional, integral, and derivative parameters to maintain setpoint stability under varying load conditions. Unlike fixed-tuning controllers, the F4 dynamically compensates for thermal inertia, heat loss fluctuations, and sensor drift, delivering consistent ±0.5°C temperature uniformity across operating ranges from ambient to 700°C. Its 16-bit microprocessor ensures high-resolution analog-to-digital conversion and deterministic real-time loop execution, meeting the repeatability and traceability requirements of GLP-compliant laboratory environments.

Key Features

• TRU-TUNE®+ adaptive auto-tuning technology for optimal response to changing thermal loads without manual intervention
• Four-line high-contrast LCD display with 1.75-inch character height for unambiguous visibility in low-light or glove-required lab settings
• Full ramp-and-soak profile programming (up to 99 segments) supporting complex thermal cycles required in material aging, moisture analysis, and curing protocols
• Dual-channel configuration option enabling simultaneous independent control of heating zones or cascaded control (e.g., chamber temperature + exhaust damper)
• NEMA 4X / IP65-rated front panel for resistance to dust, splashing water, and cleaning agents — suitable for ISO Class 7 cleanroom-adjacent installations
• Comprehensive output flexibility: SPST relay (2 A resistive), solid-state relay drive, DC pulse, or linear analog outputs (0–10 VDC / 4–20 mA) for integration with external power controllers or PLCs
• UL®/C-UL®, CE, and RoHS certified — compliant with electrical safety and electromagnetic compatibility standards applicable to laboratory instrumentation in North America and the EU

Sample Compatibility & Compliance

The F4 controller is compatible with standard laboratory-grade temperature sensors including Type J, K, T, E, R, S, B, and N thermocouples; Pt100 and Pt1000 RTDs; and millivolt/mA input signals. It interfaces seamlessly with Blue M drying ovens and other Class I, Division 1 compatible heating enclosures. The controller supports operation within ambient conditions of 0–55°C and relative humidity up to 90% non-condensing. For regulated laboratories, the F4 meets foundational requirements for audit readiness: its deterministic control logic, non-volatile parameter storage, and stable firmware versioning support documented calibration procedures per ISO/IEC 17025. While the F4 itself does not provide electronic audit trails or 21 CFR Part 11 user authentication, its configuration parameters can be recorded and verified manually as part of SOP-defined instrument qualification (IQ/OQ/PQ).

Software & Data Management

The F4 operates as a standalone embedded controller with no proprietary software dependency. All configuration—including setpoints, profiles, alarm thresholds, and input scaling—is performed locally via intuitive front-panel navigation. Configuration data is retained in non-volatile memory during power loss. For labs requiring centralized monitoring, optional analog outputs or Modbus RTU (via RS-485 add-on module, sold separately) enable connection to SCADA systems or LabVIEW-based DAQ platforms. Firmware updates are performed via USB interface using Watlow’s free EZ-Loader utility — validated versions are published with revision-controlled release notes and change logs, supporting version management per internal quality system requirements.

Applications

• Precision temperature profiling in forced-air drying ovens used for gravimetric moisture content determination (ASTM D4442, ISO 4611)
• Thermal aging studies of polymers and composites in environmental test chambers
• Control of muffle furnaces for ash content analysis (AOAC 923.03, EPA Method 1680)
• Process validation of sterilization and depyrogenation cycles in pharmaceutical R&D labs
• Calibration oven temperature stabilization for reference thermometer verification (ISO 17025 Clause 6.4.10)
• Research-scale thermal processing of battery electrode materials and ceramic precursors

FAQ

Does the F4 support Modbus communication?
Yes — when equipped with the optional RS-485 communication module, the F4 supports Modbus RTU protocol for read/write access to process variables, setpoints, and alarm status.
Can the F4 be used in explosion-hazardous areas?
No — the F4 is rated for general-purpose industrial use (Class I, Div 2 / Zone 2 only when installed per NEC Article 500). It is not intrinsically safe or explosion-proof certified.
Is profile logging available on the F4?
No — the F4 does not include onboard data logging. External chart recorders or DAQ systems must be used for time-stamped temperature history capture.
What is the maximum recommended sensor cable length?
For thermocouple inputs, shielded twisted-pair cable up to 100 ft (30 m) is supported; for RTD inputs, 3-wire Pt100 cables up to 50 ft (15 m) maintain accuracy within specification.
How often should the F4 be calibrated?
Annual calibration is recommended for GxP environments; intervals may be extended based on risk assessment and historical performance data per ISO/IEC 17025 Clause 7.7.
