| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

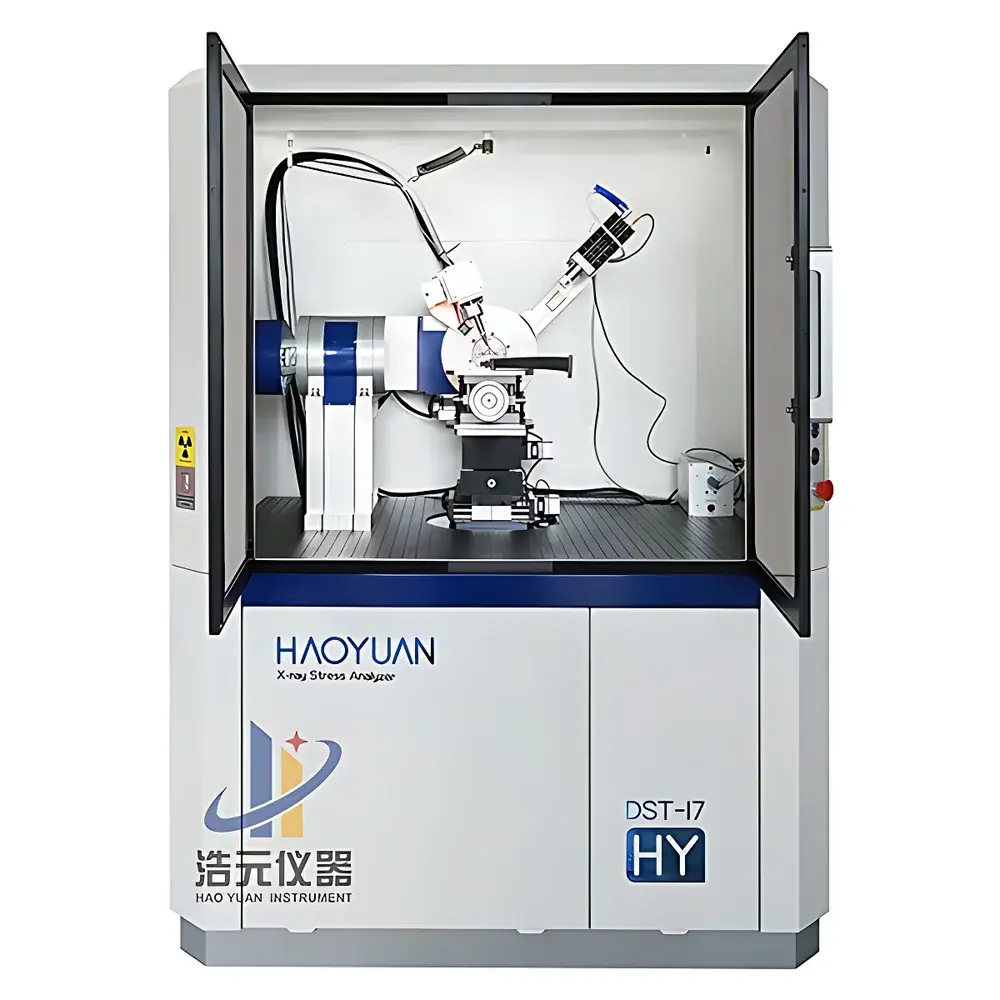

| Model | DST-17 |
| X-ray Tube Power | 3000 W |
| 2θ Angular Range | 45°–170° (continuously adjustable) |
| ψ Angular Range | −25° to +50° |
| Target Materials | Cr, Cu, Mn, Ti, Co, V, Fe |
| Angular Resolution (2θ) | 0.0001° |
| 2θ Repeatability | < 0.003° |
| Stress Measurement Accuracy | ±5 MPa |
| Detector | High-resolution Silicon Drift Detector (SDD), linear array configuration |
| Sample Positioning | Laser displacement sensor with < 3 µm repeatability |
| Motion System | 4-axis motorized sample stage + 360° precision rotation stage |
| Radiation Shielding | Fully enclosed lead-glass enclosure compliant with ANSI N43.2 |
| Standards Compliance | ASTM E915-2010, EN 15305-2008, GB/T 7704-2016, ISO 9001 |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |
| Origin Category | Domestic |
| Model | DS-21P |
| X-ray Tube Power | 300 W |
| 2θ Angular Range | 105°–170° (continuously adjustable) |
| ψ Angular Range | −45° to +45° |
| Available Anode Target Materials | Cr, Cu, Mn, Ti, Co, V, Fe |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |
| Origin Category | Domestic |
| Model | DS-23MINI |
| X-ray Tube Power | 50 W |
| 2θ Angular Range | 140°–170° (continuously adjustable) |
| ψ Angular Range | −35° to +35° |
| Target Materials | Cr, Cu, Mn, Ti, Co, V, Fe |
| Detector | Dual semiconductor linear array (256 × 256 pixels), linear count rate > 10⁹ cps |
| Stress Measurement Repeatability (Fe powder) | < ±5 MPa (n = 5) |
| Compliance | ASTM E915-2010, EN 15305-2008, GB/T 7704-2017 |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Model | XAFS2300 |
| X-ray Source Power (XAFS mode) | 3 kW |
| X-ray Source Power (XES mode) | 50 W |
| Monochromatic Photon Flux | ≥2×10⁶ photons/sec @ 7–9 keV |
| Detectable Elemental Concentration Limit | 0.1 wt% |
| Tunable X-ray Energy Range | 4.5–25 keV |
| XAFS Scan Speed | 0.1–2.0 eV/s |
| Energy Resolution | 0.5–3 eV |
| Energy Drift Stability | < 50 meV per 8-hour operation |
| Dual-Mode Operation | XAFS & XES |
| Monochromator Type | Spherically Bent Crystal (Rolan Circle Geometry) |
| Detector | High-Resolution Silicon Drift Detector (SDD) |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Powder X-ray Diffractometer |
| Configuration | Floor-Standing |
| Angular Resolution | 0.001° |
| Angular Accuracy | ±0.0001° |
| Peak Resolution (FWHM) | SiO₂ ≤ 60% |
| Detector | High-Performance Semiconductor Array Detector |
| X-ray Source | Stabilized Cu Kα Sealed-Tube Source |
| Calibration Standard Compliance | NIST-traceable Si & α-Al₂O₃ reference materials (full-pattern angular deviation ≤ ±0.01°) |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | DX-27mini |
| Instrument Type | Powder X-ray Diffractometer |
| Configuration | Benchtop |
| Power Rating | 600 W (40 kV / 15 mA) or 1200 W (40 kV / 30 mA) |
| Angular Accuracy | 0.0001° |
| Resolution (FWHM) | SiO₂ ≤ 60% |
| X-ray Source | Metal-ceramic Cu-target tube, focal spot 1 × 10 mm |
| Goniometer Geometry | Horizontal θ–θ (sample-and-detector movement) |
| Radius of Diffraction Circle | 150 mm |
| Scan Modes | Continuous and Step Scanning |
| Angular Range (θs/θd coupled) | –3° to 150° |
| Minimum Step Size | 0.0001° |
| Angular Reproducibility | ±0.0005° |
| Angular Positioning Speed | 1500°/min |
| Detector Options | Sealed proportional counter or high-speed 1D semiconductor array |
| Energy Resolution | <25% (at Mn Kα) |
| Linear Count Rate | ≥5 × 10⁵ cps (proportional), ≥9 × 10⁷ cps (1D semiconductor) |
| Radiation Shielding | Lead + lead-glass enclosure |
| Overall System Stability | ≤1% RSD over 8 h |
| Sample Capacity | 6-position automated sample changer |
| Dimensions (W × D × H) | 600 × 410 × 670 mm |
| Cooling | Air or water (≥2.5 L/min) |
| Software Platform | Windows 7-based instrument control and data analysis suite |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | DX-2900 |
| Instrument Type | High-Resolution X-ray Diffractometer |
| Configuration | Floor-Standing |
| Power | 50 W |
| X-ray Source | Cu or Mo anode (50 kV / 1 mA) |
| Capillary Optics | Collimation ≤ 0.25°, Focal Spot Diameter: 0.5 mm, Photon Flux > 1×10⁸ ph/s |
| Goniometer | Two-Axis Thin-Film Stage (ω: –10° to +10°, resolution 0.002° |
| Z | 0–15 mm, resolution 0.002 mm) |
| Detector | 2D Array (512 × 512 pixels, pixel size 75 µm) |
| Optional Accessories | Transmission stage, in-situ heating stage (up to 600 °C), inert-atmosphere chamber, solvent vapor chamber, XY translation stage (150 mm × 150 mm), upgradeable to 3–5-axis thin-film goniometer or Pilatus200K/Eiger500K detectors |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | DS-21L |
| X-ray Tube Power | 3000 W |
| 2θ Angular Range | 105°–170° (continuously adjustable) |
| ψ Angular Range | −57° to +57° |
| Available Anode Target Materials | Cr, Cu, Mn, Ti, Co, V, Fe |
| Minimum Focal Spot Size | 0.1 mm |
| Detector Configuration | Dual Linear Semiconductor Array Detectors |
| Individual Detector 2θ Coverage | 35° |
| Detector Linear Count Rate | >10⁹ CPS |
| Positioning System | Integrated Laser Displacement Sensor + Motorized Z-axis (600 mm travel) + Manual/Automatic XYZΦ Sample Stage (X: 300 mm, Y: 200 mm, Φ: 0–360°) |
| Measurement Methods | Sin²ψ (both side-inclination and co-inclination modes) |
| Residual Stress Repeatability (Fe powder reference) | < ±5 MPa (n = 5) |
| Radiation Shielding | Fully Enclosed Lead-Glass Enclosure Compliant with ANSI N43.2 |
| Standards Compliance | ASTM E915-2010, EN 15305:2008, GB/T 7704–2016 |
| Optional Target Materials | Cr, Mn, Cu, Co, Fe, V |
| Brand | Haoyuan |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | DX-2700BH |
| Instrument Type | Powder X-ray Diffractometer |
| Configuration | Floor-standing |
| X-ray Generator Power | 3 kW |
| Angular Accuracy | ±0.0001° |
| Resolution (FWHM) | SiO₂ ≤ 60% |
