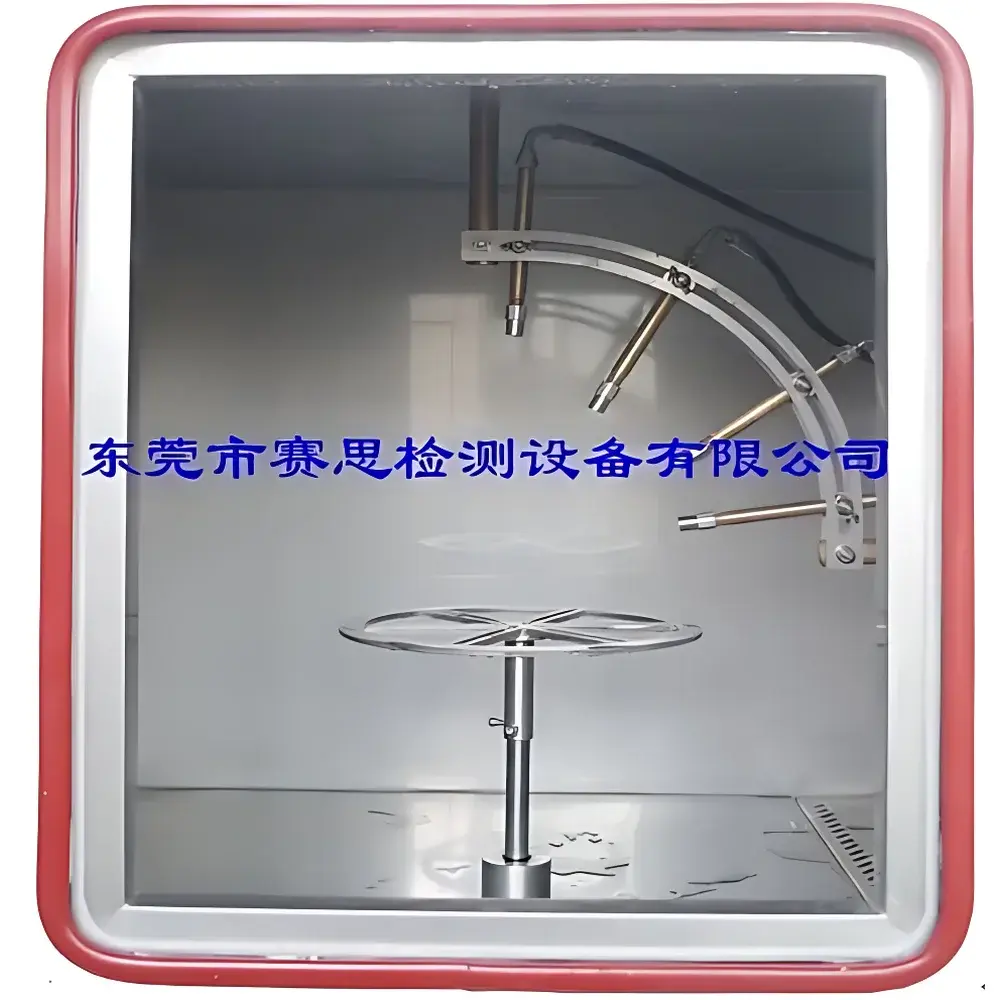

| Brand | SETH |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | SE-IPX9K |
| Temperature Range | +80 °C (operating water up to 90 °C) |
| Rain Intensity | 10–20 cm/h |
| Droplet Diameter | 0.5–4.5 mm |
| Air Velocity | 5–18 m/s |
| Test Duration | 0–999 min |
| Water Flow Rate | 14–16 L/min |
| Water Pressure | 8,000–10,000 kPa |
| Water Temperature | Ambient to 80 °C ±5 °C |
| Turntable Speed | 5 ±1 r/min |
| Turntable Diameter | Φ400 mm |
| Turntable Load Capacity | ≤20 kg |
| Nozzle Positions | 0°, 30°, 60°, 90° (adjustable distance: 100–150 mm) |
| Chamber Internal Dimensions | W800 × D800 × H800 mm (customizable) |
| Compliance | ISO 16750-1:2006, ISO 20653, IEC 60529 (IPX9K), GMW 3172 (2007), VW 80106:2008, QC/T 417.1–2001, GB 4208 |

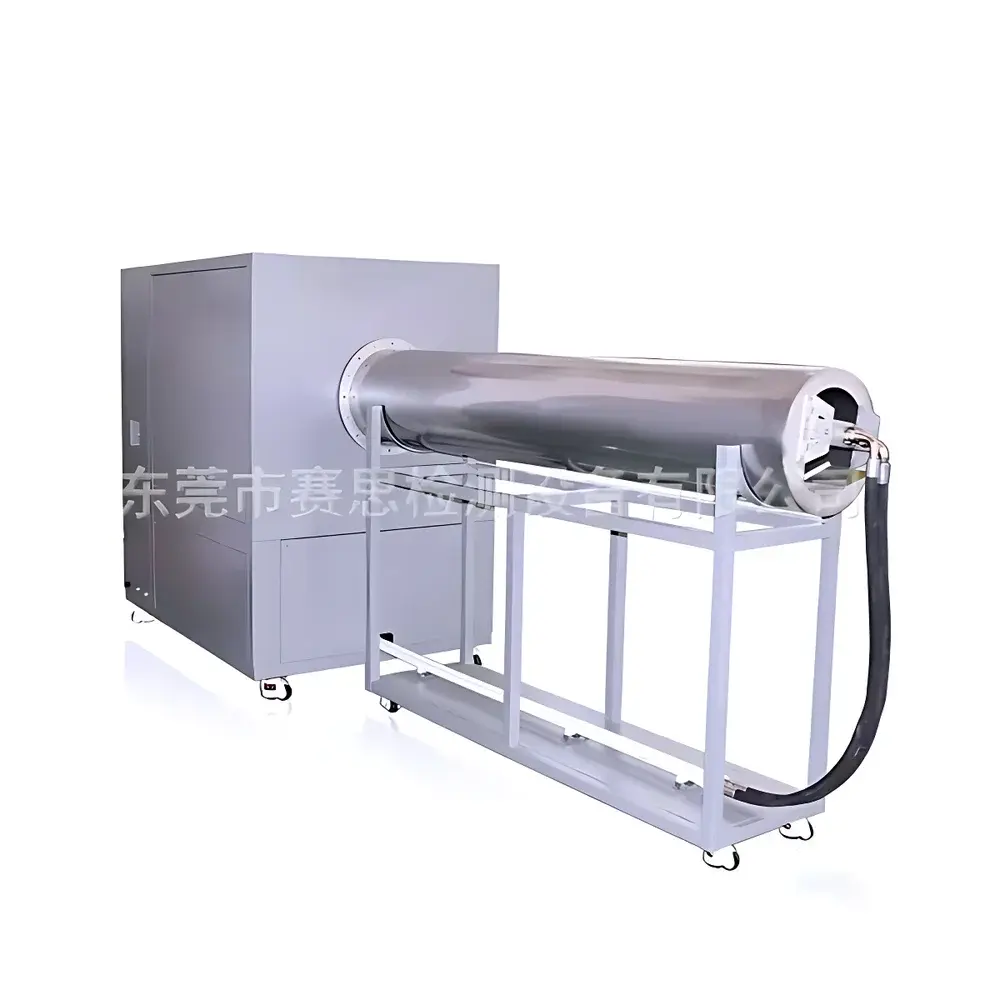

| Brand | SETH |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | SE-LX50F |
| Temperature Range | (RT + 10°C) to 55°C |
| Rainfall Intensity | 10–20 cm/h |
| Droplet Diameter | 0.5–4.5 mm |
| Wind Speed Range | 5–18 m/s |
| Test Duration | 0–999 min |
| Power Supply | 220 V / 50 Hz or 110 V / 60 Hz |
| Control System | PLC with Touchscreen Interface |
| Swivel Arm Angle Adjustment | ±20° to ±180° |
| Nozzle Orifice | 0.4 mm (optional 0.8 mm) |
| Water Pressure | 80–100 kPa |
| Turntable Diameter | 700 mm |
| Turntable Height Adjustment | 855–1300 mm |
| Max Load Capacity | 100 kg |
| Timer Range | 1–999 min |
| Weight | 150 kg |
| Compliance | IEC 60529, IEC 60598-1, IEC 60335-1, EN 60335-1, IEC 60950-1, GB 4208, GB 7000.1 |
| Brand | SETH |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | IPX9K |
| Temperature Range | 80 °C ±5 °C |
| Rainfall Intensity | 10–20 cm/h |
| Droplet Diameter | 0.5–4.5 mm |
| Air Velocity Range | 5–18 m/s |
| Test Duration | 0–999 min |
| Flow Rate | 14–16 L/min |
| Water Pressure | 8,000–10,000 kPa |
| Water Temperature | Ambient to 80 °C ±5 °C |
| Turntable Speed | 5 ±1 r/min |
| Turntable Diameter | Φ400 mm |
| Turntable Load Capacity | ≤20 kg |
| Nozzle Positions | 0°, 30°, 60°, 90° (adjustable distance: 100–150 mm) |
| Chamber Interior | SUS304L stainless steel |
| Exterior | Powder-coated galvanized steel or optional 304 stainless steel |
| Control System | Programmable touchscreen controller with real-time flow/pressure/temperature display |
| Compliance | ISO 16750-1:2006, ISO 20653, IEC 60529, GMW 3172 (2007), VW 80106:2008, QC/T 417.1–2001, GB 4208 |
