| Brand | Junjin |
|---|---|
| Origin | Guangdong, China |

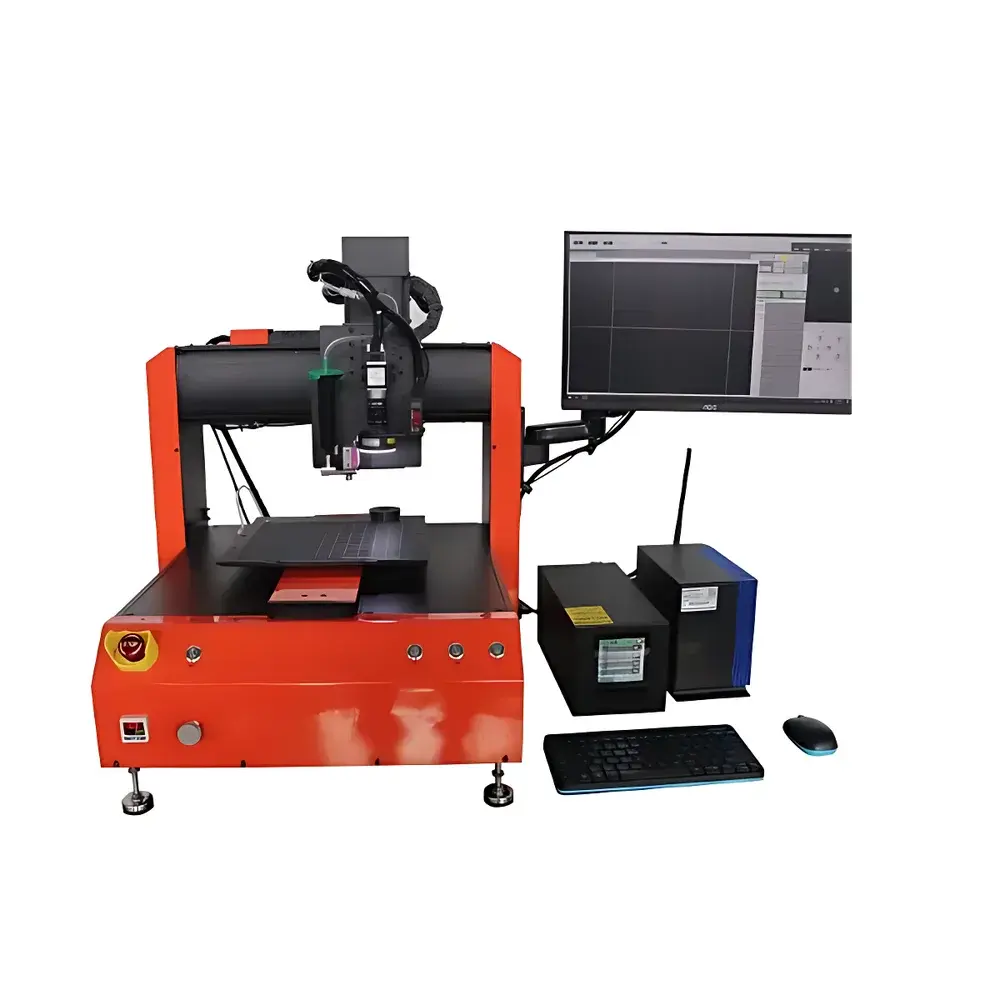

| Model | J2-W300TIII |
| Max Build Area | 100 mm × 100 mm |
| Z-Axis Load Capacity | 2 kg |
| Y-Stage Load Capacity | 10 kg |
| XYZ Travel Range | 300 mm × 300 mm × 100 mm |
| Repeatability | ±0.004 mm per axis (X/Y/Z) |
| Max Speed | 500 mm/s |
| Max Acceleration | 0.8 G |
| Drive System | Servo Motors + High-Precision Linear Modules |
| Vision System | 5 MP @ 14 fps |
| Light Source | Single-Channel Red LED Ring Light |
| Input Air Pressure | 0.4–0.7 MPa |
| Total Power Consumption | 1.2 kW |
| Motion Control | 3-Axis Synchronized Interpolation Supporting Linear, Circular, Helical, Elliptical, Involute, Conical, and B-Spline Trajectories |
| Optional Add-ons | UV Curing Lamp, Machine Vision Inspection, Laser Height Probing, Vacuum Bed |
| Brand | Junjin |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | J²-D100T-CERAMICS |
| Build Volume | 96 × 54 × 150 mm |
| Compatible Materials | Photopolymer Resins, Alumina (Al₂O₃), Zirconia (ZrO₂), Silica (SiO₂), Barium Titanate (BaTiO₃), Lead Zirconate Titanate (PZT), Hydroxyapatite (HA), Metal Oxides, Silicon Nitride (Si₃N₄), Silicon Carbide (SiC), Bioactive Glasses |
