| Brand | Gamry |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Interface 1010E |
| Instrument Type | Electrochemical Workstation |
| Channel Configuration | Dual Independent Potentiostatic Channels |
| Current Range | ±10 nA to ±1 A (9 decades) |
| Current Accuracy | ±5 pA ±0.3% of reading |
| Potential Accuracy | ±1 mV ±0.2% of reading |
| Potentiostatic Range | ±12 V |
| Electrochemical Impedance Spectroscopy (EIS) Frequency Range | 10 µHz – 2 MHz |

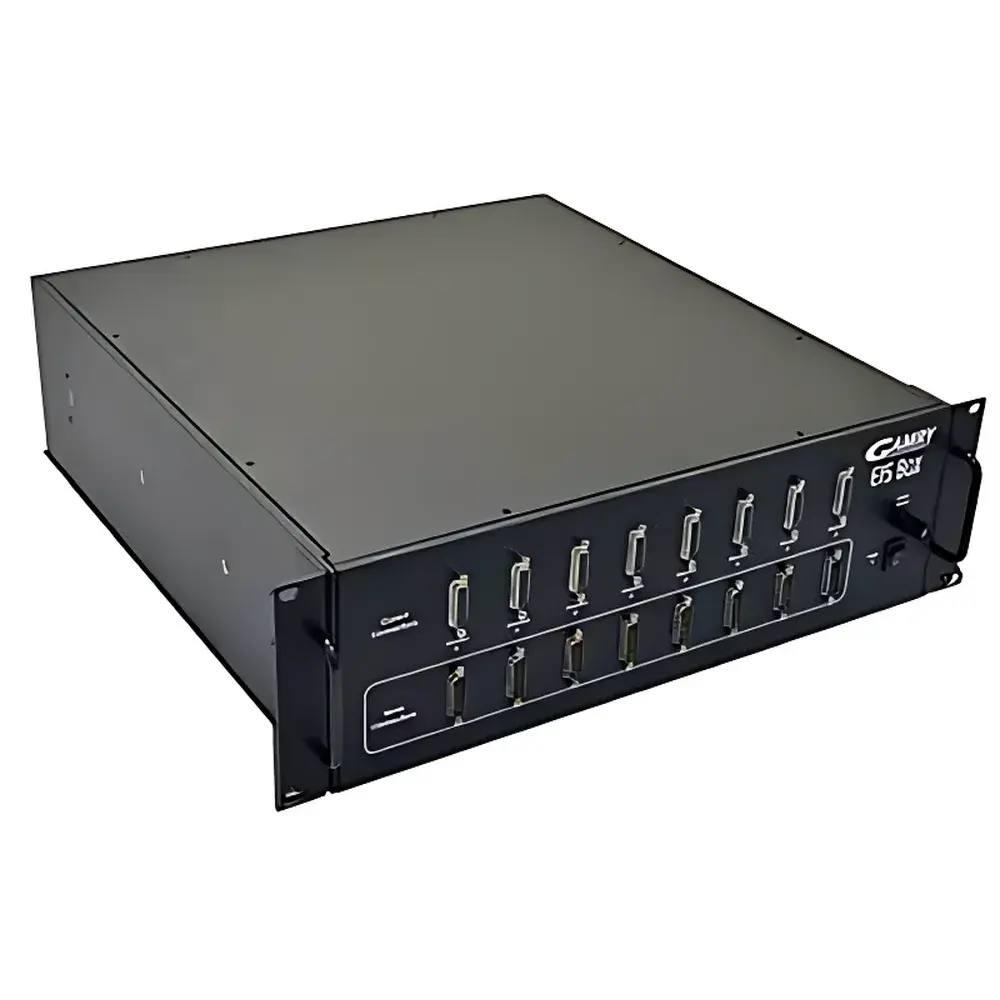

| Brand | Gamry |
|---|---|
| Origin | USA |
| Model | EIS Box |
| Instrument Type | Electrochemical Workstation |
| Channel Count | 8-channel multiplexer |
| Current Range | ±50 µA to ±5 A |
| Current Accuracy | ±25 pA ±0.2% of reading |
| Potential Accuracy | ±1 mV ±0.2% of reading |
| Potentiostatic Range | ±6 V |
| AC Impedance Frequency Range | 10 µHz – 100 kHz |
| Maximum AC Amplitude | 3 V (peak-to-peak) or 5 A (peak-to-peak) |
| Electrode Cable Length | 8 × 3 m four-terminal leads |
| Rack Mount | 19″ (48.3 cm), 3 U height |
| Interface | Ethernet or USB 2.0 |
| Operating System | Windows 10 only |
| Input Isolation | Fully floating, ground-referenced voltage limit ≤28 V |
| Weight | ~10 kg |
| Dimensions | 13.3 cm H × 41.5 cm W × 45.7 cm D |
| Power Supply | 100–240 VAC, 50–60 Hz, max. 120 W |
