| Brand | AZ Technology |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SPECTRAFIRE |
| Pricing | Available Upon Request |
| Spectral Range | 2.5–40 µm (4000–250 cm⁻¹) |
| Spectral Resolution | 0.5–32 cm⁻¹ |
| Sample Diameter Requirement | ≥8.3 mm |
| Footprint (FTIR + SPECTRAFIRE) | 33 × 25 in |
| Height at Sample Port | 13.5 in |
| Electrical Requirement | 120 VAC, 60 Hz |
| Warranty | 1 year parts and labor |
| Brand | AZ Technology |
|---|---|
| Origin | USA |
| Model | LPSR300 |
| Spectral Range | 250–2800 nm |
| Measurement Type | Spectral Total Hemispherical Reflectance |
| Repeatability | ±1% (250–2500 nm), ±2% (2500–2800 nm) |
| Spectral Resolution | Better than 5% of wavelength (250–2500 nm), better than 8% of wavelength (2500–2800 nm) |
| Sample Diameter | ≥0.5 inch |
| Full Scan Time | <2 minutes |
| Power Supply | 115 VAC / 60 Hz |
| Measurement Head Dimensions | 10 × 12 × 8 in |
| Measurement Head Weight | 15 lb |
| PC/Power Box Dimensions | 9 × 16 × 20 in |
| PC/Power Box Weight | 35 lb |
| Warranty | 1 year parts and labor |
| Compliance | ASTM E903, NASA-qualified design |
| Operating System | Windows XP (embedded) |
| Integrated Optical Database | Yes |
| Vacuum-Compatible Variant | LPSR300V available |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

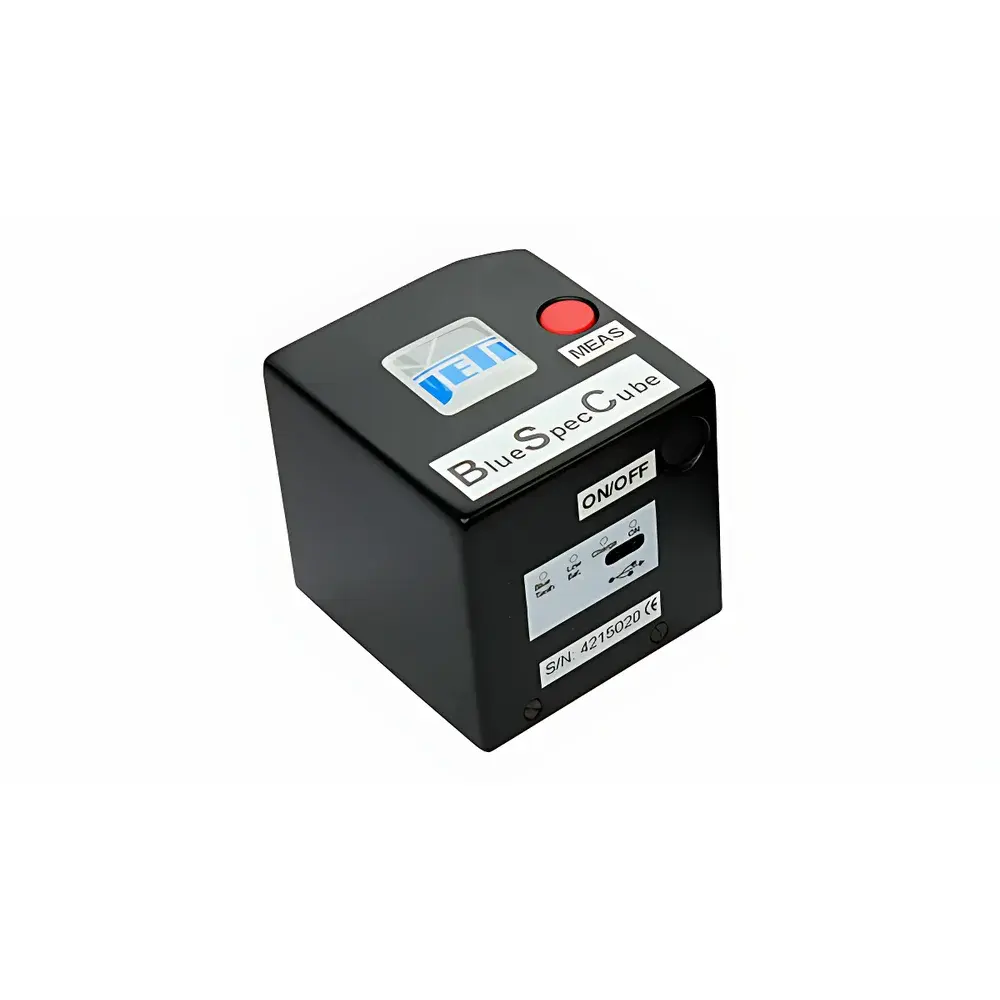

| Model | BlueSpecCube |
| Price Range | USD 1,400 – 4,200 (FOB) |
| Spectral Range | 300–1000 nm |
| Detector | Back-Illuminated CMOS Linear Array |
| Optical Resolution | < 4.5 nm (FWHM, with 50 µm slit) |
| Sensitivity | 5 × 10¹⁶ counts/W·s @ 300 nm |
| Signal-to-Noise Ratio | 3000:1 (full well, 1 s integration) |
| Dynamic Range | 10,000:1 (typical, single acquisition) |
| Stray Light | < 0.1 % (600 nm, relative to peak) |
