| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | AYAN-F80 Wiped-Film Molecular Distiller |
| Price | USD 12,800 (FOB) |
| Feed Rate | 0.5–4.0 L/h |
| Effective Evaporation Area | 0.1 m² |
| Evaporator Internal Diameter | 80 mm |
| Condenser Surface Area | 0.15 m² |
| Collection Vessels | 2 × standard KF-25 or ISO-KF 25 ports |

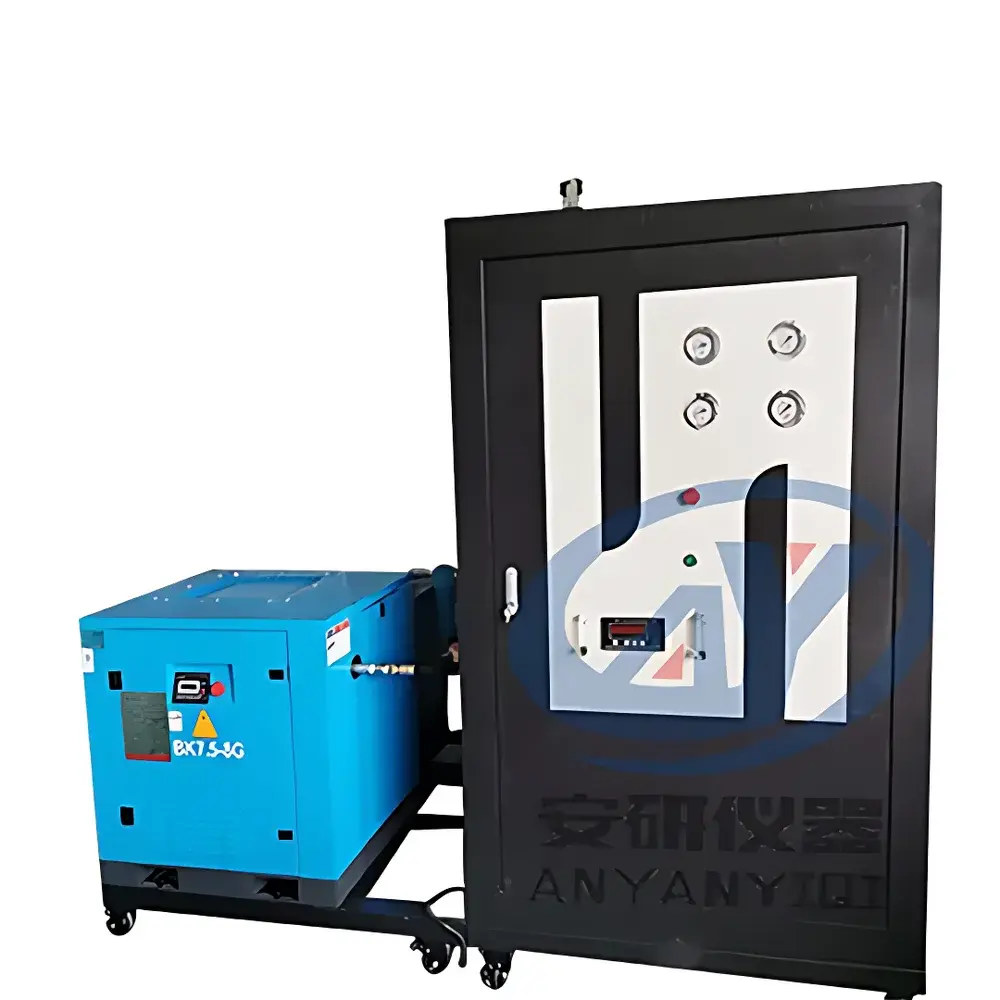

| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-100LB |
| Nitrogen Purity | 99.999% |
| Output Flow | 100 L/min |
| Output Pressure | 0.6 MPa |
| Power Supply | 380 V ±10%, 50 Hz ±5% |
| Noise Level | ≤65 dB(A) |
| Dimensions (W×D×H) | 1400 × 950 × 1300 mm |
| Weight | 380 kg |
| Principle | Pressure Swing Adsorption (PSA) |
| Integrated Components | Air Compressor, Refrigerated Dryer, Multi-Stage Filtration System, Carbon Molecular Sieve (CMS) Adsorption Towers, N₂ Buffer Tank, Real-Time Purity Analyzer & Flow Meter |

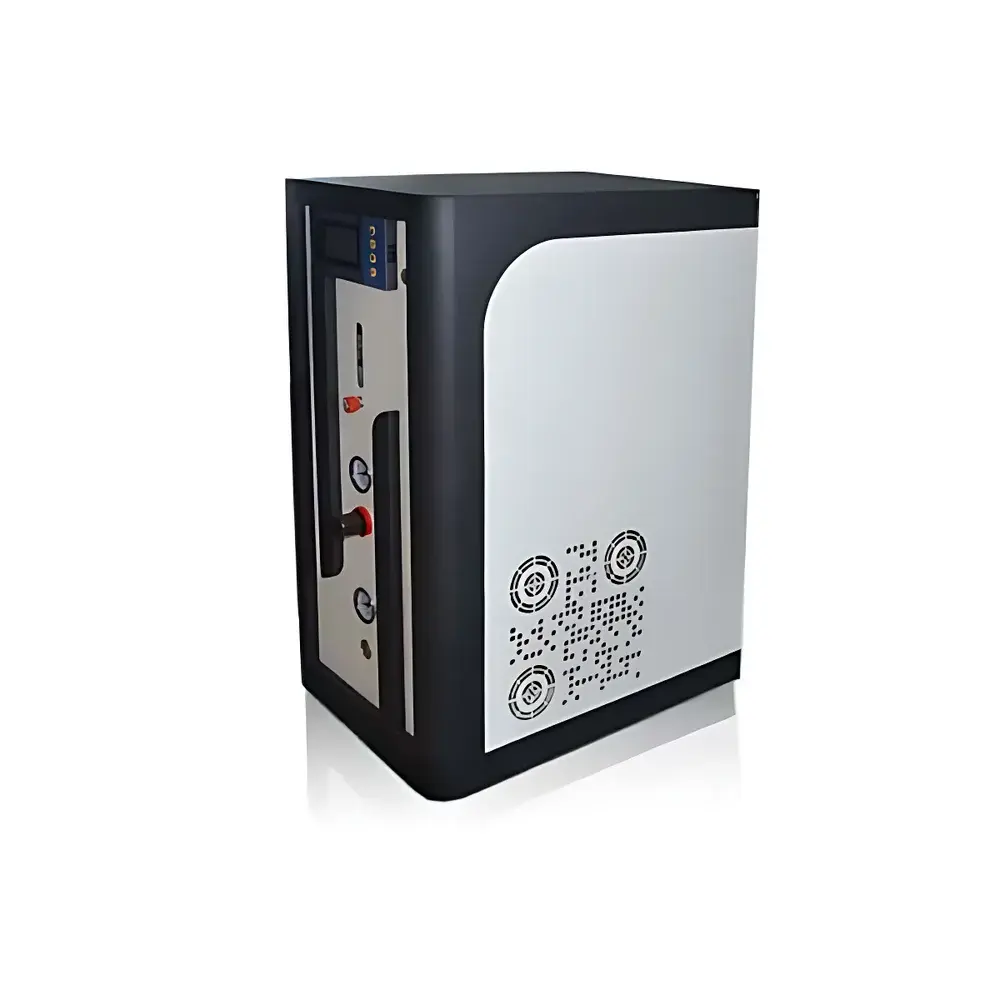

| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-20L |
| Nitrogen Generation Principle | Imported Hollow-Fiber Membrane Separation |
| Output Flow Rate | 20 L/min |
| Output Pressure | 0.6 MPa |
| Nitrogen Purity | 99.9% |
| Dew Point | -40 °C |
| Compliance | CE-marked design (intended for lab use under ISO 8573-1 Class 3/4 air quality input) |
| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-F100-S |
| Feed Capacity | 5 L |
| Effective Evaporation Area | 0.5 m² |
| Evaporator Inner Diameter | 220 mm |
| Condensing Area | 0.65 m² |
| Collecting Flask Capacity | 5 L |
| Vacuum Level (No-Load) | ≤10 Pa |
| Heating Temperature Range | Ambient to 200 °C |
| Rotational Speed | ≤450 rpm |
| Motor Power | 120 W |
| Material | 304/316L Stainless Steel & PTFE Seals |
| Cooling | Integrated Chiller |
| Cold Trap | Standard |
| External Condenser | Optional |
| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-F80-S |
| Feed Rate | 0.5–4.0 L/h |
| Effective Evaporation Area | 0.1 m² |
| Evaporator Internal Diameter | 80 mm |
| Condenser Surface Area | 0.15 m² |
| Compatible Collection Flask Capacity | 2 L |
| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYJ-2 |
| Feed Rate | 1–100 kg/h |
| Collection Vessels | 2 |
| Tower Material | Borosilicate Glass 3.3 |
| Tower Height | 0.5–2 m (customizable) |
| Heating Temperature Range | Ambient +10 °C to 300 °C |
| Ultimate Vacuum | ≤0.1 mbar |
| Condenser Type | Vertical |
| Effective Packing Height | 1 m |
| Tower Diameter (ID) | 25 mm |
| Flask Volume | 2 L |
| Power Supply | 220 V, 50/60 Hz, 1P |
| [Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-35L |
| Nitrogen Generation Principle | Hollow-Fiber Membrane Separation |
| Output Flow Rate | 35 L/min (not mL/h — corrected per industry standard) |
| Output Pressure Range | 0–0.6 MPa (factory-set at 0.3 MPa) |
| Nitrogen Purity | ≥99% (v/v) |
| Dew Point | −45 °C |
| Filtration Stages | Triple-Stage Integrated Filtration (particulate < 0.01 µm |
| Display | Digital N₂ purity & flow readout |
| Control | Fully Automated PLC-based operation with self-diagnostic alerts |
| Safety | Integrated pressure-regulated buffer tank with ASME-compliant safety valve] |
| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-20L |
| Nitrogen Generation Principle | Membrane Separation |
| Output Flow Rate | 20 L/min |
| Output Pressure Range | 0–0.6 MPa |
| Nitrogen Purity | 99–99.9% |
| Dew Point | −40 °C |
| Filtration Stages | Triple-Stage Pre-Filtration |
| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-F100-S |
| Price | USD 25,000 (FOB) |
| Feed Rate | 0.5–5.0 L/h |
| Effective Evaporation Area | 0.15 m² |
| Evaporator Internal Diameter | 100 mm |
| Collection Flask Capacity | 2 L |
| Condenser Surface Area | 0.25 m² |
| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | CY-SXT-02 |
| Temperature Range | Room Temp +5°C to 100°C |
| Channel Capacity | 2/4/6 parallel extraction positions |
| Sample Weight per Vessel | 0.5–20 g |
| Extraction Flask Volume | 500 mL (2-channel) |
| Heating Power | 300 W |
| Power Supply | 220 V ±10 V, 50 Hz |
| Dimensions (W×D×H) | 425×230×840 mm |
| Net Weight | 17 kg |
| Compliance | Designed in accordance with GB 5512–1985 for crude fat determination |
| Brand | AYAN Instruments |
|---|---|
| Model | B80 |
| Origin | Zhejiang, China |
| Equipment Type | Laboratory-Scale Vacuum Thin-Film Evaporator |
| Application Scope | Solvent Removal, Molecular Distillation, High-Viscosity Feedstock Purification, Heat-Sensitive Compound Concentration |
| Brand | AYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-500MLG |
| Nitrogen Generation Principle | Electrolytic (Aqueous Alkaline Electrolyte) |
| Output Flow Rate | 500 mL/min |
| Nitrogen Purity | 99.999% |
| Dew Point | −40 °C |
| Integrated Buffer Tank | Yes |
| Safety Valve | Compliant with ISO 4126-1 |
| Mobility | Equipped with Locking Casters |
| Display | Digital LED Flow & Status Monitor |
| Control System | Microprocessor-Based Auto-Control with Self-Diagnostic Logic |
| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-30L Membrane Nitrogen Generator |
| Nitrogen Generation Principle | Hollow-Fiber Membrane Separation |
| Output Flow Rate | 30 L/min |
| Output Pressure | 0.3 MPa |
| Nitrogen Purity | 99–99.9% |
| Dew Point | −40 °C |
| Filtration | Triple-Stage (Particulates < 0.01 µm |
| Power Consumption | 3200 W |
| Input Voltage | 380 V AC |
| Dimensions | 400 × 300 × 1300 mm |
| Brand | Chuanyi Instruments |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Model | CY-8000Y (Stainless Steel High-Temperature Spray Dryer) |
| Inlet Air Temp Range | 30–400 °C |
| Outlet Air Temp Range | 30–200 °C |
| Evaporation Capacity | 1500–2000 mL/h |
| Feed Rate | 50–2000 mL/h |
| Drying Time | 0.8–1.0 s |
| Temperature Control Accuracy | ±0.5 °C (PID Real-Time Regulation) |
| Nozzle Orifice Options | 0.5 / 0.7 / 0.75 / 1.0 / 1.5 / 2.0 mm |
| Power Supply | 3.8 kW / 220 V |
| Dimensions (H×L×W) | 1380 × 770 × 590 mm |
| Noise Level | <60 dB(A) |
| Material | Full 316L stainless steel structure + high-borosilicate glass drying chamber & collection system |
| Brand | Hangzhou Chuanyi Electronic |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |
| Model | AYAN-T500 |
| Purity | 99.999% (N₂ & H₂) |
| Flow Rate | N₂: 0–500 mL/min |
| H₂ | 0–500 mL/min |
| Air | 0–5000 mL/min |
| Output Pressure | 0–0.5 MPa |
| Design | Integrated Monoblock Architecture |
| Brand | Chuanyi Instruments |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Model | CY-8000YT |
| Power | 2 kW / 220 V |
| Max Inlet Temperature | 250 °C |
| Max Outlet Temperature | 140 °C |
| Feed Rate | 20–1000 mL/h (dependent on solids content) |
| Nozzle Orifice Options | 0.5 / 0.7 / 0.75 / 1.0 / 1.5 / 2.0 mm |
| Construction Material | Full SUS304 Stainless Steel |
| Control Interface | 7-inch Color Touchscreen with PID Temperature Regulation |
| Drying Atmosphere | Nitrogen-Closed Loop with Solvent Recovery |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | Chuanyi Instruments (Hangzhou Chuanyi Electronics) |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Model | CYZDCQ-6 |
| Price Range | USD 2,100 – 3,800 |
| Extraction Efficiency | 0–99 cycles |
| Extraction Time | 0–999 s |
| Oscillation Method | Pneumatic Air-Driven Agitation |
| Simultaneous Extraction Capacity | 6 samples |
| Power Rating | 400 W |
| Voltage | 220 V ± 10% AC, 50/60 Hz |
| Touch Interface | 7-inch Color TFT LCD with Capacitive Touch |
| Standard Vessel Capacity | 1000 mL (optional 250/500/2000 mL) |
| Cleaning Mode | Wide-Angle Pressurized Spray |
| Waste Liquid Handling | Activated Carbon Adsorption + Centralized Collection |
| Exhaust Treatment | Filtered Exhaust with Charcoal Adsorption Cartridge |
| Layer Separation | Automated Agitation + Static Phase Separation (Manual Drainage) |
| Extraction Intensity | Continuously Adjustable |
| Inter-Extraction Interval | 0–999 s |
| Wash Duration & Cycles | 0–999 s / 0–99 cycles |
| Brand | Hangzhou Chuanyi Electronic |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | CYWB-6 |
| Microwave Power Output | 0–1600 W (adjustable) |
| Max. Installed Power | 2600 W |
| Microwave Frequency | 2450 MHz |
| Temperature Control Range | Ambient to 300 °C |
| Temperature Accuracy | ±0.5 °C |
| Cavity Material | 52 L Stainless Steel |
| Outer Vessel Material | PEEK |
| Inner Vessel Material | PTFE |
| Inner Vessel Volume | 55 mL (standard), 100 mL (optional) |
| Max. Outer Vessel Pressure Rating | 20 MPa |
| Max. Inner Vessel Temperature Rating | 300 °C |
| Rotation | 360° continuous unidirectional |
| Safety Features | Auto-locking buffer anti-explosion door, dual-safety burst disc, non-contact pressure monitoring, contact-type platinum RTD temperature sensing, real-time T/P curve display |
| Brand | Chuanyi Instruments (Hangzhou Chuanyi Electronic Co., Ltd.) |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | CYWB-10 |
| Sample Capacity | 10 vessels per run |
| Max Temperature | 190 °C |
| Temperature Control Stability | Non-pulsed continuous microwave frequency modulation |
| Max Pressure | 1500 psi (10.34 MPa) |
| Cavity Volume | 52 L |
| Cavity Material | 316L stainless steel with 6-layer PTFE coating |
| Power Supply | 220–240 VAC, 50/60 Hz, 15 A |
| Microwave Frequency | 2450 MHz |
| Output Power | 0–1600 W, continuously adjustable |
| Cooling Airflow | ≥5 m³/min |
| Display | 8-inch TFT-LED touchscreen (800×480) |
| Temp Sensing | Contact-type Pt100 RTD (±0.5 °C accuracy) |
| Pressure Sensing | Non-contact piezoelectric sensor (0.01 MPa resolution) |
| Vessel Material | PEEK outer vessel + PTFE inner liner |
| Vessel Volume | 100 mL |
| Rotation | 360° continuous unidirectional rotation |
| Safety Features | Auto-locking buffered anti-explosion door, dual-safety burst disc (ceramic-clamped), real-time pressure/temperature cutoff, electromagnetic leakage <5 mW/cm² (GB 10436-2008 compliant) |
