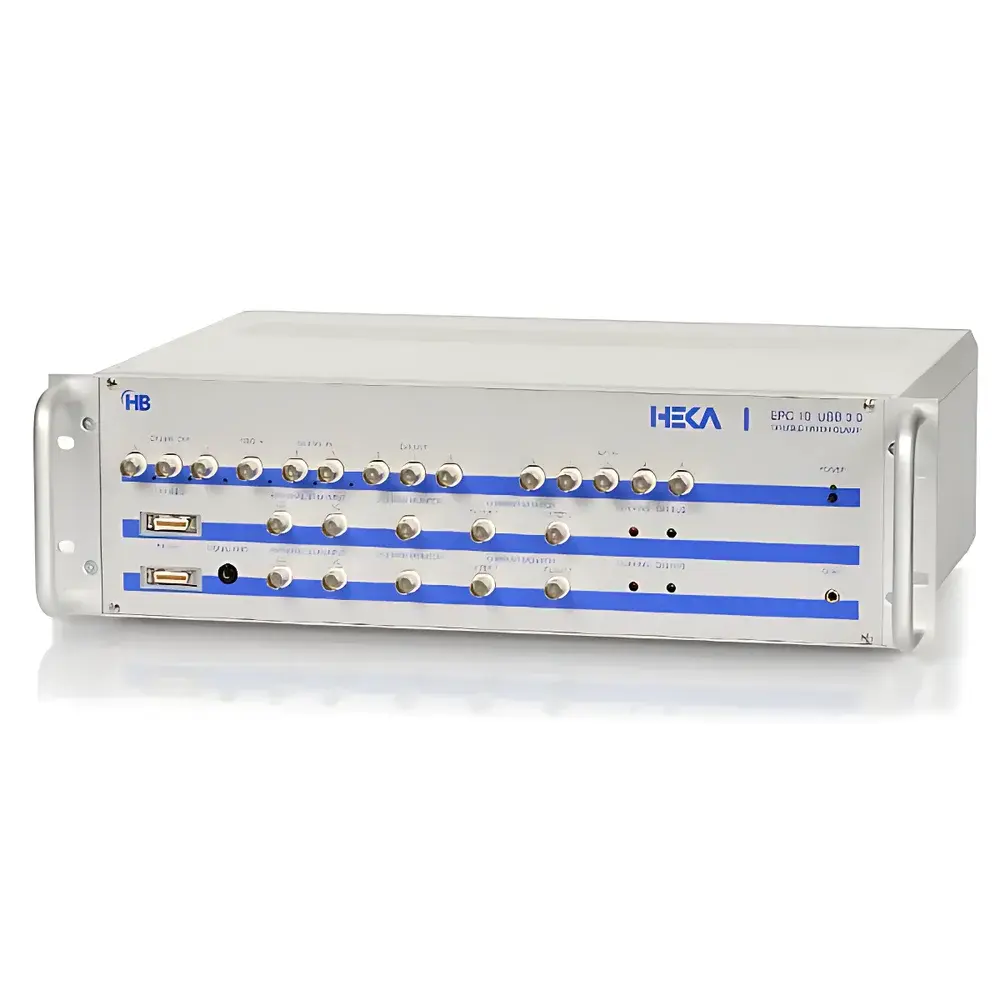

| Brand | HEKA |
|---|---|
| Origin | Germany |
| Model | EPC 10 USB 3.0 |
| Detection Principle | Voltage Clamp & Current Clamp |
| Instrument Type | Fully Automated Electrophysiology Workstation |
| Cell Types | Isolated neurons, cardiomyocytes, and related cell lines |
| Seal Quality | High |
| Success Rate | >90% |
| Recording Channels | 1/2/4/8 |
| Sampling Rate | Up to 2 MHz |
| ADC Channels | 5 |
| DAC Channels | 3 |
| Integrated Data Acquisition | LIH3.x Low-Noise Digitization Engine |
| Software Platform | PATCHMASTER NEXT & FITMASTER NEXT |
| Compliance | Designed for GLP/GMP-aligned electrophysiology workflows |
| Brand | Multi Channel Systems |
|---|---|
| Origin | Germany |
| Manufacturer | Multi Channel Systems GmbH |
| Model | Roboocyte2 |
| Detection Principle | Two-Electrode Voltage Clamp (TEVC) |
| Instrument Type | Fully Automated High-Throughput Electrophysiology Platform |
| Cell Type | Xenopus laevis oocytes |
| Seal Resistance | >1 GΩ |
| Throughput Format | 96-well plate |
| Amplifier Architecture | Integrated High-Stability TEVC Amplifier |
| Liquid Handling Compatibility | RoboFlow or Gilson Pipetting Systems (Optional) |

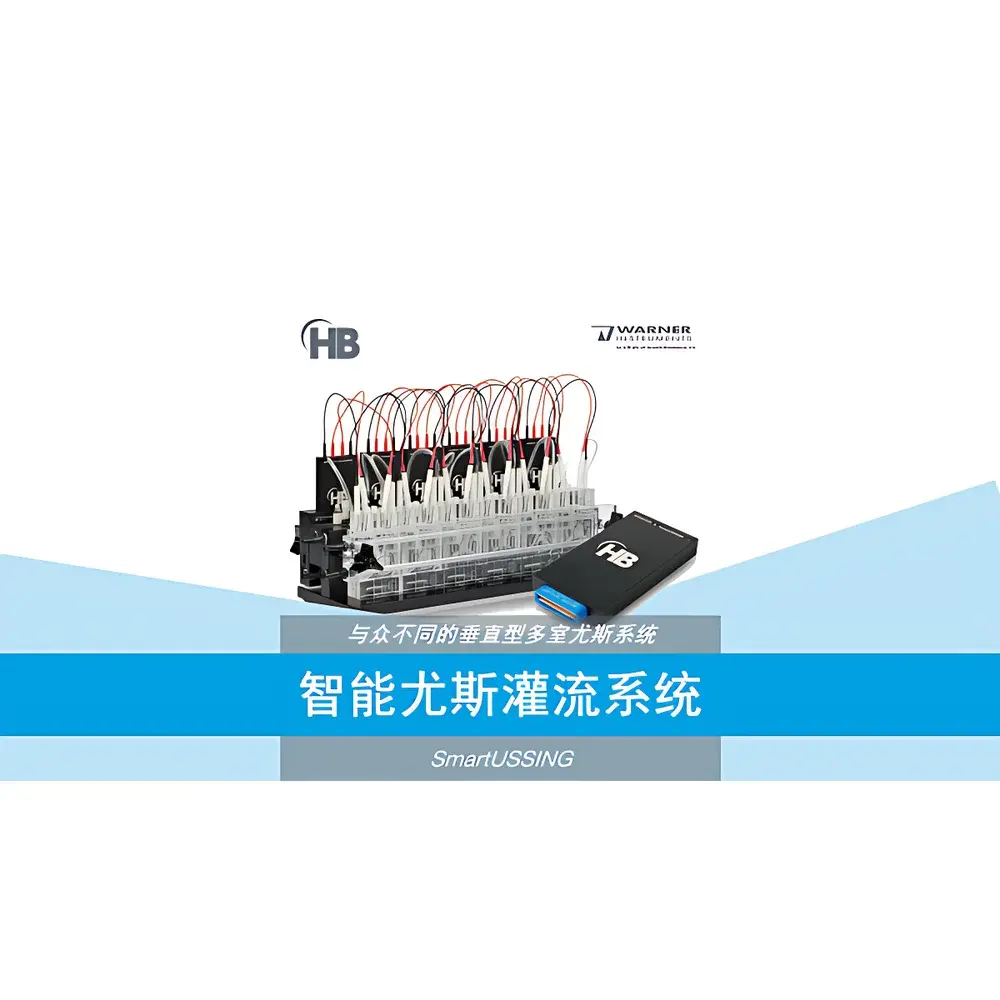

| Brand | Warner Instruments |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Smart USSING |
| Instrument Type | Automated |
| Dimensions (W × D × H) | 380 mm × 75 mm × 20 mm |
| Temperature Control Range | 10 °C to 40 °C |
| Brand | Multi Channel Systems |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | MEA2100-mini |
| Instrument Type | Single-Well Format |
| Application Scope | In Vitro Electrophysiological Recording & Stimulation |
| Electrode Pitch | 200 µm |
| Electrode Diameter | 30 µm |
| Electrode Layout | 8×8 (60 active + 4 ground/ reference electrodes, or 120-channel variant) |
| Physical Dimensions | 186 × 80 × 12 mm |
| Amplifier Resolution | 24-bit |
| Max Sampling Rate per Channel | 50 kHz |
| Stimulator Modes | Current Source (±1 mA), Voltage Source (±10 V) |
| Signal Acquisition Units per MCS-IFB Interface Board | Up to 2 |
| Probes per Acquisition Unit | Up to 4 |
| Integrated On-Probe Electronics | Amplification, Stimulation, and ADC |
| Operating Environment | Standard CO₂ incubators (37 °C, 5% CO₂, humidified) |
