| Brand | ZRTB |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |

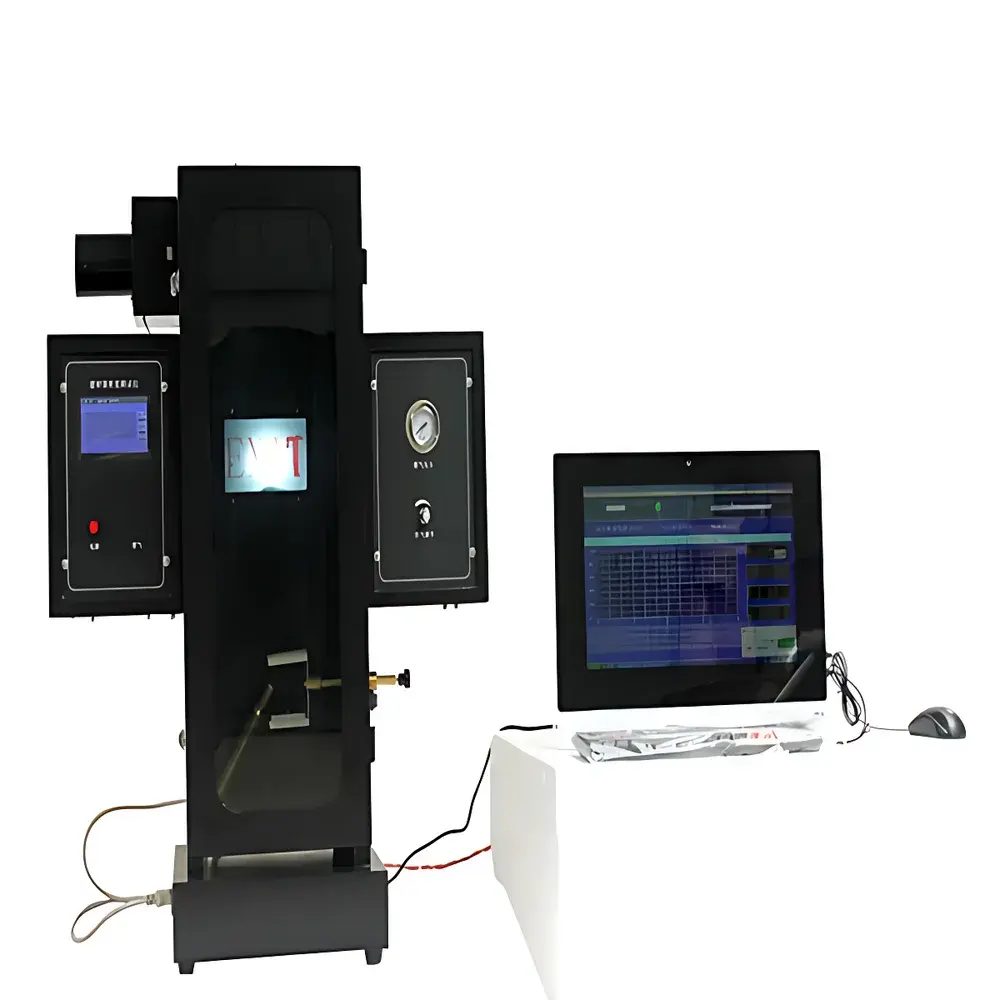

| Model | JCY-3 |
| Price | USD 1,500 (approx.) |
| Compliance | GB/T 8627–2007, ASTM D2843 |
| Dimensions (L×W×H) | 740 × 500 × 900 mm |
| Weight | ~50 kg |
| Power Supply | 220 V ±10%, 50 Hz, 100 W |
| Operating Temp. | 0–40 °C |
| Relative Humidity | ≤85% RH |
| Gas Source | 95% propane (user-supplied) |
| Burner Pressure (main) | 276 kPa (adjustable) |
| Burner Pressure (pilot) | 210 ±5 kPa |
| Flame Application Time | 4 min |
| Light Source | 15 W, 6 V incandescent lamp |
| Photodetector | Silicon photovoltaic cell |
| Optical Measurement Range | 0–100% transmittance |
| Accuracy | ±3% |
| Calibration | Triple NIST-traceable neutral density filters (±3% verification error) |
| Control Interface | 5″ TFT touchscreen (800×480), RS232, FPGA-driven real-time display |
| Automation | Auto-ignition, auto-timing, auto-exhaust control, staged linear photometric correction |
| Enclosure Requirement | Fume hood installation mandatory |
| Airflow Constraint | No forced convection during test |
