4titude A4s Automated Microplate Heat Sealer (Azenta Brand)

Overview

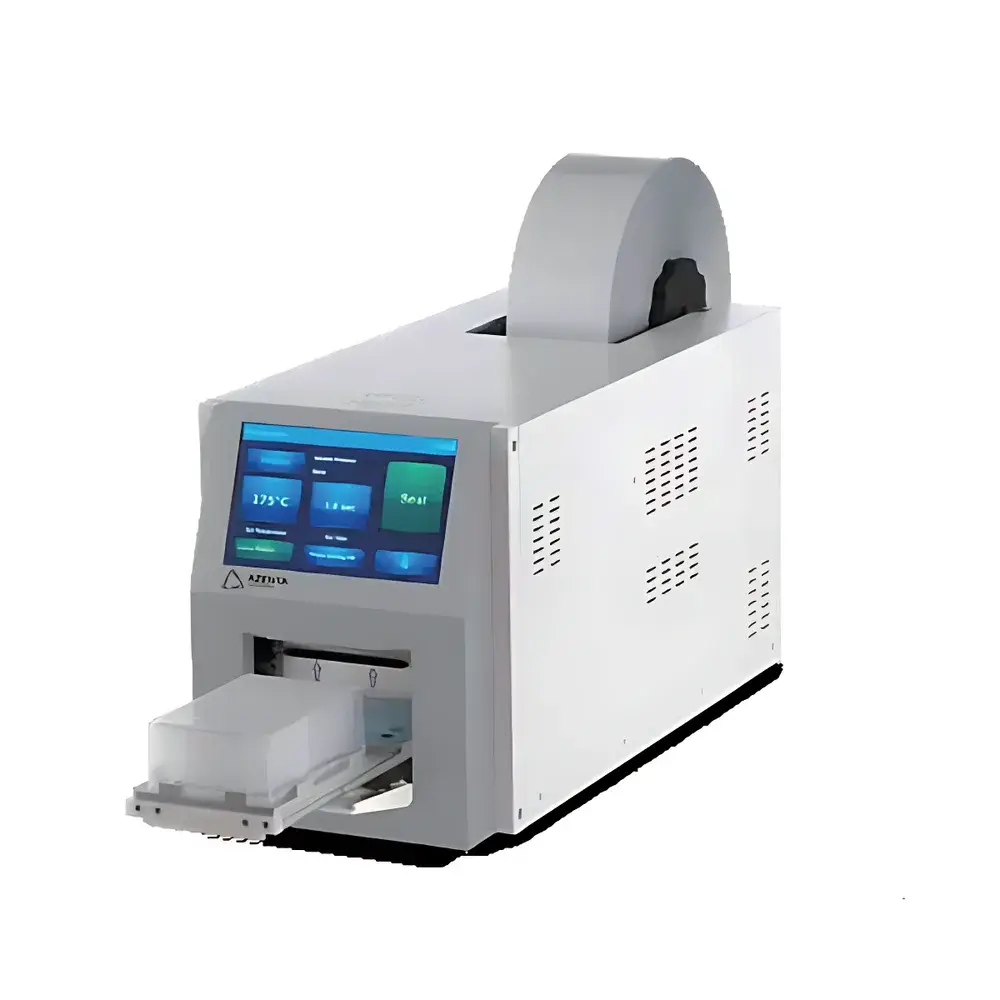

The 4titude A4s Automated Microplate Heat Sealer — engineered and distributed by Azenta Life Sciences — is a high-precision, motor-driven roller-based thermal sealing system designed for unattended, reproducible sealing of SBS-standard microplates across life science workflows. Unlike pneumatic sealers requiring compressed air infrastructure, the A4s employs a brushless DC motor to deliver consistent, programmable sealing force — eliminating pressure variability and enabling stable integration into benchtop or robotic environments. Its core sealing mechanism relies on controlled thermal transfer via a high-performance heated block with ±1 °C uniformity across the entire surface (edge-to-edge, corner-to-corner), ensuring repeatable bond formation without localized overheating or cold spots. The system supports full-plate and individual-well sealing modes, accommodating diverse plate geometries (including skirted, semi-skirted, and non-skirted PCR plates; deep-well storage plates; COC Vision Plates™; and custom Individual Access formats) and a broad spectrum of heat-seal films — from peelable and pierceable variants to DMSO-resistant, gas-permeable, and weld-grade laminates. Designed for mid-to-high-throughput laboratories and fully automated liquid handling suites, the A4s meets critical requirements for assay integrity, sample stability, and regulatory traceability.

Key Features

• Motor-driven sealing mechanism: Eliminates dependency on external air supply; delivers fixed, repeatable pressure for superior seal uniformity and reduced plate deformation risk.
• SiLA 2.0–compliant architecture: Enables plug-and-play integration with robotic arms, plate handlers, barcode scanners, and microplate readers using standardized drivers — no custom firmware development required.
• Intuitive 7-inch color touchscreen interface: Supports multi-level password protection (three security tiers), SOP-based protocol storage, and real-time parameter monitoring (temperature, time, cycle count).
• Adaptive plate-height accommodation: Accepts plates from 3 mm to 60 mm height with minimal manual adjustment; dual-roll positions accept film widths of 75–85 mm for flexible lab or robotic deck installation.
• Energy-efficient operation: Auto-standby mode reduces heater temperature to 60 °C during idle periods; full shutdown after user-defined inactivity interval extends component lifetime and reduces standby power draw.
• High-fidelity thermal control: Precision PID-regulated heating block achieves <15-second ramp-up time and maintains ±1 °C spatial uniformity across the full sealing surface.
• RS-232 and USB connectivity: Enables remote command execution, sealed condition logging (temperature, dwell time, film type, plate ID), and integration with LIMS or ELN systems.

Sample Compatibility & Compliance

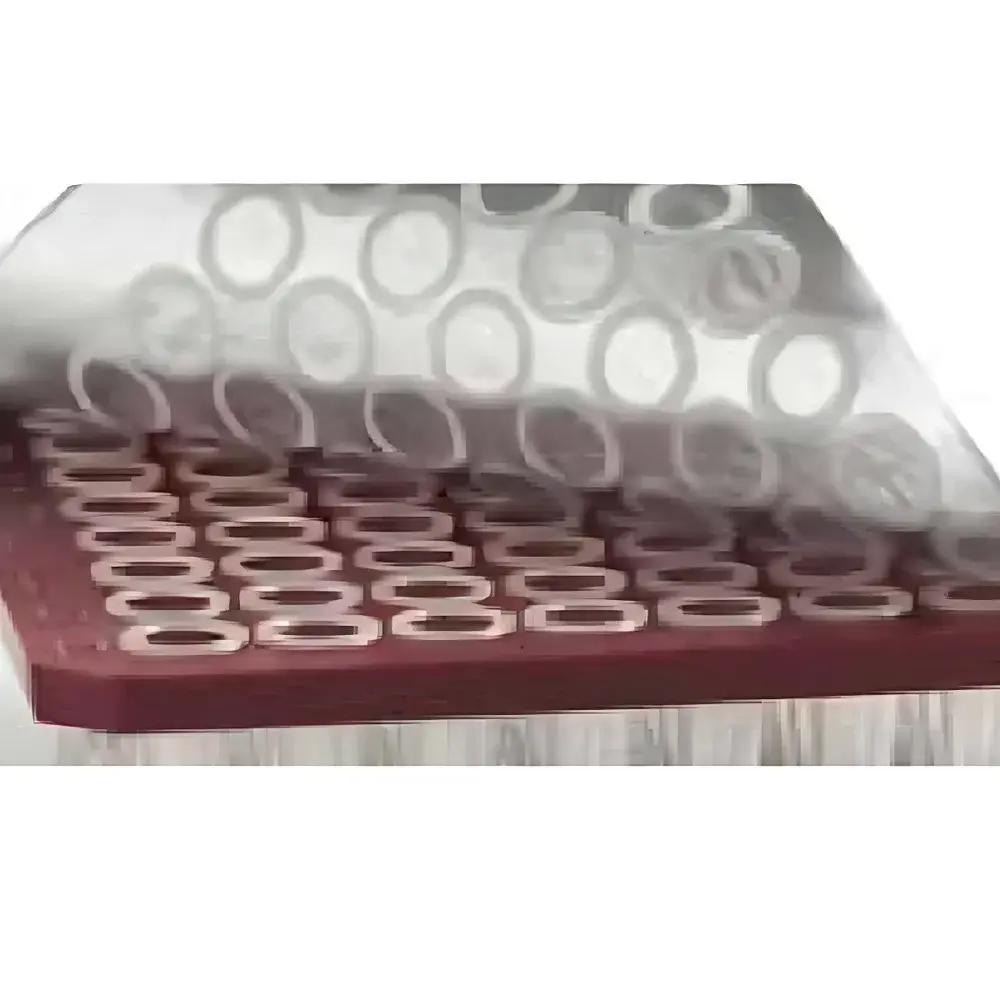

The A4s is validated for use with all standard SBS-format microplates, including 96-, 384-, and 1536-well PCR plates (Roche, Bio-Rad, Thermo Fisher), assay plates (e.g., ELISA, cell-based), deep-well storage blocks (up to 2 mL), and specialty formats such as Azenta’s Individual Access™ plates. It accepts a comprehensive portfolio of 4titude/Azenta-certified seal films — including 4ti-0540 (Clear Heat Seal), 4ti-0573 (Clear Weld), 4ti-0598 (Gas-Permeable), 4ti-0535 (Aluminum Foil), and 4ti-0585 (DMSO-Resistant Peel) — each qualified per ASTM F1877 (seal strength), ISO 8573-1 (non-pneumatic operation), and USP (plastic packaging compatibility). All sealing protocols are fully documentable for GLP, GMP, and FDA 21 CFR Part 11 compliance when used with validated software modules supporting electronic signatures and audit trails.

Software & Data Management

The A4s operates natively via embedded firmware supporting local touchscreen control and external command via ASCII-based RS-232 protocol (full command set documented in Azenta Technical Bulletin TB-A4s-02). Each sealing event logs timestamp, setpoint temperature, dwell time, applied pressure (derived from motor torque profile), film lot number (if entered), and plate barcode (when scanned externally). Optional SiLA 2.0 driver (part #4ti-0665-41) provides RESTful API access for orchestration within Python-, LabVIEW-, or Hamilton VANTAGE-controlled workflows. Data export is supported in CSV and XML formats for ingestion into laboratory informatics platforms. Firmware updates are delivered via USB stick with cryptographic signature verification to ensure integrity.

Applications

• qPCR and digital PCR: Prevents evaporation-induced concentration drift and cross-contamination; enables reliable low-volume reactions (<5 µL) using weld-grade seals (e.g., 4ti-0573) compatible with thermal cycling up to 95 °C.
• Cell-based assays and long-term culture: Gas-permeable seals (4ti-0598) maintain optimal O₂/CO₂ exchange while minimizing medium loss — validated for 7-day viability assays in 96-well adherent and suspension cultures.
• Compound library storage: DMSO-resistant peel seals (4ti-0585) retain integrity after 12 months at room temperature in 100% DMSO, meeting HTS archive stability requirements per ISBER Best Practices.
• Automated biobanking: Integrated with Azenta Biocair™ or Hamilton STAR systems to seal cryo-stored plates post-aliquoting, with full chain-of-custody logging.
• Regulated QC testing: Supports 21 CFR Part 11–compliant workflows when paired with Azenta’s SecureSeal™ software module (validation package available upon request).

FAQ

Does the A4s require compressed air?
No. It uses an electric motor-driven sealing mechanism, making it suitable for labs without air infrastructure and reducing noise and maintenance overhead.
Can the A4s seal Individual Access™ plates?

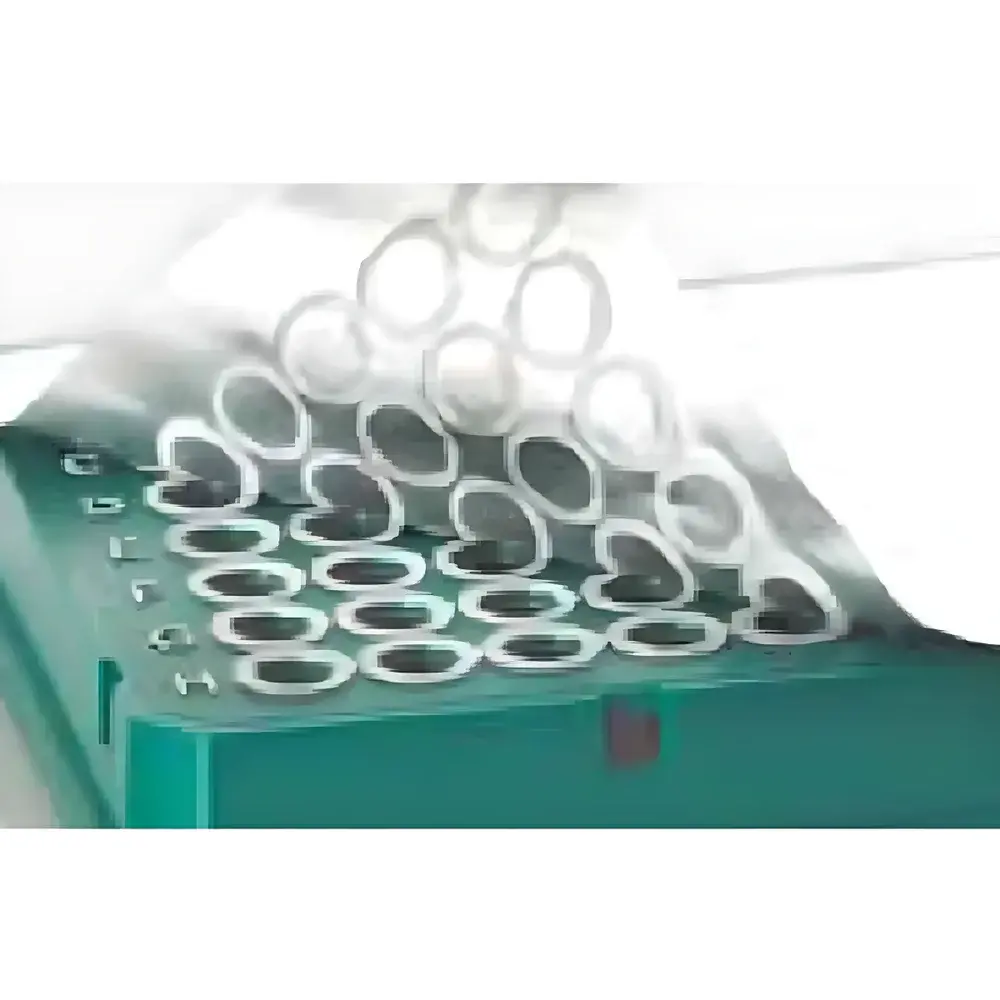

Yes. With optional adapter 4ti-0665-2 and compatible Individual Access–specific films (e.g., 4ti-05381/RA), it performs precise single-well or partial-plate sealing without cross-well adhesion.
Is the heating block temperature uniform across its surface?
Yes. Independent calibration confirms ±1 °C uniformity across the full 85 mm × 120 mm sealing zone, verified per ASTM E740 methodology.
What communication protocols does it support for automation integration?
RS-232 (ASCII command set), USB HID, and optional SiLA 2.0 driver — all enabling bidirectional status reporting and deterministic command execution.
How is seal quality verified?
While the A4s does not include in-line optical inspection, Azenta provides application-specific validation kits (e.g., dye penetration test per ASTM F2338) and recommends periodic seal strength testing using tensile testers per ASTM F88.
