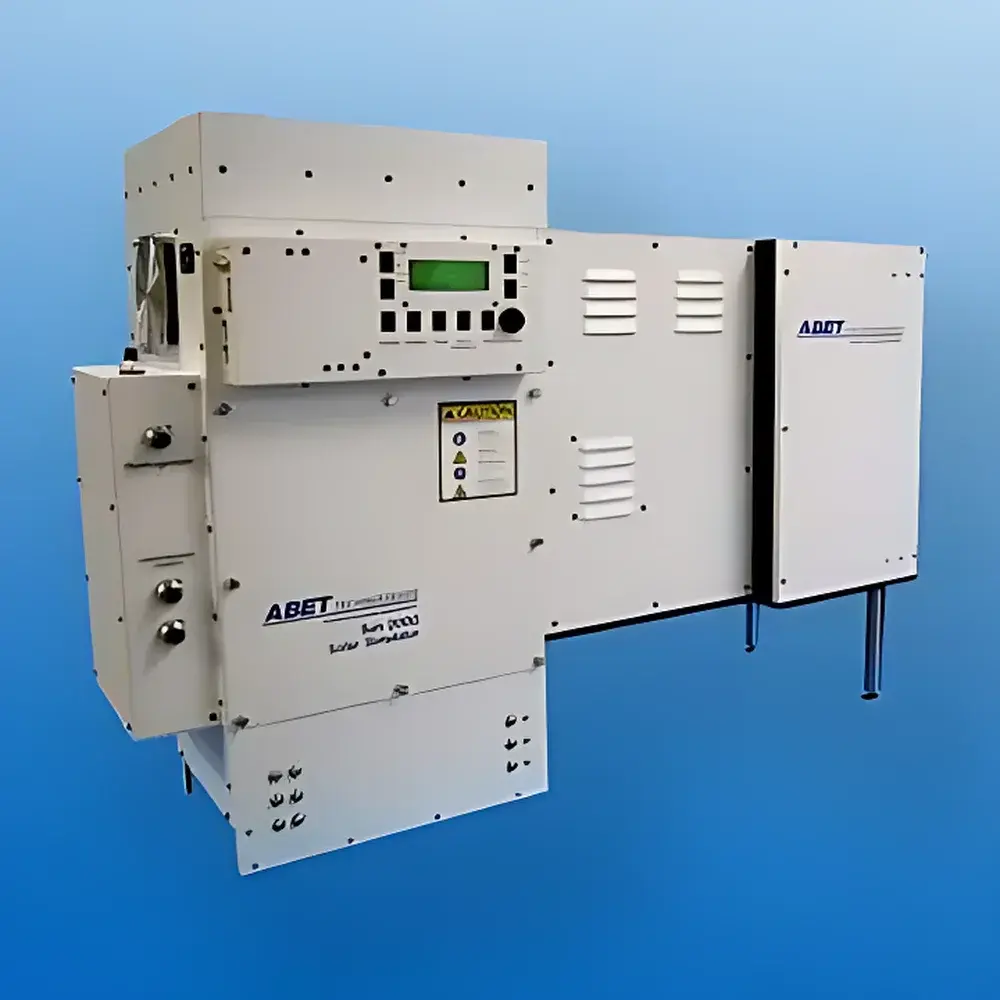

ABET SUN3000 Class AAA Solar Simulator

Overview

The ABET SUN3000 Class AAA Solar Simulator is a high-precision, steady-state illumination source engineered for photovoltaic (PV) device characterization, materials testing, and optoelectronic research under standardized terrestrial solar conditions. It operates on the principle of broadband spectral synthesis using a stabilized, ozone-free xenon arc lamp, coupled with precision optical filtering and beam homogenization to replicate the Air Mass 1.5 Global (AM1.5G) reference spectrum defined in IEC 60904-9, ASTM E927-19, and JIS C 8912. Unlike pulsed or flash-based simulators, the SUN3000 delivers continuous, temporally stable irradiance—critical for dynamic IV curve tracing, quantum efficiency mapping, and accelerated aging studies where thermal equilibrium and measurement repeatability are essential. Its Class AAA certification confirms simultaneous compliance across all three key performance metrics: spectral match (0.75–1.25), spatial uniformity (≤2% over 110 × 110 mm), and temporal stability (≤0.5% short-term, ≤2% long-term), making it suitable for accredited PV calibration labs, NREL-traceable reference cell validation, and GLP-compliant R&D workflows.

Key Features

• Class AAA certification per IEC 60904-9:2020, ASTM E927-19, and JIS C 8912—verified at factory and documented in full compliance report.
• Ozone-free 550 W xenon arc lamp with integrated photofeedback loop for real-time irradiance regulation and drift compensation.
• HEPA-filtered forced-air cooling system ensuring thermal stability of optical train and lamp envelope during extended operation.
• Electronically actuated shutter with programmable digital timer (0.1 s–9999 s resolution) for precise exposure control and synchronization with external instrumentation.
• Modular optical design supporting optional collimation lenses, UV-enhancement filters, or custom spectral shaping for specialized applications including UV degradation testing or perovskite stability assessment.
• Integrated lamp hour counter and status diagnostics accessible via front-panel interface or RS-232/USB communication port.

Sample Compatibility & Compliance

The SUN3000 accommodates samples ranging from small-area lab cells (10 × 10 mm) to full-size commercial silicon wafers (156 × 156 mm) when paired with the optional ReRa Tracer IV measurement platform. Its 110 × 110 mm output aperture and fixed 200 mm working distance enable repeatable alignment in glovebox-integrated setups or environmental chambers. All optical components—including dichroic filters, diffusers, and collimating optics—are selected for low outgassing and minimal UV-induced degradation, supporting ISO 17025-accredited calibration protocols. The system meets mechanical and electrical safety requirements per UL 61010-1 and IEC 61010-1. For regulatory submissions, raw irradiance logs, spectral irradiance data files (.csv/.spc), and stability reports are generated in formats compatible with FDA 21 CFR Part 11 audit trail requirements when used with validated software configurations.

Software & Data Management

The optional ReRa Tracer IV software suite provides full instrument control, automated IV sweep sequencing, temperature-dependent parameter extraction (e.g., Pmax, Voc, Isc, FF, Rs, Rsh), and traceable data export compliant with IEEE 1547 and IEC 61215 standards. Calibration routines support reference cell normalization to NIST-traceable standards (e.g., KG5-filtered Si or GaAs reference diodes). Data files include embedded metadata (timestamp, ambient T/RH, lamp hours, shutter state) and support batch processing for statistical analysis across multiple devices. Export formats include CSV, MATLAB .mat, and PDF reports with configurable templates aligned to journal submission guidelines (e.g., Joule, Nature Energy). Firmware updates and configuration backups are managed via secure USB or Ethernet interface with version-controlled revision history.

Applications

• Primary and secondary calibration of reference solar cells and pyranometers in metrology laboratories.
• Performance evaluation of emerging PV technologies—including perovskites, organic photovoltaics (OPV), and tandem cells—under controlled AM1.5G illumination.
• Light-soaking and photo-stability testing per IEC 61215-2 MQT 10 and IEC 61646 Annex A protocols.
• Quantum efficiency (QE) and external quantum efficiency (EQE) measurements when coupled with monochromator and lock-in amplifier systems.
• Photocatalytic material screening under standardized solar flux, including TiO₂, g-C₃N₄, and MOF-based systems.
• Accelerated lifetime testing of encapsulation materials and anti-reflective coatings under UV-rich solar spectra.

FAQ

What standards does the SUN3000 comply with?
It meets Class AAA requirements per IEC 60904-9:2020, ASTM E927-19, and JIS C 8912 across spectral match, uniformity, and stability.
Can the SUN3000 be integrated into a nitrogen-purged glovebox?
Yes—the unit features sealed optical housing, front-accessible lamp replacement, and optional feedthrough-compatible mounting brackets for inert-atmosphere integration.
Is photofeedback enabled by default during IV measurements?
Yes—real-time irradiance monitoring is active throughout all measurement sequences and logged synchronously with IV data points.
Does ABET provide NIST-traceable calibration certificates?
Each SUN3000 ships with a factory-issued calibration certificate referencing NREL-calibrated reference cells; optional third-party NIST-traceable certification is available upon request.
What maintenance is required beyond lamp replacement?
Annual verification of spectral output and uniformity is recommended; optical cleaning kits and certified alignment tools are supplied with every system.
