Accurate Thermal Systems DCU1 Air Filtration Unit

Overview

The Accurate Thermal Systems DCU1 Air Filtration Unit is an engineered solution designed specifically for containment and particulate mitigation in precision thermal testing environments—particularly those utilizing fluidized temperature baths. Unlike general-purpose air purifiers, the DCU1 operates on a targeted aspiration principle: it captures airborne particulates generated during fluidization processes before they disperse into the laboratory ambient. Its core architecture integrates a high-static-pressure centrifugal blower (210 CFM at 19 in H₂O), acoustically damped powder-coated steel enclosure, and a two-stage filtration system optimized for sub-10 µm dust capture. The unit is not intended for room-wide air exchange but rather functions as a localized source-capture device—mounted adjacent to or integrated with fluidized bath exhaust ports—to maintain ISO Class 8 (100,000) or better local air quality in critical QC/QA and materials characterization workflows.

Key Features

• Three-speed electronically controlled brushless DC motor fan—enabling precise airflow modulation (low/medium/high) to match varying dust generation rates across different fluidized bath configurations;
• Dual-stage filtration assembly: washable polyester pre-filter (capturing >50 µm lint and coarse debris) followed by a high-efficiency main filter rated at ≥99% particle capture efficiency at 1.0 µm (tested per ISO 16890:2016 coarse fraction methodology);

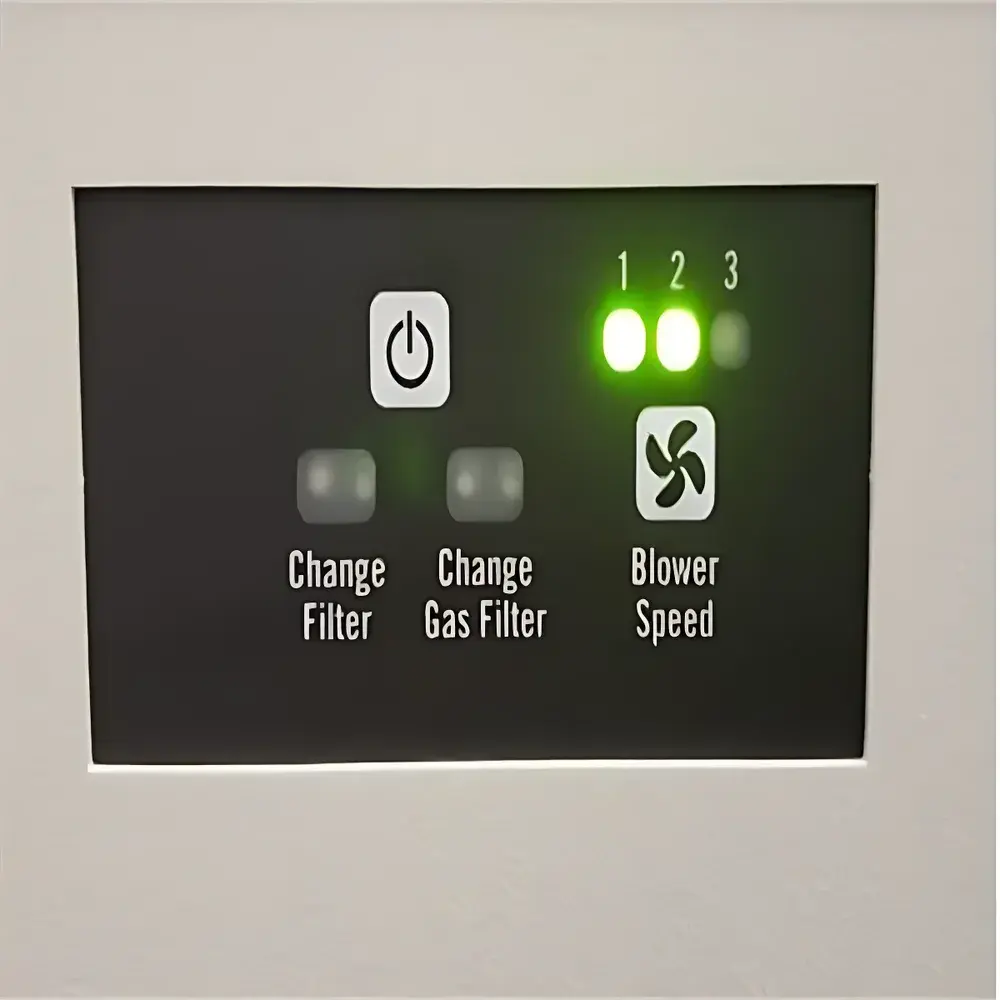

• Integrated real-time filter status monitoring via V5 224 display panel with green LED indicator—algorithmically estimates remaining filter service life based on cumulative runtime and airflow resistance trends;
• Compact footprint (14″ W × 13″ D × 18″ H) with industrial-grade swivel casters for repositioning between fluidized bath stations without tooling or rigging;
• Top-mounted 2″ OD inlet port aligned for direct coupling to ATS2017 cyclonic separator or flexible ducting; bottom-discharge configuration ensures laminar post-filtration airflow path;
• Compliance-ready electrical architecture: dual-voltage (120/240 VAC), single-phase, 50/60 Hz input with UL-listed internal circuitry and 24 VDC remote start interface for integration into automated lab control systems.

Sample Compatibility & Compliance

The DCU1 is validated for continuous-duty operation in laboratories adhering to OSHA 29 CFR 1910.1200 (Hazard Communication) and ANSI Z9.2–2018 (Fundamentals Governing Ventilation). It supports GLP-compliant documentation through its embedded runtime logging capability (accessible via display interface) and facilitates traceable maintenance scheduling when paired with facility CMMS platforms. While not certified to HEPA (ISO 14644-1 Class 5) standards, its 1.0 µm-rated main filter meets ASTM D2986-19 requirements for fine particulate collection efficiency in industrial hygiene sampling contexts. The unit is compatible with silica-based, polymer bead, and aluminum oxide fluidization media used in ATS-series fluidized baths and requires no recalibration when deployed with optional cyclone pre-separators (e.g., Catalog# ATS2017).

Software & Data Management

The DCU1 operates as a standalone hardware-controlled system with no proprietary software dependency. All operational parameters—including fan speed selection, cumulative runtime, and filter replacement alerts—are managed via the front-panel V5 224 interface. The green LED indicator provides binary status feedback (lit = replace recommended), while the display shows elapsed operating hours and estimated remaining filter life in days (based on default medium-speed duty cycle assumptions). For labs requiring audit trails, the unit’s 24 VDC remote start interface enables time-stamped activation logging via external PLCs or building management systems (BMS). No cloud connectivity, firmware updates, or data export functionality is included—consistent with IEC 61508 SIL-1 design principles for safety-critical auxiliary equipment.

Applications

• Source capture of fugitive dust from fluidized temperature baths during thermal calibration of sensors, polymers, and electronic components;
• Particulate containment during ASTM E2251-22 and ISO 11357-3 thermal transition analysis where airborne contamination could compromise DSC or TMA sample integrity;
• Supporting USP environmental controls in non-sterile compounding labs using fluidized beds for excipient drying;
• Preventing abrasive particle ingress into adjacent instrumentation (e.g., mass flow controllers, optical encoders) located within 1 m of fluidization zones;
• Enabling repeatable gravimetric particulate emission measurements per EPA Method 5 when coupled with standardized cyclone and filter holder assemblies.

FAQ

What filtration standard does the DCU1’s main filter meet?
The main filter is tested to ISO 16890:2016 ePM1 specifications and achieves ≥99% arrestance for particles ≥1.0 µm under nominal airflow conditions.
Can the DCU1 be hardwired into a 240 VAC circuit?
Yes—the unit accepts 120/240 VAC input and includes internal voltage-selectable terminals; refer to Section 4.2 of the Operation Manual for jumper configuration.
Is the pre-filter washable?
Yes—the polyester pre-filter is reusable after gentle vacuuming or low-pressure compressed air cleaning; maximum recommended cycles: 10.
Does the DCU1 comply with FDA 21 CFR Part 11 requirements?
No—the unit lacks electronic signature capability, audit trail generation, or user access controls; however, its runtime and filter status logs may be manually transcribed into Part 11-compliant lab notebooks.
What is the expected service life of the main filter under continuous medium-speed operation?
Based on typical fluidized bath dust loading (≤10 mg/m³), the main filter maintains rated efficiency for approximately 500–700 operational hours before replacement is advised.
