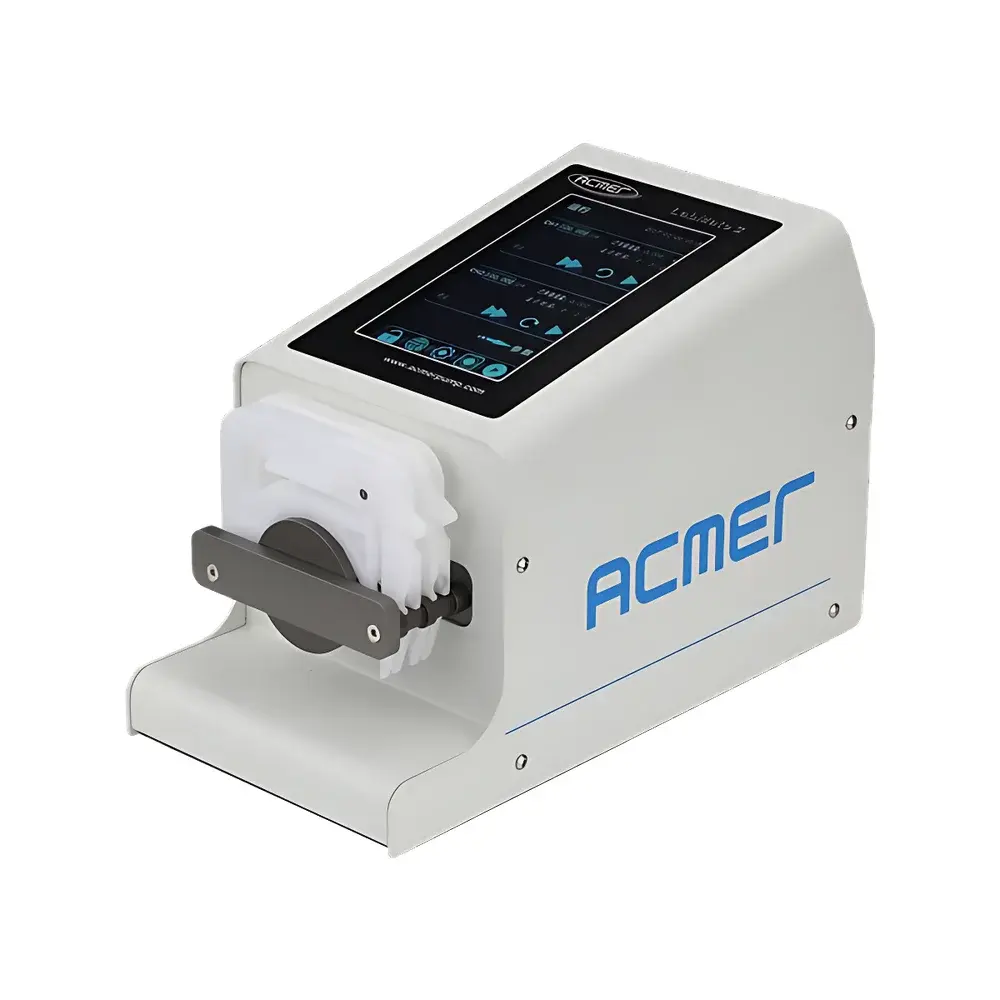

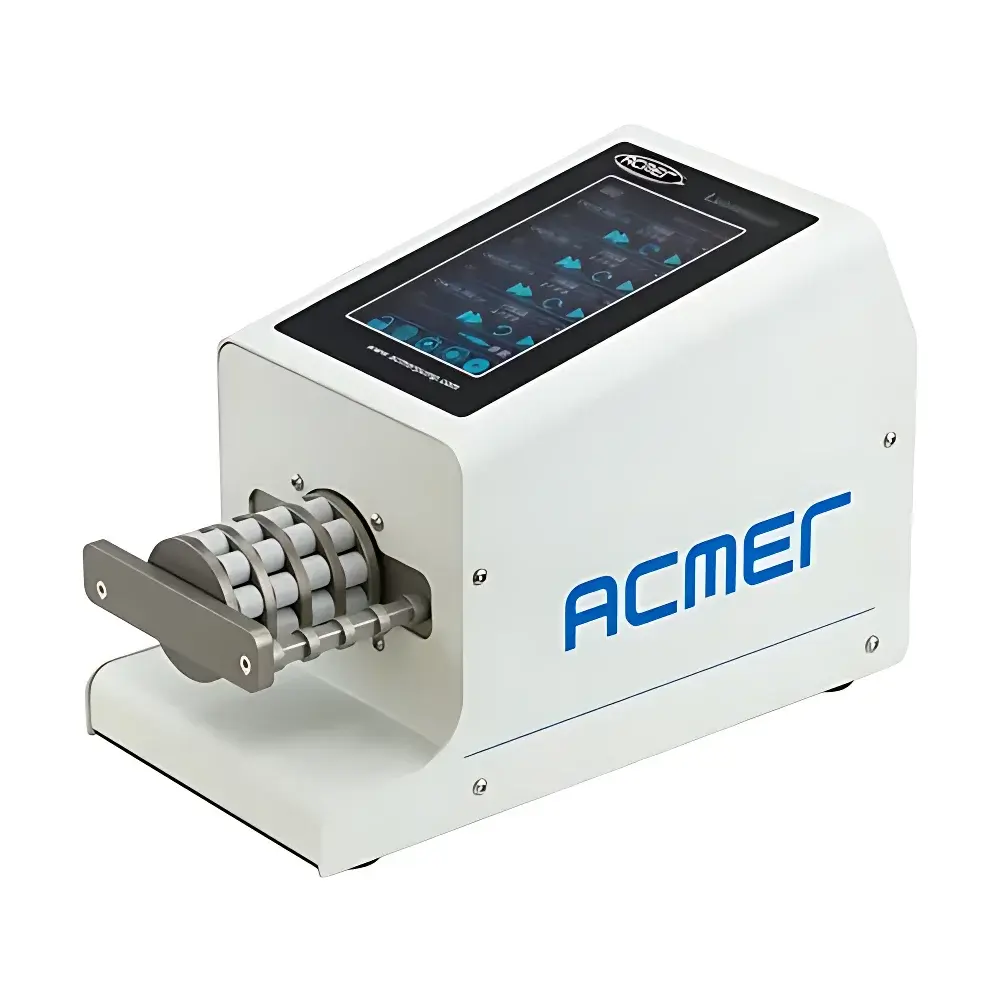

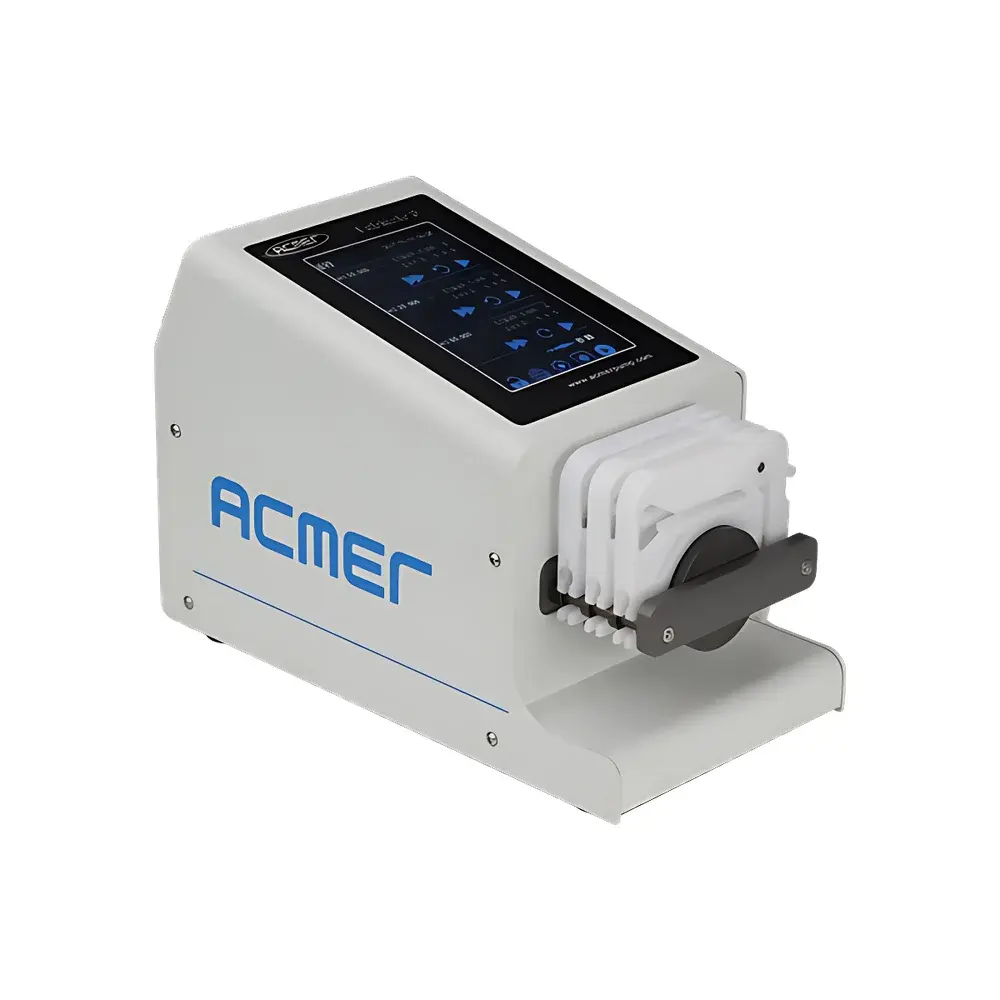

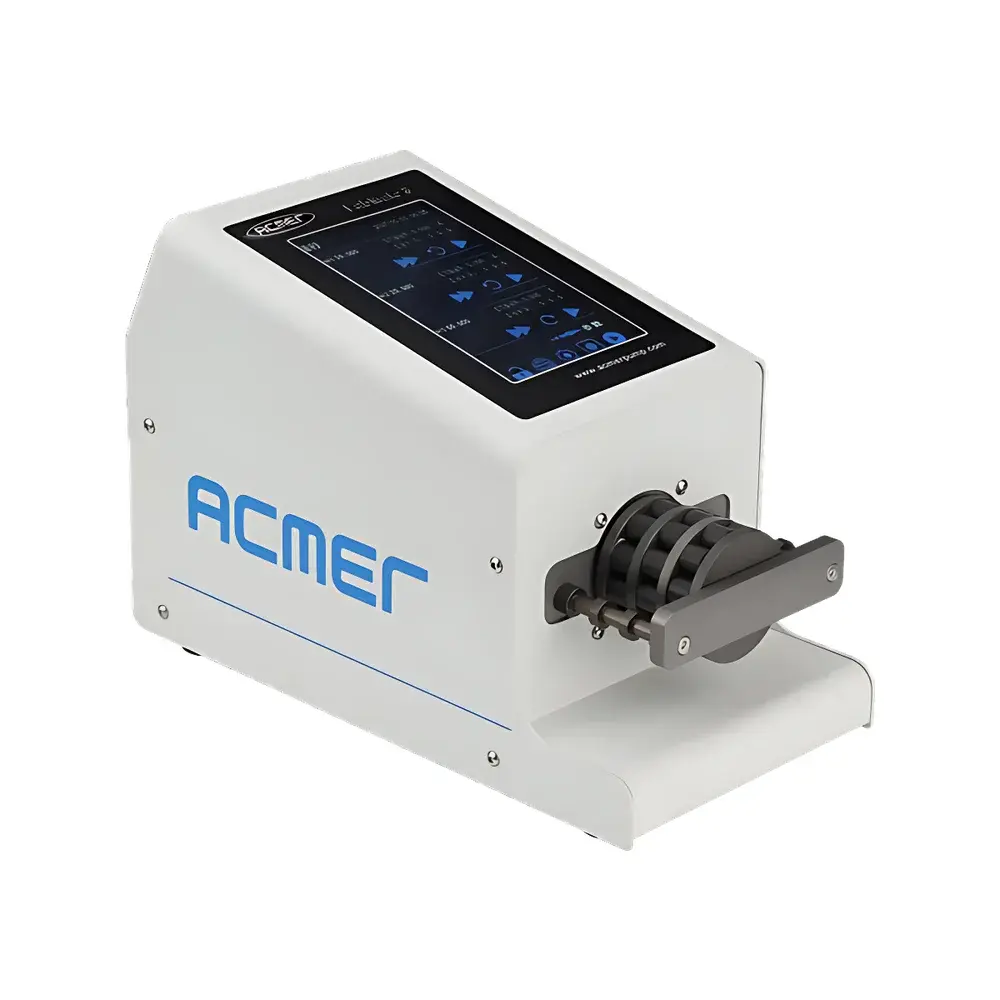

Acmer LabMate Multi-Channel Independent-Control Peristaltic Pump

Overview

The Acmer LabMate is a precision-engineered multi-channel peristaltic pump designed for laboratory environments requiring simultaneous, independent, and coordinated fluid handling across up to four discrete channels. Unlike conventional single-channel or synchronized multi-pump systems, the LabMate implements true channel-level autonomy—each channel operates with its own motor, drive control, and calibration memory, enabling heterogeneous tubing selection, divergent flow profiles, and asynchronous timing logic within a unified chassis. Its operation relies on the well-established peristaltic principle: rollers compress elastomeric tubing against a rigid housing to generate positive displacement, ensuring zero fluid contact with pump mechanics and eliminating cross-contamination risks. This architecture supports strict adherence to GLP-compliant workflows where traceability, repeatability, and material compatibility are essential—particularly in analytical sample introduction, bioreactor feed control, chromatography solvent delivery, and multi-reagent dispensing applications.

Key Features

• Independent Channel Architecture: Each of the 2-, 3-, or 4-channel configurations features isolated stepper motor control, allowing individual selection of tubing type (ID ≤ 3.17 mm), rotation direction, speed (0.01–150 rpm), and operational mode without interference between channels.
• High-Resolution Touch Interface: A 5-inch HD TFT display (800 × 480 resolution) provides intuitive navigation, real-time parameter visualization—including dynamic flow rate, elapsed time, remaining volume, and directional status—and on-screen soft-key access to all configuration menus.
• Multi-Mode Operation: Supports Flow Rate Mode, Timed Volume Mode, Timed Speed Mode, and Fixed-Speed Volume Mode. All modes permit runtime adjustment of speed and flow without interrupting operation.
• Channel-Specific Calibration: Each channel stores its own volumetric calibration factor derived from user-performed gravimetric or volumetric verification—compensating for tubing elasticity, wall thickness variation, and roller wear to maintain accuracy across diverse tube lots and materials.
• Programmable Retraction & Cycling: Configurable retraction angle (0–65535°) enables precise backflow control for bubble removal or line priming; cycle count supports up to 65,535 repetitions or infinite looping for unattended long-duration protocols.
• Industrial Connectivity & I/O: RS485 (Modbus RTU) and USB interfaces support remote address and baud rate configuration; discrete TTL-level (5–24 V) or dry-contact external triggers enable hardware-synchronized start/stop per channel; dedicated status outputs report real-time run/direction signals for PLC integration.

Sample Compatibility & Compliance

The LabMate accommodates standard laboratory-grade peristaltic tubing with inner diameters up to 3.17 mm and wall thicknesses between 0.76 mm and 1.0 mm—including silicone, Viton®, Tygon®, and Pharmapure® variants. Its POM or PVDF pump housing ensures chemical resistance to common solvents, acids, and bases. The pump head utilizes either PET or nylon composite rollers impregnated with molybdenum disulfide (MoS₂), offering low-friction, wear-resistant performance under continuous duty. While not certified to IEC 61000-6-2/4 or UL 61010-1 out-of-the-box, the device meets CE marking requirements for electromagnetic compatibility and safety when operated within specified environmental limits (0–40 °C, 20–80% RH, IP31-rated enclosure). Its design supports audit-ready documentation practices aligned with ISO/IEC 17025 and FDA 21 CFR Part 11 when integrated into validated software-controlled workflows.

Software & Data Management

The LabMate operates as a standalone instrument but integrates seamlessly into automated lab environments via standardized serial protocols. RS485 communication supports Modbus RTU register mapping for full remote control—including channel enable/disable, speed setpoint, direction toggle, and status polling—enabling synchronization with LIMS, ELN, or custom Python/Matlab scripts. USB connectivity allows direct parameter upload/download and firmware updates using Acmer’s cross-platform configuration utility (Windows/macOS/Linux). All calibration coefficients, mode selections, and runtime logs are retained in non-volatile memory—even during power loss—ensuring reproducibility across sessions. Optional third-party drivers (e.g., LabVIEW VIs, Python pySerial modules) facilitate rapid deployment in academic and industrial R&D settings where data lineage and electronic record integrity are required.

Applications

• Multi-stream reagent addition in automated titration or kinetic assay platforms
• Gradient solvent delivery in preparative HPLC and LC-MS sample introduction systems
• Independent nutrient/media feeding in parallel bioreactor or microfluidic cell culture setups
• Calibration standard dilution series generation with programmable stepwise volume increments
• Waste aspiration and wash buffer distribution in ELISA and immunoassay washers
• Low-shear transfer of shear-sensitive biological suspensions (e.g., stem cells, exosomes)

FAQ

Can different tube sizes be used simultaneously across channels?
Yes. Each channel accepts tubing with ID ≤ 3.17 mm and wall thickness 0.76–1.0 mm, and independent calibration ensures accurate flow regardless of inter-channel tubing variance.
Is flow rate linearly proportional to RPM across the full speed range?
Within the specified operating range (0.01–150 rpm), flow exhibits high linearity under constant load and tubing condition; however, nonlinearity may arise at extremes due to tubing rebound dynamics and viscous drag—calibration mitigates this effect.
Does the pump support bidirectional flow for each channel?
Yes. Direction reversal is software- and hardware-controllable per channel, enabling forward/backward pumping, recirculation, and precise air bubble expulsion.
What maintenance is required to sustain metrological performance?
Routine inspection of tubing compression and roller wear is recommended every 500–1000 hours; recalibration is advised after tubing replacement or after extended operation (>6 months) to account for elastomer creep.
Can the LabMate be integrated into a GMP-regulated environment?
It can serve as a component in GMP workflows when paired with validated control software that enforces user access levels, electronic signatures, and audit-trail logging per 21 CFR Part 11 requirements.
