A&D AD-4212A Precision Industrial Balance

Overview

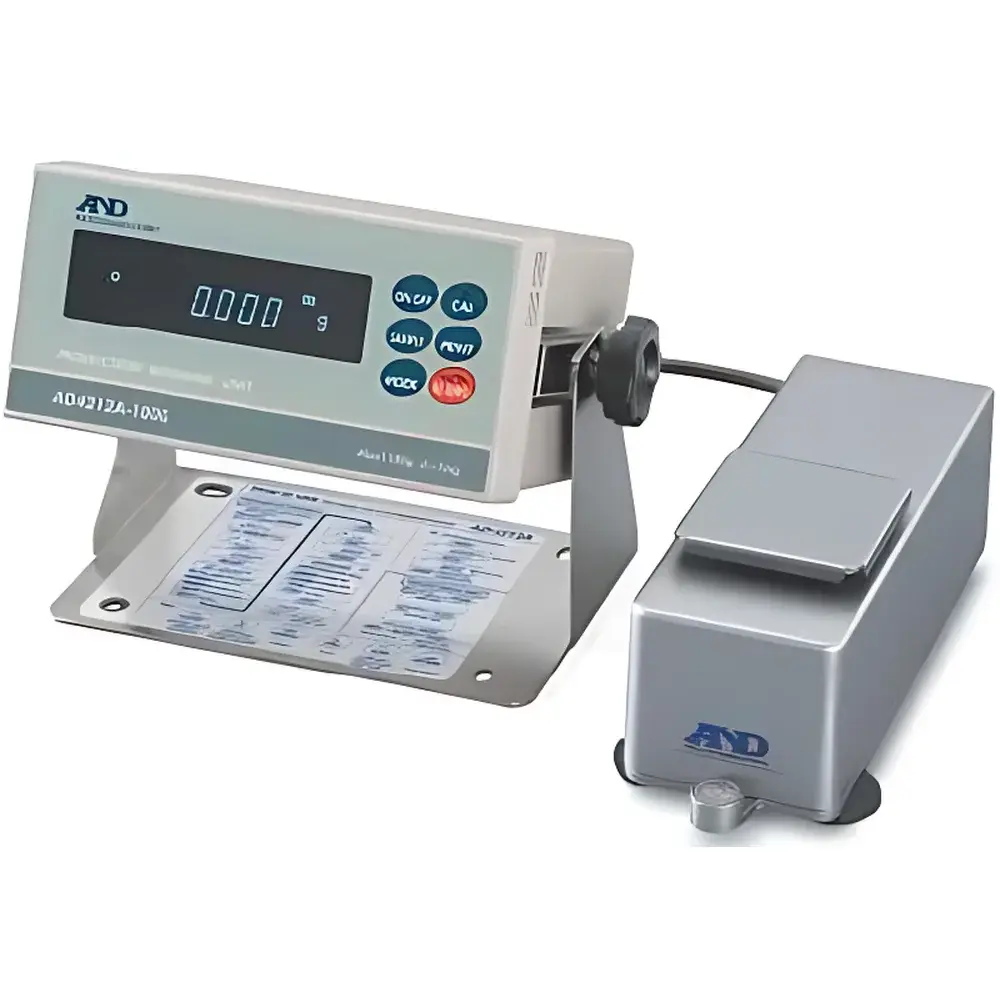

The A&D AD-4212A Precision Industrial Balance is an engineered solution for high-throughput, high-reproducibility mass measurement in regulated manufacturing and quality control environments. Built upon A&D’s proprietary SHS (Super Hybrid Sensor) technology, the AD-4212A delivers rapid stabilization and exceptional repeatability under dynamic production-line conditions. Unlike conventional analytical balances designed for static laboratory use, the AD-4212A is purpose-built for integration into automated inspection workflows—where speed, positional flexibility, and deterministic pass/fail decision logic are critical. Its dual-readability architecture supports both 1 mg and 0.1 mg resolution modes, enabling adaptive deployment across primary checkweighing and secondary precision verification tasks. The physical separation of weighing head and display module—interconnected via a shielded, field-extensible cable—allows optimal ergonomic placement: the sensor unit mounts directly on conveyor fixtures or vibration-isolated platforms, while the display and control interface resides at operator eye level or within PLC-accessible zones.

Key Features

• SHS sensor platform delivering 0.8-second stabilization at 1 mg readability and 1.1-second response at 0.1 mg, minimizing cycle time in inline inspection stations.
• Modular hardware architecture: weighing unit and display unit are physically decoupled and linked via a standard 2-meter cable—extendable to 5 meters using optional AD-4212A-07 accessory—enabling flexible layout design without signal degradation.
• Three-state comparator output (HI / OK / LO) with programmable thresholds and integrated audible buzzer, supporting direct connection to PLCs, reject gates, or SCADA systems without intermediate controllers.
• External zeroing and print-trigger inputs allow synchronization with upstream process signals (e.g., part presence detection), ensuring measurement alignment with mechanical actuation timing.
• Auto power-on and auto power-off functions reduce energy consumption and extend component lifetime in unattended 24/7 operation.
• Standard RS-232C serial interface ensures native compatibility with legacy industrial PCs and label printers; optional Ethernet interface (AD-4212A-08) enables TCP/IP-based data logging and remote configuration via WinCT-plus software.

Sample Compatibility & Compliance

The AD-4212A accommodates small- to medium-sized components typical in electronics assembly (e.g., SMD resistors, connectors, PCB subassemblies), pharmaceutical unit-dose packaging, and precision machining (e.g., watch gears, micro-valves). Its compact pan geometry and optional stainless-steel draft shield (AD-4212A-19) mitigate airflow interference in non-climate-controlled factory settings. While not certified for Class I, Division 1 hazardous locations, the balance meets CE marking requirements per EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Its measurement traceability aligns with ISO/IEC 17025–accredited calibration practices when serviced by A&D-authorized calibration centers. For GMP-regulated environments, the optional WinCT-plus software supports audit-trail-enabled data export compliant with FDA 21 CFR Part 11 requirements—including user authentication, electronic signatures, and immutable record generation.

Software & Data Management

WinCT-plus—supplied with the AD-4212A-08 Ethernet option—is a Windows-based configuration and data acquisition suite supporting real-time graphing, statistical process control (SPC) charting (X-bar/R, Cp/Cpk), and batch report generation in PDF or CSV format. All weight events—including comparator status, timestamp, operator ID (via optional login), and environmental metadata (if external temp/humidity sensors are integrated)—are logged with millisecond-resolution timestamps. Data integrity is enforced through cyclic redundancy checks (CRC) on serial transmission and SHA-256 hashing of exported datasets. The software permits role-based access control (RBAC) and configurable retention policies, facilitating compliance with internal QA protocols and external audits.

Applications

• Automated final-weight verification of consumer electronics modules prior to boxing.
• In-process checkweighing of blister-packaged tablets or capsules in pharmaceutical secondary packaging lines.
• Component sorting by mass tolerance in automotive sensor manufacturing.
• Calibration reference mass verification in metrology labs supporting ISO 17025 scope expansions.
• Material loss monitoring during precision dispensing operations (e.g., adhesive, thermal paste).

FAQ

What is the maximum cable length between the weighing unit and display unit?
The standard interconnect cable is 2 meters; it can be extended to 5 meters using the factory-approved AD-4212A-07 accessory without compromising signal fidelity or stability performance.
Does the AD-4212A support GLP/GMP-compliant data recording?
Yes—when paired with WinCT-plus software and configured with user authentication, electronic signatures, and audit-trail logging, the system satisfies core documentation requirements of GLP and GMP frameworks.
Can the comparator outputs drive industrial relays directly?
Yes—the HI/OK/LO open-collector outputs are rated for 30 VDC / 100 mA and are compatible with standard 24 VDC PLC input cards and solid-state relay drivers.
Is the SHS sensor susceptible to temperature drift in factory environments?
The SHS platform incorporates real-time internal temperature compensation and auto-zero tracking, maintaining specified accuracy across an operating range of 10–40 °C at ≤80 % RH non-condensing.
How is calibration performed, and what standards are required?
Internal calibration is initiated via front-panel command; external calibration requires Class E2 or better stainless-steel weights traceable to NIST or JCSS, following A&D’s published calibration procedure AP-AD-4212A-REV3.
