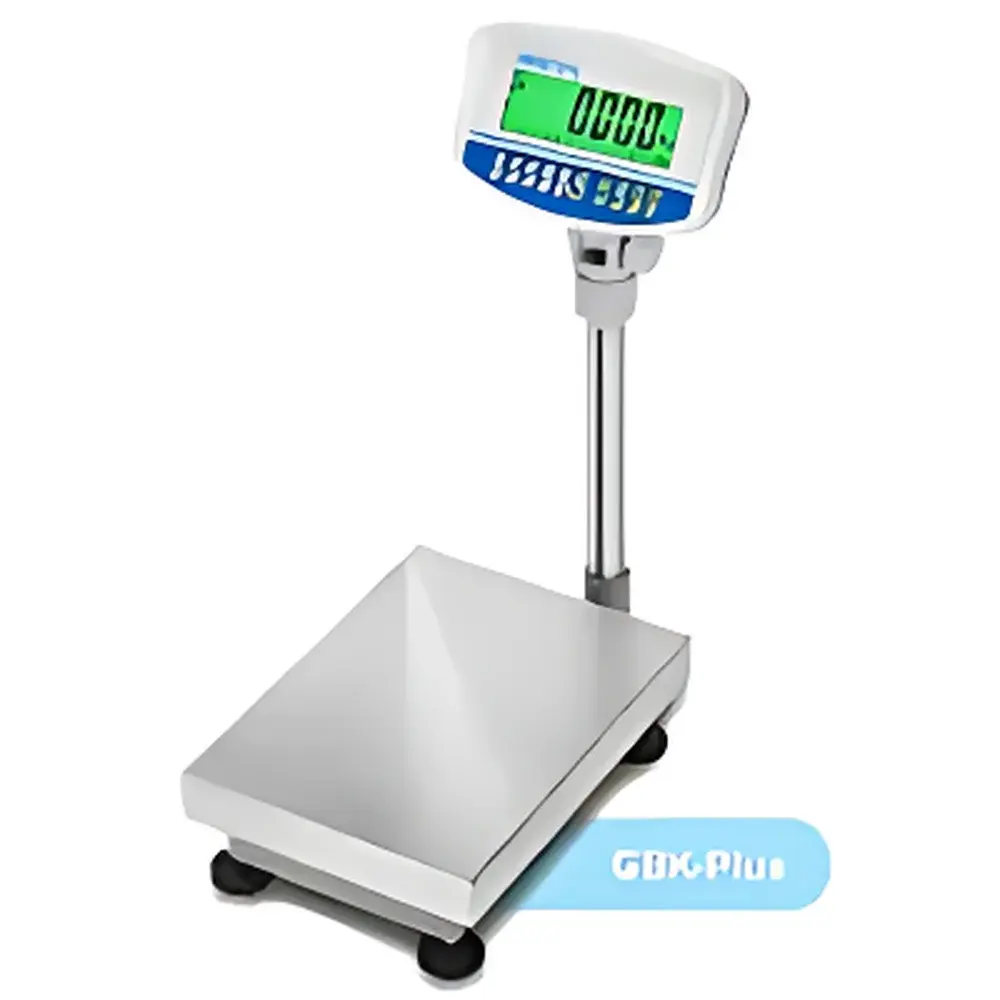

Adam Equipment GBK/GFK Floor Scale – Heavy-Duty Industrial Checkweighing Platform Scale

Overview

The Adam Equipment GBK/GFK series is a line of heavy-duty floor scales engineered for precision checkweighing, counting, and general-purpose industrial weighing in demanding production, logistics, and quality control environments. Based on load cell transduction technology with high-stability strain gauge sensors, these platform scales deliver repeatable mass measurement across capacities of 150 kg, 300 kg, and 600 kg — each configured with capacity-appropriate readability (50 g, 100 g, and 200 g respectively). Designed and manufactured in the United Kingdom under ISO 9001-certified processes, the GBK/GFK complies with OIML R76-1 Class III accuracy requirements for non-automatic weighing instruments used in commercial and industrial applications. Its robust mechanical architecture — featuring a powder-coated steel base and reinforced corner supports — ensures long-term stability under repeated loading cycles and floor vibration typical in warehouse or assembly-line settings.

Key Features

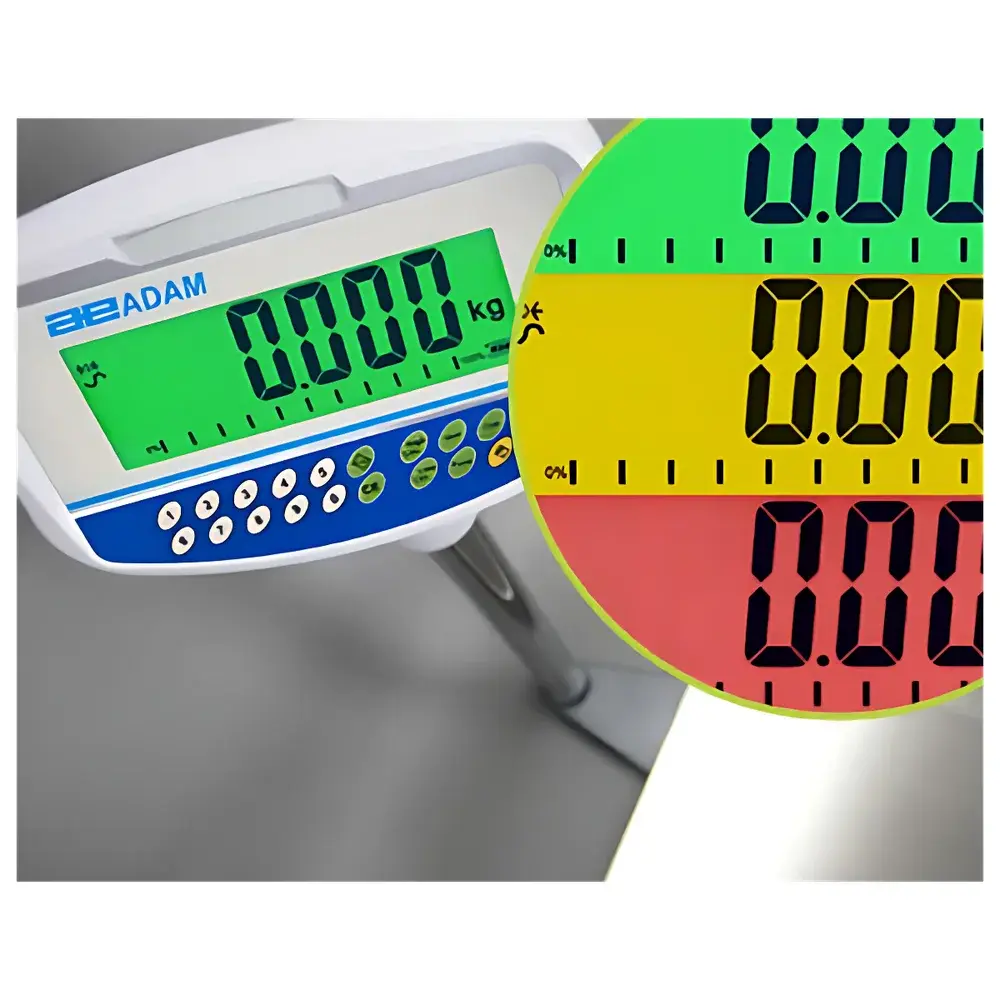

• Tri-color visual feedback system: The backlit LCD display dynamically shifts backlight color (green → amber → red) during checkweighing to indicate underweight, target, and overweight conditions — enabling rapid operator decision-making without requiring interpretation of numeric deviation values.

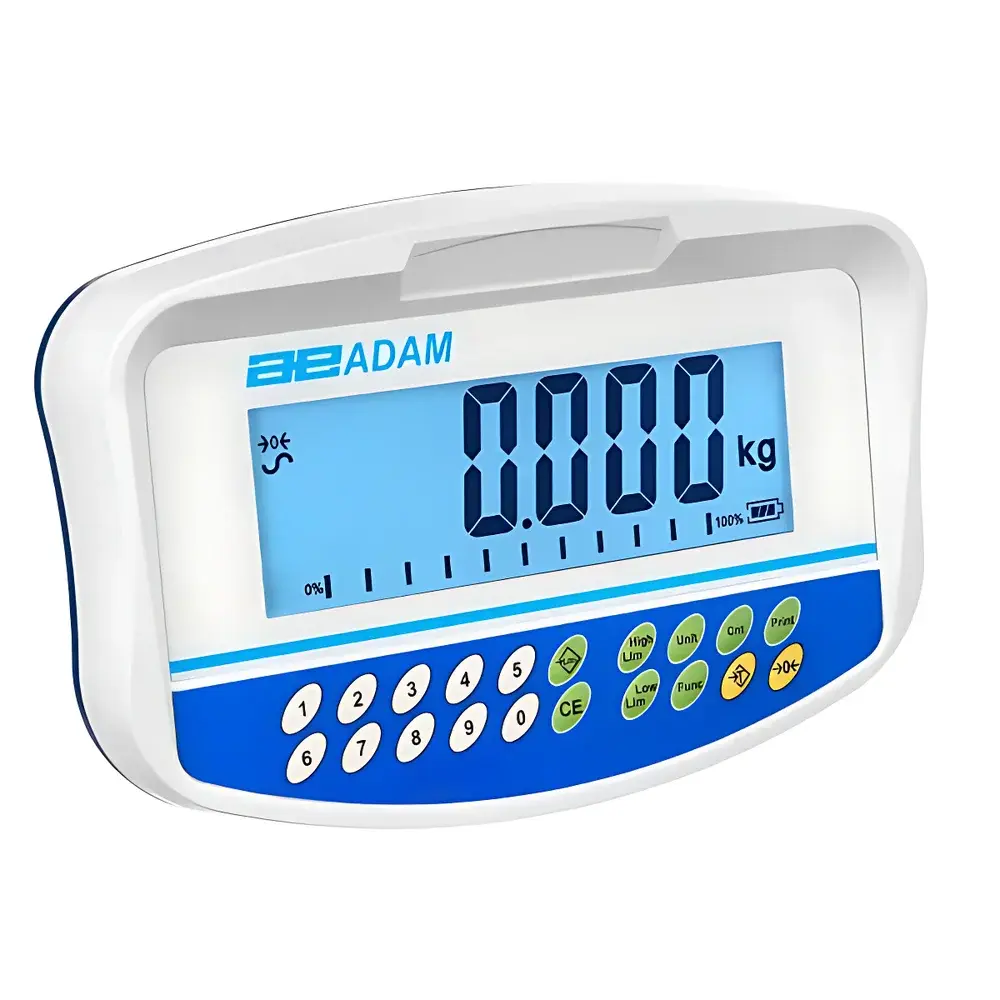

• Sealed membrane keypad & IP65-rated indicator: Fully protected against dust ingress and low-pressure water jets, supporting reliable operation in humid, dusty, or washdown-prone areas such as food processing zones or pharmaceutical packaging lines.
• Real-time overload monitoring: An integrated range-tracking bar graph displays load distribution relative to full-scale capacity, providing immediate visual warning before mechanical overloading occurs — reducing risk of sensor damage and calibration drift.
• High-resolution internal counting engine: With 1:1,000,000 internal resolution, the scale maintains counting accuracy even when small parts are weighed in large batches; auto-average part weight calculation eliminates manual tare-and-count steps during setup.
• Dual-power architecture: Standard 12 VDC power supply with integrated rechargeable battery delivers up to 120 hours of continuous operation — essential for mobile deployment, temporary staging areas, or backup continuity during facility power interruptions.
• RS-232 serial interface as standard: Enables direct integration with PLCs, label printers, ERP systems (e.g., SAP, Oracle), or custom MES software for automated data logging, batch reporting, and SPC charting — compliant with industry-standard ASCII protocols.

Sample Compatibility & Compliance

The GBK/GFK accommodates irregularly shaped, bulky, or palletized loads via its oversized stainless-steel or powder-coated steel platform (dimensions vary by model: e.g., GBK-300 offers 600 × 800 mm surface area). It supports both static and dynamic (in-motion) checkweighing workflows when integrated with conveyor interfaces. All models meet OIML R76-1 Class III metrological requirements for trade-approved use in EU and UK markets and carry CE and UKCA markings. Manufacturing adherence to ISO 9001 ensures traceable component sourcing, documented calibration procedures, and audit-ready production records — critical for GMP-aligned facilities subject to MHRA or FDA inspections. While not intrinsically rated for hazardous locations, optional ATEX-compatible versions are available upon request for Zone 22 classified environments.

Software & Data Management

No proprietary software is bundled; instead, the GBK/GFK communicates via industry-standard ASCII command sets over RS-232, allowing seamless compatibility with third-party data acquisition platforms including LabVIEW, WinWedge, and custom Python-based SCADA integrations. The built-in memory stores cumulative totals per session — useful for shift-based throughput tracking — and supports timestamped data export when paired with compatible host software. For regulated environments, external validation packages (e.g., IQ/OQ documentation kits) and 21 CFR Part 11-compliant audit trail add-ons are available through Adam’s certified partners. All firmware updates are delivered via secure download portal with version-controlled release notes and change logs.

Applications

• Final product checkweighing in food, beverage, and pharmaceutical packaging lines to ensure compliance with EU Directive 2005/14/EC (average weight system).
• Component counting in electronics assembly and automotive Tier-1 supplier warehouses.
• Raw material receipt verification and inventory reconciliation in chemical distribution centers.
• Logistics hub parcel sorting where weight-based routing thresholds must be enforced.
• Quality assurance labs performing incoming inspection per ISO 2859-1 sampling plans.
• Education and vocational training programs teaching metrology fundamentals and industrial instrumentation principles.

FAQ

Is external calibration required, and how often should it be performed?
Yes — the GBK/GFK requires periodic external calibration using certified test weights. Frequency depends on usage intensity and regulatory context: typically every 3–6 months for GMP environments; annually for general industrial use. Calibration certificates traceable to NPL (UK) or NIST (US) standards are recommended.
Can the scale interface with Windows-based warehouse management systems?
Yes — via RS-232 using standard COM port configuration (9600 baud, 8N1). Drivers and configuration guides for common WMS platforms (e.g., Manhattan SCALE, HighJump) are available from Adam’s technical support portal.
What is the warranty coverage and service support structure?
Adam Equipment provides a 3-year limited warranty covering parts and labor for defects in materials or workmanship. Global service network includes authorized calibration and repair centers in 42 countries, with spare parts stocked regionally to minimize downtime.
Are platform dimensions and load cell configurations customizable?
Standard models follow fixed platform sizes and dual-load-cell architecture. Custom configurations (e.g., larger decks, four-load-cell designs, or integrated roller conveyors) are available under Adam’s OEM engineering program with minimum order quantities.
Does the unit support metric/imperial unit switching during operation?
Yes — units (g, kg, lb, lb:oz, oz) can be selected and changed on-the-fly via keypad without interrupting weighing sessions or resetting calibration parameters.
