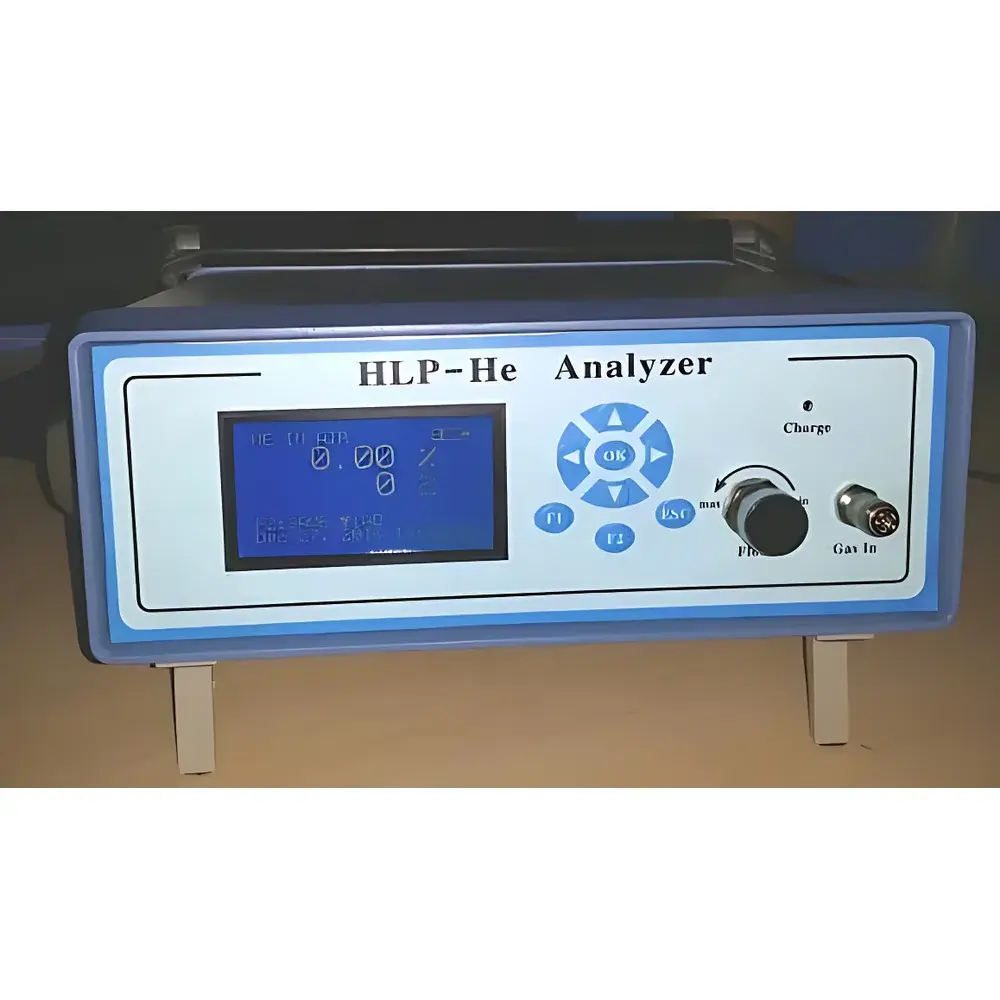

ADEV HLP-He Portable Helium Purity Analyzer

Overview

The ADEV HLP-He Portable Helium Purity Analyzer is a precision-engineered thermal conductivity gas analyzer designed for field-deployable, real-time quantification of helium concentration in binary or multi-component gas mixtures. Based on the fundamental principle of thermal conductivity differential measurement—where gases exhibit distinct thermal transport properties—the instrument delivers stable, linear, and reproducible readings by comparing the thermal dissipation rate of the sample gas against a reference condition. Its core sensing element is a temperature-compensated, constant-temperature hot-wire thermal conductivity cell, optimized for helium’s exceptionally high thermal conductivity (≈0.1513 W/m·K at 25 °C), which is over six times greater than that of nitrogen and nearly double that of hydrogen. This physical selectivity enables highly sensitive detection of helium across wide concentration ranges—from trace levels (0–5% He in air) to ultra-high-purity applications (90–100% He)—without requiring consumables, carrier gases, or catalytic elements. The analyzer is intrinsically suited for industrial gas quality verification, cryogenic system leak validation, helium recovery process monitoring, and inert gas blanketing integrity checks in semiconductor, aerospace, and MRI magnet facilities.

Key Features

• Temperature-stabilized thermal conductivity sensor with integrated thermal compensation circuitry, ensuring minimal drift across ambient fluctuations (−25 °C to +60 °C)
• High-resolution 24-bit analog-to-digital conversion module, reducing quantization error and enhancing signal fidelity
• Integrated gas conditioning subsystem: stainless-steel particulate filter (5 µm), dual-stage pressure regulation (max inlet pressure: 1.0 MPa), and laminar-flow mass flow control with visual flow indicator
• Explosion-proof architecture compliant with IEC 60079-0 and IEC 60079-11 standards; measurement cell and display unit powered via certified safety barrier
• Field-calibratable design: users may perform zero/span adjustments using certified calibration gases (e.g., N₂, synthetic air, or certified He/N₂ blends) without firmware intervention or service dispatch
• True-color LCD display (≥320 × 240 pixels) with intuitive menu navigation, real-time trend plotting, and configurable backlighting for low-light environments

Sample Compatibility & Compliance

The HLP-He analyzer detects any gas component whose thermal conductivity differs significantly from its matrix—making it applicable not only to helium but also to H₂, CO₂, Ar, and halogenated hydrocarbons (e.g., R-134a, R-404A). It is validated for use with dry, non-corrosive, particle-free gas streams. Moisture condensation and oil vapor must be excluded upstream via coalescing filtration or cold trap. The device conforms to ISO 17025-accredited calibration practices, and its typical accuracy of ≤±0.01% FS (full scale) has been verified by the National Institute of Metrology (NIM, China) under controlled reference conditions. While not inherently GLP/GMP-certified, its data logging capability, audit-ready calibration records, and 4–20 mA output with HART protocol support facilitate integration into FDA 21 CFR Part 11-compliant environments when deployed with validated IT infrastructure.

Software & Data Management

Data acquisition and configuration are managed via embedded firmware supporting USB 2.0 host interface for direct connection to Windows-based PCs. The included PC utility software enables real-time waveform visualization, historical data export (CSV/Excel), calibration certificate generation, and firmware updates. All measurement events—including calibration timestamps, gas flow status, sensor temperature logs, and alarm triggers—are time-stamped and stored in non-volatile memory (≥10,000 entries). The 4–20 mA analog output is fully scalable per user-defined range (e.g., 0–5% He → 4–20 mA), enabling seamless integration with DCS, PLC, or SCADA systems. Optional Modbus RTU over RS-485 is available upon request for industrial network compatibility.

Applications

• Verification of helium purity prior to filling superconducting magnets (MRI, NMR, particle accelerators)
• In-line monitoring of helium recovery loops in helium liquefaction plants and recycling skids
• Leak testing of vacuum-jacketed piping and cryostats using helium tracer gas
• Quality assurance of shielding gases in TIG welding and additive manufacturing (AM) inert chambers
• Validation of nitrogen purge efficacy during helium system commissioning (requires explicit “N₂ purge” configuration option at order stage)
• Field inspection of helium-containing specialty gas cylinders in laboratory, medical, and research settings

FAQ

What gas matrices is the HLP-He calibrated for?
The standard configuration is calibrated for helium-in-air and helium-in-nitrogen mixtures. Custom calibration for helium-in-argon or helium-in-CO₂ matrices is available upon request with supporting reference gas certification.
Can the instrument measure helium below 0.1%?
The minimum detectable level is 0.01% (100 ppm) within the 0–5% full-scale range, subject to stable flow, temperature, and moisture control.
Is the flow controller adjustable in the field?
Yes—the integrated needle valve and rotameter allow manual flow adjustment between 0.1 and 2.0 L/min, with visual indication and repeatable setpoint retention.
Does the analyzer require periodic sensor replacement?
No. The thermal conductivity cell is solid-state, sealed, and rated for ≥5 years of continuous operation under specified environmental and gas cleanliness conditions.
How is traceability maintained during calibration?
Each unit ships with a NIM-traceable calibration certificate; users may generate new certificates post-field calibration using certified reference gases and the built-in calibration log export function.
