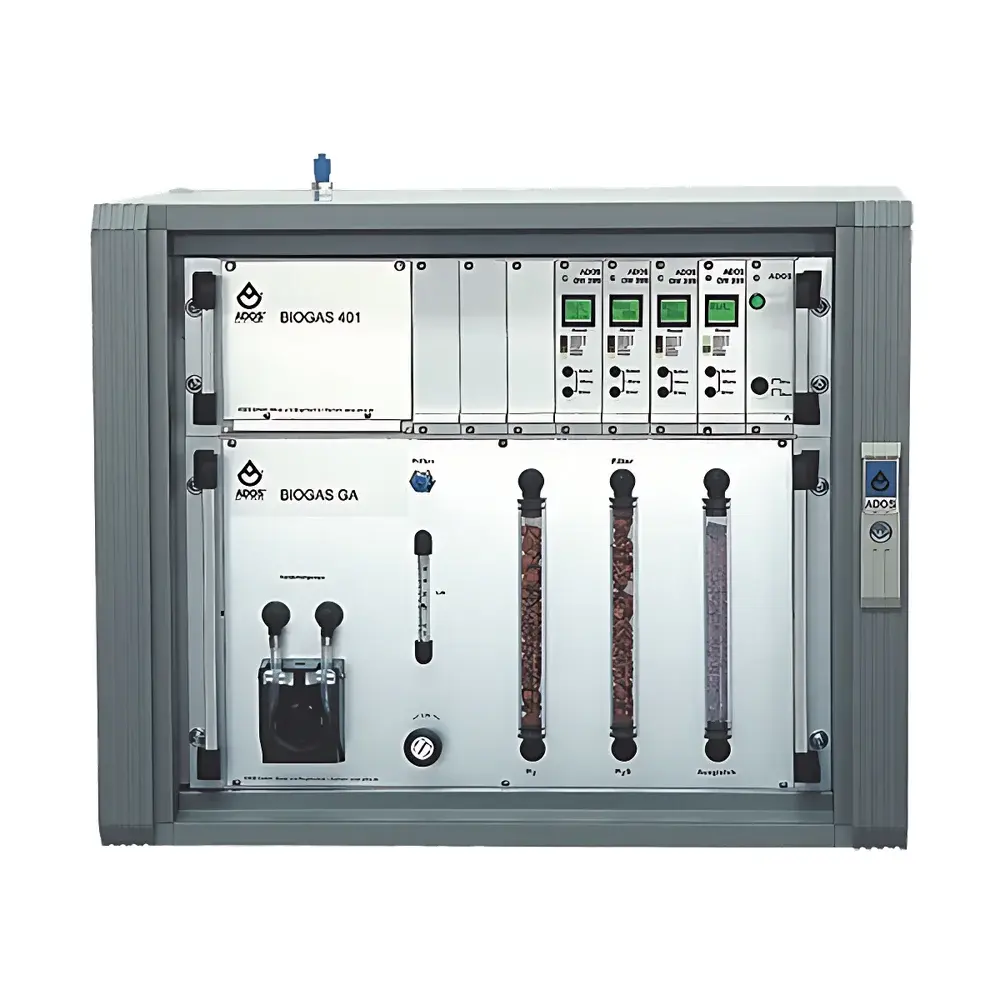

ADOS Biogas 401 Online Biogas Analyzer
| Brand | ADOS |
|---|---|
| Origin | Germany |
| Model | Biogas 401 |
| Gas Measurement Principles | Electrochemical (O₂, H₂S), Non-Dispersive Infrared (NDIR) (CH₄, CO₂), Thermal Conductivity (H₂) |
| Measurement Ranges | O₂: 0–21 %vol |
| H₂S | 0–50 ppm / 0–5000 ppm (selectable) |
| CH₄ | 0–100 %vol |
| CO₂ | 0–50 %vol |
| H₂ | 0–2 %vol |
| Accuracy | < ±2 % FS |
| Response Time (T90) | ≤ 30 s (typ.) |
| Operating Temperature | +5 °C to +45 °C |
| Power Supply | 230 V AC, 50 Hz / 115 V AC, 60 Hz |
| Power Consumption | 100 VA |
| Dimensions (W×H×D) | 600 × 478 × 500 mm |
| Weight | ~61 kg |
| Output Interfaces | Dual 4–20 mA per channel (6 channels max), RS232/RS485 serial interface, 3 configurable alarm relays + 1 fault relay (230 V, 450 VA) |
| Sample Handling | Peltier-cooled condensate trap, peristaltic sampling pump, adjustable flow control, multi-stage particulate & moisture filtration |
Overview
The ADOS Biogas 401 Online Biogas Analyzer is an industrial-grade, CE-certified continuous gas monitoring system engineered for real-time compositional analysis of biogas streams in demanding anaerobic digestion environments. It employs a hybrid sensor architecture—integrating electrochemical cells for O₂ and H₂S, non-dispersive infrared (NDIR) spectroscopy for CH₄ and CO₂, and thermal conductivity detection for H₂—to deliver simultaneous, independent quantification of up to six gas components. Designed for unattended operation in landfill gas recovery sites, wastewater treatment plants, agricultural digesters, and coalbed methane facilities, the Biogas 401 supports regulatory compliance with Clean Development Mechanism (CDM) carbon credit verification protocols under UNFCCC guidelines. Its measurement architecture adheres to fundamental metrological principles defined in ISO 14064-3 and ASTM D1945 for biogas calorific value estimation, enabling traceable, auditable data acquisition required for emissions reporting and process optimization.
Key Features
- Modular sensor configuration supporting interchangeable electrochemical (e.g., GTR 196, 592 TOX series) and NDIR modules—enabling field adaptation to varying gas matrix challenges including high humidity, particulate load, and H₂S corrosion.
- Peltier-based condensate management system coupled with a peristaltic sampling pump and precision flow regulator ensures stable sample delivery without mechanical refrigeration or chemical dryers—reducing maintenance intervals and eliminating desiccant replacement cycles.
- Integrated multi-stage filtration: stainless-steel particulate filter (5 µm), hydrophobic membrane separator, and activated carbon scrubber for sulfur compound mitigation—preserving sensor longevity in aggressive biogas matrices.
- Intuitive local HMI featuring backlit color LCD display with dual-button navigation; visual alarm status indication via color-coded icons and dynamic threshold highlighting.
- Configurable alarm logic: three independently adjustable setpoints per gas (5–100% of full scale), each assignable to discrete relay outputs; fault relay with latching behavior for diagnostic traceability.
- Master control card enabling programmable intermittent measurement cycles—reducing power demand and extending sensor service life during low-activity periods while maintaining compliance-ready data continuity.
Sample Compatibility & Compliance
The Biogas 401 is validated for direct sampling of raw, humid, and particulate-laden biogas streams with typical temperature ranges of 5–45 °C and dew points up to 30 °C. Its robust sample conditioning subsystem meets EN 15267-3 requirements for automated emission monitoring systems (CEMS) used in waste-to-energy applications. All gas sensors comply with IEC 60079-29-1 for explosive atmosphere safety (ATEX Category 2G), and the analyzer housing carries IP54 ingress protection. For regulatory reporting, the instrument supports audit-trail-capable data logging aligned with EU Directive 2010/75/EU (IED) and U.S. EPA Method 25A equivalency for CH₄/CO₂ ratio validation. Firmware and calibration records are structured to satisfy GLP/GMP documentation expectations per ISO/IEC 17025:2017 clause 7.7.
Software & Data Management
Data output conforms to Modbus RTU (RS485) and ASCII protocol (RS232) standards, enabling seamless integration into SCADA, DCS, or cloud-based asset management platforms (e.g., Siemens Desigo, ABB Ability, or custom MQTT brokers). Each of the six measurement channels provides isolated 4–20 mA analog outputs with HART-compatible digital superimposition for remote diagnostics. Internal data storage retains 30 days of 1-minute averaged values (CH₄, CO₂, O₂, H₂S, H₂, and ambient air reference) with timestamped event logs for alarms, calibrations, and system faults. Optional PC software (BiogasView v3.x) enables calibration certificate generation compliant with ISO/IEC 17025 Annex A.3 and facilitates export of CSV/Excel reports formatted for CDM Project Design Document (PDD) Annex III submission.
Applications
- Carbon credit quantification in CDM and Verra VCS projects—providing time-synchronized CH₄ and CO₂ concentration data for Tier 2 emission factor calculations per IPCC 2006 Guidelines.
- Real-time feedstock digestion efficiency monitoring via CH₄:CO₂ ratio trending—detecting process upsets such as acidosis or hydraulic overload before volatile fatty acid (VFA) accumulation occurs.
- Hazardous atmosphere surveillance in biogas upgrading stations: early warning of explosive limits (LEL monitoring via CH₄ + H₂ + CO combined), oxygen deficiency (<19.5% vol), or toxic H₂S excursions (>10 ppm).
- Post-desulfurization verification at amine scrubber or iron sponge units—validating H₂S removal efficiency down to sub-ppm levels using dual-range electrochemical detection.
- Co-digestion optimization in farm-scale AD plants—tracking hydrogen spikes indicative of syntrophic acetate oxidation or dark fermentation pathways.
FAQ
Does the Biogas 401 support automatic zero/span calibration?
Yes—via optional integrated calibration gas manifold (not included standard) with solenoid-controlled N₂ (zero) and certified multi-gas mixtures (span); calibration sequences are scriptable and logged with digital signatures.
Can it operate in outdoor enclosures without climate control?
It is rated for indoor wall-mount installation only; ambient temperature must remain within +5 °C to +45 °C. Outdoor deployment requires NEMA 4X-rated environmental enclosure with active thermal management.
Is firmware update capability available remotely?
Firmware updates require physical USB access and ADOS-certified engineering tools; no over-the-air (OTA) functionality is implemented to maintain IEC 62443-3-3 cybersecurity compliance.
What is the recommended calibration interval under continuous operation?
Per ADOS Technical Bulletin TB-401-Rev.D, quarterly full-range calibration is advised; daily zero checks using ambient air are mandatory for O₂ and CH₄ channels in CDM-certified installations.
How is sensor cross-interference mitigated in complex biogas matrices?
NDIR detectors use optical bandpass filters centered at 3.3 µm (CH₄) and 4.26 µm (CO₂) with reference wavelengths; electrochemical sensors incorporate selective catalytic membranes and temperature-compensated electronics per EN 50104.
