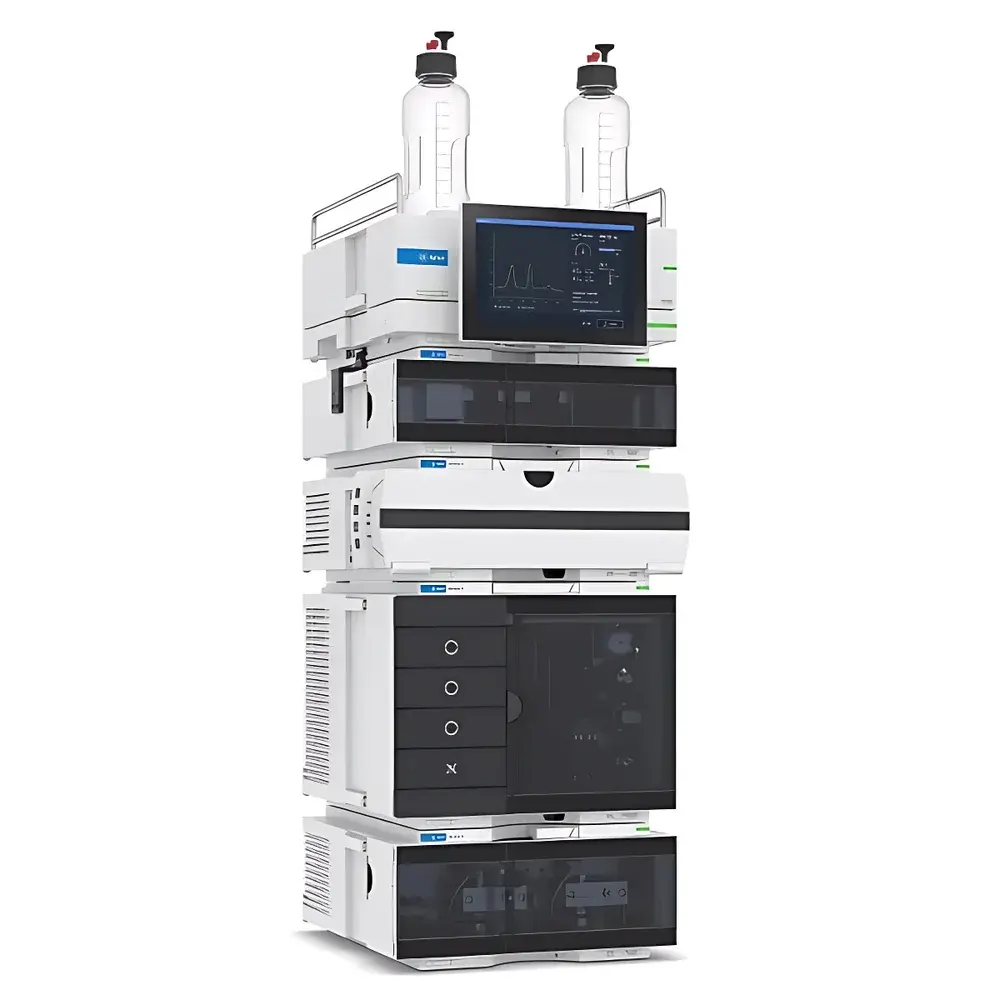

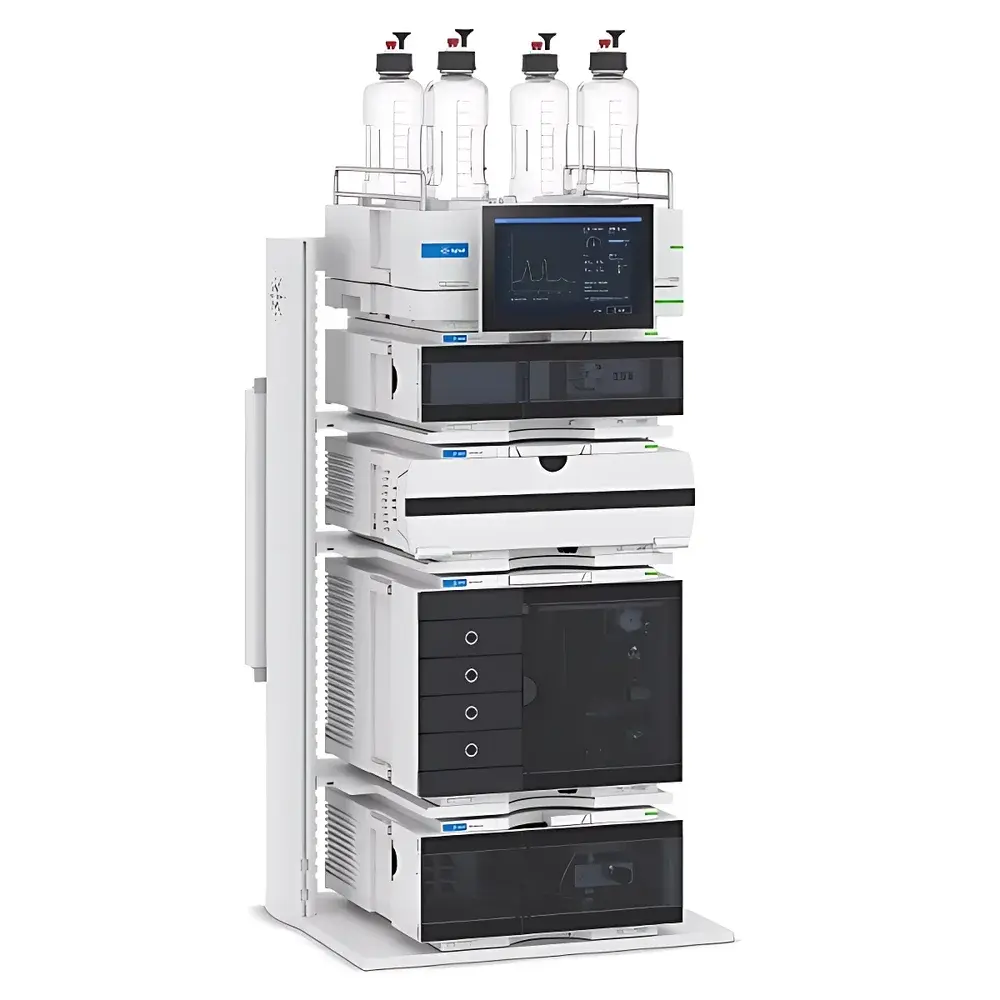

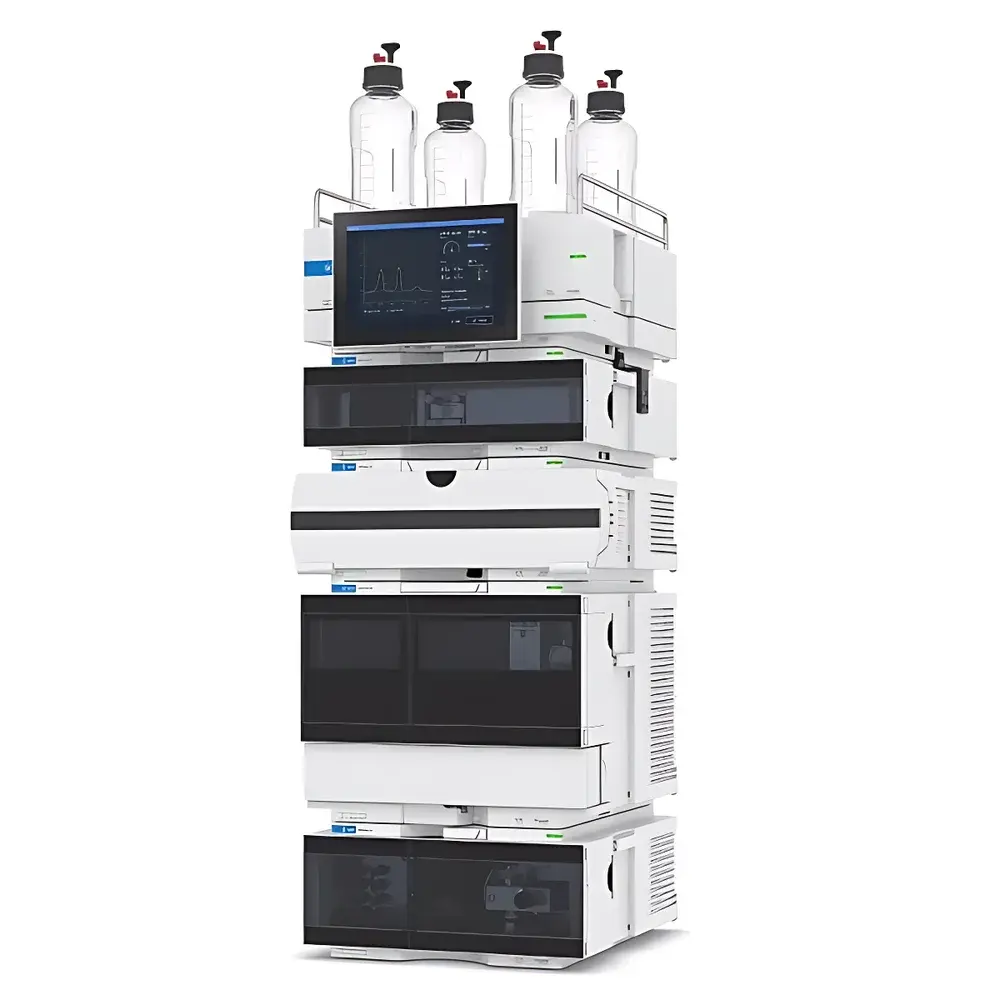

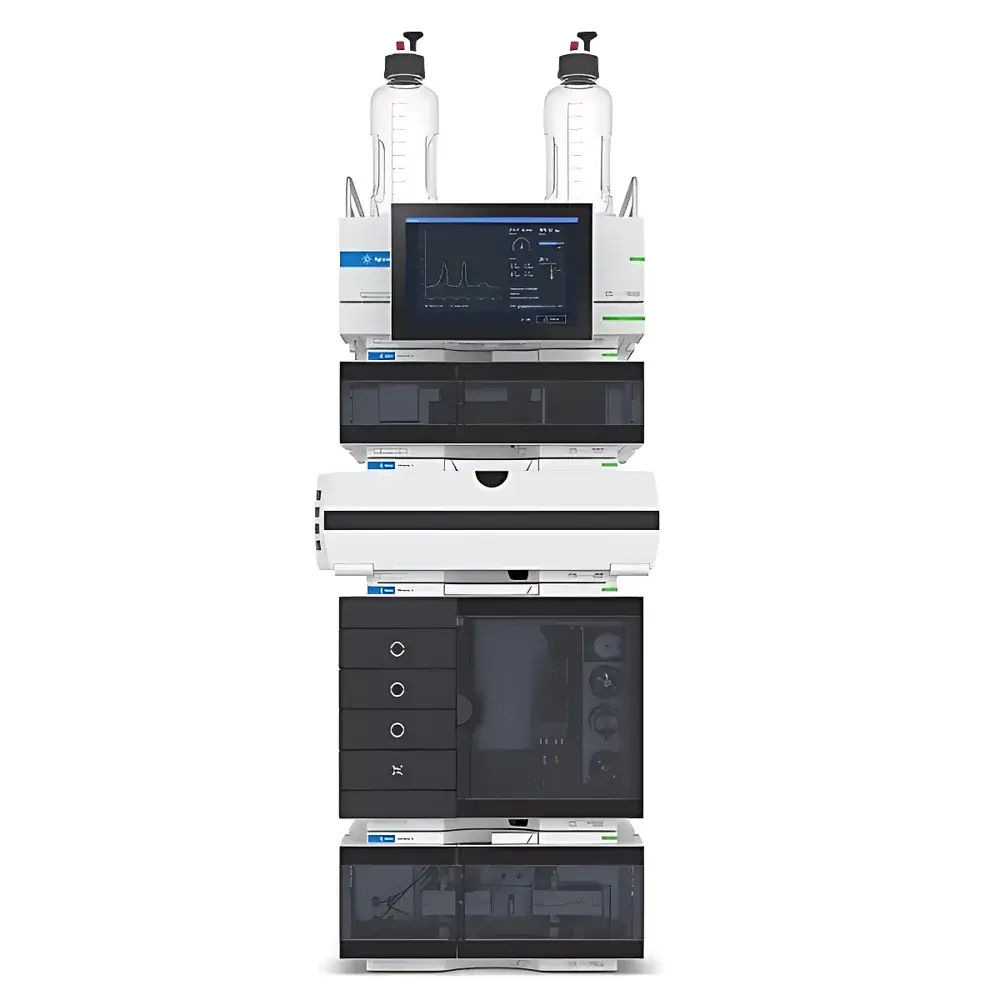

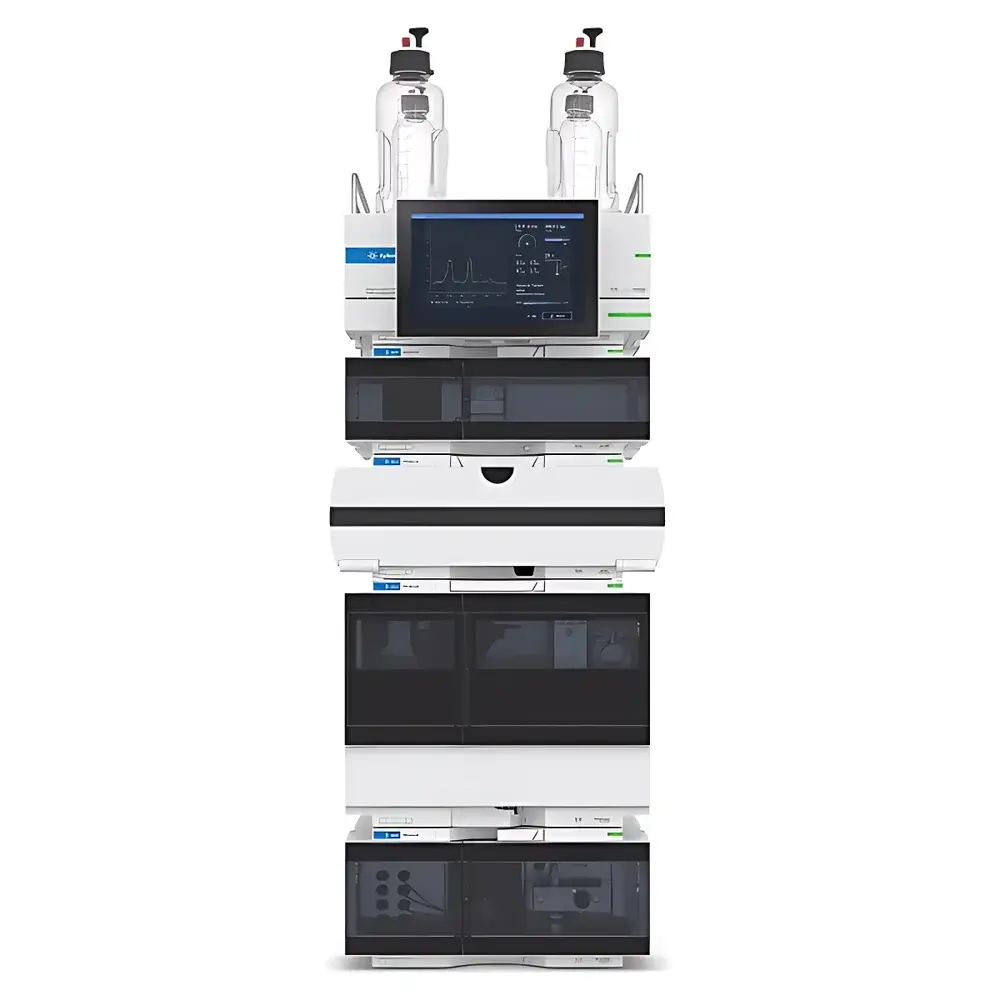

Agilent 1260 Infinity III Liquid Chromatography System

Overview

The Agilent 1260 Infinity III Liquid Chromatography System is a modular, high-fidelity analytical HPLC platform engineered for robustness, method transferability, and long-term operational stability in regulated and non-regulated laboratories. Built on the Agilent InfinityLab architecture, it employs classical high-pressure liquid chromatography principles—utilizing precise solvent delivery, thermally controlled column environments, and high-sensitivity optical detection—to resolve complex mixtures with reproducible retention times and peak shapes. Designed as a bridge between conventional HPLC and UHPLC workflows, the system operates reliably at pressures up to 600 bar, enabling compatibility with sub-2-µm particle-packed columns such as the InfinityLab Poroshell 120 series without requiring full UHPLC infrastructure. Its modular design supports both standalone operation and seamless integration into hybrid LC-MS or multi-detector configurations, making it suitable for routine QC, method development, stability-indicating assays, and academic research.

Key Features

• Modular scalability: Interchangeable pumps (quaternary G7112B or binary G7120B), autosamplers, column compartments, and detectors allow configuration optimization per application—without replacing the entire system.
• Intelligent fluid management: InfinityLab Solvent Level Sensing continuously monitors reservoir volumes, forecasts solvent sufficiency for upcoming sequences, and triggers configurable alerts to prevent run interruption and reanalysis costs.
• Automated sample tracking: InfinityLab Sample ID Reader optically scans vial barcodes or plate IDs, eliminating manual position entry and reducing operator error in high-throughput workflows.
• Dual-needle autosampling: The 1260 Infinity III Multisampler features parallel syringe paths for alternating injections, reducing cycle time to seconds and improving throughput in serial analysis.
• High-capacity sample handling: Accommodates up to 16 microtiter plates (6,144 positions) with integrated needle wash (three-solvent external rinse + seat backflush), achieving carryover <10 ppm.
• Column switching flexibility: Integrated Quick Change valve in the high-capacity column compartment enables automated selection among up to four columns—ideal for method scouting, heart-cutting, or multidimensional LC.
• Detector performance: The 1260 Infinity III DAD HS delivers low-noise spectral acquisition (1 nm resolution, 100 Hz sampling), enhanced baseline stability, and improved signal-to-noise ratio for trace-level quantitation.

Sample Compatibility & Compliance

The system supports a broad range of sample matrices—including pharmaceutical actives, natural product extracts, food constituents (e.g., amino acids in plant-based meat analogs), environmental contaminants, and biopolymer digests—when paired with appropriate column chemistries and mobile phase selections. All hardware modules comply with IEC 61010-1 safety standards and electromagnetic compatibility (EMC) requirements per EN 61326-1. Software control via Agilent Instrument Control Framework (ICF) ensures interoperability with third-party chromatography data systems (CDS) that support ASTM E1985 or vendor-neutral protocols. When operated with OpenLab CDS or MassHunter software, the system supports audit trails, electronic signatures, and 21 CFR Part 11 compliance—including role-based access control, data integrity logging, and immutable result archiving—meeting GLP and GMP documentation requirements for regulated environments.

Software & Data Management

Instrument control, sequence definition, and real-time monitoring are managed through Agilent’s unified software ecosystem. The InfinityLab Assist interface provides intuitive workflow guidance, contextual help, and remote status visualization across desktop, tablet, or browser-based clients. Sequence files include embedded method parameters, calibration history, and instrument configuration snapshots—ensuring full traceability. Raw data are stored in vendor-neutral .d format (compatible with AIA/ANDI standards), facilitating secondary processing in third-party tools. Batch reprocessing, peak integration refinement, and comparative overlay functions are available without re-injection. All software modules undergo periodic validation packages aligned with ISO/IEC 17025 and USP <1058> guidelines for analytical instrument qualification (AIQ).

Applications

• Amino acid profiling in plant-based meat alternatives using pre-column o-phthalaldehyde (OPA) derivatization and reversed-phase HPLC with fluorescence detection.
• Stability-indicating assay development for small-molecule APIs under ICH Q1–Q5 conditions, leveraging column-switching for forced degradation product isolation.
• Method transfer from legacy Agilent 1100 Series systems—preserving retention time, selectivity, and resolution while optimizing gradient steepness and flow rate for improved efficiency.
• QC release testing of excipients and finished dosage forms per USP monographs, including dissolution profile comparison and impurity quantitation.
• Environmental analysis of polar pesticides in aqueous samples using hydrophilic interaction liquid chromatography (HILIC) coupled with DAD detection.

FAQ

Can the 1260 Infinity III be used for UHPLC applications?

Yes—when configured with the binary pump (G7120B) and compatible sub-2-µm columns, it delivers UHPLC-class performance up to 600 bar; however, dwell volume and detector response time are optimized for HPLC-grade kinetics.
Is method transfer from Agilent 1100 Series supported?

Yes—systematic dwell volume matching, gradient delay compensation, and pressure-controlled flow calibration ensure retention time reproducibility within ±0.2% RSD across platforms.
Does the system support 21 CFR Part 11 compliance out-of-the-box?

Compliance readiness requires deployment with validated OpenLab CDS or MassHunter software, proper user access controls, and documented IQ/OQ/PQ protocols—not inherent to hardware alone.
What is the maximum injection volume precision at 0.1 µL?

At the lower limit, volumetric accuracy is ±5% with CV ≤3% (n=6), verified per ISO 11737-1 using gravimetric measurement with certified syringes.
Can the Multisampler perform needle wash during sequence execution?

Yes—programmable wash steps are executed after each injection using up to three solvents, with adjustable dwell time and aspiration volume per wash cycle.
