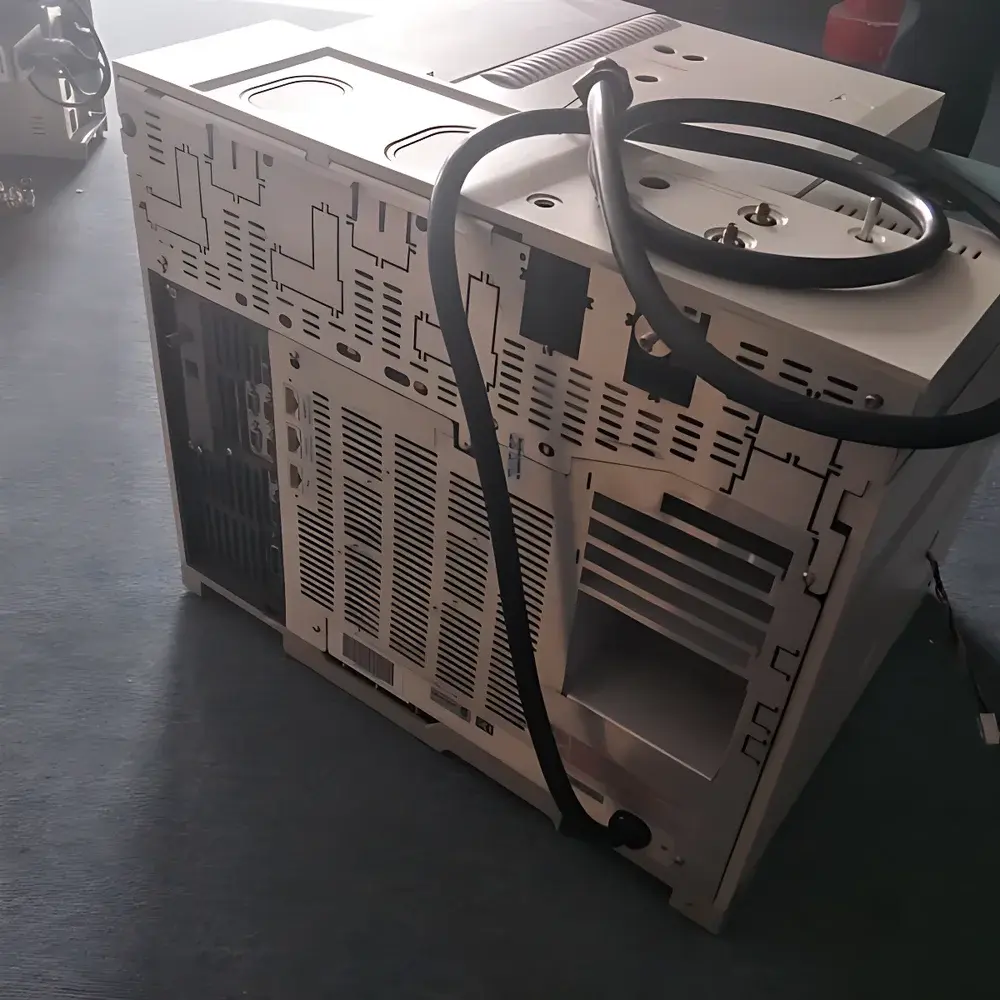

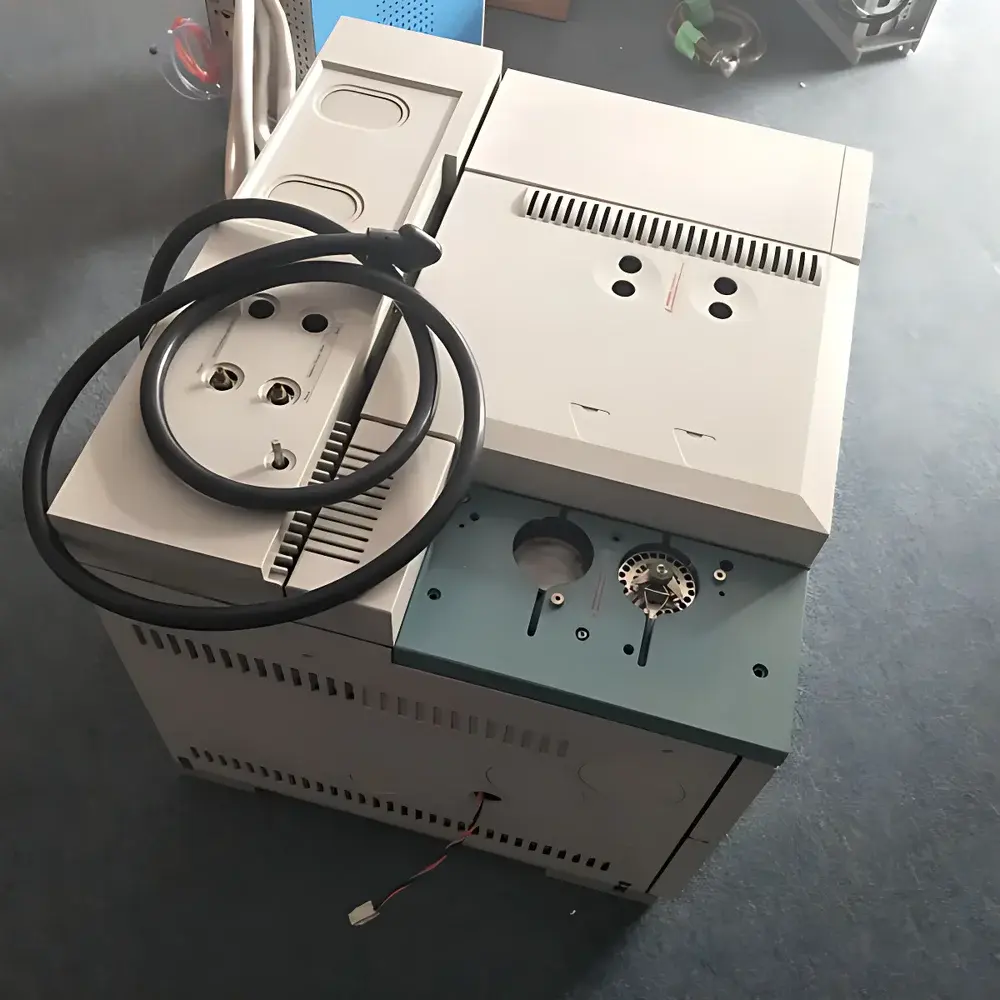

Agilent 6890N Gas Chromatograph Maintenance and Repair Service

Overview

This service offering provides professional maintenance and repair for the Agilent 6890N gas chromatograph — a widely deployed, robust benchtop analytical platform originally engineered for high-reproducibility separation and quantification of volatile and semi-volatile organic compounds. The Agilent 6890N operates on the principle of capillary or packed column gas chromatography, utilizing precise temperature-programmed oven control, programmable inlet systems (split/splitless, PTV), and detector signal processing (FID, TCD, ECD, NPD) to deliver reliable retention time stability and peak resolution. As a legacy but still actively supported instrument in many regulated laboratories, its continued operational integrity depends on systematic preventive maintenance, component-level diagnostics, and traceable calibration procedures aligned with ISO/IEC 17025 and GLP-compliant workflows.

Key Features

• Full-system diagnostic assessment including inlet integrity, column oven thermal uniformity, detector baseline stability, and electronic control module functionality
• Replacement of critical wear components: septa, liner O-rings, jet assemblies (for FID), thermocouples, and pressure transducers — all sourced from OEM-equivalent or Agilent-qualified suppliers
• Gas flow path validation using certified mass flow meters; leak detection via helium sniffer and pressure decay testing per ASTM D3612 Annex A3
• Temperature calibration across oven, injector, and detector zones using NIST-traceable RTD probes and data loggers
• Electrical safety verification (IEC 61010-1) and grounding continuity testing prior to system re-commissioning
• Documentation package includes pre-service condition report, work order log, replaced part list with serial numbers, and post-service performance verification report

Sample Compatibility & Compliance

The Agilent 6890N supports a broad range of sample matrices when coupled with appropriate sample introduction techniques (e.g., headspace, purge-and-trap, solid-phase microextraction). This service ensures continued compatibility with USP Chapter <621>, EP 2.2.46, and ASTM methods requiring validated GC operation. All maintenance activities are performed under documented procedures compliant with ISO/IEC 17025:2017 Clause 6.4 (Equipment) and support audit readiness for FDA 21 CFR Part 11 environments where electronic records and signatures are employed. No modifications are made to original firmware or hardware architecture that would invalidate existing method validations.

Software & Data Management

Maintenance includes verification of ChemStation (G1701DA/E) software communication integrity, driver updates (where compatible), and configuration file backup/recovery. System logs, event history, and detector signal diagnostics are reviewed for anomaly patterns indicative of aging electronics or environmental stress. Where required, firmware version consistency is confirmed against Agilent’s official lifecycle documentation. All service-related digital records are retained for 5 years in accordance with laboratory quality management system requirements and may be exported in CSV/PDF format upon request.

Applications

This repair and maintenance service directly supports mission-critical applications in pharmaceutical QC (residual solvent analysis per ICH Q2(R2)), environmental monitoring (EPA Method 8260/8270), food safety testing (pesticide residue screening), and polymer additive profiling. Laboratories operating under GMP, GLP, or ISO 17025 accreditation rely on consistent GC-6890N performance to maintain data integrity across batch release testing, stability studies, and regulatory submissions. The service extends instrument service life while preserving method transferability and historical data comparability — essential for long-term trend analysis and regulatory continuity.

FAQ

Is this service covered under Agilent’s original warranty?
No — the Agilent 6890N is a discontinued platform; this service is provided by an independent authorized distributor with full technical documentation access and OEM-part sourcing capability.
Can you calibrate the instrument to meet ISO 17025 requirements?
Yes — calibration certificates include measurement uncertainty budgets, reference standards traceability to NIST, and compliance statements per ISO/IEC 17025:2017 Clause 6.5.
Do you provide remote support before dispatching a technician?
Yes — initial triage is conducted via secure remote desktop connection (with client permission) to assess error logs, configuration files, and real-time detector signals.
Are replacement parts guaranteed?
All components carry a 90-day functional warranty from date of service completion; consumables (septa, liners) are excluded per industry standard.
How is data security handled during on-site service?
Technicians adhere to strict data handling protocols: no data extraction or copying is performed without written authorization; local network isolation is enforced during diagnostics.
