Agilent 7890A Gas Chromatograph Coupled with DiscovIR-GC FTIR Detection System

Overview

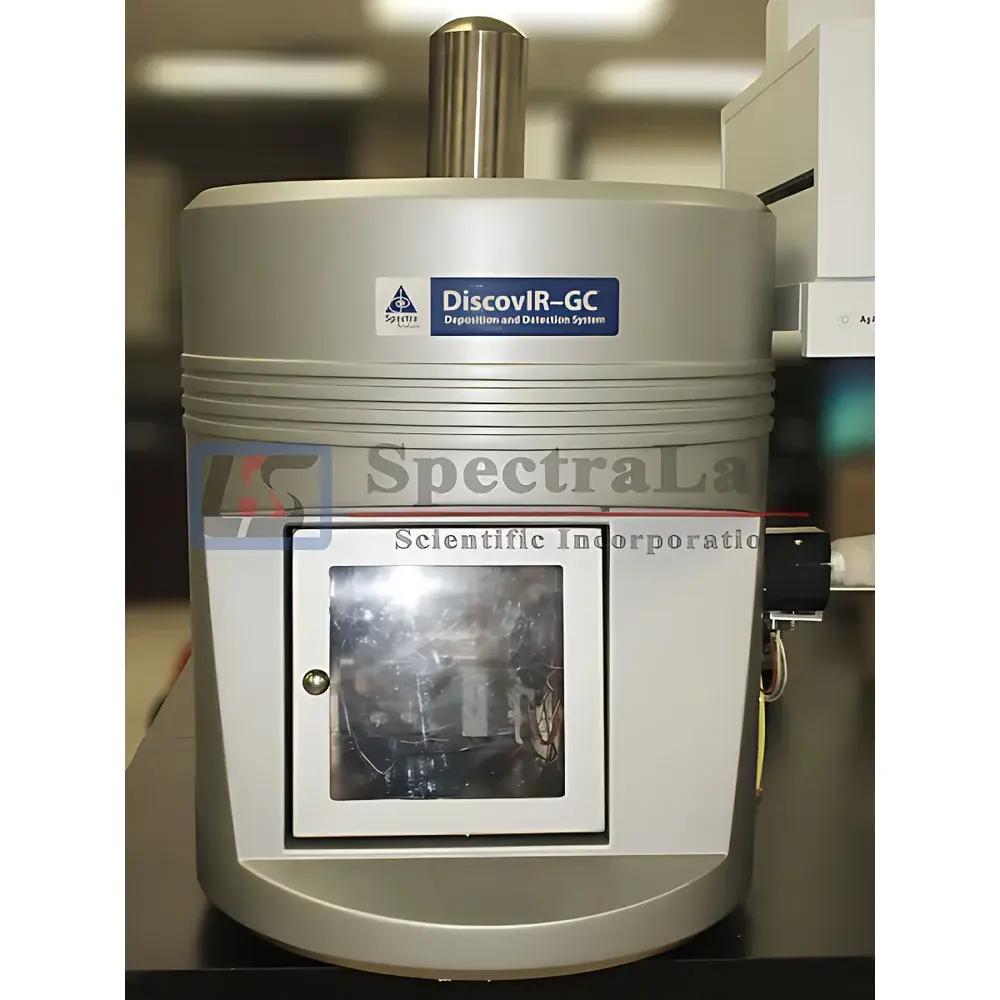

The Agilent 7890A Gas Chromatograph coupled with the DiscovIR-GC Fourier Transform Infrared (FTIR) detection system is a hyphenated analytical platform engineered for real-time, compound-specific identification and structural characterization of volatile and semi-volatile analytes separated by gas chromatography. Unlike conventional GC–MS systems, this configuration employs direct cryogenic deposition of GC effluent onto a temperature-controlled ZnSe sample disc, followed by in-situ FTIR spectroscopic interrogation. The system operates on the principle of coupling high-resolution capillary GC separation with mid-infrared absorption spectroscopy—enabling functional group identification, isomer differentiation, and quantitative analysis without derivatization or ionization bias. Designed for laboratories requiring orthogonal detection beyond mass spectrometry—particularly in forensic toxicology, environmental contaminant profiling, pharmaceutical impurity tracking, and regulatory compliance workflows—the platform delivers chemically specific spectral data synchronized with retention time.

Key Features

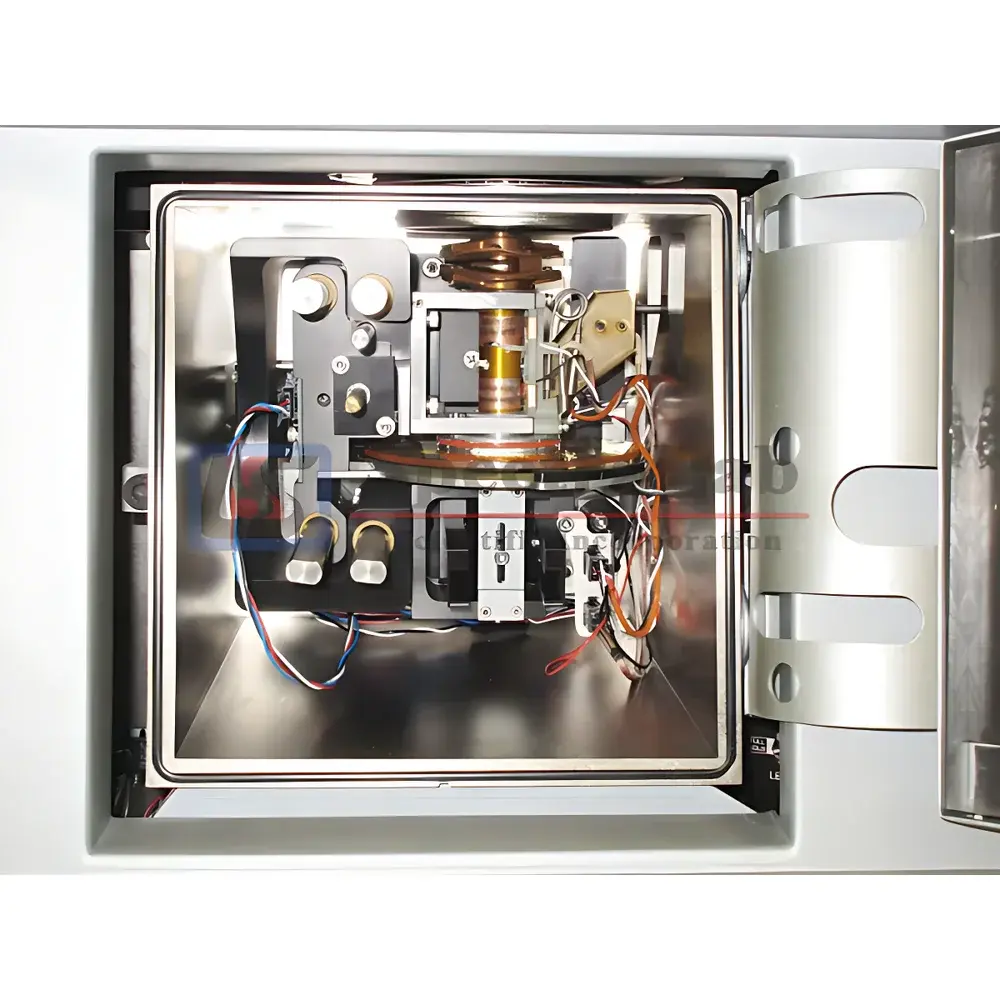

• Integrated cryogenic deposition interface: Column eluent is directly focused onto a liquid-nitrogen-cooled ZnSe disc (–100°C to –30°C), preserving labile compounds and minimizing thermal degradation.
• High-sensitivity MCT (Mercury Cadmium Telluride) detector with 0.1 × 0.1 mm active area, optimized for rapid spectral acquisition across 4000–700 cm⁻¹ wavenumber range.
• Selectable spectral resolution of 4 cm⁻¹ or 8 cm⁻¹, balancing signal-to-noise ratio and spectral fidelity for both qualitative library matching and quantitative band integration.
• Real-time spectral collection during GC run, plus post-run rescan capability for reprocessing at higher resolution or alternate baseline correction algorithms.
• Thermo Galactic GRAMS/32 AI™ software suite pre-installed: Supports advanced spectral preprocessing, band chromatogram generation (e.g., C=O stretch at 1700 cm⁻¹), ratio chromatograms for trend analysis, and automated peak alignment across multi-run datasets.
• Autosampler-compatible operation supporting unattended 12-hour runtime; compatible with any third-party or Agilent-supplied GC system (user-provided inlet/column/detector modules excluded).

Sample Compatibility & Compliance

The DiscovIR-GC system accepts standard GC flow rates from 0.1 to 5 mL/min and accommodates temperature-programmed oven ramps up to 420°C—making it suitable for analysis of hydrocarbons, pesticides, plasticizers, flavor compounds, and controlled substances. Its picogram-level sensitivity (<200 pg dodecane LOD) meets method requirements for trace-level residue screening per EPA Method 8270D and ASTM D7213. The instrument’s data acquisition and processing architecture supports audit-trail-enabled workflows compliant with FDA 21 CFR Part 11 when deployed with validated GRAMS/32 AI™ configurations. All spectral libraries—including the embedded 4,000-entry controlled substances database—are structured for ISO/IEC 17025-aligned verification protocols and GLP documentation standards.

Software & Data Management

Data acquisition and post-processing are managed via Thermo Galactic GRAMS/32 AI™ running on a dedicated Windows-based workstation. The software provides native support for transmittance-mode spectral interpretation, baseline correction using asymmetric least squares, second-derivative enhancement for overlapping bands, and chemometric tools including PCA and hierarchical clustering. Raw interferograms and processed spectra are stored in vendor-neutral JCAMP-DX format, ensuring long-term archival integrity and interoperability with LIMS platforms. Full electronic record retention—including operator ID, acquisition timestamp, instrument parameters, and calibration history—is maintained in accordance with GMP data integrity principles.

Applications

• Forensic toxicology: Identification of novel psychoactive substances (NPS) and metabolites where MS fragmentation patterns are ambiguous.
• Environmental analysis: Speciation of chlorinated benzenes, PAH isomers, and brominated flame retardants without reliance on reference standards.
• Pharmaceutical QC: Detection of polymorphic forms and residual solvents in API batches via characteristic vibrational fingerprints.
• Food safety: Screening for adulterants (e.g., melamine, Sudan dyes) and authenticity verification of essential oils using spectral library matching.
• Academic research: Reaction monitoring of catalytic processes via time-resolved band chromatograms tracking carbonyl or hydroxyl group evolution.

FAQ

Is the Agilent 7890A column oven and inlet module included in this configuration?

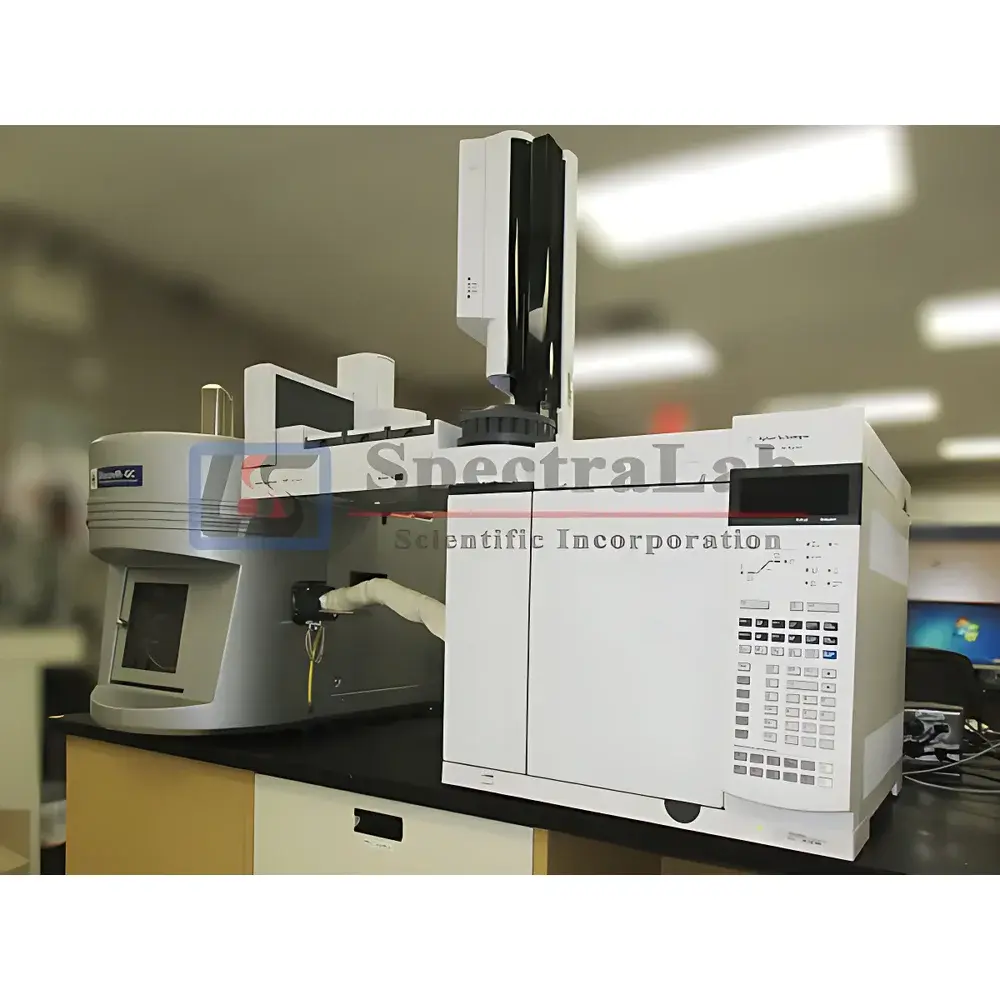

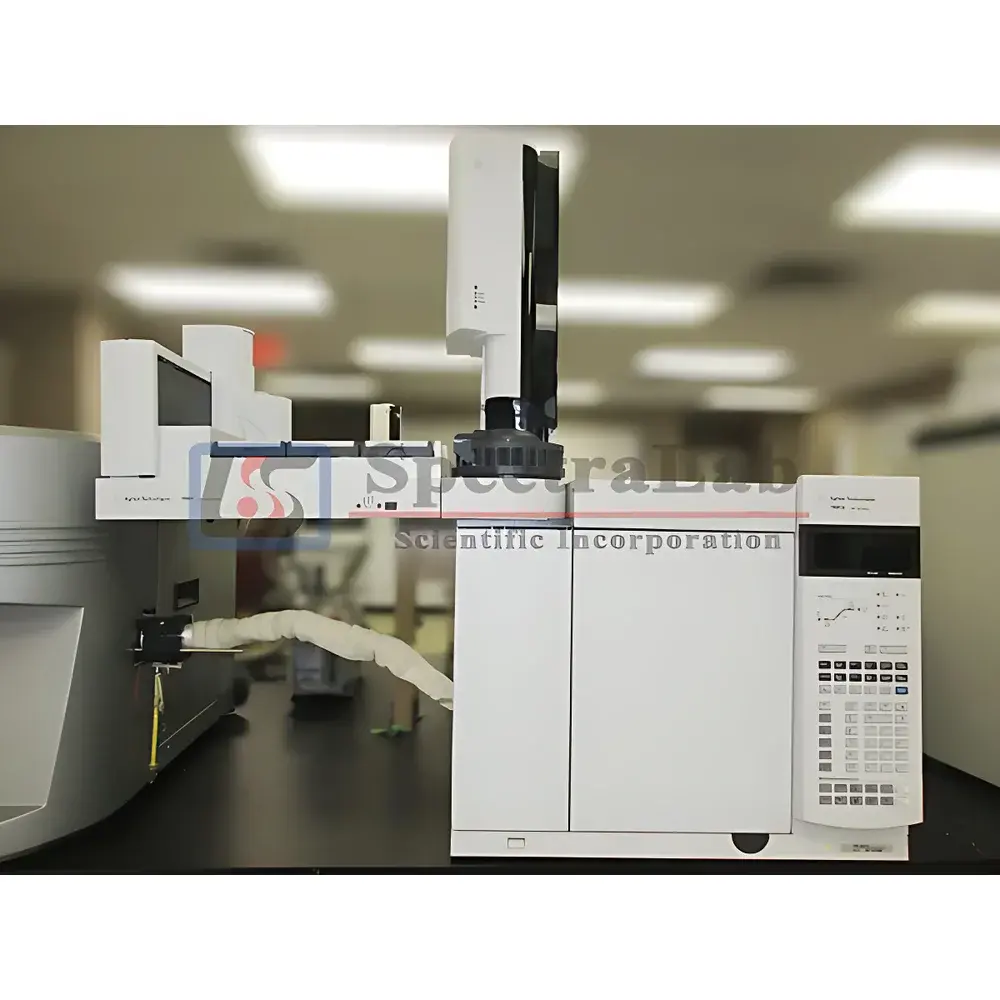

Yes—the system includes a fully functional Agilent 7890A GC chassis with split/splitless inlet, programmable oven, and electronic pressure control. The DiscovIR-GC interface replaces the traditional detector port.
What maintenance has been performed prior to resale?
The unit underwent full functional validation at SpectraLab Scientific’s ISO 9001-certified refurbishment facility, including leak testing, detector sensitivity verification, ZnSe disc performance calibration, and firmware update to GRAMS/32 AI™ v10.5.
Can the system be integrated into an existing LIMS environment?
Yes—GRAMS/32 AI™ supports ODBC-compliant database export and XML-based result reporting, enabling seamless ingestion into most modern LIMS architectures.
Does the warranty cover software licensing and updates?
The 6-month warranty covers hardware defects and pre-installed software functionality. Annual maintenance contracts include priority technical support and licensed software updates.
Are replacement ZnSe discs and MCT detector components available through SpectraLab?
Yes—original-specification consumables and spare parts are stocked and shipped globally with documented traceability and CoA.
