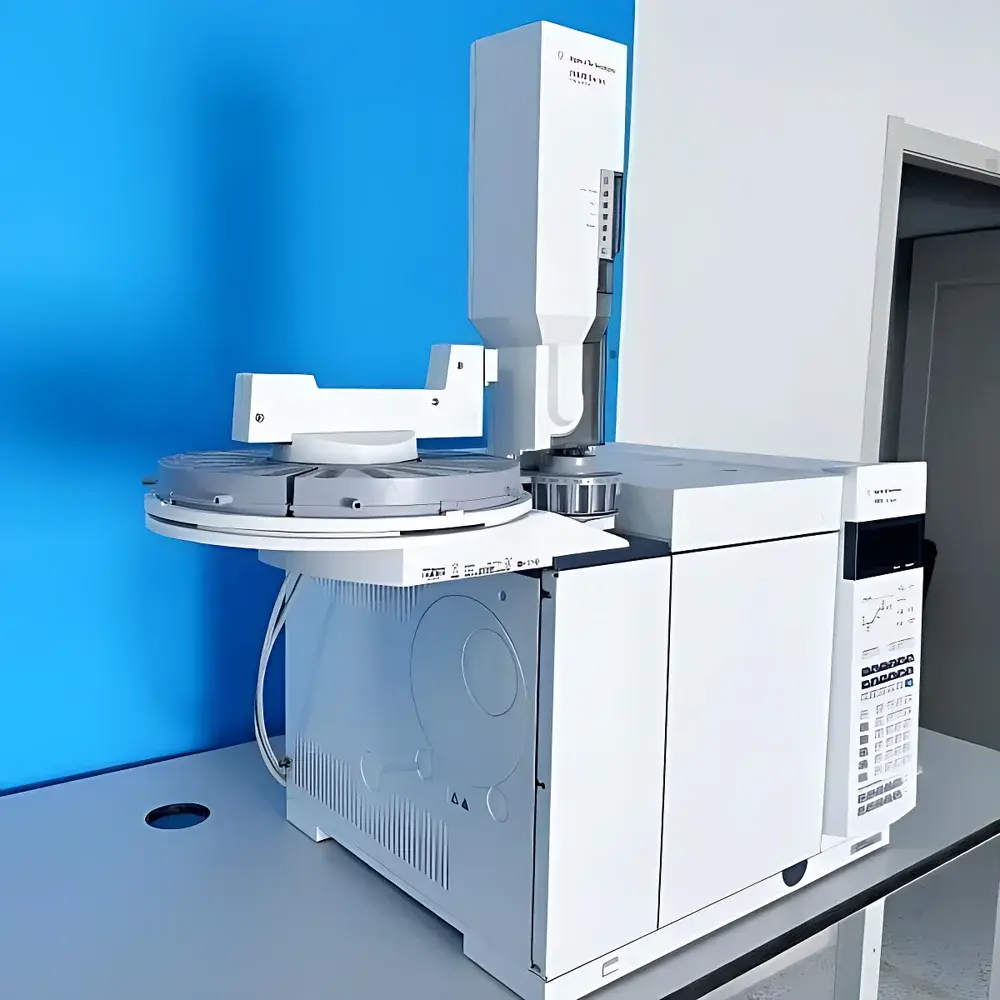

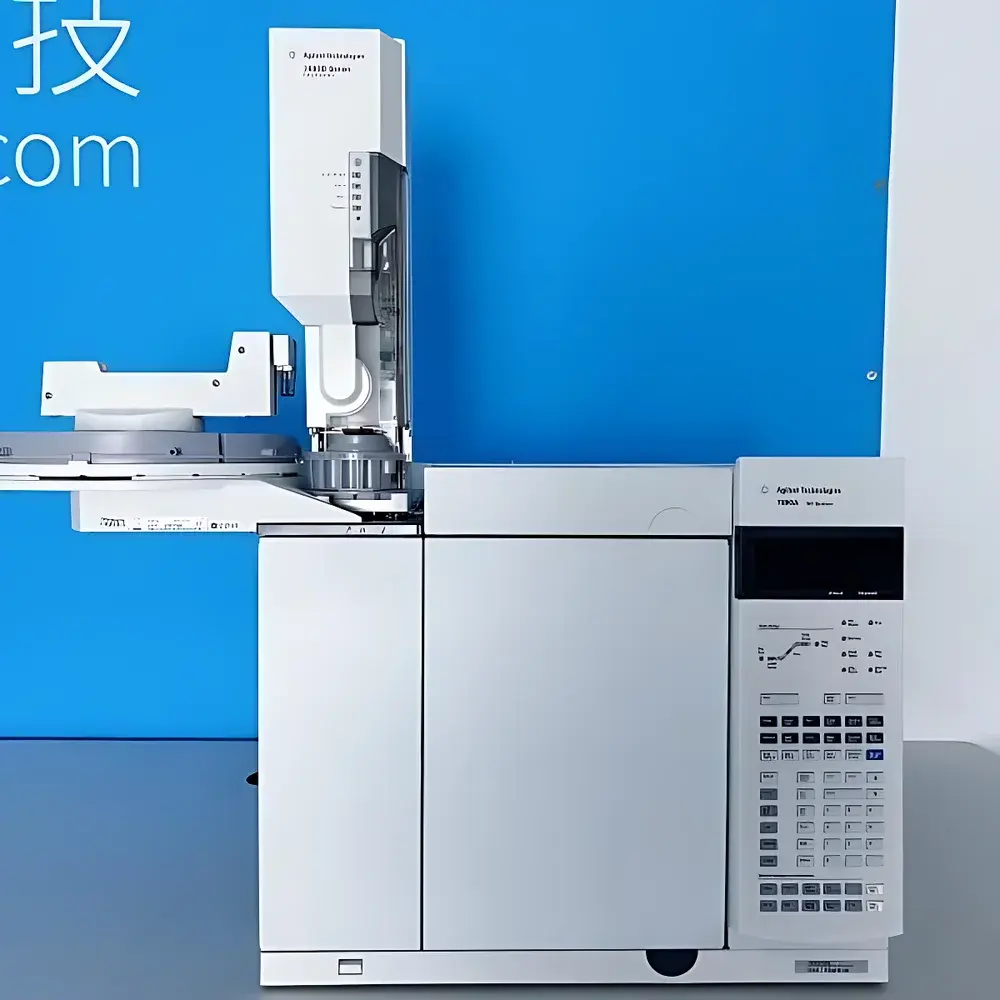

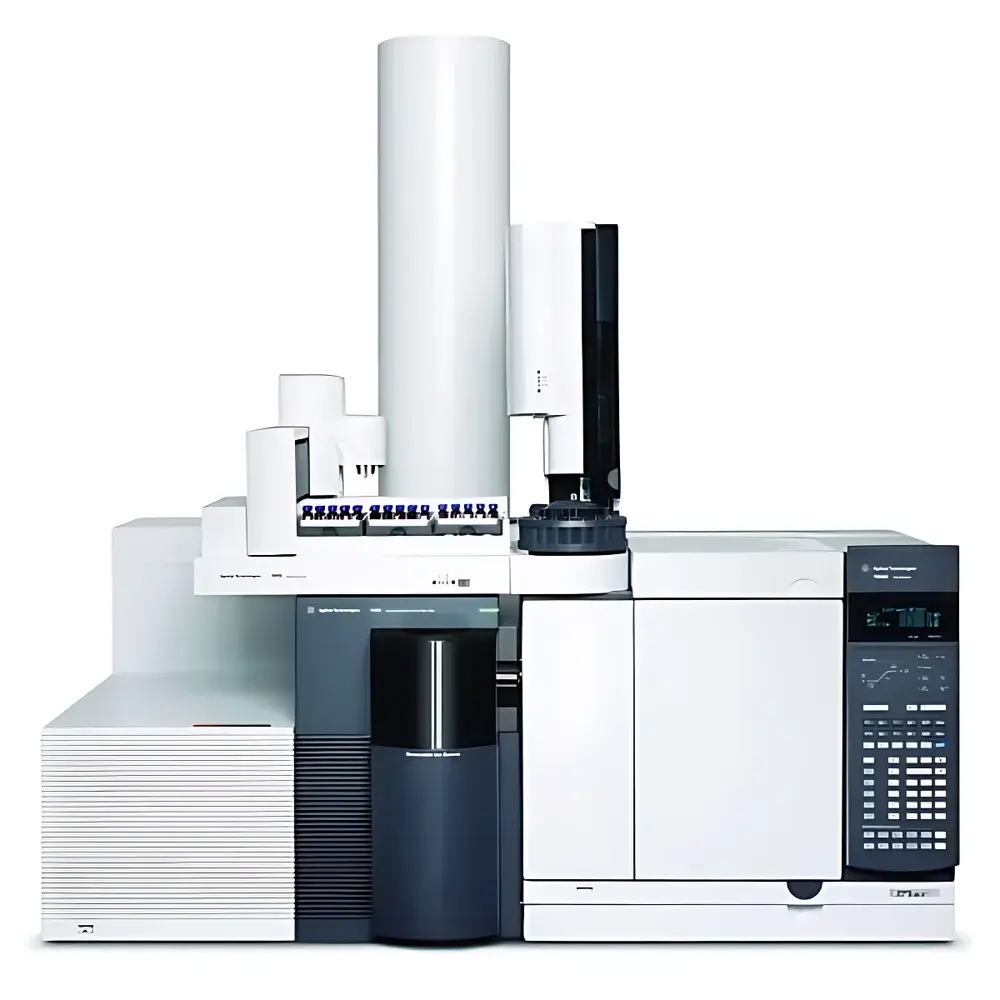

Agilent 7890A Used Gas Chromatograph

Overview

The Agilent 7890A is a high-performance, modular gas chromatograph engineered for precision separation and quantitative analysis of volatile and semi-volatile organic compounds. Based on robust dual-channel architecture with independently controllable oven zones, pressure-programmable inlets, and electronic pneumatic control (EPC), the system delivers exceptional retention time stability (<0.008 min RSD), baseline reproducibility, and method transfer fidelity. Its design adheres to fundamental chromatographic principles—employing capillary column separation under precisely regulated carrier gas flow (helium, hydrogen, or nitrogen), temperature-ramped elution, and selective detection based on compound-specific physicochemical responses. As a pre-owned instrument refurbished and verified per Agilent’s legacy service protocols, this unit retains full functional compatibility with original factory firmware, calibration routines, and hardware expansion capabilities—including support for advanced inlet configurations and detector modules deployed across environmental, pharmaceutical, petrochemical, and food safety laboratories.

Key Features

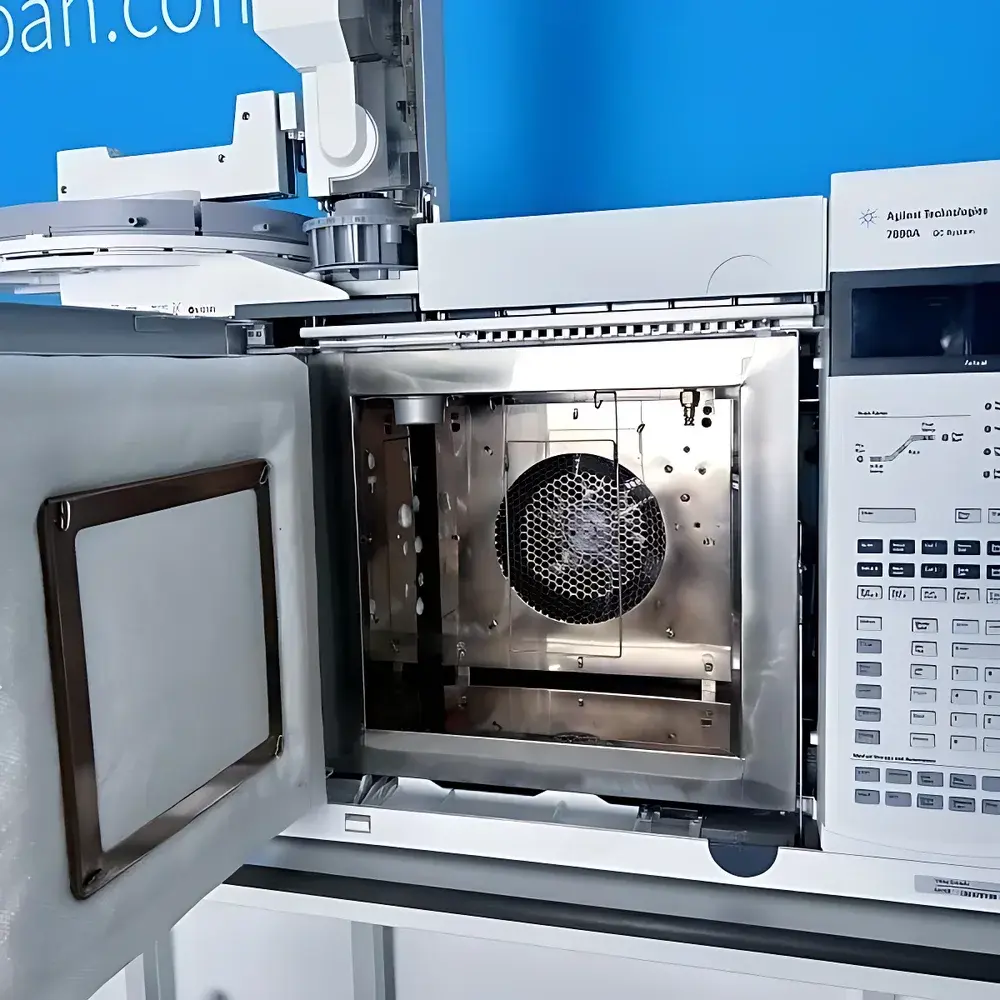

• Dual independent oven zones with ultra-stable temperature control (±0.01 °C) and rapid ramp rates up to 120 °C/min
• Electronic pressure control (EPC) across all inlets and detectors, enabling precise, repeatable flow/pressure programming
• Multiple inlet options: split/splitless (0–100 psi and 0–150 psi variants), on-column, programmed temperature vaporizing (PTV), and volatile organic analysis (VOA) interface
• Large-volume injection (LVI) capability—reducing or eliminating sample pre-concentration steps without compromising peak shape or resolution

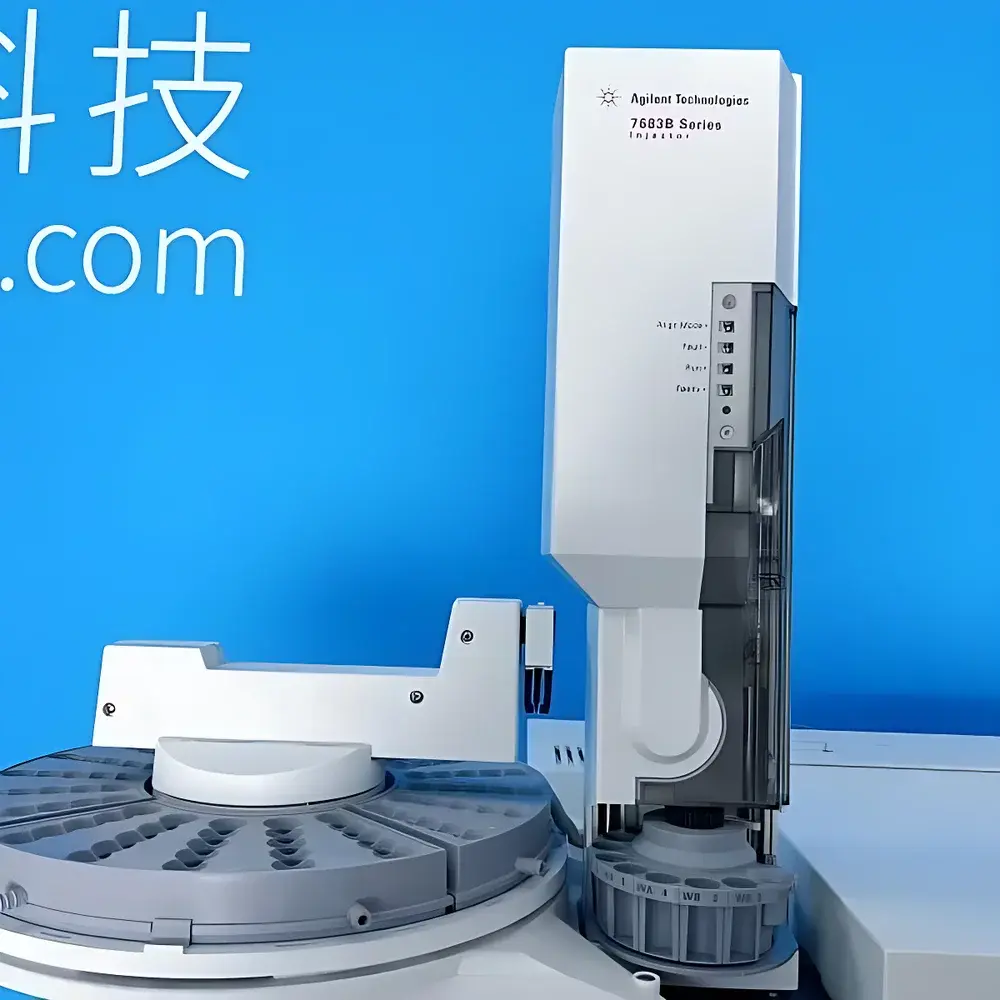

• Integrated control for Agilent 7683 autosampler—supporting standard vial trays, headspace sampling, micro-extraction, and variable injection volumes (0.1–100 µL)
• Expandable detector architecture: native support for FID, TCD, µECD, NPD, MSD, ICP-MS, and enhanced FPD; optional third-party detectors (SCD, PFPD, AED) via Agilent partner ecosystem
• Fast GC-ready platform: optimized thermal mass, low-dead-volume connections, and high-speed data acquisition (up to 500 Hz) for analyses completed in <10% of conventional GC runtime

Sample Compatibility & Compliance

The Agilent 7890A accommodates a broad spectrum of sample matrices—including aqueous extracts, hydrocarbon fractions, essential oils, residual solvents, and environmental air/water concentrates—when paired with appropriate column chemistry (e.g., DB-5ms, HP-INNOWAX, DB-VRX). Its inlet flexibility enables direct analysis of thermally labile or high-boiling compounds via cold-on-column or PTV techniques. From a regulatory standpoint, the system supports audit-ready operation when configured with ChemStation Plus software featuring secure user authentication, electronic signatures, and 21 CFR Part 11-compliant audit trails. It meets foundational requirements for ISO/IEC 17025 accredited testing, ASTM D3606/D5501 (gasoline analysis), USP <621>, and EPA Methods 502.2, 624, and 8260. All refurbished units undergo comprehensive leak testing, detector sensitivity verification (per Agilent performance checklists), and EPC linearity validation prior to delivery.

Software & Data Management

Instrument control and data processing are managed through Agilent ChemStation Plus—a validated, Windows-based platform supporting both single-instrument and networked deployment. ChemStore C/S provides centralized method and result archiving with role-based access control, while ChemAccess enables remote monitoring and reporting across distributed lab environments. For regulated industries, the software enforces ALCOA+ data integrity principles: attributable, legible, contemporaneous, original, and accurate records—with immutable audit logs capturing all parameter changes, sequence modifications, and report generation events. Optional Cerity QA/QC is available for petroleum laboratories requiring automated calibration verification, QC flagging, and compliance with API RP 2550 or ASTM D6708 statistical process control frameworks.

Applications

• Environmental analysis: VOCs in soil/water (EPA 8260), pesticides in drinking water (EPA 508), PCBs and dioxins (EPA 1668)
• Petrochemical QA/QC: Hydrocarbon type analysis (HTA), benzene/toluene/xylenes (BTX) quantification, simulated distillation (ASTM D2887)
• Pharmaceutical: Residual solvent testing (ICH Q3C), extractables/leachables profiling, stability-indicating assays
• Food & flavor: Volatile aroma compound profiling, adulteration screening, lipid oxidation markers (hexanal, malondialdehyde)
• Forensics & toxicology: Blood alcohol quantitation, drug metabolite identification, accelerant residue analysis

FAQ

Is this Agilent 7890A unit fully tested and calibrated before shipment?

Yes—each unit undergoes full functional verification including oven temperature accuracy, inlet pressure linearity, detector response linearity (FID/TCD baseline noise ≤ 1 pA RMS), and GC retention time repeatability across three consecutive injections.
Does it include original Agilent documentation and firmware?

All units ship with original installation manuals, service guides, and factory-default firmware images compatible with Agilent’s legacy support portal (no subscription required for basic operation).
Can this system be upgraded to support newer Agilent software versions?

ChemStation Plus remains the final supported version for the 7890A platform; no official migration path exists to OpenLab CDS, though third-party data import tools are available for legacy file conversion.
What warranty and technical support options are available?

Standard 6-month hardware warranty included; extended service plans with remote diagnostics and on-site engineer dispatch are available upon request.
Are consumables and spare parts still available for this model?

Yes—Agilent continues to supply critical spares (injector liners, septa, ferrules, detector components) and certified columns; third-party alternatives are widely available and functionally equivalent.
