Agilent Cary 7000 Universal Measurement Spectrophotometer (UMS)

Overview

The Agilent Cary 7000 Universal Measurement Spectrophotometer (UMS) is a high-precision, double-beam UV-Vis-NIR spectrophotometer engineered for comprehensive solid-sample characterization across research, development, and quality assurance workflows. Unlike conventional single-mode instruments, the Cary 7000 UMS integrates optical design principles rooted in absolute reflectance and transmittance metrology—leveraging dual-monochromator architecture, high-stability halogen and deuterium light sources, and low-noise photomultiplier tube (PMT) detection—to deliver quantitative spectral data from 175 nm (deep UV) to 3300 nm (short-wave NIR). Its core innovation lies in multi-angle, polarization-resolved measurement capability without mechanical repositioning of the sample, enabling simultaneous acquisition of s- and p-polarized spectra at user-defined incidence angles (e.g., 5°–85°) within a single automated sequence. This eliminates inter-measurement variability caused by sample handling, alignment drift, or accessory swapping—critical for GLP-compliant optical thin-film qualification, solar cell coating uniformity mapping, and high-optical-density (OD > 6) filter certification.

Key Features

• True universal measurement platform supporting absolute specular reflectance, diffuse reflectance, total transmittance, and diffuse transmittance—without manual realignment or accessory changes.
• Automated angular scanning with independent control of detector and sample stage positioning, enabling precise goniometric measurements compliant with ASTM E903 and ISO 9050 for optical coatings.
• Extended absorbance dynamic range up to 10 Abs, achieved via optimized signal-to-noise ratio (<0.0001 AU RMS at 500 nm) and dual-range analog-to-digital conversion—essential for high-OD filters, thick semiconductor films, and UV-blocking glass.

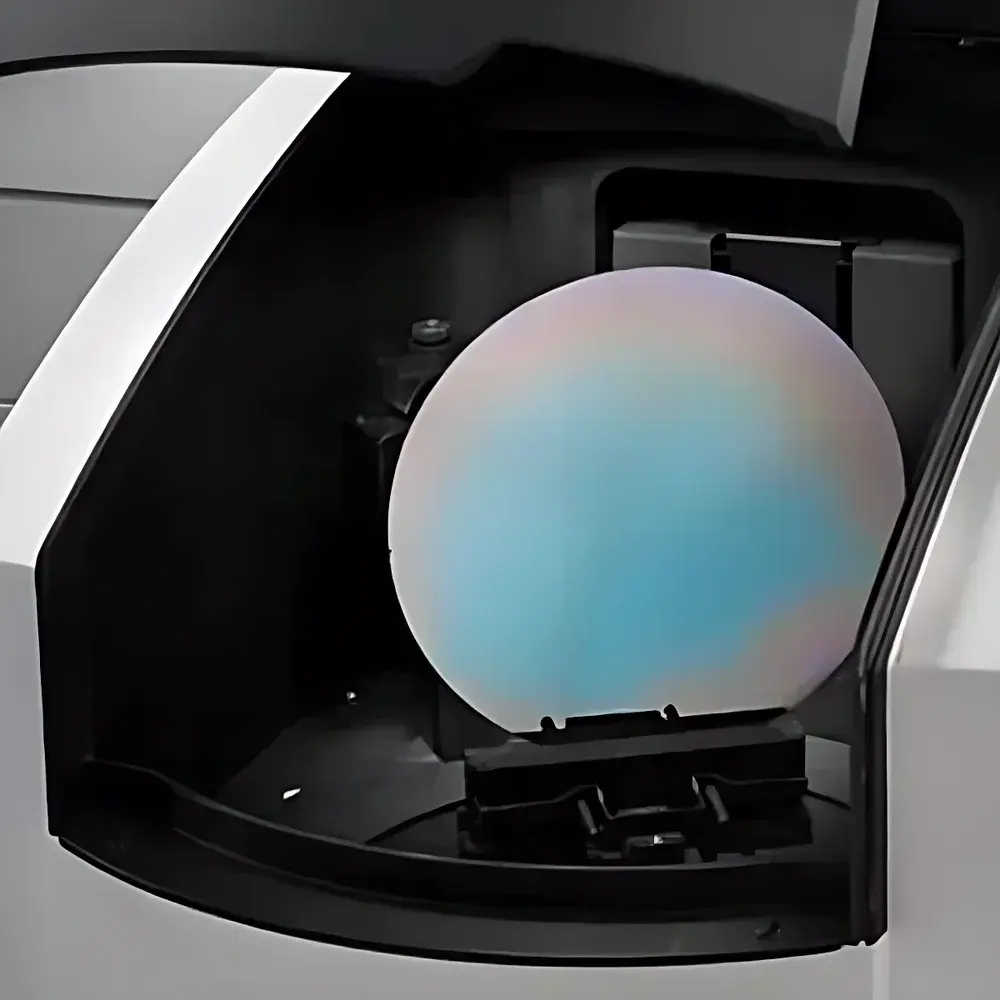

• Large sample compartment (20 mm Z-height clearance) with 360° motorized sample rotation and programmable XY translation, accommodating substrates from 10 mm pellets to 200 mm (8-inch) wafers.
• Variable slit-controlled spectral bandwidth: 0.01–5.00 nm (UV-Vis) and 0.04–20 nm (NIR), allowing resolution optimization per application—e.g., narrow bandwidth for fine-structure analysis of organic dyes, wider bandwidth for rapid NIR quantitation of polymer blends.
• Integrated solid-sample autosampler (optional) supporting up to 32 standard 25-mm (1-inch) samples or high-resolution spatial mapping (2 × 2 mm² pixelation) across large-area coated optics or photovoltaic modules.

Sample Compatibility & Compliance

The Cary 7000 UMS accommodates rigid and semi-rigid solids—including optical lenses, AR/HR coatings on fused silica, CIGS and perovskite thin films on glass substrates, architectural glazing, and IR-transmitting chalcogenide glasses. Its non-contact, collimated beam geometry minimizes edge diffraction artifacts and supports compliance with regulatory test protocols requiring traceable, angle-specific optical constants. The system meets ISO/IEC 17025 calibration traceability requirements when operated with NIST-traceable reference standards. For pharmaceutical and medical device QA/QC, method validation aligns with ICH Q2(R2) guidelines; data integrity conforms to FDA 21 CFR Part 11 through audit-trail-enabled Cary WinUV software.

Software & Data Management

Cary WinUV for UV-Vis-NIR Applications provides a validated, modular environment for method development, instrument control, and advanced spectral processing. Its drag-and-drop method editor enables creation of complex multi-angle, multi-polarization sequences with conditional logic (e.g., auto-baseline correction upon wavelength range change). Raw data are stored in vendor-neutral .csv and .jdx formats, while proprietary .uv files retain full metadata—including slit width, detector voltage, integration time, and goniometer coordinates—for full experimental reproducibility. Built-in tools support Kramers-Kronig transformation, Tauc plot generation, thin-film thickness modeling (via Cauchy or Sellmeier dispersion fitting), and multivariate analysis (PCA, PLS regression). All user actions—including parameter edits, baseline corrections, and report exports—are logged with timestamped, operator-identified audit trails meeting GLP/GMP documentation standards.

Applications

• Optical coating R&D: Determination of refractive index (n), extinction coefficient (k), and layer thickness via variable-angle spectroscopic ellipsometry (VASE)-compatible reflectance modeling.

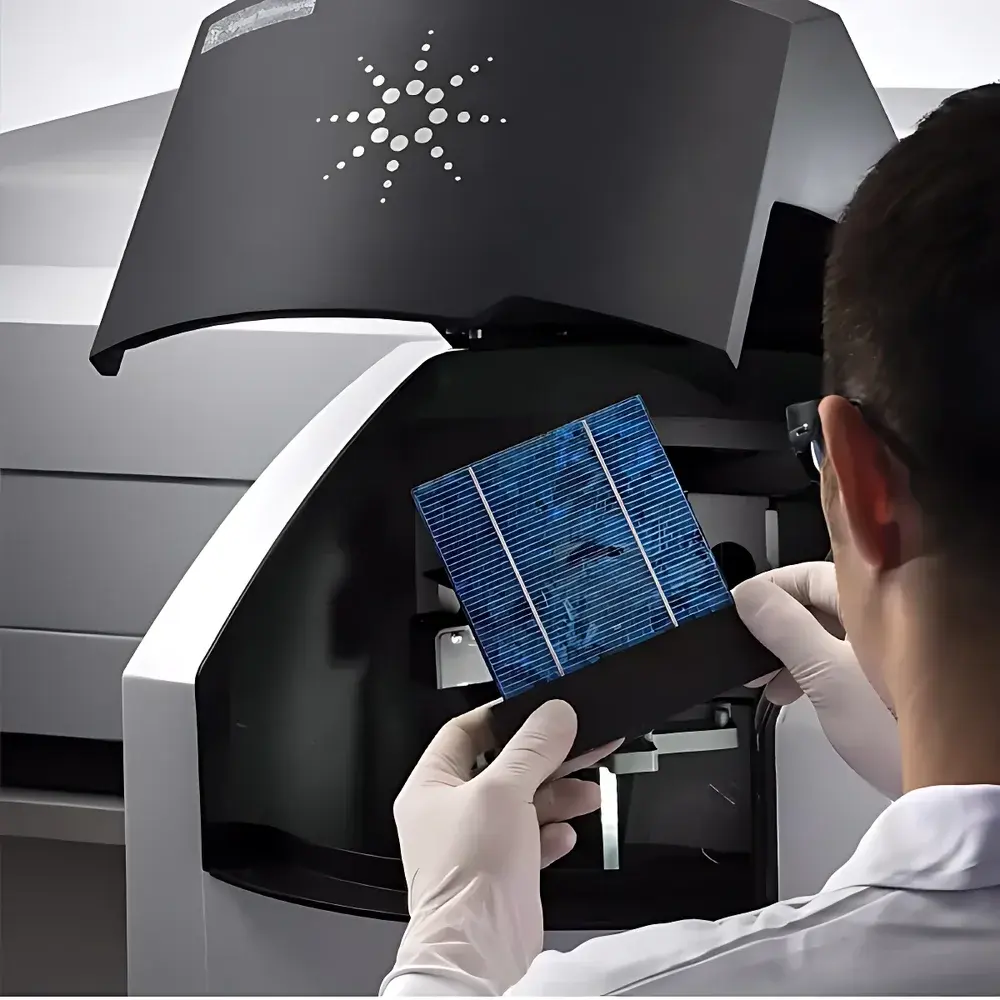

• Solar energy materials: Quantification of external quantum efficiency (EQE)-relevant absorption edges, anti-reflective coating performance across AM1.5G spectrum, and degradation kinetics under UV stress testing.
• Architectural and automotive glass: Spectral solar heat gain coefficient (SHGC) calculation per NFRC 300 and EN 410, including hemispherical transmittance/reflectance integration.
• Advanced packaging: NIR-based identification and quantification of polymer additives (e.g., UV stabilizers, flame retardants) in multilayer laminates.
• Academic spectroscopy: Teaching and research in condensed matter physics—e.g., bandgap determination of 2D materials (MoS₂, WS₂), plasmonic resonance mapping of nanostructured surfaces.

FAQ

What distinguishes the Cary 7000 UMS from standard UV-Vis-NIR spectrophotometers?
The UMS architecture eliminates reliance on discrete accessories (e.g., integrating spheres, goniometers) by embedding angular and polarization control directly into the optical train—enabling true multi-parameter measurement in one instrument configuration.
Can the Cary 7000 UMS measure both transmission and reflection on the same sample without reconfiguration?
Yes. Using its motorized sample stage and detector arm, it acquires co-registered transmittance and reflectance spectra at identical angles and polarization states within a single automated run.
Is the 10 Abs absorbance range validated across the full 175–3300 nm range?
The 10 Abs specification applies to the UV-Vis region (175–900 nm) using PMT detection; in the NIR (900–3300 nm), the extended range is achieved via InGaAs detector with equivalent dynamic linearity up to 8 Abs (verified per ASTM E275).
How does the system ensure measurement repeatability for large-area coated substrates?
The optional solid autosampler includes laser-assisted stage homing and closed-loop positional feedback, achieving ±2 µm XY repeatability—validated per ISO 10110-7 for optical element surface characterization.
Does Cary WinUV support third-party spectral database integration?
Yes. The software includes import/export filters for JCAMP-DX, ASTM E1421, and Bruker OPUS formats, enabling cross-platform library matching and spectral library expansion.
