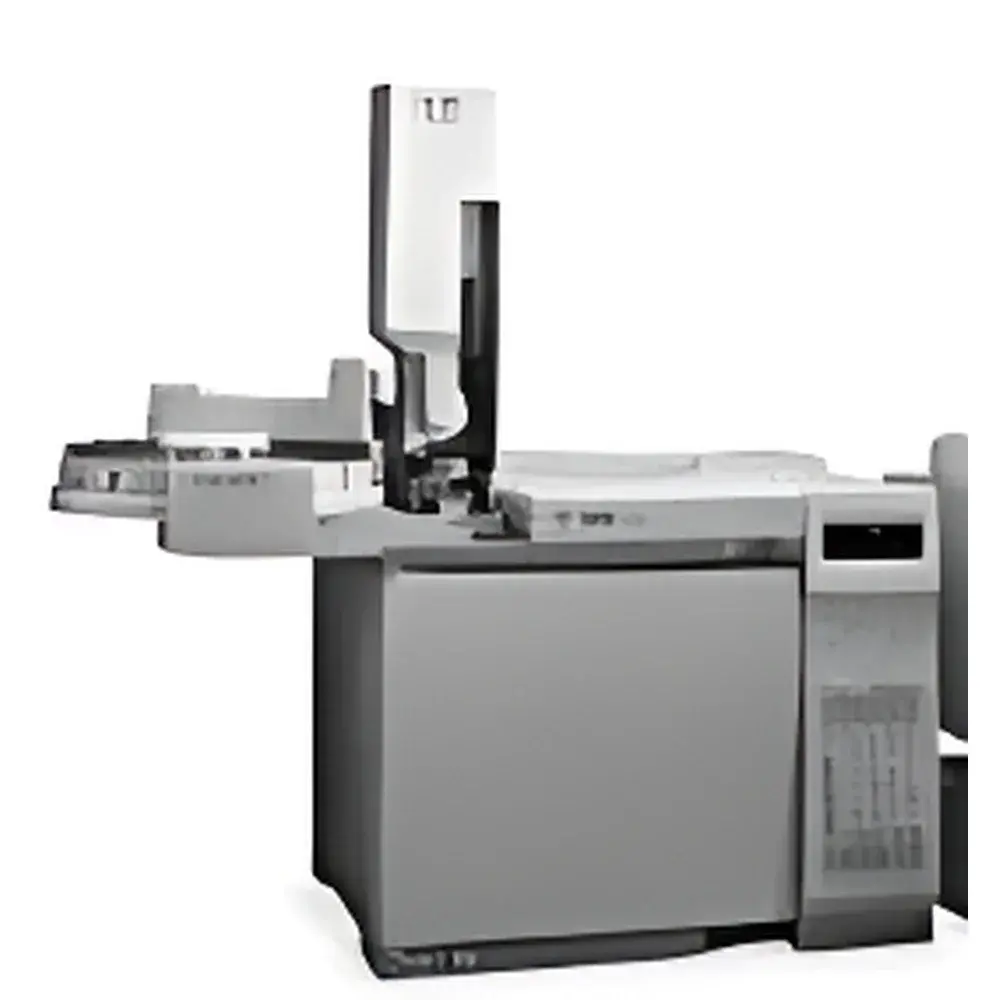

Agilent Certified Refurbished Gas Chromatograph 6890N

Overview

The Agilent Certified Refurbished Gas Chromatograph 6890N is a rigorously reconditioned analytical instrument engineered for high-reliability separation and quantification of volatile and semi-volatile organic compounds. Based on Agilent’s legacy 6890 platform—originally introduced in the late 1990s and widely deployed across pharmaceutical QC labs, environmental testing facilities, petrochemical R&D centers, and food safety laboratories—the 6890N employs capillary or packed column gas chromatography with programmable temperature ramping, precision pressure/flow control, and multiple detector options including FID, TCD, ECD, and NPD. Its modular architecture supports dual inlet/dual detector configurations, making it suitable for method development, routine analysis, and regulatory-compliant workflows. As a certified refurbished unit, each system undergoes full functional restoration by Agilent-certified engineers who originally designed and manufactured the platform—ensuring alignment with original performance specifications, mechanical tolerances, and pneumatic integrity.

Key Features

• Factory-refurbished by Agilent Technologies’ authorized service centers using OEM parts and calibrated reference standards
• Complete electro-mechanical validation per Agilent’s Certified Refurbishment Protocol—including leak testing, oven temperature uniformity verification, detector sensitivity calibration, and autosampler precision assessment
• New external chassis, updated firmware, and factory-installed latest-compatible software drivers
• Full 12-month limited warranty covering parts and labor—identical in scope and terms to that provided with new Agilent GC systems
• Backward compatibility with legacy Agilent 6890 consumables, columns (e.g., DB-5ms, HP-INNOWax), and accessories (e.g., 7683/7693 autosamplers)
• Support for modern chromatography data systems (CDS) including OpenLab CDS and legacy ChemStation under validated configurations
• Integrated compliance-ready features: configurable audit trails, user access levels, and electronic signatures when paired with 21 CFR Part 11–compliant CDS installations

Sample Compatibility & Compliance

The 6890N accommodates a broad range of sample matrices—including aqueous extracts, organic solvent solutions, headspace vapors, and thermal desorption tubes—when coupled with appropriate inlet systems (split/splitless, PTV, or cold-on-column). It meets foundational requirements for method validation under ISO/IEC 17025, ASTM D3606/D5501, USP <621>, and EPA Methods 502.2, 624, and 8021B. While the base hardware does not include built-in 21 CFR Part 11 enforcement, its operational stability and deterministic signal processing make it suitable for regulated environments when deployed with compliant software, documented SOPs, and periodic performance qualification (PQ) per ICH Q2(R2) guidelines.

Software & Data Management

Refurbished 6890N systems ship with firmware updated to the final supported revision and are validated for interoperability with Agilent OpenLab CDS v2.3 or later, as well as ChemStation Rev. E.02.02.1400+. All units include license keys for basic acquisition and reporting modules. Data files (.ch, .cdf) retain full traceability, including method parameters, sequence logs, and detector response metadata. Integration with LIMS is supported via standard ODBC and ASCII export protocols. Agilent’s Instrument Manager enables remote diagnostics, firmware updates, and configuration backup—facilitating centralized fleet management in multi-instrument laboratories.

Applications

• Residual solvent analysis in pharmaceutical active ingredients (ICH Q3C)
• VOC profiling in drinking water and wastewater (EPA 524.4, 624)
• Fatty acid methyl ester (FAME) analysis in biodiesel and edible oils (ASTM D6584)
• Pesticide residue screening in fruits and vegetables (AOAC 2007.01)
• Hydrocarbon speciation in gasoline and jet fuel (ASTM D5134, D1319)
• Essential oil fingerprinting and quality control in fragrance manufacturing

FAQ

What does “Agilent Certified Refurbished” mean?

It signifies that the instrument has been restored to original factory specifications by Agilent-trained engineers using genuine Agilent components, followed by comprehensive performance verification against Agilent’s published acceptance criteria.
Is the 6890N compatible with current Agilent software platforms?

Yes—refurbished units are firmware-updated and tested for full compatibility with OpenLab CDS v2.3+ and ChemStation E.02.02.1400+, including method migration and data reprocessing capabilities.
Does the warranty cover on-site service?

Yes—the 12-month warranty includes parts, labor, and on-site support through Agilent’s global field service network, subject to regional coverage terms.
Can I add a mass selective detector (MSD) later?

The 6890N was designed for direct coupling to Agilent 5973/5975 MSDs; however, retrofitting requires mechanical interface verification, vacuum system assessment, and firmware synchronization—services available through Agilent’s upgrade program.
Are consumables and spare parts still available?

All core consumables—including inlet liners, septa, gold seals, and GC columns—are actively stocked and supported by Agilent’s global supply chain; critical spares (e.g., FID jets, detector boards) remain available through Agilent’s extended lifecycle program.
