Agilent InfinityLab Pro iQ Series Single-Quadrupole LC/MS Detectors

Overview

The Agilent InfinityLab Pro iQ Series represents a new generation of compact, high-performance single-quadrupole liquid chromatography mass spectrometry (LC/MS) detectors engineered for routine molecular weight confirmation, impurity profiling, and mass-triggered fraction collection in regulated and discovery laboratories. Operating on the fundamental principle of quadrupole mass filtering—where ions are selectively transmitted based on their mass-to-charge ratio (m/z) under precisely controlled RF and DC voltage conditions—the Pro iQ leverages Agilent’s proprietary ion optics architecture to deliver robust transmission efficiency across a broad mass range. Its core ion path integrates the Cyclone Ion Guide, a pressurized RF-only multipole that enhances ion focusing and transmission from atmospheric pressure sources into the high-vacuum mass analyzer region, coupled with a hyperbolic quadrupole mass filter optimized for resolution stability and signal reproducibility. The system supports electrospray ionization (ESI), atmospheric pressure chemical ionization (APCI), dual-mode ESI/APCI (MMI), and—for the Pro iQ Plus variant—the Agilent Jet Stream (AJS) source, which improves desolvation efficiency and sensitivity for polar and thermally labile analytes. Designed for seamless integration with the Agilent Infinity III LC platforms, the Pro iQ operates as a true LC detector—providing real-time mass spectral data without requiring dedicated MS operator expertise.

Key Features

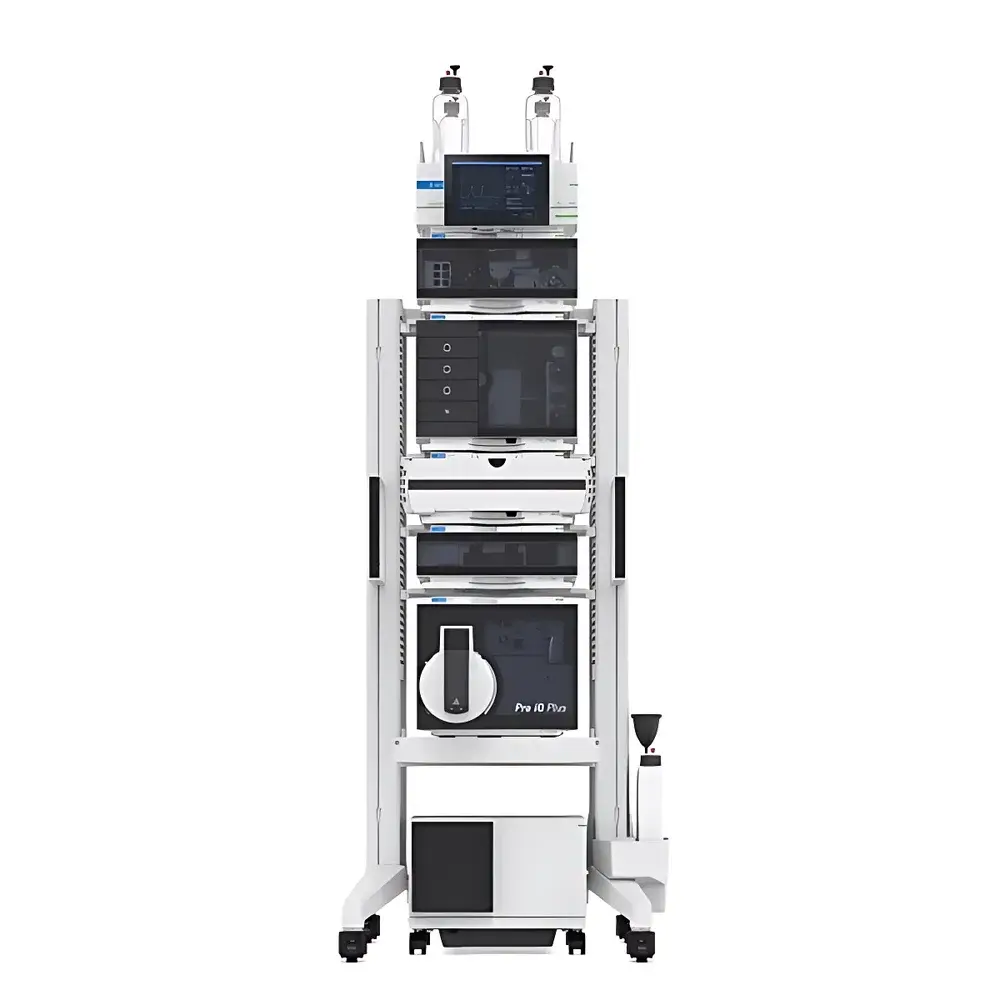

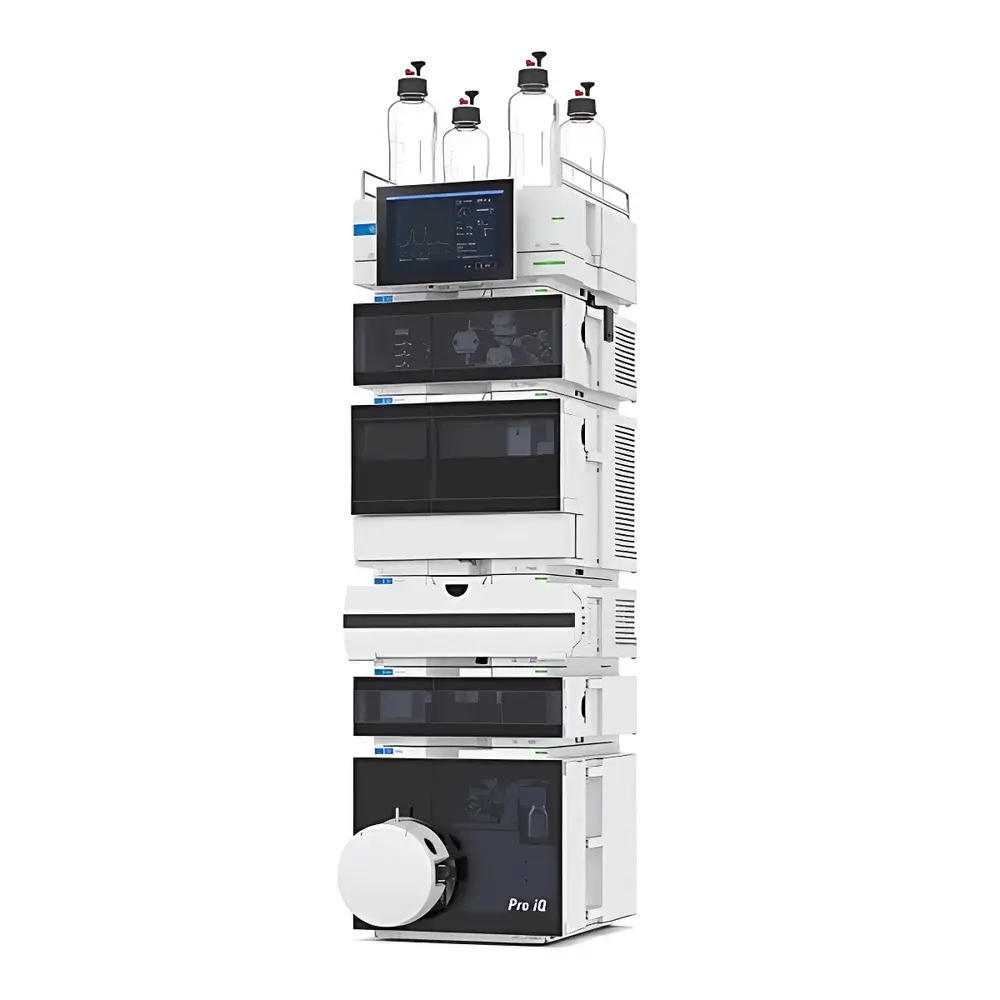

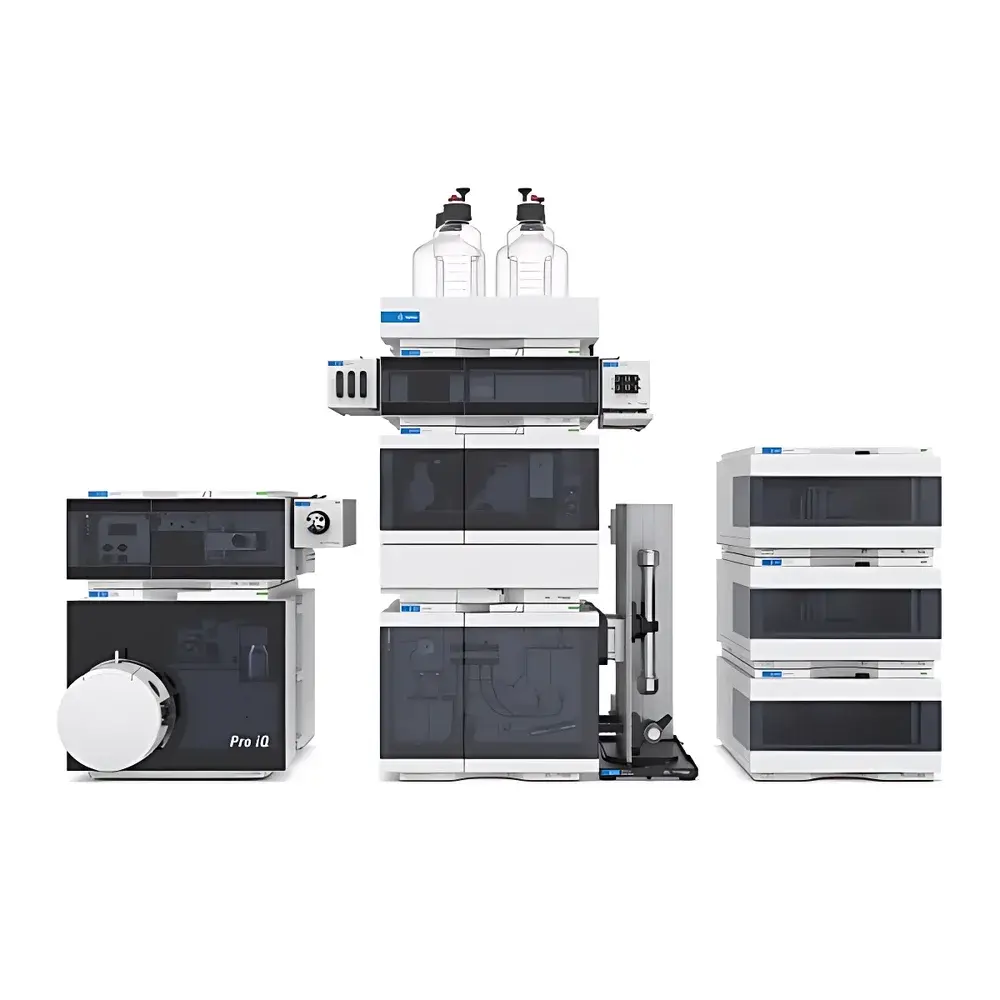

• Compact footprint (39.6 × 54.8 × 35.0 cm) enabling stackable configuration with Infinity III LC systems—including Prime and Bio configurations—on standard lab benches or Flex Bench MS mobile workstations.

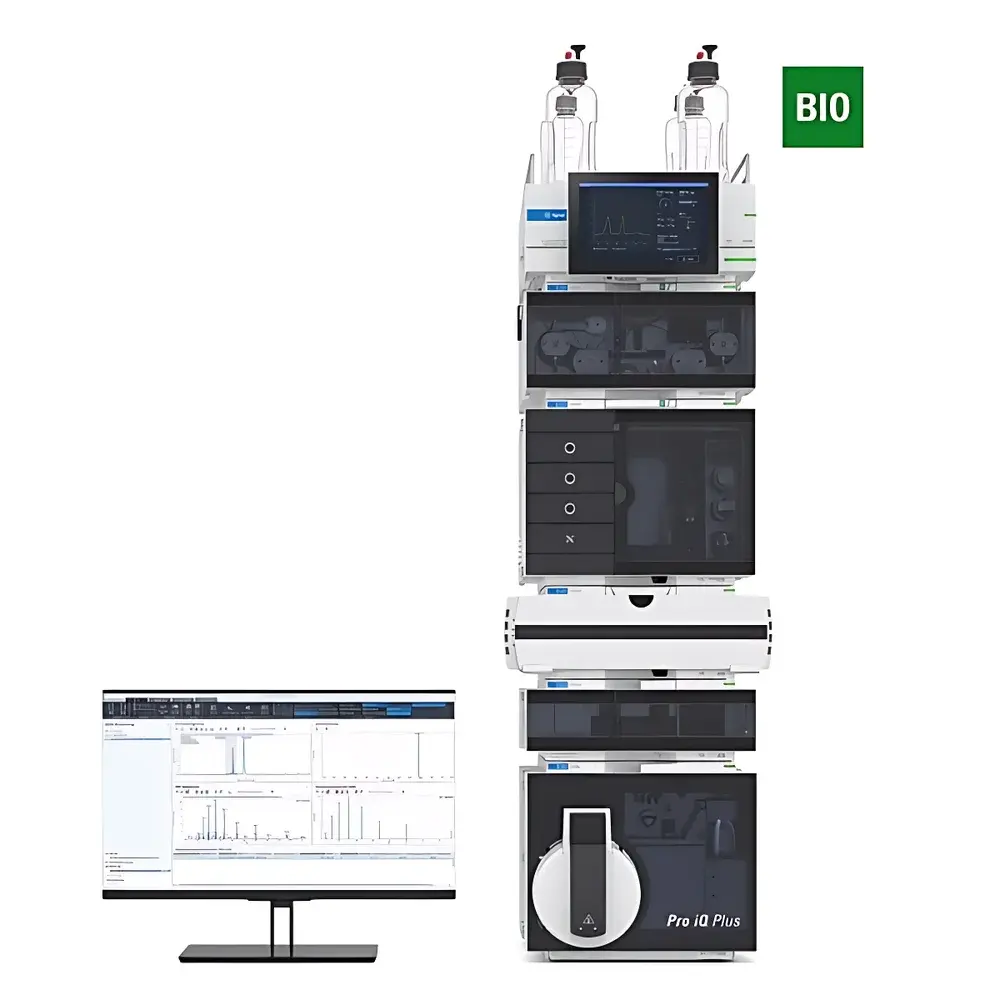

• Dual-model architecture: Pro iQ (m/z 2–1600) for general small-molecule analysis; Pro iQ Plus (m/z 2–3000) with AJS and extended mass range for oligonucleotides, peptides, and intact proteins.
• VacShield technology eliminates the need for venting during routine maintenance—reducing downtime and preserving vacuum integrity during source cleaning or replacement.
• InfinityLab Assist interactive touchscreen interface provides real-time instrument readiness status, embedded diagnostics, and guided workflow prompts—reducing dependency on specialized training.
• SWARM (Smart Workflow-Assisted Real-time Tuning) enables AI-driven automated tuning and scheduled calibration verification—ensuring consistent mass accuracy and sensitivity without manual intervention.
• Sub-15 ms polarity switching and 1 ms minimum SIM dwell time support rapid multi-analyte quantitation and high-throughput screening applications.
• Integrated noise-reduction design includes optional pump silencer enclosures and thermally managed cooling—meeting ISO 14040-aligned acoustic emission standards for shared laboratory environments.

Sample Compatibility & Compliance

The Pro iQ series accommodates diverse sample types—from volatile organics and pharmaceutical actives to large biomolecules—via interchangeable ion sources and configurable acquisition methods. ESI and AJS modes provide complementary coverage for polar/nonpolar compounds; APCI extends utility to low-polarity, thermally stable molecules. All configurations comply with regulatory data integrity requirements: OpenLab CDS implements full 21 CFR Part 11 compliance—including electronic signatures, audit trails, role-based access control, and immutable raw data storage. Instrument qualification documentation aligns with ICH Q2(R2), USP , and ISO/IEC 17025 frameworks. Routine performance verification follows Agilent-defined PQ protocols for mass accuracy (±0.2 Da), sensitivity (S/N ≥ 50:1 at specified concentrations), and retention time stability (< 0.5% RSD over 24 h). The system supports GLP/GMP-compliant workflows through traceable method versioning, electronic lab notebook (ELN) integration, and automated report generation with digital signature embedding.

Software & Data Management

OpenLab CDS serves as the primary acquisition, processing, and reporting platform for the Pro iQ series—offering validated modules for mass-directed fraction collection, deconvolution of complex spectra (e.g., monoclonal antibody charge variants), and oligonucleotide sequence verification. Its Mass-Directed Fraction Collection (MDFC) engine supports up to five simultaneous MS triggers per peak—including [M+H]⁺, [M+Na]⁺, [M−H]⁻, and [M+NH₄]⁺—enabling comprehensive adduct capture without UV co-detection. The Deconvolution Accelerator module automates baseline correction, peak picking, and isotopic envelope fitting for peptides and oligos—outputting monoisotopic mass, purity estimates, and confidence scores. MassHunter WalkUp enables walk-up operation with preloaded methods and user-defined result templates—ideal for core facilities. All software components undergo annual revalidation per Agilent’s software lifecycle policy, with version-controlled patch deployment and documented change impact assessments.

Applications

• Molecular weight confirmation of synthetic intermediates, APIs, and degradation products in QC/QA laboratories—aligned with ICH Q5C and USP .
• Impurity identification and quantification in forced degradation studies—leveraging high-sensitivity SIM and MRM capabilities.
• Mass-triggered purification of natural products, peptides, and oligonucleotides using 1260/1290 Infinity III preparative LC systems—achieving >95% purity in single-pass runs.
• Batch consistency assessment of biologics via intact mass analysis and charge variant profiling—supported by OpenLab CDS’s oligonucleotide and protein deconvolution accelerators.
• High-throughput reaction monitoring in medicinal chemistry—enabled by fast polarity switching, automated method sequencing, and WalkUp accessibility.
• Sustainability-focused operation via energy-efficient standby mode, oil-free pump options, and ACT-labeled environmental impact transparency (including CO₂e footprint and recyclability metrics).

FAQ

What regulatory standards does the Pro iQ Series support for GxP environments?
The system—when operated with OpenLab CDS v2.8 FP2 or later—fully complies with 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 requirements, including electronic signatures, audit trail review functionality, and secure data archiving.
Can the Pro iQ be used for intact protein analysis?
Yes—the Pro iQ Plus model (m/z 2–3000) with AJS source and optimized deconvolution workflows in OpenLab CDS supports reliable intact mass determination for proteins up to ~30 kDa, including mAbs and fusion proteins.
Is vacuum break required for source maintenance?
No—VacShield technology maintains rough vacuum during source access, allowing cleaning or replacement without venting the mass analyzer chamber.
How is instrument performance monitored over time?
InfinityLab Assist continuously logs key operational parameters (ion signal intensity, vacuum pressure, detector voltage), while the Early Maintenance Feedback system alerts users prior to component failure—supporting predictive service scheduling.
What level of technical training is required for routine operation?
Operators with basic LC experience can perform daily analyses using pre-configured OpenLab CDS methods and InfinityLab Assist-guided workflows—no formal MS certification is required for standard MW confirmation or impurity detection tasks.
