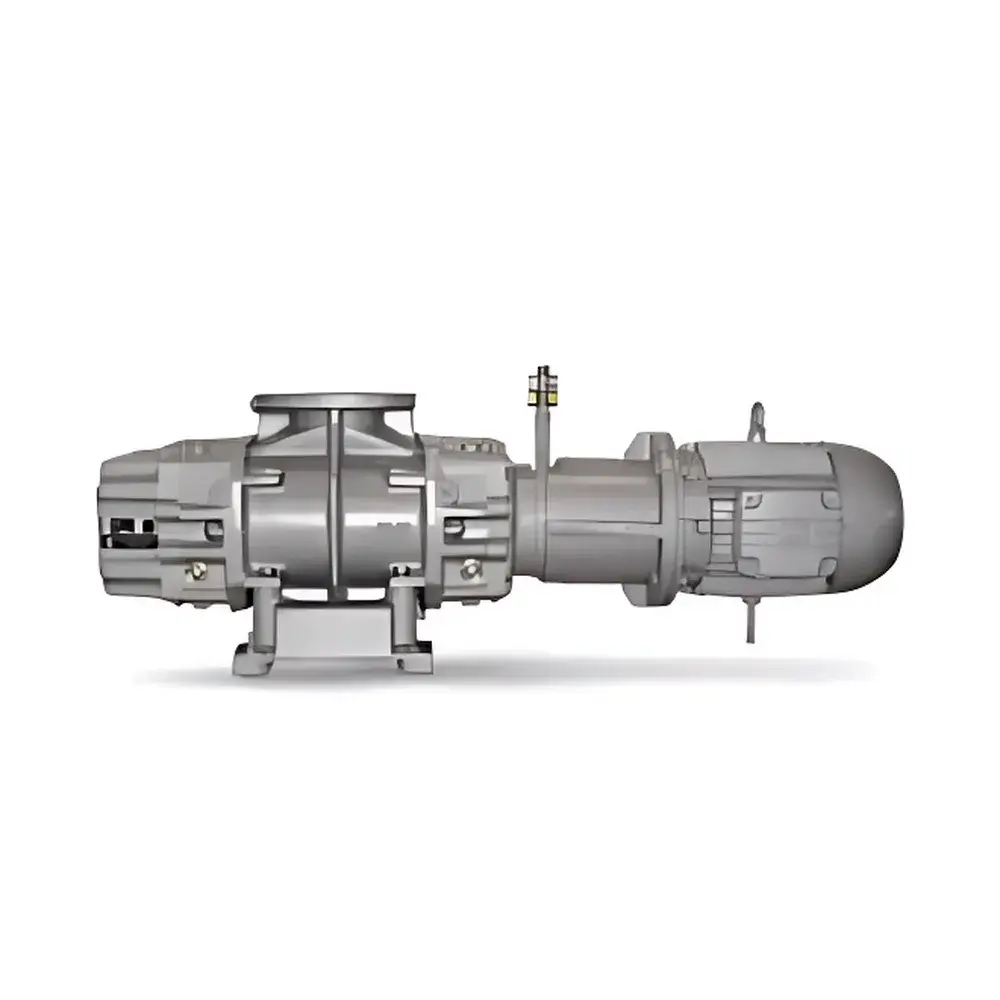

Agilent RP-1001 Roots Vacuum Pump
| Brand | Agilent Technologies |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Vacuum Pump |
| Model | RP-1001 Roots Vacuum Pump |
| Pricing | Upon Request |
Overview
The Agilent RP-1001 Roots vacuum pump is a high-performance, dry, positive-displacement vacuum booster designed for integration into multi-stage vacuum systems where rapid evacuation of large gas volumes at low to medium vacuum ranges (typically 1 × 10−2 to 100 mbar) is required. Operating on the principle of synchronized counter-rotating lobed rotors—geometrically interlocked but non-contacting—the RP-1001 generates pumping action without internal lubrication in the vacuum chamber, eliminating oil backstreaming and ensuring hydrocarbon-free operation. As a fore-vacuum booster, it extends the effective operating range of primary backing pumps (e.g., scroll, diaphragm, or oil-sealed rotary vane pumps), improving system ultimate pressure by approximately one order of magnitude. Its robust cast-aluminum housing, precision-machined timing gears, and dynamically balanced rotor assembly are engineered for long-term stability under continuous duty cycles in analytical, semiconductor, coating, and R&D environments.
Key Features
- Dry, oil-free operation: Non-contacting rotors eliminate need for vacuum-side lubrication, ensuring ultra-clean vacuum conditions critical for sensitive surface science, thin-film deposition, and mass spectrometry applications.
- High differential pressure capability: Maximum allowable inlet-to-outlet pressure difference of 125 mbar enables rapid initial pump-down and stable operation even under fluctuating load conditions.
- Low-noise, low-vibration design: Precision ground timing gears and dynamic rotor balancing reduce mechanical emissions to <65 dB(A) at 1 m, supporting installation in shared laboratory spaces and ISO Class 5–7 cleanrooms.
- Air-cooled architecture: Integrated high-efficiency finned heat sink and axial fan eliminate dependency on external water cooling infrastructure—reducing installation complexity, footprint, and operational overhead.
- Variable-frequency drive (VFD) option: Enables consistent rotational speed (and thus pumping speed) across global power grids (50/60 Hz); delivers up to 20% higher volumetric flow rate when paired with smaller motors in 50 Hz regions.
- Compact modular footprint: Designed for direct flange-mounting to compatible backing pumps or vacuum chambers using ISO-KF 40/50 or CF 63 interfaces; supports vertical or horizontal orientation per system layout requirements.
Sample Compatibility & Compliance
The RP-1001 is compatible with inert, non-corrosive, and non-condensable gases typical in vacuum metallurgy, electron microscopy sample preparation, vacuum drying, and leak detection workflows. It is not intended for use with solvent vapors, reactive halogens, or particulate-laden streams without upstream cold traps or particle filters. The pump complies with IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity). All electrical components meet UL 61010-1 and CE marking requirements for laboratory equipment. Optional VFD units support EN 61800-3 for adjustable-speed drive systems. While not intrinsically safe, the RP-1001 may be deployed in ATEX Zone 2 environments when installed with appropriate motor protection and ventilation per EN 60079-14 guidelines.
Software & Data Management
The RP-1001 operates as a standalone mechanical device and does not incorporate embedded firmware or digital control interfaces. However, its VFD variant integrates standard 0–10 V analog input and Modbus RTU (RS-485) for remote speed regulation and status monitoring (e.g., rotation speed, thermal shutdown alerts, fault codes) within SCADA or LabVIEW-based vacuum system controllers. Agilent provides comprehensive technical documentation—including dimensional drawings, torque specifications, and maintenance intervals—in PDF format compliant with ISO 9001 document control protocols. Audit trails for calibration and service history are maintained externally via lab asset management systems adhering to GLP and FDA 21 CFR Part 11 requirements when used in regulated QC/QA settings.
Applications
- Boosting vacuum performance in high-throughput mass spectrometry sample introduction systems.
- Enabling faster cycle times in vacuum furnaces and sintering ovens for materials research.
- Supporting stable base pressure in electron beam lithography and focused ion beam (FIB) platforms.
- Improving throughput in vacuum packaging R&D and accelerated aging studies.
- Providing reliable roughing support for turbomolecular pump arrays in semiconductor process tool clusters.
- Facilitating rapid degassing in polymer extrusion and composite resin infusion pilot lines.
FAQ
What is the recommended backing pump for the RP-1001?
A scroll pump or dual-stage rotary vane pump with a minimum pumping speed of 12 m³/h and ultimate pressure ≤5 × 10−2 mbar is recommended to ensure optimal staging and thermal management.
Can the RP-1001 be operated continuously at full speed?
Yes—its air-cooled thermal design and dynamically balanced rotors support continuous duty at rated speed; however, prolonged operation above 80% of maximum differential pressure requires verification of backing pump capacity and ambient temperature (<40 °C).
Is routine maintenance required?
No consumables or vacuum-side lubrication are needed; annual inspection of timing gear backlash, belt tension (if VFD-equipped), and cooling fan functionality is advised per Agilent’s Maintenance Schedule Rev. 3.2.
Does the RP-1001 meet ISO 8573-1 Class 0 air purity requirements?
As a dry mechanical pump, it delivers Class 0 oil-free vacuum; however, ISO 8573-1 applies to compressed air—not vacuum systems—and is therefore not applicable. For vacuum cleanliness, refer to ISO 20482 (vacuum system contamination testing).
