Agilent TwisTorr 305 FS Turbo Molecular Pump

Overview

The Agilent TwisTorr 305 FS Turbo Molecular Pump is an ultra-high vacuum (UHV) pumping solution engineered for scientific and industrial applications demanding extreme base pressures, exceptional gas handling selectivity, and operational resilience in electromagnetically sensitive or radiation-intensive environments. Based on the principle of momentum transfer via high-speed rotating blades (typically >90,000 rpm), the pump achieves molecular flow conditions where gas molecules collide more frequently with rotor surfaces than with each other—enabling efficient compression and exhaust of light gases such as hydrogen and helium while maintaining high compression ratios (>10⁹ for H₂). Its ultimate pressure specification of <1 × 10⁻¹⁰ mbar meets stringent requirements for surface science, particle accelerator beamlines, electron microscopy, and high-resolution mass spectrometry—where residual hydrocarbons or vibration-induced signal noise would compromise measurement fidelity.

Key Features

• Maintenance-free magnetic bearing system: Eliminates mechanical wear, lubrication requirements, and associated outgassing—ensuring long-term stability and zero consumable cost over typical service intervals exceeding 20,000 operating hours.
• Hydrocarbon-free operation: No oil or grease in the vacuum path; compatible with UHV-compatible materials (e.g., stainless steel 316L, ceramic insulators) and bake-out capable up to 150 °C.
• Low-vibration, low-noise design: Vibration amplitude <0.5 µm RMS at operating speed; acoustic emission limited to 41 dB(A) at 1 m—critical for interferometric setups, cryogenic systems, and scanning probe instrumentation.
• Extended remote control capability: Integrated Bluetooth 5.0 module enables bidirectional communication with the Vacuum Link mobile application at distances up to 100 m (line-of-sight), supporting real-time status monitoring, start/stop sequencing, and fault diagnostics without physical controller proximity.
• Radiation- and magnetic-field-hardened architecture: Fully passive electronics layout with no embedded microcontrollers or memory devices; rated for operation in static magnetic fields up to ±2 T and gamma radiation doses up to 10⁶ rad (Si)—validated per ASTM E721 and IEC 62582 standards.

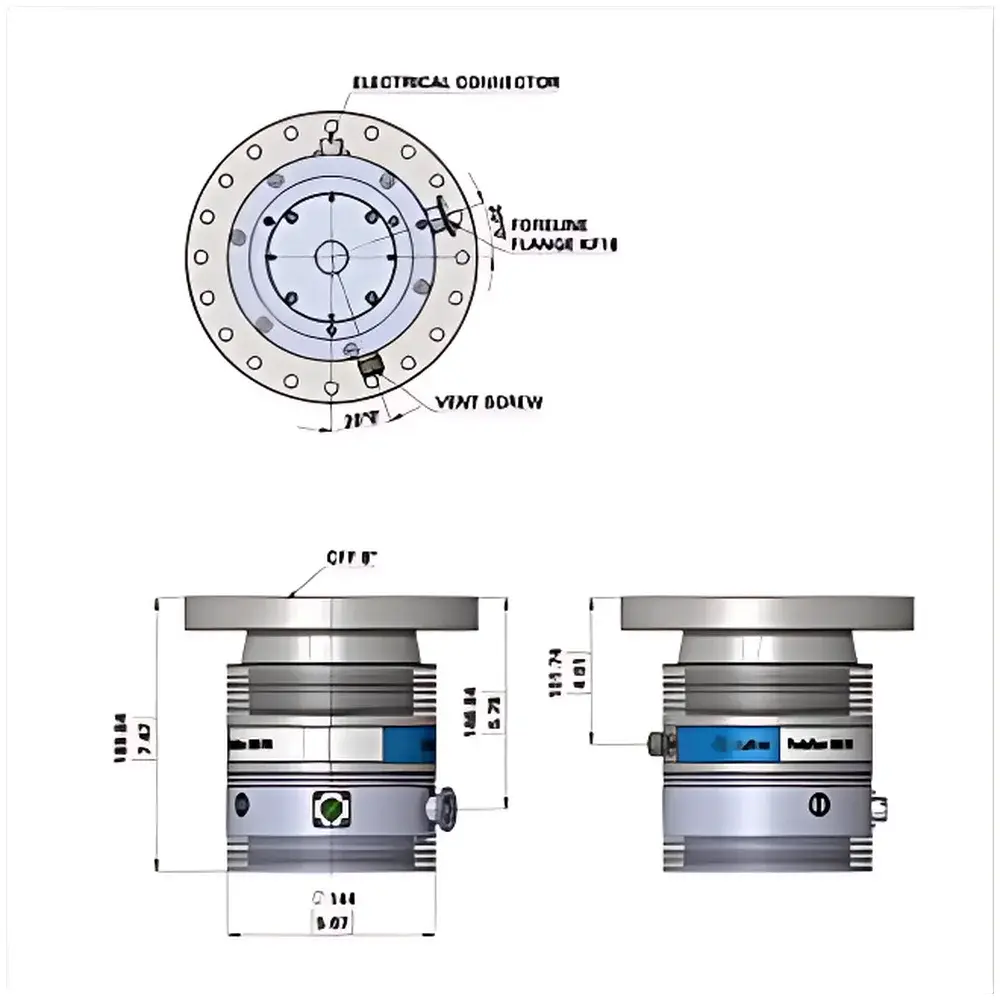

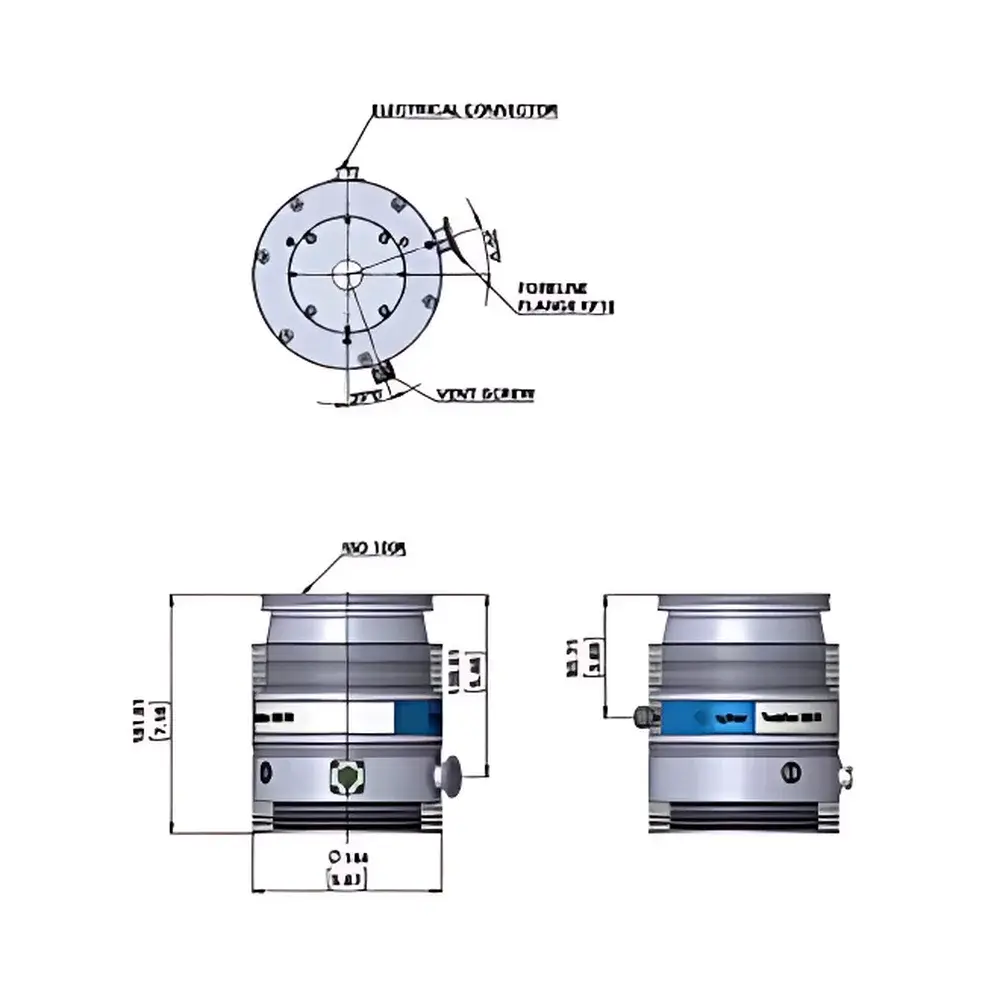

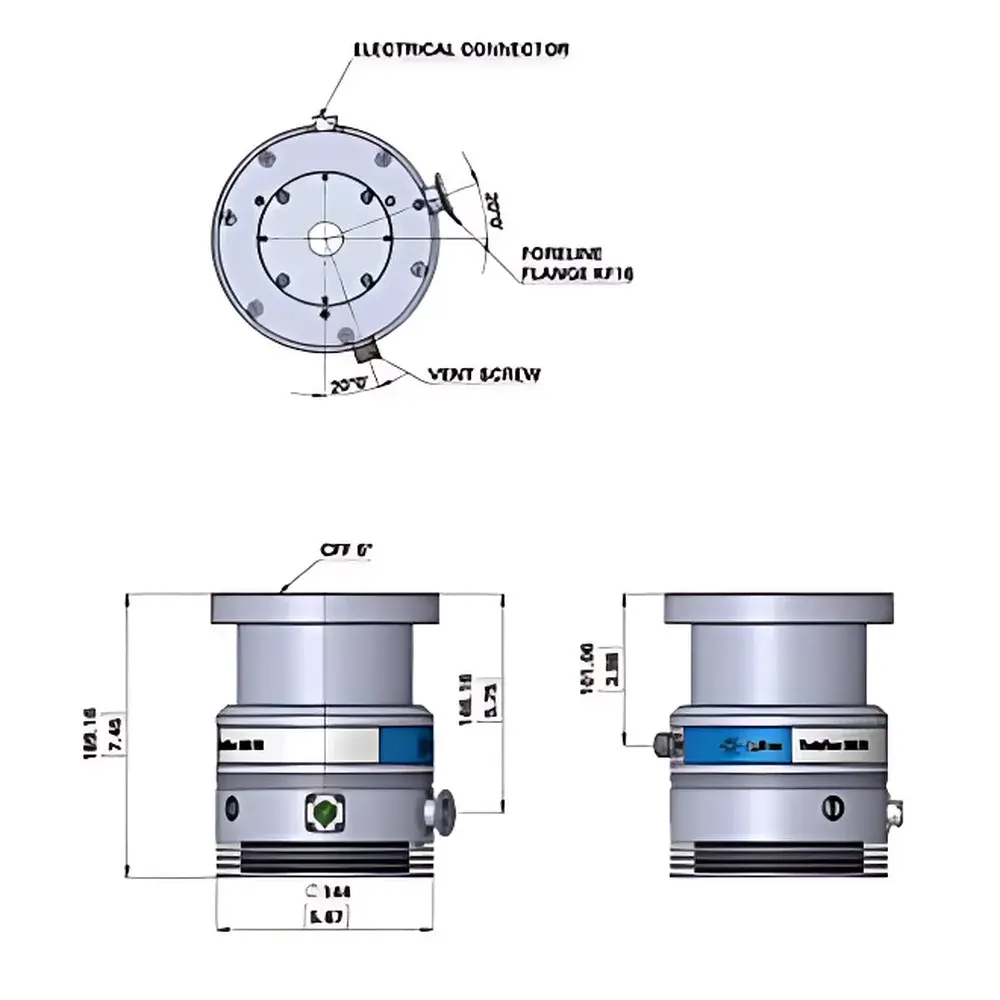

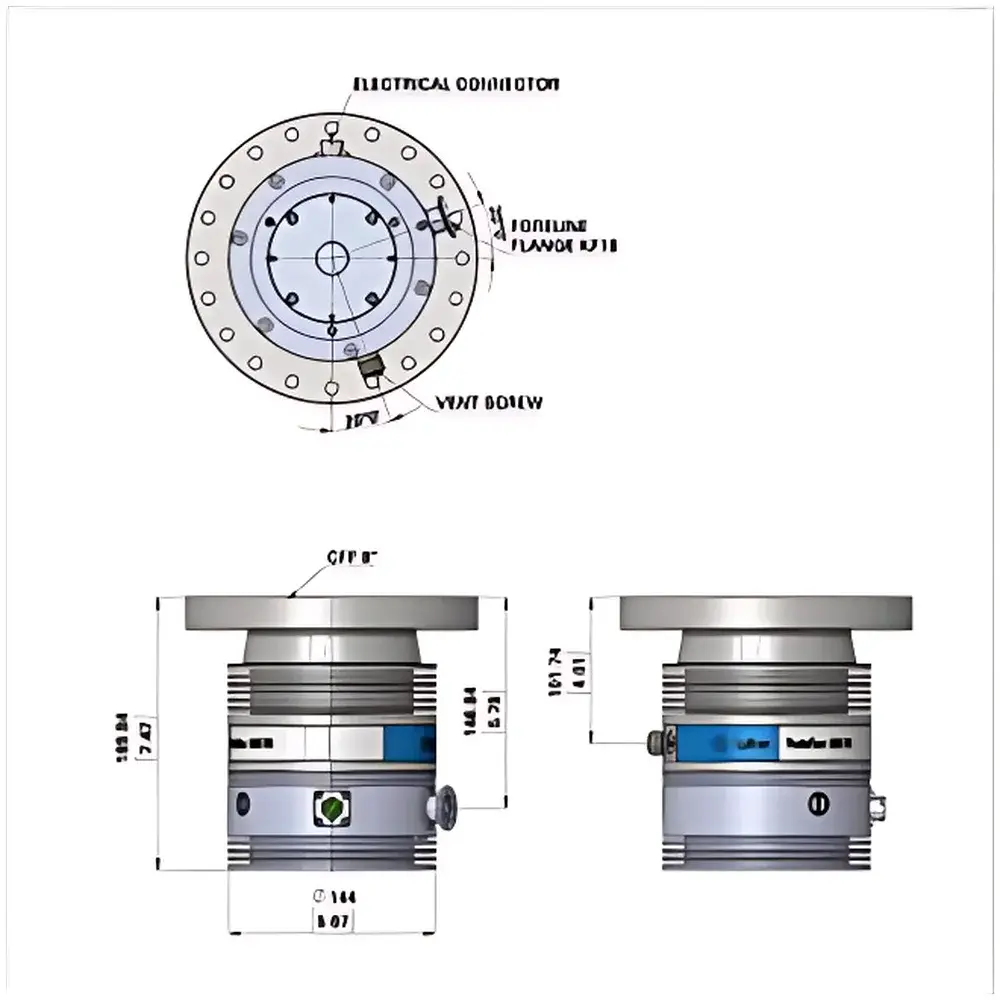

• Compact, orientation-flexible mounting: Cylindrical form factor (Ø145 mm × 220 mm L) with ISO-KF 63 and CF 63 flange options; supports vertical, horizontal, or inverted installation without performance degradation.

Sample Compatibility & Compliance

The TwisTorr 305 FS is compatible with inert, reactive, and corrosive process gases—including Cl₂, NH₃, and O₂—when paired with appropriate foreline protection (e.g., dry scroll or diaphragm backing pumps). It complies with ISO 27430 (vacuum technology — turbo-molecular pumps — terminology and performance characteristics), CE marking under EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU, and conforms to RoHS 2011/65/EU and REACH SVHC regulations. For regulated laboratories, its digital interface supports audit-trail-capable logging when integrated with Agilent’s Vacuum Control Suite v3.x, meeting GLP/GMP documentation requirements per FDA 21 CFR Part 11 for electronic records and signatures.

Software & Data Management

Vacuum Link—a cross-platform application (iOS, Android, Windows)—provides secure, encrypted Bluetooth pairing and role-based access control. Real-time telemetry includes rotational speed, bearing temperature, motor current, vacuum gauge readings (via analog or RS485 input), and error codes mapped to ISO 16068-2 diagnostic taxonomy. All session data are timestamped and exportable in CSV or HDF5 format for traceability. When connected to a networked Agilent Vacuum Controller (e.g., VACUUBRAND PCG-554 or equivalent), the pump participates in centralized vacuum system orchestration with programmable interlocks, ramp-rate control, and predictive maintenance alerts based on cumulative runtime and thermal history.

Applications

• Ultra-high vacuum chambers for synchrotron beamline end stations and free-electron laser (FEL) diagnostics
• Residual gas analysis (RGA) systems requiring stable base pressure below 10⁻¹⁰ mbar
• Time-of-flight and Orbitrap mass spectrometers where hydrocarbon contamination degrades mass accuracy and dynamic range
• Cryopumped dilution refrigerators requiring vibration isolation and magnetic field immunity
• Surface science platforms (XPS, AES, LEED) where monolayer-level adsorption kinetics depend on clean, stable vacuum
• Nuclear physics experiments involving neutron irradiation or superconducting magnet integration

FAQ

What is the maximum allowable forepressure for continuous operation?
The TwisTorr 305 FS requires a foreline pressure ≤1 × 10⁻² mbar for safe, sustained operation; use of an appropriate dry backing pump is mandatory.
Can the pump be operated during chamber bake-out?
Yes—the pump head is rated for bake-out temperatures up to 150 °C when isolated from the drive electronics using a thermally decoupled mounting configuration.
Does it support analog vacuum gauge input?
Yes—0–10 VDC and 4–20 mA inputs are supported for direct pressure feedback integration.
Is firmware update capability available wirelessly?
Firmware updates require USB connection to a host PC running Agilent Vacuum Utility; Bluetooth is reserved for runtime control and diagnostics only.
What safety certifications apply to its use in Class 1 Div 1 hazardous locations?
The TwisTorr 305 FS is not intrinsically safe certified; explosion-proof enclosures or purge systems must be implemented per NEC Article 500 when deployed in hazardous areas.
