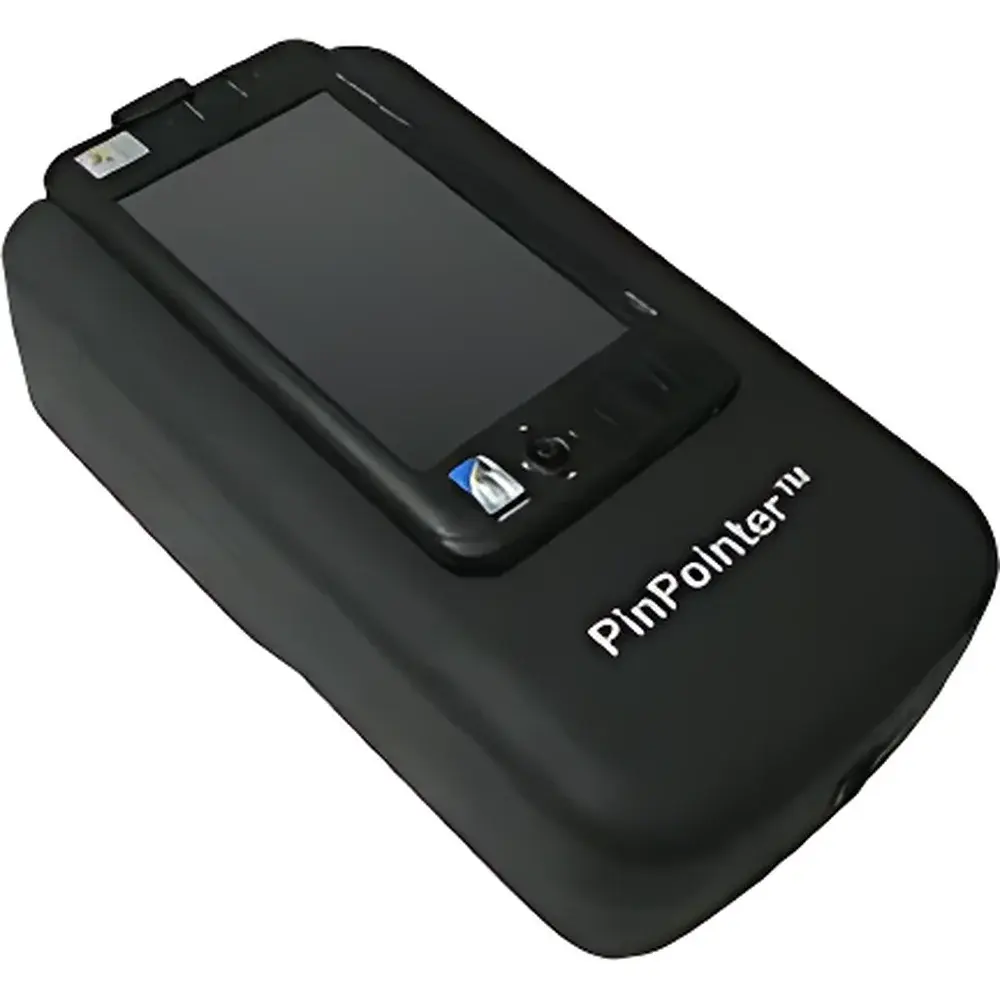

Agiltron PinPointer Handheld Raman Spectrometer

Overview

The Agiltron PinPointer Handheld Raman Spectrometer is a compact, field-deployable analytical instrument engineered for rapid, non-destructive molecular identification via inelastic light scattering. Based on confocal 785 nm diode laser excitation and high-efficiency backscattering optics, the PinPointer delivers laboratory-grade Raman spectral data in a palm-sized form factor—enabling real-time chemical verification without sample preparation or physical contact. Its design prioritizes operational robustness across variable environmental conditions, making it suitable for applications ranging from first-responder hazardous material screening to quality assurance in pharmaceutical manufacturing environments. Unlike benchtop systems requiring controlled lab settings, the PinPointer integrates thermal-stabilized optics and vibration-damped optical path architecture to maintain spectral fidelity during handheld use.

Key Features

• True handheld ergonomics: Weighing only 1.36 kg with dimensions of 216 × 109 × 64 mm, the device fits comfortably in one hand and operates without external support or tripod mounting.
• Optimized optical train: A custom-designed reflective collimation system minimizes chromatic aberration and maximizes photon throughput across the 200–2400 cm⁻¹ Raman shift range, ensuring consistent signal-to-noise ratio even under low-light ambient conditions.
• Modular sampling interface: Includes a detachable fiber-coupled probe (NA = 0.28, 5 mm working distance, < 0.2 mm spot size) and an optional liquid cuvette holder for direct transmission-mode analysis of solvents, suspensions, or viscous samples.
• Onboard spectral processing engine: Real-time baseline correction, cosmic ray removal, and peak detection algorithms run natively on the embedded ARM-based processor—eliminating dependency on external computers during field acquisition.
• Integrated rechargeable power system: Dual-power operation supports continuous field use (≥4 h typical runtime) and seamless transition to AC mains via universal voltage input (100–240 V, 50/60 Hz).

Sample Compatibility & Compliance

The PinPointer accommodates solid, powder, gel, and liquid samples—including opaque, fluorescent, or thermally sensitive materials—without requiring dilution, pelleting, or coating. Its 785 nm excitation wavelength significantly reduces fluorescence interference commonly observed with visible lasers, enabling reliable identification of dyes, polymers, APIs, and illicit substances. The instrument meets IEC 61326-1:2013 for electromagnetic compatibility and conforms to IP54 ingress protection standards for dust and water resistance. While not certified as intrinsically safe, its low-power laser classification (Class 3B per IEC 60825-1:2014) ensures compliance with occupational safety guidelines when used with supplied laser safety glasses. Data integrity aligns with GLP/GMP principles through audit-trail-enabled software logging and timestamped spectral metadata capture.

Software & Data Management

The proprietary PinPointer SpectraSuite software provides full control of acquisition parameters, library matching, and report generation on Windows and macOS platforms. It hosts a validated reference library of >8,000 Raman spectra—including USP, EP, and NIST-certified entries—and supports user-defined library creation with spectral preprocessing tools (vector normalization, Savitzky-Golay smoothing, derivative transformation). All acquired spectra are stored in open-format .spc files compliant with ASTM E131-22 standard for spectroscopic data exchange. Software features include CFR Part 11-compliant electronic signatures, role-based access control, and automatic backup to network drives or cloud storage via configurable sync policies.

Applications

• Pharmaceutical QA/QC: Rapid verification of raw material identity (RMID), counterfeit drug detection, and blend uniformity assessment at production line checkpoints.
• Hazardous materials response: On-site identification of unknown solids, liquids, or residues—including explosives, precursors, and toxic industrial chemicals—in accordance with NFPA 472 protocols.
• Academic and forensic research: In situ analysis of pigments, historical artifacts, biological tissues, and microplastics without destructive sampling.
• Food safety inspection: Detection of adulterants (e.g., melamine, Sudan dyes) and verification of authenticity in spices, oils, and dairy products.
• Materials science fieldwork: Polymer crystallinity mapping, carbon allotrope characterization (graphene, CNTs), and catalyst surface analysis under ambient conditions.

FAQ

Is the PinPointer suitable for quantitative analysis?
The instrument is primarily designed for qualitative identification and semi-quantitative trend monitoring. For regulatory-grade quantification, users must perform method validation per ICH Q2(R2) guidelines using matrix-matched calibration standards.
Can it be used in direct sunlight?
Yes—the optical design incorporates notch filtering and temporal gating to suppress ambient broadband interference; however, optimal SNR is achieved under shaded or indoor conditions.
Does it require annual recalibration?
No routine recalibration is mandated. The internal wavelength reference (silicon peak at 520.7 cm⁻¹) enables automated daily self-checks, and long-term stability (<1 cm⁻¹ drift over 12 h) eliminates need for frequent recalibration in field deployments.
What spectral libraries are included by default?
The base library includes FDA-listed pharmaceuticals, common explosives, polymers, minerals, and illicit drugs; additional domain-specific libraries (e.g., cosmetics, agrochemicals) are available as licensed add-ons.
Is remote firmware update supported?
Yes—over-the-air (OTA) updates are delivered via encrypted HTTPS connection through the SpectraSuite desktop application, with version rollback capability and SHA-256 signature verification.
