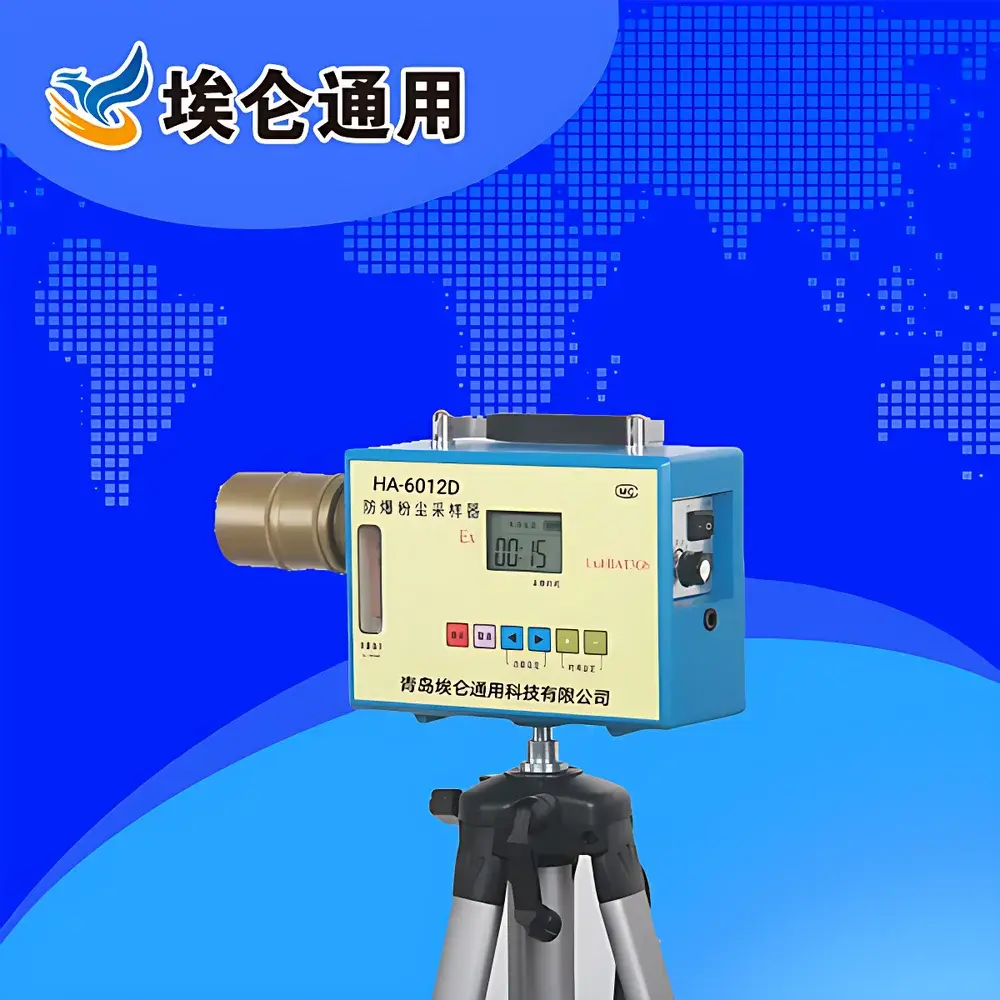

Ailun HA-6012D Intrinsically Safe Mining Dust Sampler

Overview

The Ailun HA-6012D Intrinsically Safe Mining Dust Sampler is a portable, battery-powered sampling instrument engineered for reliable, compliant collection of respirable and total airborne particulate matter in hazardous mining and industrial environments. Designed in accordance with the fundamental principles of gravimetric dust sampling—where air is drawn through a size-selective preseparator and captured on a pre-weighed filter—the HA-6012D implements a dual-head configuration to simultaneously collect respirable and total dust fractions. Its core separation mechanism conforms to the British Medical Research Council (BMRC) inhalability curve, ensuring alignment with internationally accepted criteria for respirable dust definition (ISO 7708:1995, EN 481:1993). The device operates under intrinsic safety (Ex ib I Mb) certification per IEC 60079-0 and IEC 60079-11, making it suitable for use in methane-rich underground coal mines and other Class I, Zone 0/1 explosive atmospheres where ignition risk must be eliminated at the circuit level.

Key Features

• Intrinsically safe design certified to Ex ib I Mb (Certificate No. SHExC19.0180), enabling safe operation in explosive gas atmospheres per GB 3836.1–2010 and GB 3836.4–2010.
• Dual-sampling capability: Integrated dual-head interface supports concurrent collection of respirable dust (via cyclonic or impactor-based BMRC-compliant preseparator) and total dust (via standard 37-mm or 25-mm cassette).
• Microprocessor-controlled timing system with user-defined interval setting from 00:00 to 99:59 h:min; automatic power cutoff upon timer expiration ensures data integrity and battery conservation.
• High-efficiency brushless diaphragm pump delivering stable flow across 5–30 L/min range, maintaining ≤5% flow deviation over time and under variable backpressure (>3000 Pa max negative pressure).
• Integrated rechargeable high-energy lithium-ion battery providing >180 minutes of continuous operation at 20 L/min (typical), with low-power indicator and charge-status feedback.
• Robust mechanical architecture: IP54-rated enclosure, compact footprint (200 × 75 × 140 mm), and lightweight construction (~2.0 kg) optimized for extended field deployment and belt-mounted use.

Sample Compatibility & Compliance

The HA-6012D is validated for use with standard 37-mm mixed-cellulose ester (MCE), polyvinyl chloride (PVC), or polytetrafluoroethylene (PTFE) filters, compatible with NIOSH Method 0600 and OSHA ID-130 for gravimetric analysis. Preseparator modules meet BMRC performance specifications per ISO 7708 Annex B and are calibrated against reference aerosols (e.g., DOP, NaCl) traceable to national metrology institutes. Regulatory compliance includes MT162–1995 (Chinese standard for workplace dust samplers), Q/FY-02–2005 (enterprise technical specification), and mandatory CPA (China Metrology Accreditation) Type Evaluation Approval. While not FDA 21 CFR Part 11 or GLP-certified (as it is a field sampling tool, not a data-generating analytical instrument), its timer and flow stability support audit-ready documentation required under Chinese occupational health regulations (GBZ 159–2004, GBZ/T 192.1–2007).

Software & Data Management

The HA-6012D operates as a standalone hardware platform without embedded Bluetooth, Wi-Fi, or proprietary software. All operational parameters—including start/stop time, duration, and flow setting—are manually configured via tactile keypad and displayed on a high-contrast LCD. Timekeeping accuracy is maintained to ±0.5 sec/hour using a temperature-compensated quartz oscillator. For laboratory integration, users record field metadata (sample ID, location, duration, flow rate, environmental conditions) in standardized logbooks or LIMS-compatible spreadsheets. Calibration certificates, CPA reports, and explosion-proof certification documents are supplied digitally (PDF) and may be archived in electronic quality management systems supporting ISO/IEC 17025 Clause 7.7 traceability requirements.

Applications

• Occupational hygiene monitoring in underground coal mines, metal/non-metal quarries, tunneling operations, and cement production facilities.
• Respirable crystalline silica (RCS) exposure assessment per GBZ 2.1–2019 and EU Directive 2017/2398.
• Baseline and periodic air quality surveys in confined spaces where combustible dust or methane presence mandates intrinsically safe instrumentation.
• Research-grade particulate exposure studies requiring simultaneous respirable/total dust fractionation under field-realistic conditions.
• Regulatory compliance verification for employers subject to China’s Work Safety Law (2021 Amendment) and the Occupational Disease Prevention and Control Act.

FAQ

Is the HA-6012D certified for use in Zone 0 explosive atmospheres?
Yes—it carries Ex ib I Mb certification (SHExC19.0180), indicating suitability for Zone 0 (continuous gas hazard) and Zone 1 (likely gas hazard) per IEC 60079-0 and GB 3836.1.
Can the instrument maintain 2.2 L/min for respirable dust sampling per ISO 7708?
The HA-6012D’s 5–30 L/min range does not extend down to 2.2 L/min; it is intended for higher-flow applications (e.g., 10–20 L/min with cyclone preseparators), consistent with MT162–1995 and typical Chinese mine ventilation profiles.
Does the unit include NIST-traceable calibration documentation?
Factory calibration is performed using a primary-standard dry calibrator (e.g., Gilian Gilibrator-2) with uncertainty ≤±1.5% (k=2); full calibration report and CPA type approval certificate are included.
What filter cassettes are compatible with the dual-head assembly?
Standard 37-mm PVC or MCE filters housed in 37-mm aluminum or conductive plastic cassettes; 25-mm options require optional adapter kit (sold separately).
Is firmware upgrade capability supported?
No—the HA-6012D uses fixed-function microcontroller firmware; no field-upgrade path exists, in accordance with intrinsic safety certification constraints.
