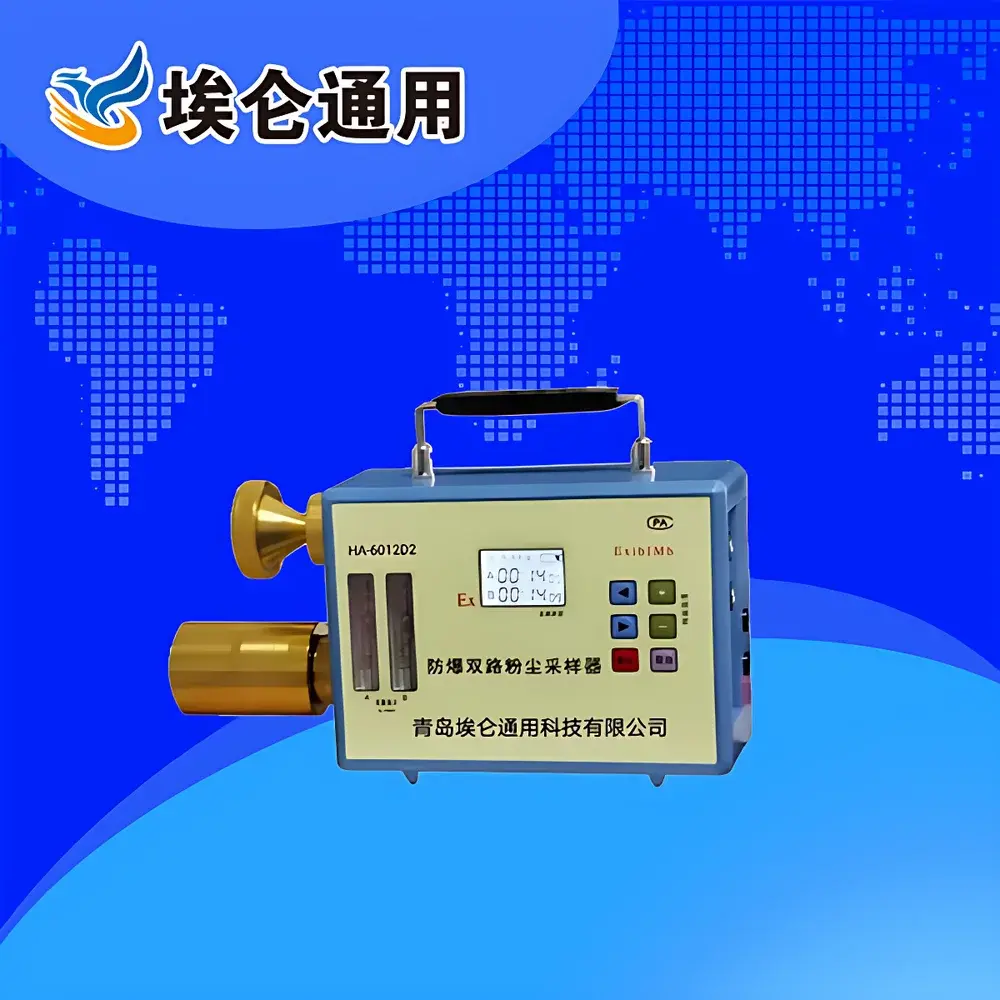

Ailun HA-6012D2 Intrinsically Safe Dual-Channel Dust Sampler

Overview

The Ailun HA-6012D2 Intrinsically Safe Dual-Channel Dust Sampler is a certified field-deployable instrument engineered for simultaneous, real-time collection of both total suspended particulate (TSP) and respirable dust fractions in hazardous environments. It operates on the principle of size-selective inertial separation—utilizing two parallel sampling trains, each equipped with a standardized preseparator calibrated to the British Medical Research Council (BMRC) inhalability curve. This dual-path architecture enables concurrent gravimetric analysis of respirable dust (aerodynamic diameter ≤ 4 µm) and total dust (≤ 100 µm), supporting occupational exposure assessment per OSHA Method ID-125G, NIOSH Methods 0500 and 0600, and ISO 7708:2022. Its intrinsic safety design (Ex ib I Mb) ensures safe operation in methane- and coal-dust-laden atmospheres classified under IEC 60079-0 and GB 3836.4–2021, making it suitable for underground mining, tunneling, cement production, and chemical processing facilities where explosive gas or dust clouds may be present.

Key Features

• Intrinsically safe dual-pump system with independent flow control for simultaneous respirable and total dust sampling
• Microprocessor-based timing circuit with ±0.1% accuracy over full 99 h 59 min range, traceable to internal quartz oscillator
• Auto-compensating constant-flow control loop maintaining ±5% deviation across variable filter loading and battery discharge states
• Integrated lithium-ion battery pack delivering >240 minutes of continuous operation at 20 L/min per channel
• Real-time battery voltage display and low-voltage warning threshold to prevent under-sampling due to power decay
• Compact ABS polymer housing (210 × 90 × 150 mm; 2.4 kg), optimized for belt-mounting and extended worker wearability
• Adjustable flow range (3–30 L/min per channel) via precision needle valve and digital feedback calibration
• Compliance with BMRC respirable dust cutoff curve (≥90% collection efficiency at 4 µm aerodynamic diameter)

Sample Compatibility & Compliance

The HA-6012D2 supports standard 25-mm and 37-mm diameter membrane filters (e.g., PVC, PTFE, mixed cellulose ester) mounted in NIOSH-approved cassettes. Its impactor-based respirable preseparator meets the geometric and aerodynamic specifications defined in ISO 7708:2022 Annex B and EN 481:1993 for workplace aerosol fractionation. The total dust cyclone conforms to ISO 7708:2022 TSP definition and is validated per ASTM D1357–96. All mechanical components are rated for use in Zone 1/21 hazardous locations per IEC 60079-10-1 and GB 50058–2014. The device carries SHExC certification (No. SHExC20.1643), confirming compliance with explosion protection requirements for Category M1 mining equipment under Directive 2014/34/EU.

Software & Data Management

While the HA-6012D2 operates as a standalone hardware sampler without embedded data logging, it integrates seamlessly into laboratory QA/QC workflows through its programmable timer and repeatable manual start/stop protocol. Field data—including start time, duration, flow rate setting, and battery status—is manually recorded on standardized OSHA or NIOSH chain-of-custody forms. For GLP-compliant operations, users may pair the unit with external Bluetooth-enabled flow calibrators (e.g., DryCal DC-Lite) and document calibration certificates per ISO/IEC 17025:2017. Audit trails for maintenance, calibration, and usage history are maintained per facility SOPs, supporting FDA 21 CFR Part 11–aligned record retention when paired with validated electronic lab notebooks.

Applications

• Occupational hygiene monitoring in coal mines, metal ore extraction, and quarrying operations
• Respirable crystalline silica (RCS) exposure assessment in construction, masonry, and abrasive blasting
• Workplace air quality evaluation in pharmaceutical manufacturing cleanrooms and powder handling areas
• Environmental baseline studies near industrial stack emissions or road dust resuspension zones
• Regulatory compliance sampling for national standards including GBZ 2.1–2019 (China) and EU Directive 2004/37/EC (CARC)
• Field validation of local exhaust ventilation (LEV) system performance

FAQ

What does “Ex ib I Mb” certification mean for field deployment?
It certifies that the device is intrinsically safe for use in methane-rich underground mines (Category M1) and can be energized during explosive gas presence without initiating ignition.
Can the HA-6012D2 be used for PM2.5 or PM10 sampling?
No—it is specifically configured for respirable dust (BMRC curve) and total dust; PM2.5/PM10 requires WEL or TEOM-based instrumentation per ISO 12103-1 and EN 12341.
Is flow calibration required before each sampling event?
Yes—per NIOSH Manual of Analytical Methods (NMAM), primary calibration using a NIST-traceable dry calibrator must be performed pre- and post-sampling to verify flow stability within ±5%.
How is battery life affected at extreme temperatures?
At −20 °C, usable capacity decreases by ~25%; operation below 0 °C requires thermal insulation of the battery compartment to maintain voltage regulation.
Does the unit support remote start/stop or wireless data transmission?
No—it is a Class II, non-networked analog/digital hybrid device designed for simplicity, reliability, and intrinsic safety—not telematics integration.
